Observation of the Josephson-Anderson relation in experiments on hydrodynamic drag

Nicola Savelli, Ali R. Khojasteh, Abel-John Buchner, Jerry Westerweel, and Willem van de Water*

  • *Contact author: w.vandewater@tudelft.nl
PDF

Phys. Rev. Fluids 11, 024701 – Published 10 February, 2026

DOI: https://doi.org/10.1103/bcwy-gt4l

Abstract

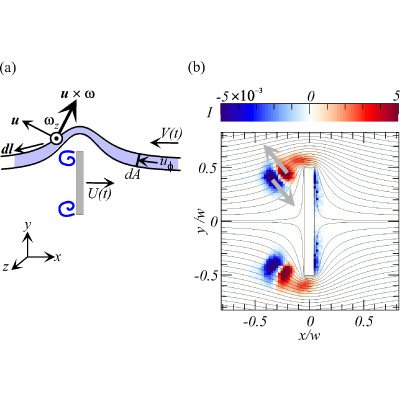

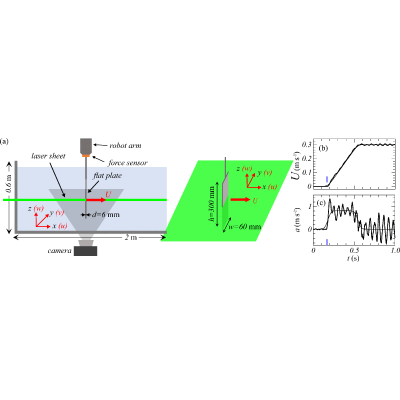

We verify a recent prediction [Eq. (3.50) in Eyink, Phys. Rev. X 11, 031054 (2021)] for the drag on an object moving through a fluid. In this prediction the velocity field is decomposed into a nonvortical (potential) and vortical contribution, and so is the associated drag force. In the Josephson-Anderson relation the vortical contribution of the drag force follows from the flux of vorticity traversing the streamlines of the corresponding potential flow. The potential component is directly determined by the plate acceleration and its added mass. The Josephson-Anderson relation is derived from the quantum description of superfluids, but remarkably applies to the classical fluid in our experiment. In our experiment a flat plate is accelerated through water using a robotic arm. This geometry is simple enough to allow analytic potential flow streamlines. The monitored plate position shows an oscillatory component of the acceleration, which adds an additional test of the Josephson-Anderson relation. The instantaneous velocity field is measured using particle image velocimetry. It enables us to evaluate Eq. 3.50 from the above-mentioned paper and compare its prediction to the measured drag force. We find excellent agreement and, most remarkably, find that the added mass contribution to the drag force still stands out after the flow has turned vortical. We finally comment on the requirements for the experimental techniques for evaluating the Josephson-Anderson relation.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (28)

  1. G. L. Eyink, Josephson-Anderson relation and the classical D'Alembert paradox, Phys. Rev. X 11, 031054 (2021).
  2. G. L. Eyink, Erratum: Josephson-Anderson relation and the classical D'Alembert paradox, Phys. Rev. X 14, 039901(E) (2024).
  3. S. Kumar and G. L. Eyink, A Josephson-Anderson relation for drag in classical channel flows with streamwise periodicity: Effects of wall roughness, Phys. Fluids 36, 093113 (2024).

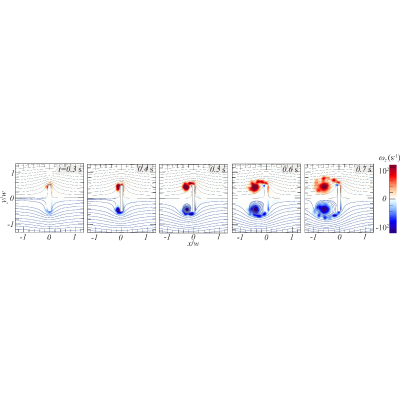

  4. See Supplemental Material at http://link.aps.org/supplemental/10.1103/bcwy-gt4l for animations of Figs. 1 and 2.
  5. A. Biesheuvel and R. Hagmeijer, On the force on a body moving through a fluid, Fluid Dyn. Res. 38, 716 (2006).
  6. J. M. Burgers, On the resistance of fluids and vortex motion, Proc. K. Akad. Wet. 23, 774 (1921).
  7. W. R. Graham, Decomposition of the forces on a body moving in an incompressible fluid, J. Fluid Mech. 881, 1097 (2019).
  8. S. J. Corkery, H. Babinsky, and W. R. Graham, Quantification of added-mass effects using particle image velocimetry data for a translating and rotating flat plate, J. Fluid Mech. 870, 492 (2019).
  9. E. Limacher, J. McClure, S. Yarusevych, and C. Morton, Comparison of momentum and impulse formulations for PIV-based force estimation, Meas. Sci. Technol. 31, 054001 (2020).
  10. P. Gehlert, I. Andreu-Angulo, and H. Babinsky, Vortex force decomposition—Forces associated with individual elements of a vorticity field, Exp. Fluids 64, 112 (2023).
  11. E. J. Grift, N. B. Vijayaragavan, M. J. Tummers, and J. Westerweel, Drag force on an accelerating submerged plate, J. Fluid Mech. 866, 369 (2019).
  12. J. Reijtenbagh, M. J. Tummers, and J. Westerweel, Drag force on a starting plate scales with square root of acceleration, Phys. Rev. Lett. 130, 174001 (2023).
  13. E. R. Huggins, Energy-dissipation theorem and detailed Josephson equation for ideal incompressible fluids, Phys. Rev. A 1, 332 (1970).
  14. B. W. van Oudheusden, PIV- based pressure measurement, Meas. Sci. Technol. 24, 032001 (2013).
  15. K. N. Lucas, J. O. Dabiri, and G. V. Lauder, A pressure-based force and torque prediction technique for the study of fish-like swimming, PLoS One 12, e0189225 (2017).
  16. D. E. Rival and B. van Oudheusden, Load-estimation techniques for unsteady incompressible flows, Exp. Fluids 58, 20 (2017).
  17. J. C. Wu, Theory for aerodynamic force and moment in viscous flows, AIAA J. 19, 432 (1981).
  18. J. Lighthill, Fundamentals concerning wave loading on offshore structures, J. Fluid Mech. 173, 667 (1986).
  19. M. S. Howe, On the force and moment on a body in an incompressible fluid, with application to rigid bodies and bubbles at high and low Reynolds numbers, Q. J. Mech. Appl. Math. 48, 401 (1995).
  20. J. Li and Z. Wu, Vortex force map method for viscous flows of general airfoils, J. Fluid Mech. 836, 145 (2018).
  21. D. S. F. Noa and D. Jeon, A comparison of methods for evaluating time-dependent fluid dynamic forces on bodies, using only velocity fields and their derivatives, J. Fluids Struct. 13, 551 (1999).
  22. J. Li, Y. Wang, M. Graham, and X. Zhao, Evaluating unsteady fluid dynamic forces in viscous flows from the vorticity field, AIAA J. 59, 22 (2021).
  23. K. Menon and R. Mittal, Significance of the strain-dominated region around a vortex on induced aerodynamic loads, J. Fluid Mech. 918, R3 (2021).
  24. S. Otomo, P. Gehlert, H. Babinsky, and J. Li, Vortex map method to estimate unsteady forces from snapshot flowfield measurements, Exp. Fluids 66, 64 (2025).
  25. J. D. Eldredge, A reconciliation of viscous and inviscid approaches to computing locomotion of deforming bodies, Exp. Mech. 50, 1349 (2010).
  26. E. Limacher, C. Morton, and D. Wood, Generalized derivation of the added-mass and circulatory forces for viscous flows, Phys. Rev. Fluids 3, 014701 (2018).
  27. T. A. Driscoll and L. N. Trefethen, Schwarz-Christoffel Mapping (Cambridge University Press, Cambridge, 2009).
  28. M. Gharib, E. Rambod, and K. Shariff, A universal time scale for vortex ring formation, J. Fluid Mech. 360, 121 (1998).
