Thermodynamically consistent continuum theory of magnetic particles in high-gradient fields

Marko Tesanovic1,*,†, Daniel M. Markiewitz2,*, Marcus L. Popp1, Martin Z. Bazant2,3, and Sonja Berensmeier1,4

  • *These authors contributed equally to this work.
  • †Contact author: m.tesanovic@tum.de
PDF

Phys. Rev. Fluids 11, 054302 – Published 11 May, 2026

DOI: https://doi.org/10.1103/9vzx-5dyv

Abstract

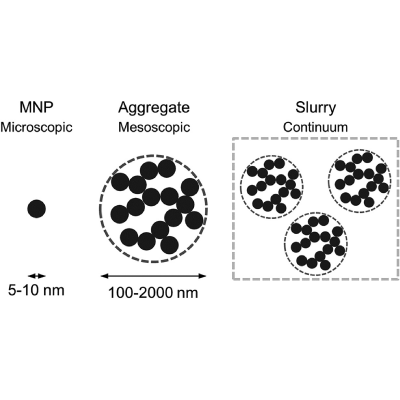

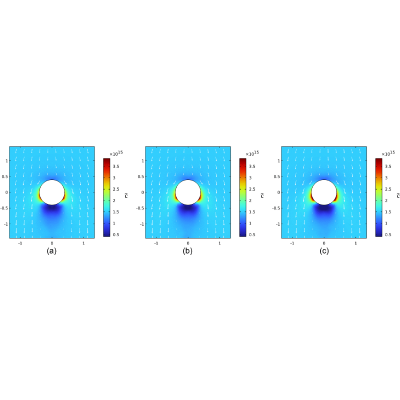

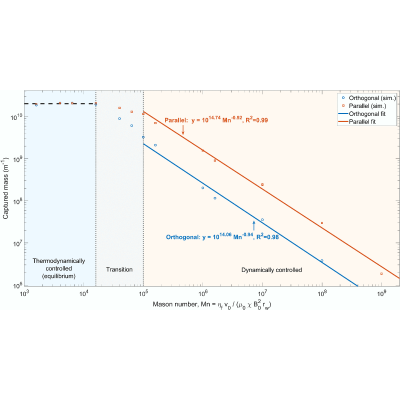

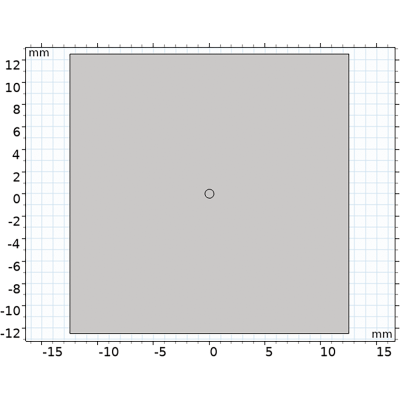

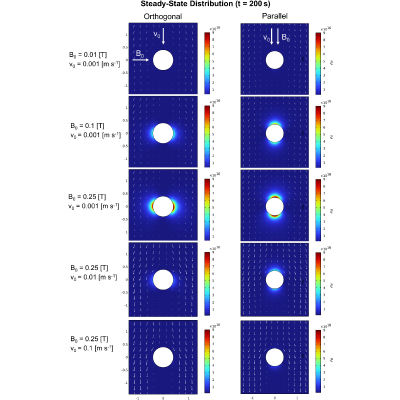

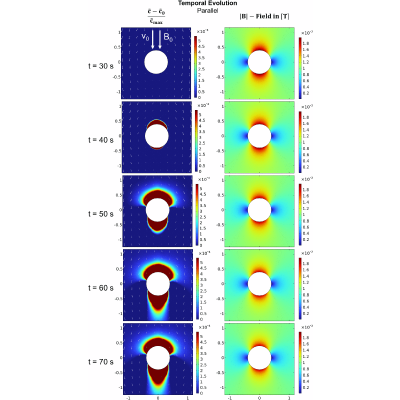

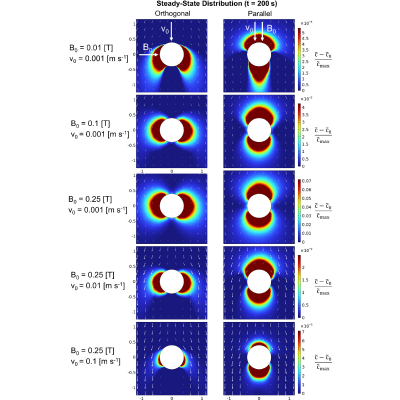

Magnetic particles underpin a broad range of technologies, from water purification and mineral processing to bioseparations and targeted drug delivery. The dynamics of magnetic particles in high-gradient magnetic fields—encompassing both their transport and eventual capture—arise from the coupled interplay of field-driven drift, fluid advection, and particle-field feedback. These processes remain poorly captured by existing models relying on empirical closures or discrete particle tracking. Here we present a thermodynamically consistent continuum theory for collective magnetic particle transport and capture in high-gradient fields. The framework derives from a free-energy functional that couples magnetic energy, entropic mixing, and steric interactions, yielding a concentration-dependent susceptibility via homogenization theory. The resulting equations unify magnetism, mass transport, and momentum balances without ad hoc shut-off criteria, allowing field shielding, anisotropic deposition, and boundary-layer confinement to emerge naturally. Simulations predict canonical capture morphologies—axially aligned plumes, crescent-shaped deposits, and nonlinear shielding—across field strengths and flow regimes, consistent with trends reported in prior experimental and modeling studies. By organizing captured particle mass data into a dimensionless phase diagram based on the Mason number, we reveal three distinct regimes—thermodynamically controlled, transitional, and dynamically controlled. This perspective provides a predictive platform for in silico optimization and extension to 3D geometries, and informing digital twin development for industrial-scale high-gradient magnetic separation processes.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. M. Lee, A. Shelke, S. Singh, J. Fan, P. Zaleski, and S. Afkhami, Numerical simulation of superparamagnetic nanoparticle motion in blood vessels for magnetic drug delivery, Phys. Rev. E 106, 015104 (2022).
  2. R. Nithya, A. Thirunavukkarasu, A. B. Sathya, and R. Sivashankar, Magnetic materials and magnetic separation of dyes from aqueous solutions: A review, Environ. Chem. Lett. 19, 1275 (2021).
  3. A. Srivastava, G. L. Devnani, and P. Gupta, Magnetic separation and degradation approaches for effective microplastic removal from aquatic and terrestrial environments, Mater. Adv. 6, 3043 (2025).
  4. S. P. Schwaminger, P. Fraga-García, M. Eigenfeld, T. M. Becker, and S. Berensmeier, Magnetic separation in bioprocessing beyond the analytical scale: From biotechnology to the food industry, Front. Bioeng. Biotechnol. 7, 233 (2019).
  5. F. Chen, K. A. Smith, and T. A. Hatton, A dynamic buildup growth model for magnetic particle accumulation on single wires in high‐gradient magnetic separation, AIChE J. 58, 2865 (2012).
  6. H. Kolm, Research needs in magnetic separation, IEEE Trans. Magn. 12, 450 (1976).
  7. M. Tesanovic, T. Bardel, R. Karl, and S. Berensmeier, Towards a digital twin: Digitization and model-based optimization of the innovative high-gradient magnetic separator, Curr. Res. Biotechnol. 10, 100324 (2025).
  8. M. Z. Bazant, M. S. Kilic, B. D. Storey, and A. Ajdari, Towards an understanding of induced-charge electrokinetics at large applied voltages in concentrated solutions, Adv. Colloid Interface Sci. 152, 48 (2009).
  9. M. Ebeler, F. Pilgram, K. Wolz, G. Grim, and M. Franzreb, Magnetic separation on a new level: Characterization and performance prediction of a cGMP compliant “Rotor-Stator” high-gradient magnetic separator, Biotechnol. J. 13, 1700448 (2018).
  10. M. Ebeler, O. Lind, N. Norrman, R. Palmgren, and M. Franzreb, One-step integrated clarification and purification of a monoclonal antibody using Protein A Mag Sepharose beads and a cGMP-compliant high-gradient magnetic separator, New Biotechnol. 42, 48 (2018).
  11. E. Krolitzki, S. Steck, A. Nazifi, M. Abt, S. P. Schwaminger, and S. Berensmeier, How to design a low-cost pilot scale magnetic bioseparation process for protein separation from complex mixtures using in-line process analytics, Sep. Purif. Technol. 323, 124429 (2023).
  12. N. A. Brechmann, P.-O. Eriksson, K. Eriksson, S. Oscarsson, J. Buijs, A. Shokri, G. Hjälm, and V. Chotteau, Pilot-scale process for magnetic bead purification of antibodies directly from non-clarified CHO cell culture, Biotechnol. Progr. 35, e2775 (2019).
  13. M. Tesanovic, I. Zimmermann, M. Schneider, and S. Berensmeier, Modeling magnetic separation for hIgG purification: A theoretical and experimental study, Sep. Purif. Technol. 369, 132791 (2025).
  14. F. Turco, A. Wegelius, O. Lind, N. Norrman, A.-C. Magnusson, C. Sund-Lundström, B. Norén, J. Hedberg, and R. Palmgren, Combined clarification and affinity capture using magnetic resin enables efficient separation of rAAV5 from cell lysate, Mol. Ther. Methods Clin. Dev. 30, 394 (2023).
  15. Z. Hu, J. Liu, L. Han, Y. Wang, D. Lu, X. Zheng, and Z. Xue, Dynamic particle accumulation on a single wire in transverse field pulsating high gradient magnetic separator, Miner. Eng. 183, 107609 (2022).
  16. N. Choomphon-anomakhun, A. D. Ebner, M. Natenapit, and J. A. Ritter, Simulation of dynamic magnetic particle capture and accumulation around a ferromagnetic wire, J. Magn. Magn. Mater. 428, 493 (2017).
  17. M. Tesanovic, J. P. de Souza, M. Z. Bazant, and S. Berensmeier, Magnetic particle capture in high-gradient magnetic separation: A theoretical and experimental study, AIChE J. 71, e18733 (2025).
  18. O. Wiener, Die Theorie des Mischkörpers für das Feld der stationären Strömung. I. Die Mittelwertsätze für Kraft, Polarisation und Energie, Abhandlungen der Mathematisch-Physischen Klasse der Königlich Sächsischen Gesellschaft der Wissenschaften 32, 509 (1912).
  19. S. Torquato, Random Heterogeneous Materials Microstructure and Macroscopic Properties, Interdisciplinary Applied Mathematics Vol. 16 (Springer, New York, 2002).
  20. E. P. Furlani and K. C. Ng, Analytical model of magnetic nanoparticle transport and capture in the microvasculature, Phys. Rev. E 73, 061919 (2006).
  21. Z. Hashin and S. Shtrikman, A variational approach to the theory of the effective magnetic permeability of multiphase materials, J. Appl. Phys. 33, 3125 (1962).
  22. Z. Hashin and S. Shtrikman, A variational approach to the theory of the elastic behaviour of polycrystals, J. Mech. Phys. Solids 10, 343 (1962).
  23. D. Fraggedakis, M. Mirzadeh, T. Zhou, and M. Z. Bazant, Dielectric breakdown by electric-field induced phase separation, J. Electrochem. Soc. 167, 113504 (2020).
  24. M. Z. Bazant, B. D. Storey, and A. A. Kornyshev, Double layer in ionic liquids: Overscreening versus crowding, Phys. Rev. Lett. 106, 046102 (2011).
  25. R. E. García, C. M. Bishop, and W. C. Carter, Thermodynamically consistent variational principles with applications to electrically and magnetically active systems, Acta Mater. 52, 11 (2004).
  26. N. F. Carnahan and K. E. Starling, Equation of state for nonattracting rigid spheres, J. Chem. Phys. 51, 635 (1969).
  27. S. R. d. Groot and P. Mazur, Non-Equilibrium Thermodynamics (North-Holland, Amsterdam, 1962).
  28. G. K. Batchelor, Brownian diffusion of particles with hydrodynamic interaction, J. Fluid Mech. 74, 1 (1976).
  29. M. R. Maxey and J. J. Riley, Equation of motion for a small rigid sphere in a nonuniform flow, Phys. Fluids 26, 883 (1983).
  30. P. Bagchi and S. Balachandar, Effect of turbulence on the drag and lift of a particle, Phys. Fluids 15, 3496 (2003).
  31. M. H. Kasbaoui, D. L. Koch, and O. Desjardins, Clustering in Euler–Euler and Euler–Lagrange simulations of unbounded homogeneous particle-laden shear, J. Fluid Mech. 859, 174 (2019).
  32. J. F. Brady, The rheological behavior of concentrated colloidal dispersions, J. Chem. Phys. 99, 567 (1993).
  33. J. Mewis and N. J. Wagner, Colloidal Suspension Rheology, Cambridge Series in Chemical Engineering (Cambridge University Press, Cambridge, 2013).
  34. D. L. Koch and R. J. Hill, Inertial effects in suspension and porous-media flows, Annu. Rev. Fluid Mech. 33, 619 (2001).
  35. B. Todd and J. Hansen, Nonlocal viscous transport and the effect on fluid stress, Phys. Rev. E 78, 051202 (2008).
  36. M. Bouzid, A. Izzet, M. Trulsson, E. Clément, P. Claudin, and B. Andreotti, Non-local rheology in dense granular flows: Revisiting the concept of fluidity, Eur. Phys. J. E 38, 125 (2015).
  37. H. W. Müller and M. Liu, Structure of ferrofluid dynamics, Phys. Rev. E 64, 061405 (2001).
  38. M. Z. Bazant, Theory of chemical kinetics and charge transfer based on nonequilibrium thermodynamics, Acc. Chem. Res. 46, 1144 (2013).
  39. T. Gao, Y. Han, D. Fraggedakis, S. Das, T. Zhou, C.-N. Yeh, S. Xu, W. C. Chueh, J. Li, and M. Z. Bazant, Interplay of lithium intercalation and plating on a single graphite particle, Joule 5, 393 (2021).
  40. M. Franzreb, Magnettechnologie in der Verfahrenstechnik wässriger Medien, Wissenschaftliche Berichte FZKA 6916 (Forschungszentrum Karlsruhe, Karlsruhe, 2003).

Outline

Information

Phys. Rev. Fluids 11, 054302– Published 11 May, 2026
  • Received 6 November 2025
  • Accepted 10 April 2026
