Compressibility effects on drag reduction by spanwise traveling transversal surface waves in turbulent boundary layers

Xiao Shao1,*, Marian Albers1, Matthias Meinke1, and Wolfgang Schröder1,2

  • *Contact author: x.shao@aia.rwth-aachen.de
PDF

Phys. Rev. Fluids 10, 094603 – Published 23 September, 2025

DOI: https://doi.org/10.1103/2882-bszw

Abstract

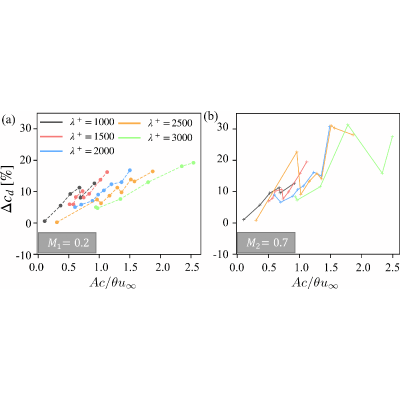

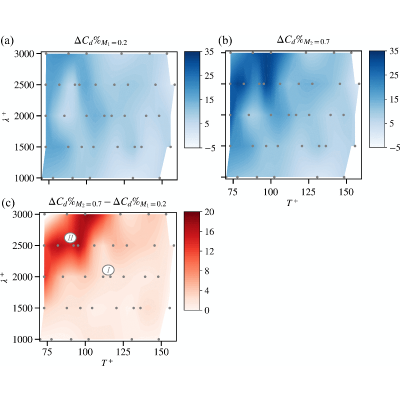

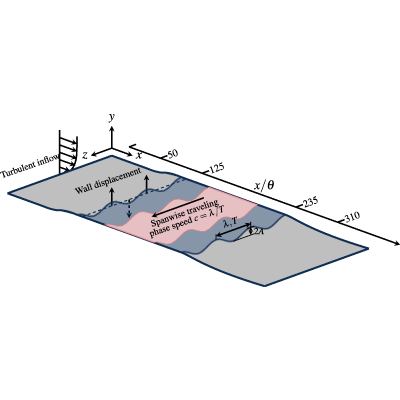

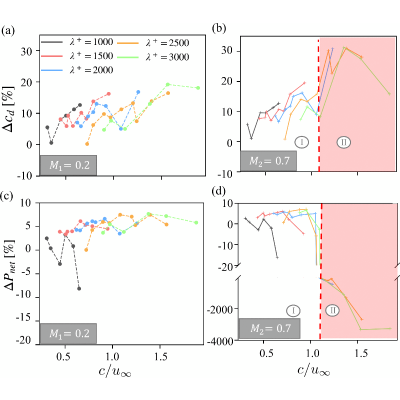

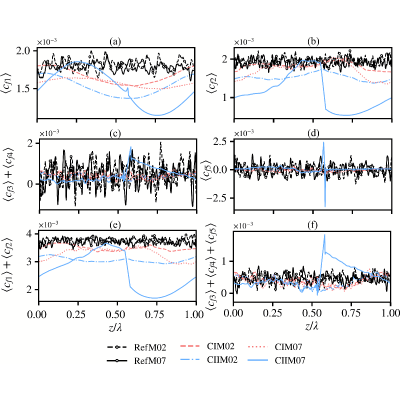

The effect of compressibility on drag reduction (DR) by spanwise traveling transversal surface waves (STTSW) is investigated in turbulent boundary layer (TBL) flow over a flat plate. Wall-resolved simulations are performed at Mach numbers M1=0.2 and M2=0.7 over a range of actuation parameters, i.e., wavelength, period, and amplitude. The results based on 36 cases simulated for each Mach number show that DR is more pronounced at higher Mach numbers with a maximum reduction of 19.2% at M1=0.2 compared to 27.5% at M2=0.7 for identical actuation parameters. This enhanced DR at M2=0.7 is mainly due to the formation of spanwise shock waves at higher phase velocities. These spanwise shock waves are generated by the actuated wall deformation that redistributes the pressure field. Upstream of the shock, in the supersonic flow region, the development of streamwise vortices is weakened, resulting in reduced turbulent mixing and dissipation. Downstream of the shock, the turbulent structures are reorganized due to the compression wave leading to locally high wall-shear stress. Integrating the wall-shear stress distribution over the complete surface wave shows that the spanwise shock waves cause significant friction drag reduction. However, the pressure variations upstream and downstream of the shock wave require an increased actuation power, which results in negative net power saving at M2=0.7.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (47)

  1. P. Ricco, M. Skote, and M. A. Leschziner, A review of turbulent skin-friction drag reduction by near-wall transverse forcing, Prog. Aerosp. Sci. 123, 100713 (2021).
  2. H. Choi, P. Moin, and J. Kim, Active turbulence control for drag reduction in wall-bounded flows, J. Fluid Mech. 262, 75 (1994).
  3. W.-J. Jung, N. Mangiavacchi, and R. Akhavan, Suppression of turbulence in wall-bounded flows by high-frequency spanwise oscillations, Phys. Fluids A 4, 1605 (1992).
  4. Y. Du, V. Symeonidis, and G. Karniadakis, Drag reduction in wall-bounded turbulence via a transverse travelling wave, J. Fluid Mech. 457, 1 (2002).
  5. M. Quadrio, P. Ricco, and C. Viotti, Streamwise-travelling waves of spanwise wall velocity for turbulent drag reduction, J. Fluid Mech. 627, 161 (2009).
  6. I. Marusic, D. Chandran, A. Rouhi, M. K. Fu, D. Wine, B. Holloway, D. Chung, and A. J. Smits, An energy-efficient pathway to turbulent drag reduction, Nat. Commun. 12, 5805 (2021).
  7. S. Klumpp, M. Meinke, and W. Schröder, Friction drag variation via spanwise transversal surface waves, Flow Turb. Combust. 87, 33 (2011).
  8. N. Tomiyama and K. Fukagata, Direct numerical simulation of drag reduction in a turbulent channel flow using spanwise traveling wave-like wall deformation, Phys. Fluids 25, 105115 (2013).
  9. M. Albers, P. S. Meysonnat, D. Fernex, R. Semaan, B. R. Noack, and W. Schröder, Drag reduction and energy saving by spanwise traveling transversal surface waves for flat plate flow, Flow Turbul. Combust. 105, 125 (2020).
  10. M. Albers and W. Schröder, Lower drag and higher lift for turbulent airfoil flow by moving surfaces, Int. J. Heat Fluid Flow 88, 108770 (2021).
  11. E. Mäteling, M. Albers, and W. Schröder, How spanwise travelling transversal surface waves change the near-wall flow, J. Fluid Mech. 957, A30 (2023).
  12. K. Fukagata, K. Iwamoto, and Y. Hasegawa, Turbulent drag reduction by streamwise traveling waves of wall-normal forcing, Annu. Rev. Fluid Mech. 56, 69 (2024).
  13. E. Lagemann, M. Albers, C. Lagemann, and W. Schröder, Impact of Reynolds number on the drag reduction mechanism of spanwise travelling surface waves, Flow Turbul. Combust. 113, 27 (2024).
  14. J. Yao and F. Hussain, Supersonic turbulent boundary layer drag control using spanwise wall oscillation, J. Fluid Mech. 880, 388 (2019).
  15. M. Ruby and H. Foysi, Active control of compressible channel flow up to Mab=3 using direct numerical simulations with spanwise velocity modulation at the walls, GAMM-Mitteilungen 45, e202200004 (2022).
  16. F. Gattere, M. Zanolini, D. Gatti, M. Bernardini, and M. Quadrio, Turbulent drag reduction with streamwise-travelling waves in the compressible regime, J. Fluid Mech. 987, A30 (2024).
  17. Institute of Aerodynamics, RWTH Aachen University, m-AIA multiphysics flow solver in Aachen, Zenodo (2024), doi: 10.5281/zenodo.13350586.
  18. M.-S. Liou and C. J. Steffen, Jr., A new flux splitting scheme, J. Comput. Phys. 107, 23 (1993).
  19. M. Meinke, W. Schröder, E. Krause, and T. Rister, A comparison of second-and sixth-order methods for large-eddy simulations, Comput. Fluids 31, 695 (2002).
  20. C. W. Hirt, A. A. Amsden, and J. Cook, An arbitrary lagrangian-eulerian computing method for all flow speeds, J. Comput. Phys. 14, 227 (1974).
  21. B. Roidl, M. Meinke, and W. Schröder, A zonal RANS-LES method for compressible flows, Comput. Fluids 67, 1 (2012).
  22. B. Roidl, M. Meinke, and W. Schröder, Numerical investigation of shock wave boundary-layer interaction using a zonal RANS-LES ansatz, in High Performance Computing in Science and Engineering'10: Transactions of the High Performance Computing Center, Stuttgart (HLRS) 2010 (Springer, Berlin, 2011), pp. 369–383.
  23. M. Albers, X. Shao, and W. Schröder, Energy efficient actuated drag reduced compressible turbulent flat plate flow, Int. J. Heat Fluid Flow 106, 109314 (2024).
  24. F. Gattere, A. Chiarini, E. Gallorini, and M. Quadrio, Structure function tensor equations with triple decomposition, J. Fluid Mech. 960, A7 (2023).
  25. P. Huang, G. N. Coleman, and P. Bradshaw, Compressible turbulent channel flows: DNS results and modelling, J. Fluid Mech. 305, 185 (1995).
  26. D. Gatti and M. Quadrio, Reynolds-number dependence of turbulent skin-friction drag reduction induced by spanwise forcing, J. Fluid Mech. 802, 553 (2016).
  27. T. A. Oliver, N. Malaya, R. Ulerich, and R. D. Moser, Estimating uncertainties in statistics computed from direct numerical simulation, Phys. Fluids 26, 035101 (2014).
  28. J. Jeong and F. Hussain, On the identification of a vortex, J. Fluid Mech. 285, 69 (1995).
  29. A. G. Kravchenko, H. Choi, and P. Moin, On the relation of near-wall streamwise vortices to wall skin friction in turbulent boundary layers, Phys. Fluids A 5, 3307 (1993).
  30. K.-S. Choi, Near-wall structure of a turbulent boundary layer with riblets, J. Fluid Mech. 208, 417 (1989).
  31. K.-S. Choi, A survey of the turbulent drag reduction using passive devices, NASA STI/Recon Technical Report N 85, 20268 (1984).
  32. A. Lozano-Durán and J. Jiménez, Effect of the computational domain on direct simulations of turbulent channels up to Reτ=4200, Phys. Fluids 26, 011702 (2014).
  33. C. Smith and S. Metzler, The characteristics of low-speed streaks in the near-wall region of a turbulent boundary layer, J. Fluid Mech. 129, 27 (1983).
  34. C. Wenzel, T. Gibis, and M. Kloker, About the influences of compressibility, heat transfer and pressure gradients in compressible turbulent boundary layers, J. Fluid Mech. 930, A1 (2022).
  35. K. Fukagata, K. Iwamoto, and N. Kasagi, Contribution of Reynolds stress distribution to the skin friction in wall-bounded flows, Phys. Fluids 14, L73 (2002).
  36. N. Renard and S. Deck, A theoretical decomposition of mean skin friction generation into physical phenomena across the boundary layer, J. Fluid Mech. 790, 339 (2016).
  37. M. de Giovanetti, Y. Hwang, and H. Choi, Skin-friction generation by attached eddies in turbulent channel flow, J. Fluid Mech. 808, 511 (2016).
  38. Y. Kametani, K. Fukagata, R. Örlü, and P. Schlatter, Effect of uniform blowing/suction in a turbulent boundary layer at moderate Reynolds number, Int. J. Heat Fluid Flow 55, 132 (2015).
  39. Y. Fan, W. Li, and S. Pirozzoli, Decomposition of the mean friction drag in zero-pressure-gradient turbulent boundary layers, Phys. Fluids 31, 086105 (2019).
  40. Y. Fan, W. Li, M. Atzori, R. Pozuelo, P. Schlatter, and R. Vinuesa, Decomposition of the mean friction drag in adverse-pressure-gradient turbulent boundary layers, Phys. Rev. Fluids 5, 114608 (2020).
  41. P. Ricco and M. Skote, Integral relations for the skin-friction coefficient of canonical flows, J. Fluid Mech. 943, A50 (2022).
  42. W. Li, Y. Fan, D. Modesti, and C. Cheng, Decomposition of the mean skin-friction drag in compressible turbulent channel flows, J. Fluid Mech. 875, 101 (2019).
  43. A. Smits, N. Matheson, and P. Joubert, Low-Reynolds-number turbulent boundary layers in zero and favorable pressure gradients, J. Ship Res. 27, 147 (1983).
  44. Y. Fan, M. Atzori, R. Vinuesa, D. Gatti, P. Schlatter, and W. Li, Decomposition of the mean friction drag on an naca4412 airfoil under uniform blowing/suction, J. Fluid Mech. 932, A31 (2022).
  45. R. Ma, Z. Gao, L. Lu, and S. Chen, Skin-friction drag reduction by local porous uniform blowing in spatially developing compressible turbulent boundary layers, Phys. Fluids 34, 125130 (2022).
  46. http://www.gauss-centre.eu
  47. http://www.hlrs.de
