Effect of liquid structure on kinetic stability and glassy motifs

Kengo Nishio*

  • *Contact author: k-nishio@aist.go.jp
PDF

Phys. Rev. E 113, 055419 – Published 22 May, 2026

DOI: https://doi.org/10.1103/y76f-8w8d

Abstract

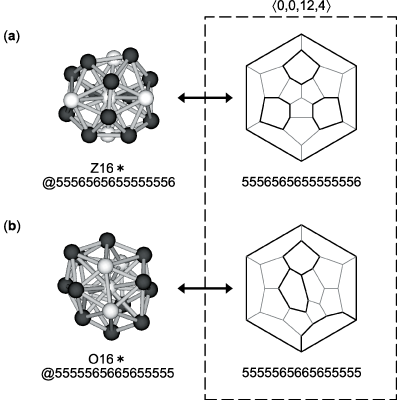

Although atoms in a supercooled liquid appear randomly arranged, local crystal-like structural motifs can emerge. Such motifs are assumed to reduce the kinetic stability of the liquid against crystallization. In this study, the relation between local structure and kinetic stability of a supercooled liquid alloy is investigated through molecular dynamics simulations, using a model alloy that forms Laves phases. To detect subtle structural differences relevant to crystallization, the liquid structure is analyzed using the p3 code. This method encodes each local environment as a graph with or without species labels. Unexpectedly, our analysis shows that liquids with more crystalline structural units can remain metastable for a longer time before crystallization. This apparent paradox is resolved by showing that kinetic stability increases when crystalline units do not easily connect to form extended clusters. Further analysis shows that clusters with the same Voronoi index can yield distinct graphs that exhibit different correlations with kinetic stability, revealing limitations of the traditional Voronoi index. Even clusters with the same graph can correlate differently due to variations in species labeling, highlighting the importance of chemical ordering. To capture medium-range order undetected by conventional analysis based on crystalline units, the concept of loose-crystalline units is introduced. Analysis of loose-crystalline configurations suggests that the previously observed fivefold twin-like motifs in the glassy state are remnants of crystal seeds frozen before they could fully develop. Our approach applies to various systems that form Laves phases.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. D. Turnbull and R. E. Cech, Microscopic observation of the solidification of small metal droplets, J. Appl. Phys. 21, 804 (1950).
  2. F. C. Frank, Supercooling of liquids, Proc. R. Soc. Lond. A 215, 43 (1952).
  3. A. Cavagna, Supercooled liquids for pedestrians, Phys. Rep. 476, 51 (2009).
  4. P. G. Debenedetti, Metastable Liquids (Princeton University Press, Princeton, 1996).
  5. K. F. Kelton, A perspective on metallic liquids and glasses, J. Appl. Phys. 134, 010902 (2023).
  6. J. D. Bernal, The Bakerian Lecture, 1962 The structure of liquids, Proc. R. Soc. A 280, 299 (1964).
  7. D. Coslovich and G. Pastore, Understanding fragility in supercooled Lennard-Jones mixtures. I. Locally preferred structures, J. Chem. Phys. 127, 124504 (2007).
  8. T. Kawasaki and H. Tanaka, Structural origin of dynamic heterogeneity in three-dimensional colloidal glass formers and its link to crystal nucleation, J. Phys.: Condens. Matter 22, 232102 (2010).
  9. J. Russo and H. Tanaka, The microscopic pathway to crystallization in supercooled liquids, Sci. Rep. 2, 505 (2012).
  10. F. Yonezawa, Glass transition and relaxation of disordered structures, Solid State Phys. 45, 179 (1991).
  11. W. Kob and H. C. Andersen, Testing mode-coupling theory for a supercooled binary Lennard-Jones mixture I: The van Hove correlation function, Phys. Rev. E 51, 4626 (1995).
  12. D. Coslovich, L. Galliano, and L. Costigliola, Freezing, melting, and the onset of glassiness in binary mixtures, J. Chem. Phys. 162, 061102 (2025).
  13. K. Nishio, A. K. A. Lu, and T. Miyazaki, Entropy-driven docosahedral short-range order in simple liquids and glasses, Phys. Rev. E 99, 022121 (2019).
  14. G. Wahnström, Molecular-dynamics study of a supercooled two-component Lennard-Jones system, Phys. Rev. A 44, 3752 (1991).
  15. U. R. Pedersen, N. P. Bailey, J. C. Dyre, and T. B. Schrøder, Crystallization of the Wahnström binary Lennard-Jones liquid, arXiv:0706.0813.
  16. F. Leoni, H. Tanaka, and J. Russo, Crystal nucleation in a vapor deposited Lennard-Jones mixture, J. Mol. Liq. 391, 123178 (2023).
  17. Z. Wang, B. Riechers, P. M. Derlet, and R. Maaß, Atomic cluster dynamics causes intermittent aging of metallic glasses, Acta Mater. 267, 119730 (2024).
  18. F. C. Frank and J. S. Kasper, Complex alloy structures regarded as sphere packings. I. Definitions and basic principles, Acta Crystallogr. 11, 184 (1958).
  19. U. R. Pedersen, T. B. Schrøder, J. C. Dyre, and P. Harrowell, Geometry of slow structural fluctuations in a supercooled binary alloy, Phys. Rev. Lett. 104, 105701 (2010).
  20. U. R. Pedersen, I. Douglass, and P. Harrowell, How a supercooled liquid borrows structure from the crystal, J. Chem. Phys. 154, 054503 (2021).
  21. K. Nishio and A. K. A. Lu, Unveiling a medium-range structural commonality of amorphous alloys, J. Non-Cryst. Solids 624, 122696 (2024).
  22. J. Ding, Y.-Q. Cheng, and E. Ma, Full icosahedra dominate local order in Cu64Zr34 metallic glass and supercooled liquid, Acta Mater. 69, 343 (2014).
  23. J. Zemp, M. Celino, B. Schönfeld, and J. F. Löffler, Crystal-like rearrangements of icosahedra in simulated copper-zirconium metallic glasses and their effect on mechanical properties, Phys. Rev. Lett. 115, 165501 (2015).
  24. A. K. A. Lu, K. Nishio, T. Morishita, K. Ohara, Z. Lu, and A. Hirata, Frank-Kasper Z16 local structures in Cu-Zr metallic glasses, Phys. Rev. B 102, 184201 (2020).
  25. K. Nishio and T. Miyazaki, How to describe disordered structures, Sci. Rep. 6, 23455 (2016).
  26. K. Nishio and T. Miyazaki, Notation for chemical arrangements in alloys, Phys. Rev. Res. 2, 023193 (2020).
  27. K. Nishio, Vorotis: Software for Voronoi tessellation analysis using the polyhedron code, Comput. Phys. Commun. 278, 108418 (2022).
  28. K. Nishio, Cluster classification by chemi-topology, Comput. Phys. Commun. 286, 108659 (2023).
  29. J. D. Honeycutt and H. C. Andersen, Molecular dynamics study of melting and freezing of small Lennard-Jones clusters, J. Phys. Chem. 91, 4950 (1987).
  30. F. Stein and A. Leineweber, Laves phases: a review of their functional and structural applications and an improved fundamental understanding of stability and properties, J. Mater. Sci. 56, 5321 (2021).
  31. D. Wang, T. Dasgupta, E. B. van der Wee, et al., Binary icosahedral clusters of hard spheres in spherical confinement, Nat. Phys. 17, 128 (2021).
  32. K. Nishio, Liquidus curve of a Lennard-Jones mixture, Phys. Rev. E 109, 044110 (2024).
  33. A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. in 't Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen, et al., LAMMPS - a flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  34. G. J. Martyna, M. L. Klein, and M. Tuckerman, Nosé–Hoover chains: The canonical ensemble via continuous dynamics, J. Chem. Phys. 97, 2635 (1992).
  35. M. Parrinello and A. Rahman, Polymorphic transitions in single crystals: A new molecular dynamics method, J. Appl. Phys. 52, 7182 (1981).
  36. W. Shinoda, M. Shiga, and M. Mikami, Rapid estimation of elastic constants by molecular dynamics simulation under constant stress, Phys. Rev. B 69, 134103 (2004).
  37. J. Sarnthein, A. Pasquarello, and R. Car, Structural and electronic properties of liquid and amorphous SiO2: An Ab Initio molecular dynamics study, Phys. Rev. Lett. 74, 4682 (1995).
  38. K. Nishio, LCS: A post-processing tool for analyzing loose-crystalline superclusters, Zenodo (2026), https://doi.org/10.5281/zenodo.19550411.
  39. W. H. Zachariasen, The atomic arrangement in glass, J. Am. Chem. Soc. 54, 3841 (1932).
  40. G. T. Barkema and N. Mousseau, High-quality continuous random networks, Phys. Rev. B 62, 4985 (2000).
  41. K. Nishio, Dataset for “Effect of liquid structure on kinetic stability and glassy motifs,” Zenodo (2026), https://doi.org/10.5281/zenodo.19199627
