Mass diffusion and bending in dynamic wetting by phase-field and sharp-interface models

Tomas Fullana1,2, Stéphane Zaleski1,3, and Gustav Amberg4,*

  • *Contact author: gustava@kth.se
PDF

Phys. Rev. E 112, 045108 – Published 21 October, 2025

DOI: https://doi.org/10.1103/xmj5-dbgp

Abstract

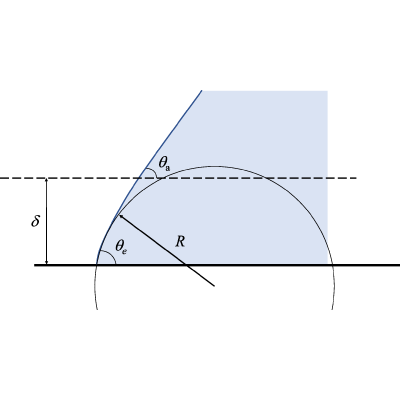

Dynamic wetting poses a well-known challenge in classical sharp-interface formulation as the no-slip wall condition leads to a contact line singularity that is typically regularized with a Navier boundary condition, often requiring empirical fitting for the slip length. On the other hand, this paradox does not appear in phase-field models as the contact line moves through diffusive mass transport. In this work, we present a toy model that accounts for mass diffusion at the contact line within a sharp-interface framework. This model is based on a theoretical relation derived from the Cahn-Hilliard equations, which links the total diffusive mass transport to the curvature at the wall. From an estimate of the chemical potential on a curved interface, we obtain an expression for the width of the highly curved region δ and the apparent angle. In the sharp-interface model, we then introduce a fictitious boundary, displaced by a distance δ into the domain, where a Navier boundary condition is applied along a dynamic apparent contact angle that accounts for the local interface bending. The robustness of the model is assessed by comparing the toy model results with standard phase-field ones on two cases: the steady state profiles of a liquid bridge between two plates moving in opposite directions and the transient behaviors of a drop spreading on a solid with a prescribed equilibrium angle. This offers a practical and efficient alternative to solve contact line problems at lower cost in a sharp-interface framework with input parameters from phase-field models.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. T. D. Blake and Y. D. Shikhmurzaev, Dynamic wetting by liquids of different viscosity, J. Colloid Interface Sci. 253, 196 (2002).
  2. L. M. Hocking, Rival contact-angle models and the spreading of drops, J. Fluid Mech. 239, 671 (1992).
  3. J. Eggers and R. Evans, Comment on “Dynamic wetting by liquids of different viscosity,” by T.D. Blake and Y.D. Shikhmurzaev, J. Colloid Interface Sci. 280, 537 (2004).
  4. M. Wilson, J. Summers, Y. D. Shikhmurzaev, A. Clarke, and T. D. Blake, Nonlocal hydrodynamic influence on the dynamic contact angle: Slip models versus experiment, Phys. Rev. E 73, 041606 (2006).
  5. Y. D. Shikhmurzaev, Singularities at the moving contact line: Mathematical, physical and computational aspects, Physica D 217, 121 (2006).
  6. D. Bonn, J. Eggers, J. Indekeu, J. Meunier, and E. Rolley, Wetting and spreading, Rev. Mod. Phys. 81, 739 (2009).
  7. J. H. Snoeijer and B. Andreotti, Moving contact lines: Scales, regimes, and dynamical transitions, Annu. Rev. Fluid Mech. 45, 269 (2013).
  8. C. Huh and L. E. Scriven, Hydrodynamic model of steady movement of a solid/liquid/fluid contact line, J. Colloid Interface Sci. 35, 85 (1971).
  9. U. Lācis, P. Johansson, T. Fullana, B. Hess, G. Amberg, S. Bagheri, and S. Zaleski, Steady moving contact line of water over a no-slip substrate, Eur. Phys. J.: Spec. Top. 229, 1897 (2020).
  10. T. Fullana, S. Zaleski, and S. Popinet, Dynamic wetting failure in curtain coating by the volume-of-fluid method, Eur. Phys. J.: Spec. Top. 229, 1923 (2020).
  11. D. Gründing, M. Smuda, T. Antritter, M. Fricke, D. Rettenmaier, F. Kummer, P. Stephan, H. Marschall, and D. Bothe, A comparative study of transient capillary rise using direct numerical simulations, Appl. Math. Model. 86, 142 (2020).
  12. S. Afkhami and M. Bussmann, Height functions for applying contact angles to 3D VOF simulations, Int. J. Numer. Meth. Fluids 61, 827 (2009).
  13. D. Legendre and M. Maglio, Comparison between numerical models for the simulation of moving contact lines, Comput. Fluids 113, 2 (2015).
  14. P. D. M. Spelt, A level-set approach for simulations of flows with multiple moving contact lines with hysteresis, J. Comput. Phys. 207, 389 (2005).
  15. Y. Kulkarni, T. Fullana, and S. Zaleski, Stream function solutions for some contact line boundary conditions: Navier slip, super slip and the generalized Navier boundary condition, Proc. R. Soc. A 479, 20230141 (2023).
  16. T. Fullana, Y. Kulkarni, M. Fricke, S. Popinet, S. Afkhami, D. Bothe, and S. Zaleski, A consistent treatment of dynamic contact angles in the sharp-interface framework with the generalized Navier boundary condition, arXiv:2411.10762.
  17. D. Jacqmin, Calculation of two-phase Navier–Stokes flows using phase-field modeling, J. Comput. Phys. 155, 96 (1999).
  18. P. Yue, C. Zhou, and J. J. Feng, Sharp-interface limit of the Cahn–Hilliard model for moving contact lines, J. Fluid Mech. 645, 279 (2010).
  19. U. Lācis, M. Pellegrino, J. Sundin, G. Amberg, S. Zaleski, B. Hess, and S. Bagheri, Nanoscale sheared droplet: Volume-of-fluid, phase-field and no-slip molecular dynamics, J. Fluid Mech. 940, A10 (2022).
  20. R. Scardovelli and S. Zaleski, Direct numerical simulation of free-surface and interfacial flow, Annu. Rev. Fluid Mech. 31, 567 (1999).
  21. S. Popinet and S. Zaleski, A front-tracking algorithm for accurate representation of surface tension, Int. J. Numer. Methods Fluids 30, 775 (1999).
  22. G. Tryggvason, R. Scardovelli, and S. Zaleski, Direct Numerical Simulations of Gas-Liquid Multiphase Flows (Cambridge University Press, Cambridge, 2011).
  23. https://basilisk.fr/.
  24. S. Popinet, Gerris: A tree-based adaptive solver for the incompressible euler equations in complex geometries, J. Comput. Phys. 190, 572 (2003).
  25. S. Popinet, An accurate adaptive solver for surface-tension-driven interfacial flows, J. Comput. Phys. 228, 5838 (2009).
  26. S. Popinet, A quadtree-adaptive multigrid solver for the Serre-Green-Naghdi equations, J. Comput. Phys. 302, 336 (2015).
  27. J. U. Brackbill, D. B. Kothe, and C. Zemach, A continuum method for modeling surface tension, J. Comput. Phys. 100, 335 (1992).
  28. J. B. Bell, P. Colella, and H. M. Glaz, A second-order projection method for the incompressible Navier-Stokes equations, J. Comput. Phys. 85, 257 (1989).
  29. S. Afkhami and M. Bussmann, Height functions for applying contact angles to 2D VOF simulations, Int. J. Numer. Meth. Fluids 57, 453 (2008).
  30. J. W. Cahn and J. E. Hilliard, Free energy of a nonuniform system. I. Interfacial free energy, J. Chem. Phys. 28, 258 (1958).
  31. D. Jacqmin, Contact-line dynamics of a diffuse fluid interface, J. Fluid Mech. 402, 57 (2000).
  32. A. Carlson, Capillarity and dynamic wetting, Ph.D. thesis, KTH Royal Institute of Technology, 2012.
  33. T.-Z. Qian, X.-P. Wang, and P. Sheng, Molecular scale contact line hydrodynamics of immiscible flows, Phys. Rev. E 68, 016306 (2003).
  34. F. Hecht, New development in freefem++, J. Numer. Math. 20, 251 (2012).
  35. O. Pironneau, F. Hecht, A. L. Hyaric, and J. Morice, Freefem++ (2020), https://freefem.org/.
  36. https://github.com/UgisL/FreeFEM-NS-CH.
  37. T.-Z. Qian, X.-P. Wang, and P. Sheng, A variational approach to moving contact line hydrodynamics, J. Fluid Mech. 564, 333 (2006).
  38. A. J. Briant and J. M. Yeomans, Lattice Boltzmann simulations of contact line motion. II. Binary fluids, Phys. Rev. E 69, 031603 (2004).
  39. T. Fullana, Simulation and optimization of complex phenomena in multiphase flows, Ph.D. thesis, Sorbonne University, 2022.
  40. T. Fullana, S. Zaleski, and G. Amberg, Dataset for “Mass diffusion and bending in dynamic wetting by phase-field and sharp interface models” (2025), 10.5281/zenodo.16927267.
  41. D. M. Anderson, G. B. McFadden, and A. A. Wheeler, Diffuse-interface methods in fluid mechanics, Annu. Rev. Fluid Mech. 30, 139 (1998).
