Utilizing the deuterium-tritium fusion resonance to diagnose thermal runaway in igniting plasmas

Robert H. Dwyer1,2,3,*, K. D. Meaney1, B. M. Haines1, B. J. Albright1, H. Geppert-Kleinrath1, J. P. Sauppe1, W. Daughton1, N. M. Hoffman1, C. Forrest3 et al.

S. P. Regan3 and Y. Kim1

  • *Contact author: rdwyer@lanl.gov
PDF

Phys. Rev. E 113, 035214 – Published 27 March, 2026

DOI: https://doi.org/10.1103/pl89-ftjd

Abstract

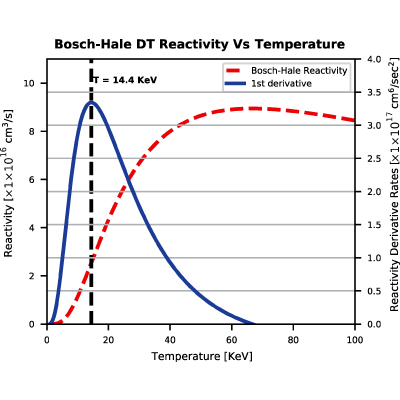

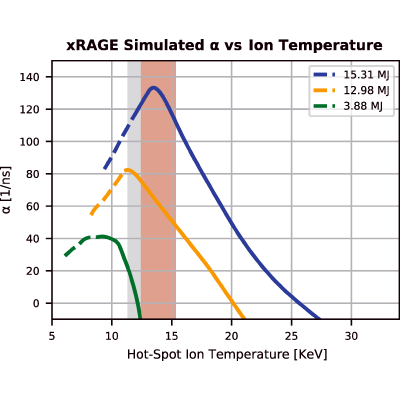

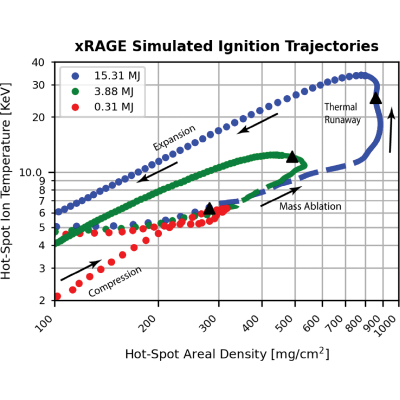

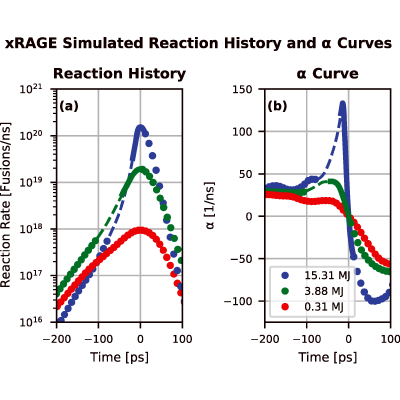

For high-efficiency inertial confinement fusion implosions, it is predicted that a burning hot spot will successfully encompass all surrounding fuel and then transition into a thermal runaway where the internal energy increase from fusion occurs on a timescale faster than the expansion of the fuel is able to quench the fusion chain reaction after ignition occurs. Observation of this dynamic phase transition would indicate distinct burn properties and indicate an implosion's robustness. A technique for diagnosing the presence of thermal runaway from measurements of nuclear reaction history is presented. The technique is based on taking the logarithmic derivative of the nuclear reaction history, called the α curve, and allowing a mathematical decoupling of the mass, volume, and thermal reactivity in the fusion reaction rate equation. During thermal runaway, where the thermal temperature dominates the burn dynamics, a maximum in the α curve is found where there is a maximum in the first derivative of the thermal fusion reactivity, an effect to the deuterium-tritium (DT) fusion cross-section resonance. This provides a distinct signature related to the fundamental nature of the DT fusion nuclear resonance and signifies the transition into the fusion thermal instability. Impacts of charged particle transport on the effect are also assessed and the analytical formulas are compared and found to be in agreement with radiation hydrodynamic codes.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (58)

  1. J. Nuckolls, et al., Laser compression of matter to super-high densities: Thermonuclear (CTR) applications, Nature (London). 239, 139 (1972).
  2. R. C. Kirkpatrick and J. A. Wheeler, The physics of DT ignition in small fusion targets, Nucl. Fusion 21, 389 (1981).
  3. S. Atzeni and J. Meyer-ter-Vehn, The Physics of Inertial Fusion (Oxford University Press, Oxford, UK, 2009).
  4. M. D. Rosen, The physics issues that determine inertial confinement fusion target gain and driver requirements: A tutorial, Phys. Plasmas 6, 1690 (1999).
  5. J. Lindl, Development of the indirect-drive approach to inertial confinement fusion and the target physics basis for ignition and gain, Phys. Plasmas 2, 3933 (1995).
  6. J. D. Lindl, et al., The physics basis for ignition using indirect-drive targets on the National Ignition Facility, Phys. Plasmas 11, 339 (2004).
  7. N. B. Meezan, et al., National Ignition Campaign hohlraum energetics, Phys. Plasmas 17, 056304 (2010).
  8. D. C. Wilson, et al., Single and double shell ignition targets for the national ignition facility at 527 nm, Phys. Plasmas 28, 052704 (2021).
  9. O. A. Hurricane, et al., Inertially confined fusion plasmas dominated by alpha-particle self-heating, Nat. Phys. 12, 800 (2016).
  10. A. B. Zylstra, et al., Burning plasma achieved in inertial fusion, Nature (London) 601, 542 (2022).
  11. H. Abu-Shawareb, et al. (Indirect Drive ICF Collaboration), Achievement of target gain larger than unity in an inertial fusion experiment, Phys. Rev. Lett. 132, 065102 (2024).
  12. W. Daughton, et al., Influence of mass ablation on ignition and burn propagation in layered fusion capsules, Phys. Plasmas 30, 012704 (2023).
  13. A. R. Christopherson, R. Betti, and J. D. Lindl, Thermonuclear ignition and the onset of propagating burn in inertial fusion implosions, Phys. Rev. E 99, 021201(R) (2019).
  14. R. Betti, et al., Hot-spot dynamics and deceleration-phase Rayleigh-Taylor instability of imploding inertial confinement fusion capsules, Phys. Plasmas 8, 5257 (2001).
  15. Y. Saillard, Acceleration and deceleration model of indirect drive ICF capsules, Nucl. Fusion 46, 1017 (2006).
  16. J. Garnier and C. Cherfils, A multiscale analysis of the hotspot dynamics during the deceleration phase of inertial confinement capsules, Phys. Plasmas 12, 012704 (2004).
  17. J. Sanz, et al., Self-consistent analysis of the hot spot dynamics for inertial confinement fusion capsules, Phys. Plasmas 12, 112702 (2005).
  18. A. Campos, Multi-physics simulations of ICF capsules using high-order finite-element discretizations, in 66th Annual Meeting of the APS Division of Plasma Physics (Bulletin of the American Physical Society, Atlanta, 2024).
  19. B. M. Haines, et al., Simulated signatures of ignition, Phys. Plasmas 31, 042705 (2024).
  20. T. J. Murphy, et al., Ion-temperature measurement of indirectly driven implosions using a geometry-compensated neutron time-of-flight detector, Rev. Sci. Instrum. 66, 930 (1995).
  21. M. G. Johnson, et al., Neutron spectrometry—An essential tool for diagnosing implosions at the National Ignition Facility, Rev. Sci. Instrum. 83, 10D308 (2012).
  22. D. H. Munro, Interpreting inertial fusion neutron spectra, Nucl. Fusion 56, 036001 (2016).
  23. D. J. Schlossberg, et al., Observation of hydrodynamic flows in imploding fusion plasmas on the national ignition facility, Phys. Rev. Lett. 127, 125001 (2021).
  24. S. Haan, Time-Dependent Neutron Spectrum Features from hydra Simulations (Lawrence Livermore National Laboratory, Los Alamos, NM, 2024).
  25. D. C. Wilson, et al., Diagnosing ignition with DT reaction history, Rev. Sci. Instrum. 79, 10E525 (2008).
  26. Y. Kim and H. W. Herrmann, Gamma-ray measurements for inertial confinement fusion applications, Rev. Sci. Instrum. 94, 041101 (2023).
  27. J. A. Frenje, Nuclear diagnostics for inertial confinement fusion (ICF) plasmas, Plasma Phys. Controlled Fusion 62, 023001 (2020).
  28. Y. Kim, et al., Measurements of fusion reaction history in inertially confined burning plasmas, Phys. Plasmas 30, 072706 (2023).
  29. O. A. Hurricane, et al., Energy principles of scientific breakeven in an inertial fusion experiment, Phys. Rev. Lett. 132, 065103 (2024).
  30. O. A. Hurricane, et al., Beyond alpha-heating: Driving inertially confined fusion implosions toward a burning-plasma state on the National Ignition Facility, Plasma Phys. Controlled Fusion 61, 014033 (2019).
  31. O. A. Hurricane, et al., An analytic asymmetric-piston model for the impact of mode-1 shell asymmetry on ICF implosions, Phys. Plasmas 27, 062704 (2020).
  32. J. L. Tuck, Thermonuclear reaction rates, Nucl. Fusion 1, 201 (1961).
  33. H. A. Bethe, Energy production in stars, Phys. Rev. 55, 434 (1939).
  34. K. D. Meaney, et al., Simple analytic fusion hot spot models for fusion reaction history, Phys. Plasmas 32, 122703 (2025).
  35. H. Geppert-Kleinrath, et al., Pulse dilation gas Cherenkov detector for ultra-fast gamma reaction history at the NIF (invited), Rev. Sci. Instrum. 89, 10I146 (2018).
  36. H. Geppert-Kleinrath, et al., Commissioning the new pulse dilation gas Cherenkov detector at the National Ignition Facility, High Energy Density Phys. 37, 100862 (2020).
  37. J. R. Langenbrunner and J. M. Booker, Chain rule approach for calculating the time-derivative of flux (2017), doi: 10.2172/1398942.
  38. A. R. Christopherson, et al., A comprehensive alpha-heating model for inertial confinement fusion, Phys. Plasmas 25, 012703 (2018).
  39. R. Betti, et al., Alpha heating and burning plasmas in inertial confinement fusion, J. Phys. Conf. Ser. 717, 012007 (2016).
  40. H. S. Bosch and G. M. Hale, Improved formulas for fusion cross-sections and thermal reactivities, Nucl. Fusion 32, 611 (1992).
  41. R. T. Santoro and J. Barish, Cross-Section Sensitivity of the D-T Fusion Probability and the D-T and T-T Reaction Rates (Oak Ridge National Laboratory, Oak Ridge, TN, 1975).
  42. N. Otuka, et al., Towards a more complete and accurate experimental nuclear reaction data library (EXFOR): International collaboration between nuclear reaction data centres (NRDC), Nucl. Data Sheets 120, 272 (2014).
  43. M. B. Chadwick, et al., ENDF/B-VII.1 nuclear data for science and technology: Cross sections, covariances, fission product yields and decay data, Nucl. Data Sheets 112, 2887 (2011).
  44. G. R. Caughlan and W. A. Fowler, Thermonuclear reaction rates V, At. Data Nucl. Data Tables 40, 283 (1988).
  45. M. Gittings, et al., The RAGE radiation-hydrodynamic code, Comput. Sci. Discovery 1, 015005 (2008).
  46. B. M. Haines, et al., Coupling laser physics to radiation-hydrodynamics, Comput. Fluids 201, 104478 (2020).
  47. B. M. Haines, et al., High-resolution modeling of indirectly driven high-convergence layered inertial confinement fusion capsule implosions, Phys. Plasmas 24, 052701 (2017).
  48. S. H. Langer, I. Karlin, and M. M. Marinak, Performance characteristics of HYDRA - a multi-physics simulation code from Lawrence Livermore National Laboratory (2014), doi:10.2172/1116974.
  49. A. L. Kritcher, et al., Design of the first fusion experiment to achieve target energy gain G>1, Phys. Rev. E 109, 025204 (2024).
  50. B. M. Haines, et al., A mechanism for reduced compression in indirectly driven layered capsule implosions, Phys. Plasmas 29, 042704 (2022).
  51. W. M. Wood, Reaction history measurement requirements, Report No. LA-UR-06-6891 (Los Alamos National Laboratory, 1991).
  52. J. M. Mack, et al., Multiplexed gas Cherenkov detector for reaction-history measurements, Rev. Sci. Instrum. 77, 10E728 (2006).
  53. M. B. Chadwick, et al., Early nuclear fusion cross-section advances 1934–1952 and comparison to today's ENDF data, Fusion Sci. Technol. 80, S9 (2024).
  54. L. M. Hively, A simple computational form for Maxwellian reactivities, Nucl. Technol. Fusion 3, 199 (1983).
  55. J. R. L. Singleton, Charged particle stopping power effects on ignition: Some results from an exact calculation, Phys. Plasmas 15, 056302 (2008).
  56. A. B. Zylstra and O. A. Hurricane, On alpha-particle transport in inertial fusion, Phys. Plasmas 26, 062701 (2019).
  57. L. S. Brown, D. L. Preston, and R. L. Singleton, Jr., Charged particle motion in a highly ionized plasma, Phys. Rep. 410, 237 (2005).
  58. G. Maynard and C. Deutsch, Born random phase approximation for ion stopping in an arbitrarily degenerate electron fluid, J. Phys. France 46, 1113 (1985).
