Path-integrated electrostatic energization in laser-driven collisionless cylindrical convergence

D. Pan*, M. Murakami†, S. Fujioka, and H. Nagatomo

  • *Contact author: pan.diya@e4.kepco.co.jp
  • †Contact author: murakami-m@ile.osaka-u.ac.jp

Phys. Rev. E 114, 045206 – Published 15 October, 2026

DOI: https://doi.org/10.1103/8jqr-lcb3

Abstract

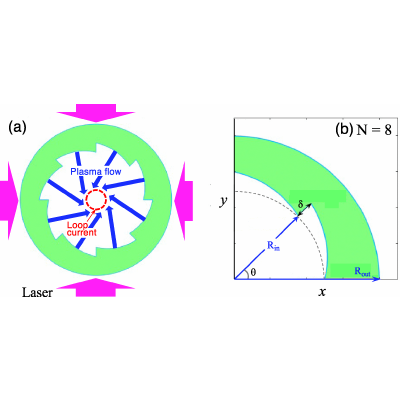

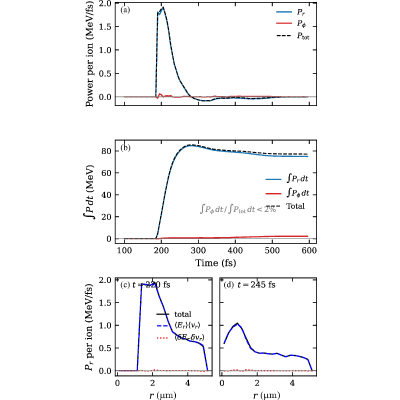

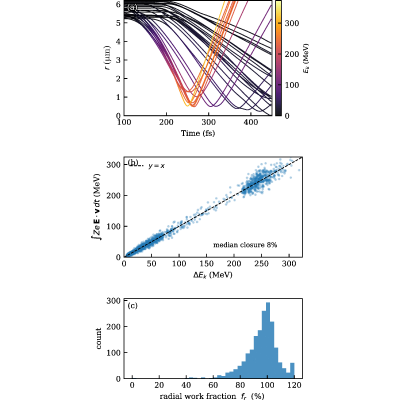

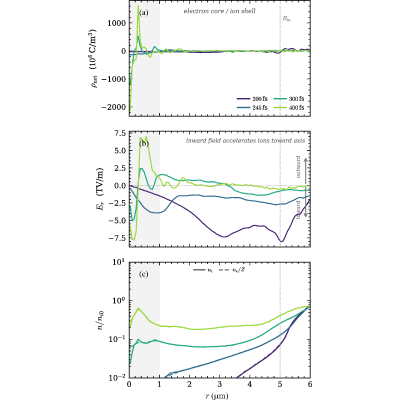

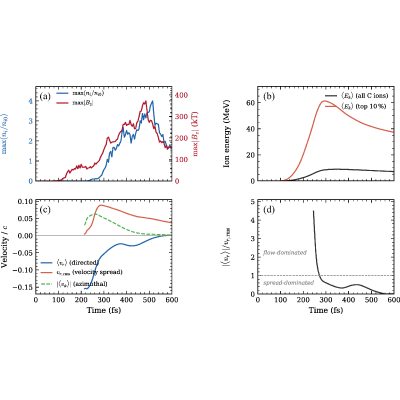

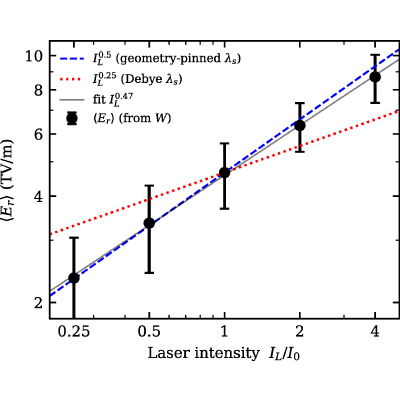

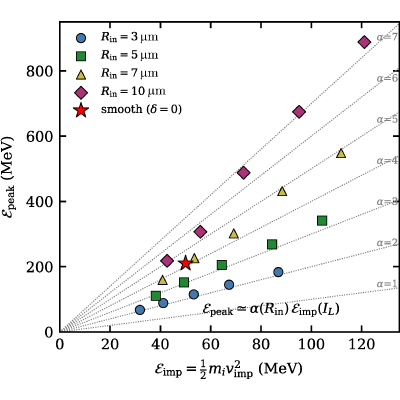

Collisionless converging ion flows can sustain particle energization over an extended path, but the field channel responsible for the energy gain is not always identifiable. In laser-driven bladed microtube implosion, energetic carbon ions were previously observed alongside a self-generated gigagauss-class axial magnetic field [D. Pan and M. Murakami, Phys. Plasmas 32, 072107 (2025)], leaving the origin of their energization unresolved. Using two-dimensional particle-in-cell simulations, field-particle power decomposition and trajectory-resolved work accounting show that radial electrostatic work accumulated along the converging path supplies more than 98% of the net in-plane electric work, whereas the azimuthal channel associated with the time-varying magnetic field remains subdominant. The peak local mean ion energy factorizes, to good approximation, into an incident-flow contribution controlled by laser intensity and a geometric enhancement that grows approximately linearly with the inner radius because ions accumulate electrostatic work over a longer convergence path. The path-averaged radial electric field 〈Er〉 scales with the peak laser intensity IL as 〈Er〉∝IL0.47, favoring a geometry-pinned, comoving charge-separation structure over Debye-limited scaling. The peak local mean carbon-ion energy reaches 0.89 GeV. A smooth-cylinder control exhibits comparable peak energization, showing that blade modulation mainly affects poststagnation ion residence rather than the energy source.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (26)

  1. A. Macchi, M. Borghesi, and M. Passoni, Ion acceleration by superintense laser-plasma interaction, Rev. Mod. Phys. 85, 751 (2013).
  2. S. C. Wilks, A. B. Langdon, T. E. Cowan, M. Roth, M. Singh, S. Hatchett, M. H. Key, D. Pennington, A. MacKinnon, and R. A. Snavely, Energetic proton generation in ultra-intense laser-solid interactions, Phys. Plasmas 8, 542 (2001).
  3. P. Mora, Plasma expansion into a vacuum, Phys. Rev. Lett. 90, 185002 (2003).
  4. M. Murakami and M. M. Basko, Self-similar expansion of finite-size non-quasi-neutral plasmas into vacuum: Relation to the problem of ion acceleration, Phys. Plasmas 13, 012105 (2006).
  5. T. Esirkepov, M. Borghesi, S. V. Bulanov, G. Mourou, and T. Tajima, Highly efficient relativistic-ion generation in the laser-piston regime, Phys. Rev. Lett. 92, 175003 (2004).
  6. L. O. Silva, M. Marti, J. R. Davies, R. A. Fonseca, C. Ren, F. S. Tsung, and W. B. Mori, Proton shock acceleration in laser-plasma interactions, Phys. Rev. Lett. 92, 015002 (2004).
  7. F. Fiuza, R. A. Fonseca, J. Tonge, W. B. Mori, and L. O. Silva, Weibel-instability-mediated collisionless shocks in laboratory with ultraintense lasers, Phys. Rev. Lett. 108, 235004 (2012).
  8. G. Guderley, Starke kugelige und zylindrische Verdichtungsstöße in der Nähe des Kugelmittelpunktes bzw. der Zylinderachse, Luftfahrtforschung 19, 302 (1942).
  9. R. Betti and O. A. Hurricane, Inertial-confinement fusion with lasers, Nat. Phys. 12, 435 (2016).
  10. O. A. Hurricane, P. K. Patel, R. Betti, D. H. Froula, S. P. Regan, S. A. Slutz, M. R. Gomez, and M. A. Sweeney, Physics principles of inertial confinement fusion and U.S. program overview, Rev. Mod. Phys. 95, 025005 (2023).
  11. M. G. Haines, A review of the dense Z-pinch, Plasma Phys. Control. Fusion 53, 093001 (2011).
  12. C. M. Huntington, F. Fiuza, J. S. Ross, A. B. Zylstra, R. P. Drake, D. H. Froula, G. Gregori, N. L. Kugland, C. C. Kuranz, M. C. Levy, C. K. Li, J. Meinecke, T. Morita, R. Petrasso, C. Plechaty, B. A. Remington, D. D. Ryutov, Y. Sakawa, A. Spitkovsky, H. Takabe, et al., Observation of magnetic field generation via the Weibel instability in interpenetrating plasma flows, Nat. Phys. 11, 173 (2015).
  13. D. A. Tidman and N. A. Krall, Shock Waves in Collisionless Plasmas (Wiley-Interscience, New York, 1971).
  14. D. W. Forslund and C. R. Shonk, Formation and structure of electrostatic collisionless shocks, Phys. Rev. Lett. 25, 1699 (1970).
  15. T. N. Kato and H. Takabe, Nonrelativistic collisionless shocks in unmagnetized electron-ion plasmas, Astrophys. J. Lett. 681, L93 (2008).
  16. A. S. Novo, A. Bret, R. A. Fonseca, and L. O. Silva, Shock formation in electron-ion plasmas: Mechanism and timing, Astrophys. J. Lett. 803, L29 (2015).
  17. T. Wang, V. Khudik, and G. Shvets, Laser-ion lens and accelerator, Phys. Rev. Lett. 126, 024801 (2021).
  18. J. J. Santos, M. Bailly-Grandvaux, L. Giuffrida, P. Forestier-Colleoni, S. Fujioka, Z. Zhang, P. Korneev, R. Bouillaud, S. Dorard, D. Batani, M. Chevrot, J. E. Cross, R. Crowston, J.-L. Dubois, J. Gazave, G. Gregori, E. d'Humières, S. Hulin, K. Ishihara, S. Kojima, et al., Laser-driven platform for generation and characterization of strong quasi-static magnetic fields, New J. Phys. 17, 083051 (2015).
  19. M. Murakami, J. J. Honrubia, K. Weichman, A. V. Arefiev, and S. V. Bulanov, Generation of megatesla magnetic fields by intense-laser-driven microtube implosions, Sci. Rep. 10, 16653 (2020).
  20. Y.-J. Gu and M. Murakami, Magnetic field amplification driven by the gyro motion of charged particles, Sci. Rep. 11, 23592 (2021).
  21. D. Shokov, M. Murakami, and J. J. Honrubia, Laser scaling for generation of megatesla magnetic fields by microtube implosions, High Power Laser Sci. Eng. 9, 1 (2021).
  22. D. Pan and M. Murakami, Gigagauss magnetic field generation by bladed microtube implosion, Phys. Plasmas 32, 072107 (2025).
  23. T. D. Arber, K. Bennett, C. S. Brady, A. Lawrence-Douglas, M. G. Ramsay, N. J. Sircombe, P. Gillies, R. G. Evans, H. Schmitz, A. R. Bell, and C. P. Ridgers, Contemporary particle-in-cell approach to laser-plasma modelling, Plasma Phys. Control. Fusion 57, 113001 (2015).
  24. S. C. Wilks, W. L. Kruer, M. Tabak, and A. B. Langdon, Absorption of ultra-intense laser pulses, Phys. Rev. Lett. 69, 1383 (1992).
  25. S. Göde, C. Rödel, K. Zeil, R. Mishra, M. Gauthier, F.-E. Brack, T. Kluge, M. J. MacDonald, J. Metzkes, L. Obst, M. Rehwald, C. Ruyer, H.-P. Schlenvoigt, W. Schumaker, P. Sommer, T. E. Cowan, U. Schramm, S. Glenzer, and F. Fiuza, Relativistic electron streaming instabilities modulate proton beams accelerated in laser-plasma interactions, Phys. Rev. Lett. 118, 194801 (2017).
  26. M. Murakami, A. Arefiev, and M. A. Zosa, Generation of ultrahigh field by micro-bubble implosion, Sci. Rep. 8, 7537 (2018).
