Patterns of active dipolar particles in external magnetic fields

Vitali Telezki and Stefan Klumpp*

  • University of Göttingen, Institute for the Dynamics of Complex Systems, Friedrich-Hund-Platz 1, 37077 Göttingen, Germany

  • *Contact author: stefan.klumpp@phys.uni-goettingen.de
PDF

Phys. Rev. E 112, 065422 – Published 26 December, 2025

DOI: https://doi.org/10.1103/836q-7vng

Abstract

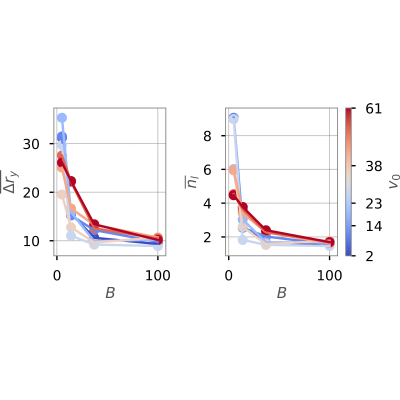

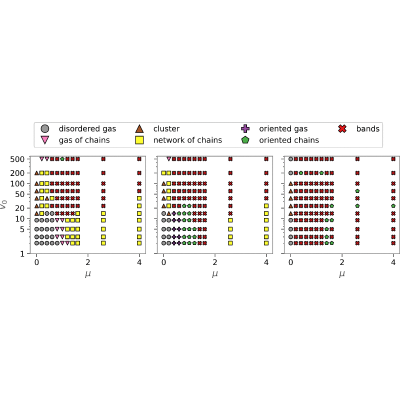

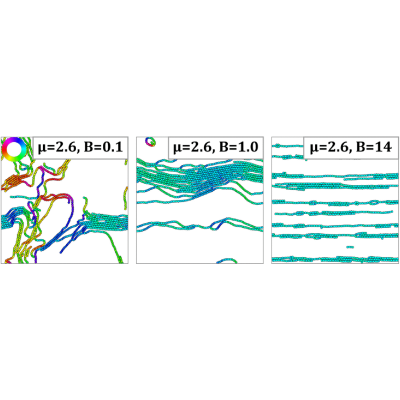

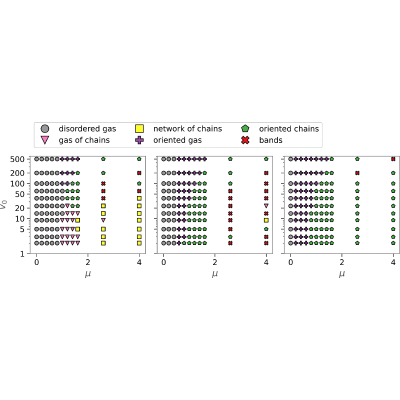

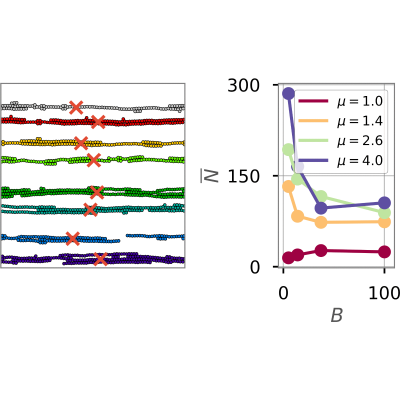

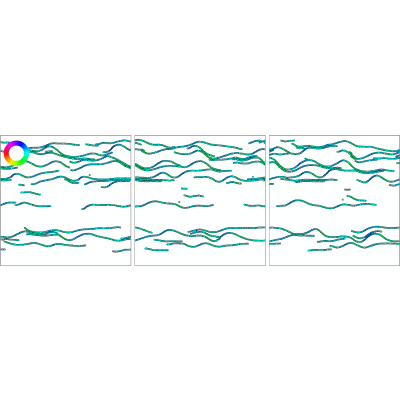

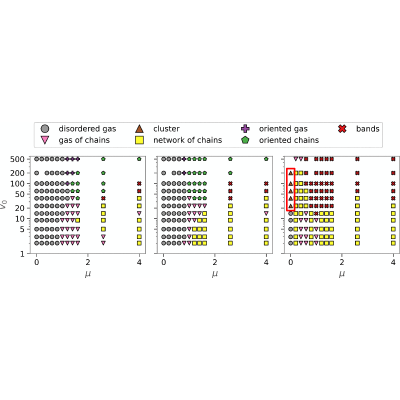

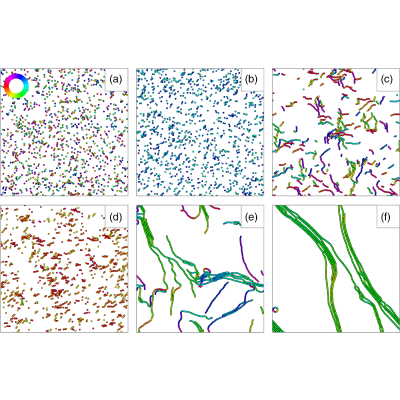

Active particles with a (magnetic) dipole moment are of interest for steering self-propelled motion but also result in novel collective effects due to their dipole-dipole interaction. Here systems of active dipolar particles are studied with Brownian dynamics simulations to systematically characterize the different patterns they form, specifically in the presence of an external (magnetic) field. The combination of three types of order—clustering, orientational alignment, and chain formation—is used to classify the patterns observed in these systems. In the presence of an external field, oriented chains and bands are found to be dominant. These structures show some similarities with columnar cluster seen in (passive) ferrofluids and display columnar spacing and number of lanes per cluster that both decrease with increasing field strength.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. T. Vicsek and A. Zafeiris, Collective motion, Phys. Rep. 517, 71 (2012).
  2. P. Romanczuk, M. Bär, W. Ebeling, B. Lindner, and L. Schimansky-Geier, Active brownian particles: From individual to collective stochastic dynamics: From individual to collective stochastic dynamics, Eur. Phys. J. Spec. Top. 202, 1 (2012).
  3. C. Bechinger, R. Di Leonardo, H. Löwen, C. Reichhardt, G. Volpe, and G. Volpe, Active particles in complex and crowded environments, Rev. Mod. Phys. 88, 045006 (2016).
  4. M. E. Cates and J. Tailleur, Motility-induced phase separation, Annu. Rev. Condens. Matter Phys. 6, 219 (2015).
  5. K. Bente, A. Codutti, F. Bachmann, and D. Faivre, Biohybrid and bioinspired magnetic microswimmers, Small 14, 1704374 (2018).
  6. S. Klumpp, C. T. Lefèvre, M. Bennet, and D. Faivre, Swimming with magnets: From biological organisms to synthetic devices, Phys. Rep. 789, 1 (2019).
  7. D. A. Bazylinski and R. B. Frankel, Magnetosome formation in prokaryotes, Nat. Rev. Microbiol. 2, 217 (2004).
  8. L. Baraban, D. Makarov, R. Streubel, I. Monch, D. Grimm, S. Sanchez, and O. G. Schmidt, Catalytic janus motors on microfluidic chip: Deterministic motion for targeted cargo delivery, ACS Nano 6, 3383 (2012).
  9. Y. Alsaadawi, A. Eichler-Volf, M. Heigl, P. Zahn, M. Albrecht, and A. Erbe, Control over self-assembled janus clusters by the strength of magnetic field in H2O2, Eur. Phys. J. E 44, 23 (2021).
  10. A. Ghosh and P. Fischer, Controlled propulsion of artificial magnetic nanostructured propellers, Nano Lett. 9, 2243 (2009).
  11. P. J. Vach, P. Fratzl, S. Klumpp, and D. Faivre, Fast magnetic micropropellers with random shapes, Nano Lett. 15, 7064 (2015).
  12. R. W. Carlsen, M. R. Edwards, J. Zhuang, C. Pacoret, and M. Sitti, Magnetic steering control of multi-cellular bio-hybrid microswimmers, Lab Chip 14, 3850 (2014).
  13. V. Magdanz, S. Sanchez, and O. G. Schmidt, Development of a sperm-flagella driven micro-bio-robot, Adv. Mater. 25, 6581 (2013).
  14. G. J. Liao, C. K. Hall, and S. H. Klapp, Dynamical self-assembly of dipolar active brownian particles in two dimensions, Soft Matter 16, 2208 (2020).
  15. V. Telezki and S. Klumpp, Simulations of structure formation by confined dipolar active particles, Soft Matter 16, 10537 (2020).
  16. P. M. Obreque, O. Garrido, D. Romero, H. Löwen, and F. Guzmán-Lastra, Dynamics of magnetic self-propelled particles in a harmonic trap, arXiv:2403.02569.
  17. E. Sesé-Sansa, G.-J. Liao, D. Levis, I. Pagonabarraga, and S. H. Klapp, Impact of dipole–dipole interactions on motility-induced phase separation, Soft Matter 18, 5388 (2022).
  18. R. C. Maloney, G. J. Liao, S. H. Klapp, and C. K. Hall, Clustering and phase separation in mixtures of dipolar and active particles, Soft Matter 16, 3779 (2020).
  19. R. C. Maloney and C. K. Hall, Clustering and phase separation in mixtures of dipolar and active particles in an external field, Langmuir 36, 6378 (2020).
  20. N. Waisbord, C. T. Lefèvre, L. Bocquet, C. Ybert, and C. Cottin-Bizonne, Destabilization of a flow focused suspension of magnetotactic bacteria, Phys. Rev. Fluids 1, 053203 (2016).
  21. F. Meng, D. Matsunaga, and R. Golestanian, Clustering of magnetic swimmers in a poiseuille flow, Phys. Rev. Lett. 120, 188101 (2018).
  22. J. Liu, E. M. Lawrence, A. Wu, M. L. Ivey, G. A. Flores, K. Javier, J. Bibette, and J. Richard, Field-induced structures in ferrofluid emulsions, Phys. Rev. Lett. 74, 2828 (1995).
  23. G. A. Flores, J. Liu, M. Mohebi, and N. Jamasbi, Magnetic-field-induced nonequilibrium structures in a ferrofluid emulsion, Phys. Rev. E 59, 751 (1999).
  24. M. Ivey, J. Liu, Y. Zhu, and S. Cutillas, Magnetic-field-induced structural transitions in a ferrofluid emulsion, Phys. Rev. E 63, 011403 (2000).
  25. K. W. Yung, P. B. Landecker, and D. D. Villani, An analytic solution for the force between two magnetic dipoles, Magn. Electr. Sep. 9, 39 (1998).
  26. D. Chandler, J. D. Weeks, and H. C. Andersen, Van der Waals picture of liquids, solids, and phase transformations, Science 220, 787 (1983).
  27. P. B. Landecker, D. D. Villani, and K. W. Yung, An analytic solution for the torque between two magnetic dipoles, Magn. Electr. Sep. 10, 29 (1999).
  28. J. A. Anderson, C. D. Lorenz, and A. Travesset, General purpose molecular dynamics simulations fully implemented on graphics processing units, J. Comput. Phys. 227, 5342 (2008).
  29. J. A. Anderson, J. Glaser, and S. C. Glotzer, HOOMD-blue: A Python package for high-performance molecular dynamics and hard particle Monte Carlo simulations, Comput. Mater. Sci. 173, 109363 (2020).
  30. C. S. Adorf, P. M. Dodd, V. Ramasubramani, and S. C. Glotzer, Simple data and workflow management with the signac framework, Comput. Mater. Sci. 146, 220 (2018).
  31. V. Ramasubramani, C. Adorf, P. Dodd, B. Dice, and S. Glotzer, signac: A python framework for data and workflow management, in Proceedings of the 17th Python Science Conference, edited by F. Akici, D. Lippa, D. Niederhut, and M. Pacer (SciPy, Austin TX, 2018), pp. 152–159.
  32. S. H. L. Klapp, Dipolar fluids under external perturbations, J. Phys.: Condens. Matter 17, R525 (2005).
  33. C. Holm and J.-J. Weis, The structure of ferrofluids: A status report, Curr. Opin. Colloid Interface Sci. 10, 133 (2005).
  34. D. K. Barupal and O. Fiehn, Generating the blood exposome database using a comprehensive text mining and database fusion approach, Environ. Health Perspect. 127, 097008 (2019).
  35. I. R. Bruss and S. C. Glotzer, Curvature-induced microswarming, Soft Matter 13, 5117 (2017).
  36. S. Melle and J. E. Martin, Chain model of a magnetorheological suspension in a rotating field, J. Chem. Phys. 118, 9875 (2003).
  37. S. Melle, O. G. Calderón, M. A. Rubio, and G. G. Fuller, Microstructure evolution in magnetorheological suspensions governed by Mason number, Phys. Rev. E 68, 041503 (2003).
  38. J. de Vicente, D. J. Klingenberg, and R. Hidalgo-Alvarez, Magnetorheological fluids: A review, Soft Matter 7, 3701 (2011).
  39. M. Mohebi, N. Jamasbi, and J. Liu, Simulation of the formation of nonequilibrium structures in magnetorheological fluids subject to an external magnetic field, Phys. Rev. E 54, 5407 (1996).
  40. J. J. Weis, Simulation of quasi-two-dimensional dipolar systems, J. Phys.: Condens. Matter 15, S1471 (2003).
  41. J. J. Weis and D. Levesque, Simple dipolar fluids as generic models for soft matter, Adv. Polym. Sci. 185, 163 (2005).
  42. H. Chaté, F. Ginelli, G. Grégoire, and F. Raynaud, Collective motion of self-propelled particles interacting without cohesion, Phys. Rev. E 77, 046113 (2008).
  43. R. G. Winkler and G. Gompper, The physics of active polymers and filaments, J. Chem. Phys. 153, 040901 (2020).
  44. K. R. Prathyusha, S. Henkes, and R. Sknepnek, Dynamically generated patterns in dense suspensions of active filaments, Phys. Rev. E 97, 022606 (2018).
  45. L. Abbaspour, A. Malek, S. Karpitschka, and S. Klumpp, Effects of direction reversals on patterns of active filaments, Phys. Rev. Res. 5, 013171 (2023).
  46. M. Kurjahn, A. Deka, A. Girot, L. Abbaspour, S. Klumpp, M. Lorenz, O. Bäumchen, and S. Karpitschka, Quantifying gliding forces of filamentous cyanobacteria by self-buckling, eLife 12, RP87450 (2024).
  47. G. A. Vliegenthart, A. Ravichandran, M. Ripoll, T. Auth, and G. Gompper, Filamentous active matter: Band formation, bending, buckling, and defects, Sci. Adv. 6, eaaw9975 (2020).
  48. V. Telezki and S. Klumpp, Replication data for: Patterns of active dipolar particles in external magnetic fields, GRO.data, V1, doi:10.25625/YXN7MP.
  49. V. Telezki and S. Klumpp, Code for: Patterns of active dipolar particles in external magnetic fields, GRO.data, V1, doi:10.25625/C4CAYG.
