Using swapping layers in molecular dynamics simulations to drive structural equilibration far below Tg

Richard B. Stephens*

  • *Contact author: richst@sas.upenn.edu
PDF

Phys. Rev. E 112, 065503 – Published 12 December, 2025

DOI: https://doi.org/10.1103/5dtg-jjx9

Abstract

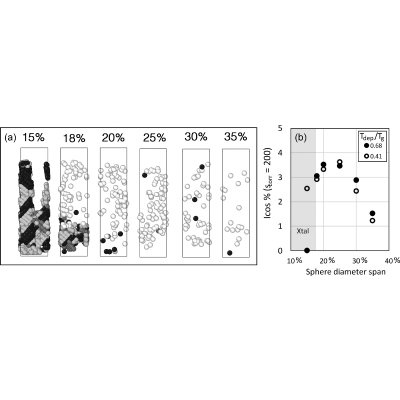

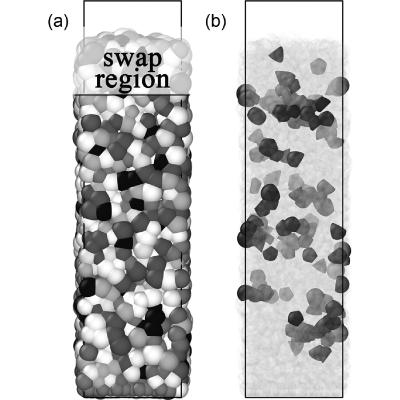

The anomalous surface mobility exhibited by many slowly vapor-deposited molecular solids, and their simulated counterparts, allows annealing their structure and increasing their density down to Tdep≈0.85Tg. This work describes the design and characteristics of a simulation that uses a “swept swapping” technique designed to extend structural annealing to lower temperatures. Films are grown using size-dispersed attractive Lennard-Jones (L-J) potential spheres deposited onto their free surface and then equilibrated with a surface-following Monte Carlo swap region. The motion of that region combined with sphere size dispersion speeds structural relaxation by orders of magnitude compared to bulk swapping. Sphere size span and size step (25% and ∼2.5%, respectively) are sufficient to completely suppress crystallization and maintain a high swap acceptance rate. The regime revealed by this technique attains a high packing fraction, which is near that of an hexagonal-close-packed L-J crystal with no size-dispersion. Additional swapping refines its structure, at near constant density, maximizing short-range icosahedral order to levels higher than seen previously; the levels apparently limited only by the computing budget.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (50)

  1. S. Dalal, A. Sepúlveda, G. Pribil, Z. Fakhraai, and M. Ediger, Density and birefringence of a highly stable α, α, β-trisnaphthylbenzene glass, J. Chem. Phys. 136, 204501 (2012).
  2. Y. Jin, A. Zhang, S. Wolf, S. Govind, A. Moore, M. Zhernenkov, G. Freychet, A. Shamsabadi, and Z. Fakhraai, Glasses denser than the supercooled liquid, Proc. Natl. Acad. Sci. USA 118, e2100738118 (2021).
  3. K. Kearns, S. Swallen, M. Ediger, T. Wu, Y. Sun, and L. Yu, Hiking down the energy landscape: Progress toward the Kauzmann temperature vias vapor deposition, J. Phys. Chem. B 112, 4934 (2008).
  4. P. Luo and Z. Fakhraai, Surface-mediated formation of stable glasses, Annu. Rev. Phys. Chem. 74, 361 (2023).
  5. P. Luo, C. Cao, F. Zhu, Y. Lv, Y. Liu, P. Wen, H. Bai, G. Vaughan, M. di Michiel, B. Ruta, and W.-H. Wang, Ultrastable metallic glasses formed on cold substrates, Nat. Commun. 9, 1389 (2018).
  6. J. Mangalara, M. Marvin, and D. Simmons, Three-layer model for the emergence of ultrastable glasses from the surfaces of supercooled liquids, J. Phys. Chem. B 120, 4861 (2016).
  7. A. Moore, G. Huang, S. Wolf, P. Walsh, Z. Fakhraai, and R. Riggleman, Effects of microstructure formation on the stability of vapor-deposited glasses, Proc. Natl. Acad. Sci. USA 116, 5937 (2019).
  8. S. Singh and J. de Pablo, A molecular view of vapor deposited glasses, J. Chem. Phys. 134, 194903 (2011).
  9. S. Swallen, K. Kearns, M. Mapes, Y. Kim, R. McMahon, M. Ediger, T. Wu, L. Yu, and S. Satija, Organic glasses with exceptional thermodynamic and kinetic stability, Science 315, 353 (2007).
  10. A. Raegen, J. Yin, Q. Zhou, and J. Forrest, Ultrastable monodisperse polymer glass formed by physical vapour deposition, Nat. Mater. 19, 1110 (2020).
  11. M. Tylinski, M. Beasley, Y. Chua, C. Schick, and M. Ediger, Limited surface mobility inhibits stable glass formation for 2-ethyl-1-hexanol, J. Chem. Phys. 146, 203317 (2017).
  12. H.-B. Yu, Y. Luo, and K. Samwer, Ultrastable metallic glass, Adv. Mater. 25, 5904 (2013).
  13. L. Zhu and L. Yu, Generality of forming stable organic glasses by vapor deposition, Chem. Phys. Lett. 499, 62 (2010).
  14. A. Zhang, A. Moore, H. Zhao, S. Govind, S. Wolf, Y. Jin, P. Walsh, R. Riggleman, and Z. Fakhraai, The role of intramolecular relaxations on the structure and stability of vapor-deposited glasses, J. Chem. Phys. 156, 244703 (2022).
  15. L. Berthier, P. Charbonneau, E. Flenner, and F. Zamponi, Origin of ultra stability in vapor-deposited glasses, Phys. Rev. Lett. 119, 188002 (2017).
  16. Y. Chen, Z. Chen, M. Tylinski, M. Ediger, and L. Yu, Effect of molecular size and hydrogen bonding on three surface-facilitated processes in molecular glasses: Surface diffusion, surface crystal growth, and formation of stable glasses by vapor deposition, J. Chem. Phys. 150, 024502 (2019).
  17. M. Beasley, C. Bishop, B. Kasting, and M. Ediger, Vapor-deposited ethylbenzene glasses approach “ideal glass” density, J. Phys. Chem. Lett. 10, 4069 (2019).
  18. C. Royall, F. Turci, S. Tatsumi, J. Russo, and J. Robinson, The race to the bottom: Approaching the ideal glass? J. Phys.: Condens. Matter 30, 363001 (2018).
  19. T. S. Grigera and G. Parisi, Fast Monte Carlo algorithm for supercooled soft spheres, Phys. Rev. E 63, 045102(R) (2001).
  20. A. Ninarello, L. Berthier, and D. Coslovich, Models and algorithms for the next generation of glass transition studies, Phys. Rev. X 7, 021039 (2017).
  21. L. Berthier, D. Coslovich, A. Ninarello, and M. Ozawa, Equilibrium sampling of hard spheres up to the jamming density and beyond, Phys. Rev. Lett. 116, 238002 (2016).
  22. S. Singh, M. Ediger, and J. de Pablo, Ultrastable glasses from in silico vapour deposition, Nat. Mater. 12, 139 (2013).
  23. J. Lennard-Jones, The equation of state of gases and critical phenomena, Physica 4, 941 (1937).
  24. A. Stukowski, Visualization and analysis of atomistic simulation data with OVITO–the open visualization tool, Modell. Simul. Mater. Sci. Eng. 18, 015012 (2010).
  25. W. K. Jun, R. Willens, and P. Duwez, Non-crystalline structure in solidified gold-silicon alloys, Nature (London) 187, 869 (1960).
  26. N. Metropolis, A. Rosenbluth, M. Rosenbluth, A. Teller, and E. Teller, Equation of state calculations by fast computing machines, J. Chem. Phys. 21, 1087 (1953).
  27. A. Sepúlveda, S. Swallen, and M. Ediger, Manipulating the properties of stable glasses using kinetic facilitation, J. Chem. Phys. 138, 12A517 (2013).
  28. E. Flenner, L. Berthier, P. Charbonneau, and C. J. Fullerton, Front-mediated melting of isotropic ultrastable glasses, Phys. Rev. Lett. 123, 175501 (2019).
  29. J. Ràfols-Ribé, A. Vila-Costa, C. Rodríguez-Tinoco, A. Lopeandia, J. Rodríguez-Viejo, and M. Gonzalez-Silveira, Kinetic arrest of front transformation to gain access to the bulk glass transition in ultrathin films of vapour-deposited glasses, Phys. Chem. Chem. Phys. 20, 29989 (2018).
  30. S. Dalal, Z. Fakhraai, and M. Ediger, High-throughput ellipsometric characterization of vapor-deposited indomethacin glasses, J. Phys. Chem. B 117, 15415 (2013).
  31. C. Rodriguez-Tinoco, M. Gonzalez-Silveira, M. Ramos, and J. Rodríguez-Viejo, Ultrastable glasses: New perspectives for an old problem, Riv. Nuovo Cim. 45, 325 (2022).
  32. L.-M. Wang, A. Angell, and R. Richert, Fragility and thermodynamics in nonpolymeric glassforming liquids, J. Chem. Phys. 125, 074505 (2006).
  33. C. Rodríguez-Tinoco, J. Ràfols-Ribé, M. González-Silveria, and J. Rodríguez-Viejo, Relaxation dynamics of glasses along a wide stability and temperature range, Sci. Rep. 6, 35607 (2016).
  34. Y. Cheng and E. Ma, Atomic-level structure and structure-property relationship in metallic glasses, Prog. Mater. Sci. 56, 379 (2011).
  35. J. Honeycutt and H. C. Andersen, Molecular dynamics study of melting and freezing of small Lennard-Jones clusters, J. Phys. Chem. 91, 4950 (1987).
  36. K. Whitaker, M. Tylinski, M. Ahrenberg, C. Schick, and M. Ediger, Kinetic stability and heat capacity of vapor-deposited glasses of o-terphenyl, J. Chem. Phys. 143, 084511 (2015).
  37. S. Kube, S. Sohn, R. Ojeda-Mota, T. Evers, W. Polsky, N. Liu, K. Ryan, S. Rinehart, Y. Sun, and J. Schroers, Compositional dependence of the fragility in metallic glass forming liquids, Nat. Commun. 13, 3708 (2022).
  38. S. Torquato, T. M. Truskett, and P. G. Debenedetti, Is random close packing of spheres well defined? Phys. Rev. Lett. 84, 2064 (2000).
  39. Y. Hu, F. Li, H. Bai, and W. Wang, Five-fold symmetry as indicator of dynamic arrest in metallic glass-forming liquids, Nat. Commun. 6, 8310 (2015).
  40. C. Brito, E. Lerner, and M. Wyart, Theory for swap acceleration near the glass and jamming transitions for continuously polydisperse particles, Phys. Rev. X 8, 031050 (2018).
  41. R. Hoy, Ultrastable jammed sphere packings with a wide range of particle dispersities, Phys. Rev. E 112, 045417 (2025).
  42. A. Donev, I. Cisse, D. Sachs, E. Variano, F. Stillinger, R. Connelly, S. Torquato, and P. Chaikin, Improving the density of jammed disordered packings using ellipsoids, Science 303, 990 (2004).
  43. F. Frank, Supercooling of liquids, Proc. Royal Soc. London A 215, 43 (1952).
  44. Figures and supporting data are available at Stephens-PR-2025 at osf.io/5ym6V.
  45. Simulations were performed using versions 29 September 2021 update 3, 23 June 2022 update 1, or 3 August 2023, all with the custom mods listed at github.com/richbst in RBS_simulation_LAMMPS_code. Sample LAMMPS scripts and pascal analysis code are in RBS_simulation_LAMMPS_scripts and RBS_simulation_pascal.
  46. S. Plimpton, Fast parallel algorithms for short-range molecular dynamics, J. Comput. Phys. 117, 1 (1995).
  47. A. Thompson, H. Aktulga, R. Berger, D. Bolintineanu, W. Brown, P. Crozier, P. In't Veld, A. Kohlmeyer, S. Moore, T. Nguyen, R. Shan, M. Stevens, J. Tranchida, C. Trott, and S. Plimpton, LAMMPS - a flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  48. J. White, Lennard-Jones as a model for argon and test of extended renormalization group calculations, J. Chem. Phys. 111, 9352 (1999).
  49. W. Kob and H. C. Andersen, Scaling behavior in the β-relaxation regime of a supercooled Lennard-Jones mixture, Phys. Rev. Lett. 73, 1376 (1994).
  50. R. Ferrando, J. Jellinek, and R. Johnston, Nanoalloys: From theory to applications of alloy clusters and nanoparticles, Chem. Rev. 108, 845 (2008).
