Higher-order orientational effects on geometric percolation in two-dimensional stick networks

Davide Grazioli1,*, Angelo Simone1,†, Aidan Durant2,‡, Avik P. Chatterjee2,3,§, and Claudio Grimaldi4,5,∥

  • *Contact author: davide.grazioli@unipd.it
  • †Contact author: angelo.simone@unipd.it
  • ‡Contact author: adurant@esf.edu
  • §Contact author: achatter@esf.edu
  • ∥Contact author: claudio.grimaldi@epfl.ch
PDF

Phys. Rev. E 114, 044303 – Published 1 October, 2026

DOI: https://doi.org/10.1103/43yn-sh6g

Abstract

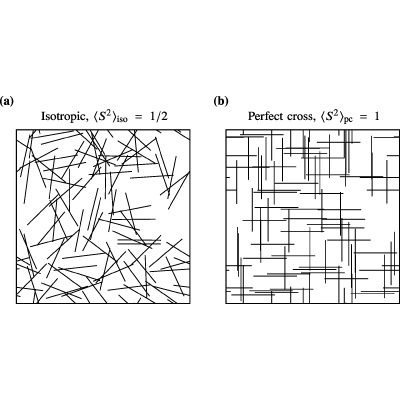

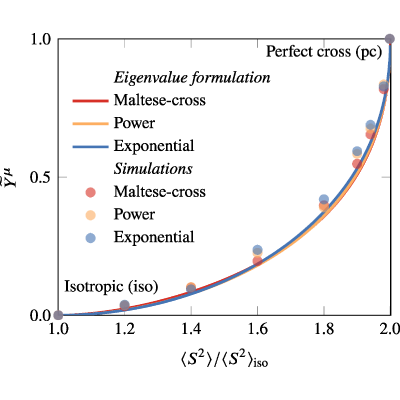

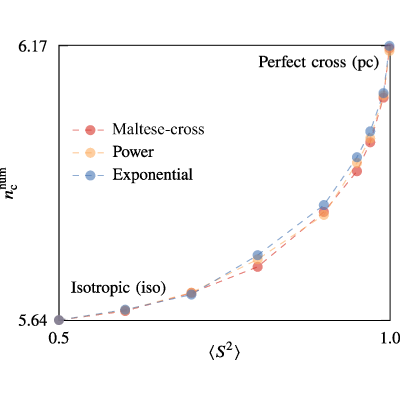

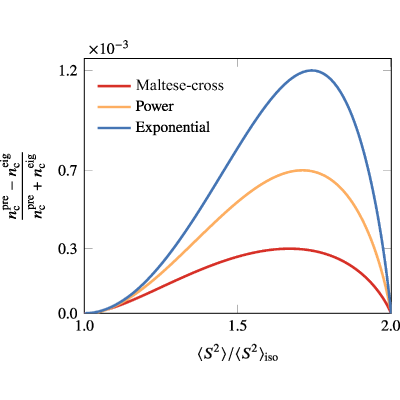

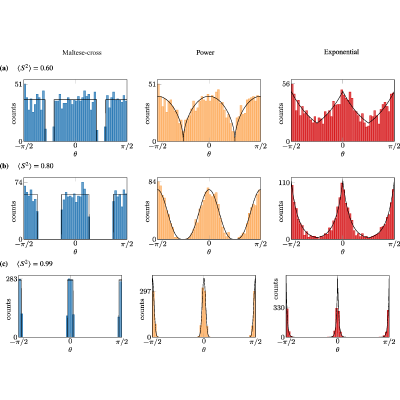

We investigate geometric percolation in two-dimensional assemblies of randomly positioned, widthless sticks of uniform length. The stick orientations are sampled from probability density functions with a vanishing mean orientational order parameter, while their higher-order structure varies continuously from perfect isotropy to perfect cross-alignment. Monte Carlo simulations show that the percolation threshold is lowest for the isotropic distribution and increases toward the perfectly cross-aligned limit. This variation is strongly nonuniform: small orientational perturbations near perfect cross-alignment produce substantially larger changes in the threshold than comparable perturbations near isotropy. The simulation results are interpreted using an orientation-resolved eigenvalue formulation based on the full excluded-area kernel and a fully preaveraged excluded-area approximation. For the probability density functions considered, the two formulations predict nearly identical thresholds. Orientation-dependent variations in the expected contact numbers therefore provide only a minor correction, whereas the dominant orientational dependence is retained by the averaged excluded area between pairs of sticks. A harmonic representation of this quantity further shows that the second moment captures the leading variation near isotropy, while progressively higher-order moments are required as the distribution approaches perfect cross-alignment. The results identify the orientational information that must be retained to predict geometric percolation in distributions having the same mean order parameter but different higher-order structures.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (29)

  1. I. Balberg, C. H. Anderson, S. Alexander, and N. Wagner, Excluded volume and its relation to the onset of percolation, Phys. Rev. B 30, 3933 (1984).
  2. A. V. Kyrylyuk and P. van der Schoot, Continuum percolation of carbon nanotubes in polymeric and colloidal media, Proc. Natl. Acad. Sci. USA 105, 8221 (2008).
  3. R. M. Mutiso and K. I. Winey, Electrical properties of polymer nanocomposites containing rod-like nanofillers, Prog. Polym. Sci. 40, 63 (2015).
  4. D. S. Hecht, L. Hu, and G. Irvin, Emerging transparent electrodes based on thin films of carbon nanotubes, graphene, and metallic nanostructures, Adv. Mater. 23, 1482 (2011).
  5. A. G. Ricciardulli, S. Yang, G.-J. A. H. Wetzelaer, X. Feng, and P. W. M. Blom, Hybrid silver nanowire and graphene-based solution-processed transparent electrode for organic optoelectronics, Adv. Funct. Mater. 28, 1706010 (2018).
  6. Y. Ding, S. Xiong, L. Sun, Y. Wang, Y. Zhou, Y. Li, J. Peng, K. Fukuda, T. Someya, R. Liu, and X. Zhang, Metal nanowire-based transparent electrode for flexible and stretchable optoelectronic devices, Chem. Soc. Rev. 53, 7784 (2024).
  7. M. Jagota and N. Tansu, Conductivity of nanowire arrays under random and ordered orientation configurations, Sci. Rep. 5, 10219 (2015).
  8. T. Ackermann, R. Neuhaus, and S. Roth, The effect of rod orientation on electrical anisotropy in silver nanowire networks for ultra-transparent electrodes, Sci. Rep. 6, 34289 (2016).
  9. N. I. Lebovka, Y. Y. Tarasevich, N. V. Vygornitskii, A. V. Eserkepov, and R. K. Akhunzhanov, Anisotropy in electrical conductivity of films of aligned intersecting conducting rods, Phys. Rev. E 98, 012104 (2018).
  10. S.-K. Duan, Q.-L. Niu, J.-F. Wei, J.-B. He, Y.-A. Yin, and Y. Zhang, Water-bath assisted convective assembly of aligned silver nanowire films for transparent electrodes, Phys. Chem. Chem. Phys. 17, 8106 (2015).
  11. Y. Fang, K. Ding, Z. Wu, H. Chen, W. Li, S. Zhao, Y. Zhang, L. Wang, J. Zhou, and B. Hu, Architectural engineering of nanowire network fine pattern for 30µm wide flexible quantum dot light-emitting diode application, ACS Nano 10, 10023 (2016).
  12. S. Cho, S. Kang, A. Pandya, R. Shanker, Z. Khan, Y. Lee, J. Park, S. L. Craig, and H. Ko, Large-area cross-aligned silver nanowire electrodes for flexible, transparent, and force-sensitive mechanochromic touch screens, ACS Nano 11, 4346 (2017).
  13. Y.-X. Wang, J.-Y. Ren, Z.-J. Guo, N. Li, X.-J. Liu, L.-H. Hao, W. Deng, H.-X. Bai, J.-G. Liang, and Z.-C. Chen, Flexible, transparent, and low-temperature usable electromagnetic shielding film based on orthogonally arranged silver nanowire network/graphene oxide conductive network, Chem. Phys. Lett. 857, 141701 (2024).
  14. C. Wang, B. Song, X. Zhai, C. Zhang, M. Du, Y. Miao, and P. Dong, Cross-alignment of silver nanowires network for efficient nanowelding, Nanotechnology 36, 105301 (2025).
  15. D. Grazioli, L. Nicola, and A. Simone, Debunking misconceptions about cross-aligned nanowire network electrodes, Nanotechnology 36, 255204 (2025).
  16. E. Sharafedini, H. Hamzehpour, and M. Alidoust, Quantum transport in random alloys with intermetallic needle-shape precipitates, Phys. Rev. E 112, 034128 (2025).
  17. I. Balberg and N. Binenbaum, Computer study of the percolation threshold in a two-dimensional anisotropic system of conducting sticks, Phys. Rev. B 28, 3799 (1983).
  18. A. P. Chatterjee and Y. Y. Tarasevich, Lattice model for percolation on a plane of partially aligned sticks with length dispersity, Phys. Rev. E 110, 044115 (2024).
  19. A. Durant and A. P. Chatterjee, Percolation thresholds for penetrable spherocylinders with varied orientational distribution functions, J. Stat. Phys. 193, 117 (2026).
  20. A. P. Chatterjee and C. Grimaldi, Random geometric graph description of connectedness percolation in rod systems, Phys. Rev. E 92, 032121 (2015).
  21. L. R. Scott, Numerical Analysis, 2nd ed. (Princeton University Press, Princeton, New Jersey, 2015).
  22. D. Grazioli, A. C. Dadduzio, M. Roso, and A. Simone, Quantitative electrical homogeneity assessment of nanowire transparent electrodes, Nanoscale 15, 6770 (2023).
  23. M. Žeželj and I. Stanković, From percolating to dense random stick networks: Conductivity model investigation, Phys. Rev. B 86, 134202 (2012).
  24. J. Li and S.-L. Zhang, Finite-size scaling in stick percolation, Phys. Rev. E 80, 040104(R) (2009).
  25. R. M. Ziff and M. E. J. Newman, Convergence of threshold estimates for two-dimensional percolation, Phys. Rev. E 66, 016129 (2002).
  26. R. K. Daniels, Finite-size scaling in quasi-three-dimensional stick percolation, Phys. Rev. E 114, 014102 (2026).
  27. C. Grimaldi, Theory of percolation and tunneling regimes in nanogranular metal films, Phys. Rev. B 89, 214201 (2014).
  28. F. Y. Wu, Theory of resistor networks: The two-point resistance, J. Phys. A: Math. Gen. 37, 6653 (2004).
  29. J. P. Straley, Frank elastic constants of the hard-rod liquid crystal, Phys. Rev. A 8, 2181 (1973).
