MINER reactor based search for axionlike particles using sapphire (Al2O3) detectors

M. Mirzakhani1, W. Baker1, M. Chaudhuri2, J. B. Dent3, R. Dey2, B. Dutta1, V. Iyer4, A. Jastram5, V. K. S. Kashyap2 et al.

A. Kubik6, K. Lang7, R. Mahapatra1, S. Maludze1, N. Mirabolfathi1, B. Mohanty2, D. Mondal2, H. Neog8, J. L. Newstead9, M. Platt1, S. Sahoo1, J. Sander10, L. E. Strigari1, and J. Walker3

PDF

Phys. Rev. D 112, 032013 – Published 28 August, 2025

DOI: https://doi.org/10.1103/tbwx-b5lx

Abstract

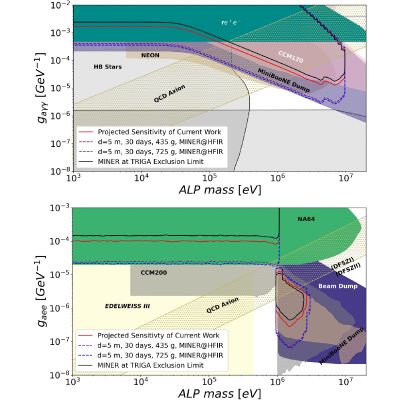

The absence of definitive results for WIMP dark matter has sparked growing interest in alternative dark matter candidates, such as axions and axionlike particles (ALPs), which also provide insight into the strong CP problem. The Mitchell Institute Neutrino Experiment at Reactor (MINER), conducted at the Nuclear Science Center of Texas A&M University, investigated ALPs near a 1 MW h TRIGA nuclear reactor core, positioned approximately 4 m away. This experiment employed cryogenic sapphire detectors with a low detection threshold (≈100  eV), equipped with a transition edge sensor capable of detecting athermal phonons. Due to the low-background environment, we were able to exclude ALPs with axion-photon coupling and axion-electron coupling as small as gaγγ=10−5 and gaee=10−7, respectively. Energy depositions below 3 keV were not considered and remain blinded for our coherent elastic neutrino-nucleus scattering analysis. This is the first result demonstrating the MINER experiment’s potential to probe low-mass ALPs, enabled by its low-threshold detector and proximity to a reactor.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (48)

  1. R. D. Peccei and H. R. Quinn, CP conservation in the presence of pseudoparticles, Phys. Rev. Lett. 38, 1440 (1977).
  2. R. D. Peccei and H. R. Quinn, Constraints imposed by CP conservation in the presence of pseudoparticles, Phys. Rev. D 16, 1791 (1977).
  3. M. Mirzakhani and S. Maludze, Germanium and silicon detectors for WIMP searches: Key experimental insights, Int. J. Mod. Phys. A 40, 2530005 (2025).
  4. S. Weinberg, A new light boson?, Phys. Rev. Lett. 40, 223 (1978).
  5. F. Wilczek, Problem of strong p and t invariance in the presence of instantons, Phys. Rev. Lett. 40, 279 (1978).
  6. K. Zioutas, C. Aalseth, D. Abriola, F. Avignone Iii, R. Brodzinski, J. Collar, R. Creswick, D. Di Gregorio, H. Farach, A. Gattone et al., A decommissioned LHC model magnet as an axion telescope, Nucl. Instrum. Methods Phys. Res., Sect. A 425, 480 (1999).
  7. CAST Collaboration, New CAST limit on the axion-photon interaction, Nat. Phys. 13, 584 (2017).
  8. I. Irastorza et al., The International Axion Observatory IAXO. Letter of intent to the CERN SPS Committee, Report No. CERN-SPSC-2013-022, 2013.
  9. S. Asztalos, E. Daw, H. Peng, L. Rosenberg, C. Hagmann, D. Kinion, W. Stoeffl, K. van Bibber, P. Sikivie, N. Sullivan et al., Large-scale microwave cavity search for dark-matter axions, Phys. Rev. D 64, 092003 (2001).
  10. N. Du, N. Force, R. Khatiwada, E. Lentz, R. Ottens, L. Rosenberg, G. Rybka, G. Carosi, N. Woollett, D. Bowring et al., Search for invisible axion dark matter with the axion dark matter experiment, Phys. Rev. Lett. 120, 151301 (2018).
  11. Y. Kahn, B. R. Safdi, and J. Thaler, Broadband and resonant approaches to axion dark matter detection, Phys. Rev. Lett. 117, 141801 (2016).
  12. C. P. Salemi, First results from Abracadabra-10 cm: A search for low-mass axion dark matter, arXiv:1905.06882.
  13. B. M. Brubaker et al., First results from a microwave cavity axion search at 24  μeV, Phys. Rev. Lett. 118, 061302 (2017).
  14. A. G. Droster and K. van Bibber, Haystac status, results, and plans, arXiv:1901.01668.
  15. A. Spector, ALPSII status report, in 14th Patras Workshop on Axions, WIMPs and WISPs (2019), arXiv:1906.09011.
  16. S. Moriyama, Proposal to search for a monochromatic component of solar axions using Fe57, Phys. Rev. Lett. 75, 3222 (1995).
  17. M. Krčmar, Z. Krečak, M. Stipčević, A. Ljubičić, and D. Bradley, Search for solar axions using Fe57, Phys. Lett. B 442, 38 (1998).
  18. M. Krčmar, Z. Krečak, A. Ljubičić, M. Stipčević, and D. A. Bradley, Search for solar axions using Li7, Phys. Rev. D 64, 115016 (2001).
  19. A. Derbin, S. Bakhlanov, A. Egorov, I. Mitropol’sky, V. Muratova, D. Semenov, and E. Unzhakov, Search for solar axions produced by Primakoff conversion using resonant absorption by Tm169 nuclei, Phys. Lett. B 678, 181 (2009).
  20. R. Creswick, D. Li, F. T. Avignone, and Y. Wang, Sensitivity of oriented single crystal germanium bolometers to 14.4 keV solar axions emitted by the M1 nuclear transition of Fe57, in 13th Patras Workshop on Axions, WIMPs and WISPs (Verlag Deutsches Elektronen-Synchrotron, Hamburg, 2018), pp. 11–14.
  21. A. M. Gangapshev et al., Search for the resonance absorption of solar axions emitted in the M1 transition of Kr83 and Fe57 nuclei in the Sun, in SN 1987A, Quark Phase Transition in Compact Objects and Multimessenger Astronomy (Institute for Nuclear Research of the Russian Academy of Sciences (INR RAS), Moscow, 2018), pp. 80–85.
  22. G. Agnolet et al. (MINER Collaboration), Background studies for the MINER coherent neutrino scattering reactor experiment, Nucl. Instrum. Methods Phys. Res., Sect. A 853, 53 (2017).
  23. C. Buck, K. Fülber, J. Hakenmüller, G. Heusser, M. Lindner, W. Maneschg, T. Rink, H. Strecker, T. Schierhuber, V. Wagner et al., A novel experiment for coherent elastic neutrino nucleus scattering: CONUS, J. Phys. Conf. Ser. 1342, 012094 (2020).
  24. A. Aguilar-Arevalo et al. (CONNIE Collaboration), The CONNIE experiment, J. Phys. Conf. Ser. 761, 012057 (2016).
  25. R. Strauss, J. Rothe, G. Angloher, A. Bento, A. Gütlein, D. Hauff, H. Kluck, M. Mancuso, L. Oberauer, F. Petricca, F. Pröbst, J. Schieck, S. Schönert, W. Seidel, and L. Stodolsky, The ν-cleus experiment: A gram-scale fiducial-volume cryogenic detector for the first detection of coherent neutrino–nucleus scattering, Eur. Phys. J. C 77, 506 (2017).
  26. A. Aguilar-Arevalo et al., Axion-like particles at coherent CAPTAIN-Mills, Phys. Rev. D 107, 095036 (2023).
  27. M. Roos, Sources of gamma radiation in a reactor core, J. Nucl. Energy, Part B 1, 98 (1959).
  28. D. A. Sierra, V. De Romeri, L. J. Flores, and D. Papoulias, Axionlike particles searches in reactor experiments, J. High Energy Phys. 03 (2021) 294.
  29. S. Sahoo, S. Verma, M. Mirzakhani, N. Mishra, A. Thompson, S. Maludze, R. Mahapatra, and M. Platt, Reactor-based search for axion-like particles using CSi(Tl) detector, arXiv:2407.14704.
  30. R. Massarczyk, P.-H. Chu, and S. R. Elliott, Axion emission from nuclear magnetic dipole transitions, Phys. Rev. D 105, 015031 (2022).
  31. J. B. Dent, B. Dutta, D. Kim, S. Liao, R. Mahapatra, K. Sinha, and A. Thompson, New directions for axion searches via scattering at reactor neutrino experiments, Phys. Rev. Lett. 124, 211804 (2020).
  32. D. Aloni, C. Fanelli, Y. Soreq, and M. Williams, Photoproduction of axionlike particles, Phys. Rev. Lett. 123, 071801 (2019).
  33. Y. S. Tsai, Axion bremsstrahlung by an electron beam, Phys. Rev. D 34, 1326 (1986).
  34. M. J. Berger, Xcom: Photon cross sections database, 10.18434/T48G6X (2010).
  35. S. D. Verma, Fabrication of CDMs dark matter detector using bi-layer lift-off technique and detection of axions/axion like particles (ALPs) using CSi(Tl) scintillator detectors, Ph.D. thesis, Texas A-M University, 2022.
  36. A. Derevianko, V. A. Dzuba, V. V. Flambaum, and M. Pospelov, Axio-electric effect, Phys. Rev. D 82, 065006 (2010).
  37. Updated technical specifications for the nuclear science center reactor, https://engineering.tamu.edu/nuclear/research/facilities/nuclear-science-center.html.
  38. G. Agnolet et al. (MINER Collaboration), Background studies for the MINER coherent neutrino scattering reactor experiment, Nucl. Instrum. Methods Phys. Res., Sect. A 853, 53 (2017).
  39. K. D. Irwin, S. W. Nam, B. Cabrera, B. Chugg, and B. A. Young, A quasiparticle-trap-assisted transition-edge sensor for phonon-mediated particle detection, Rev. Sci. Instrum. 66, 5322 (1995).
  40. S. Maludze, M. Mirzakhani, W. Baker, M. Lee, C. Savage, H. Neog, R. Mahapatra, N. Mirabolfathi, M. Platt, and A. Jastram, Measurement of low energy nuclear recoil events with the phonon-mediated voltage-assisted hybrid detector for rare event searches, Nucl. Instrum. Methods Phys. Res., Sect. A 1070, 169994 (2025).
  41. J. W. Brockway, E. D. Carlson, and G. G. Raffelt, SN 1987A gamma-ray limits on the conversion of pseudoscalars, Phys. Lett. B 383, 439 (1996).
  42. G. G. Raffelt, Astrophysical axion bounds diminished by screening effects, Phys. Rev. D 33, 897 (1986).
  43. G. G. Raffelt and D. S. P. Dearborn, Bounds on hadronic axions from stellar evolution, Phys. Rev. D 36, 2211 (1987).
  44. A. Ayala, I. Domínguez, M. Giannotti, A. Mirizzi, and O. Straniero, Revisiting the bound on axion-photon coupling from globular clusters, Phys. Rev. Lett. 113, 191302 (2014).
  45. P. Carenza, O. Straniero, B. Döbrich, M. Giannotti, G. Lucente, and A. Mirizzi, Constraints on the coupling with photons of heavy axion-like-particles from globular clusters, Phys. Lett. B 809, 135709 (2020).
  46. G. Lucente, P. Carenza, T. Fischer, M. Giannotti, and A. Mirizzi, Heavy axion-like particles and core-collapse supernovae: Constraints and impact on the explosion mechanism, J. Cosmol. Astropart. Phys. 12 (2020) 008.
  47. F. Capozzi, B. Dutta, G. Gurung, W. Jang, I. M. Shoemaker, A. Thompson, and J. Yu, New constraints on ALP couplings to electrons and photons from argoneut and the MiniBooNE beam dump, Phys. Rev. D 108, 075019 (2023).
  48. B. J. Park et al., New constraints on axionlike particles with the neon detector at a nuclear reactor, Phys. Rev. Lett. 134, 201002 (2025).
