Demonstrating the velocity response of a table-top EPR speedmeter

S. L. Kranzhoff1,2,*, S. L. Danilishin1,2, S. Steinlechner1,2, M. Vardaro1,2, T. Zhang3, and S. Hild1,2

  • 1Maastricht University, Department of Gravitational Waves and Fundamental Physics, 6200MD Maastricht, the Netherlands
  • 2Nikhef, Science Park 105, 1098 XG Amsterdam, the Netherlands
  • 3Institute for Gravitational Wave Astronomy, School of Physics and Astronomy, University of Birmingham, Birmingham B15 2TT, United Kingdom

  • *Contact author: luise.kranzhoff@ligo.org
PDF

Phys. Rev. D 112, 083054 – Published 23 October, 2025

DOI: https://doi.org/10.1103/r8tx-xd6n

Abstract

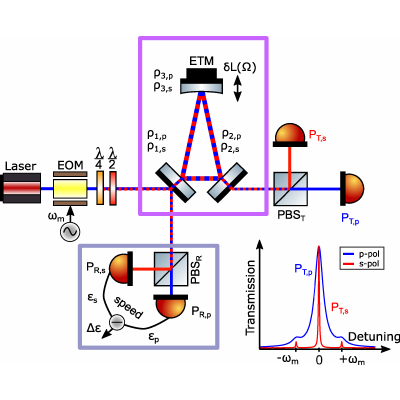

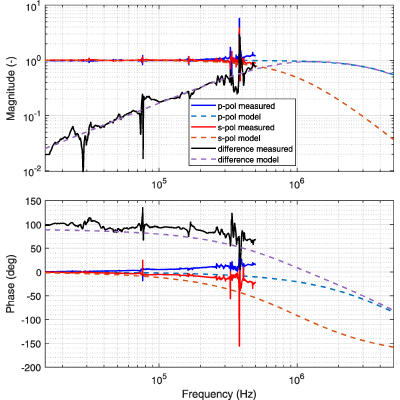

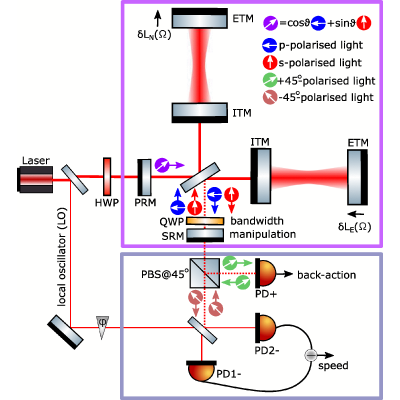

The sensitivity of gravitational wave interferometers is fundamentally limited by quantum noise, as dictated by the Heisenberg uncertainty principle, due to their continuous position measurement of the end mirrors. Speedmeter configurations, which measure mirror velocity rather than position, have been proposed as a means to suppress quantum backaction noise, but practical implementations remain at an early stage. In this work, we present a table-top realization of the Einstein-Podolsky-Rosen (EPR) speedmeter concept, employing an optical readout scheme based on two orthogonal polarization modes that probe the interferometer with different effective bandwidths. Using a triangular cavity, we demonstrate that the differential optical response between the linear p- and s-polarized modes exhibits a speedlike frequency dependence: vanishing at DC and increasing linearly with signal frequency, up to the bandwidth of the slower mode. With this we show that an optical system equivalent to the EPR speedmeter indeed performs a velocity readout of the end mirror.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. J. Aasi et al. (LIGO Scientific Collaboration), Advanced LIGO, Classical Quantum Gravity 32, 074001 (2015).
  2. F. Acernese et al. (Virgo Scientific Collaboration), Advanced Virgo: A second-generation interferometric gravitational wave detector, Classical Quantum Gravity 32, 024001 (2015).
  3. B. Abbott et al. (LIGO and Virgo Scientific Collaborations), GWTC-1: A gravitational-wave transient catalog of compact binary mergers observed by LIGO and Virgo during the first and second oberserving runs, Phys. Rev. X 9, 031040 (2019).
  4. R. Abbott et al. (LIGO and Virgo Scientific Collaborations), GWTC-2.1: Deep extended catalog of compact binary coalescences observed by LIGO and Virgo during the first half of the third observing run, Phys. Rev. D 109, 022001 (2024).
  5. R. Abbott et al. (LIGO and Virgo Scientific Collaborations), Gwtc3: Compact binary coalescences observed by LIGO and Virgo during the second part of the third observing run, Phys. Rev. X 13, 041039 (2023).
  6. T. Akutsu et al., Overview of KAGRA: Detector design and construction history, Prog. Theor. Exp. Phys. 2021, 05A101 (2021).
  7. E. Capote et al., Advanced LIGO detector performance in the fourth observing run, Phys. Rev. D 111, 062002 (2025).
  8. M. Punturo et al., The Einstein Telescope: A third-generation gravitational wave observatory, Classical Quantum Gravity 27, 194002 (2010).
  9. M. Maggiore et al., Science case for the Einstein Telescope, J. Cosmol. Astropart. Phys. 03 (2020) 050.
  10. A. Abac et al., The Science of the Einstein Telescope, arXiv:2503.12263.
  11. D. V. Martynov et al., Sensitivity of the Advanced LIGO detectors at the beginning of gravitational wave astronomy, Phys. Rev. D 93, 112004 (2016).
  12. C. Caves, Quantum-mechanical noise in an interferometer, Phys. Rev. D 23, 1693 (1981).
  13. V. Braginsky and A. Manukin, Ponderomotive effects of electromagnetic radiation, Sov. Phys. JETP 25, 653 (1967).
  14. S. L. Danilishin and F. Y. Khalili, Quantum measurement theory in gravitational-wave detectors, Living Rev. Relativity 15, 5 (2012).
  15. H. Vahlbruch, A. Khalaidovski, N. Lastzka, C. Graef, K. Danzmann, and R. Schnabel, The GEO 600 squeezed light source, Classical Quantum Gravity 27, 084027 (2010).
  16. J. Abadie et al. (LIGO Scientific Collaboration), A gravitational wave observatory operating beyond the quantum shot-noise limit, Nat. Phys. 7, 962 (2011).
  17. M. Tse et al., Quantum-enhanced Advanced LIGO detectors in the era of gravitational-wave astronomy, Phys. Rev. Lett. 123, 231107 (2019).
  18. F. Acernese et al. (Virgo Collaboration), Increasing the astrophysical reach of the Advanced Virgo detector via the application of squeezed vacuum states of light, Phys. Rev. Lett. 123, 231108 (2019).
  19. D. Walls, Squeezed states of light, Nature (London) 306, 141 (1983).
  20. R. Schnabel, Squeezed states of light and their applications in laser interferometers, Phys. Rep. 684, 1 (2017).
  21. S. Danilishin, F. Khalili, and H. Miao, Advanced quantum techniques for future gravitational-wave detectors, Living Rev. Relativity 22, 2 (2019).
  22. D. Ganapathy et al. (LIGO O4 Detector Collaboration), Broadband quantum enhancement of the LIGO detectors with frequency-dependent squeezing, Phys. Rev. X 13, 041021 (2023).
  23. F. Acernese et al. (Virgo Collaboration), Frequency-dependent squeezed vacuum source for the Advanced Virgo gravitational-wave detector, Phys. Rev. Lett. 131, 041403 (2023).
  24. V. Braginsky and F. Khalili, Gravitational wave antenna with QND speed meter, Phys. Lett. A 147, 251 (1990).
  25. V. B. Braginsky and Y. I. Vorontsov, and K. S. Thorne, Quantum nondemolition measurements, Science 209, 547 (1980).
  26. V. Braginsky, M. Gorodetsky, F. Khalili, and K. Thorne, Dual-resonator speedmeter for a free test mass, Phys. Rev. D 61, 044002 (2000).
  27. P. Purdue and Y. Chen, Practical speed meter designs for quantum nondemolition gravitational-wave interferometers, Phys. Rev. D 66, 122004 (2002).
  28. Y. Chen, Sagnac interferometer as a speed-meter-type, quantum-nondemolition gravitational-wave detector, Phys. Rev. D 67, 122004 (2003).
  29. A. Wade, K. McKenzie, Y. Chen, D. Shaddock, J. Chow, and D. McClelland, Polarization speed meter for gravitational-wave detection, Phys. Rev. D 86, 062001 (2012).
  30. M. Wang, C. Bond, D. Brown, F. Brückner, L. Carbone, R. Palmer, and A. Freise, Realisitic polarizing Sagnac topology with DC readout for the Einstein telescope, Phys. Rev. D 87, 096008 (2013).
  31. S. H. Huttner et al., Candidates for a possible third-generation gravitational wave detector: Comparison of ring-Sagnac and sloshing-Sagnac speedmeter interferometers, Classical Quantum Gravity 34, 024001 (2016).
  32. E. Knyazev, S. Danilishin, S. Hild, and F. Khalili, Speedmeter scheme for gravitational-wave detectors based on EPR quantum entanglement, Phys. Lett. A 382, 2219 (2018).
  33. Y. Nishino, J. W. Gardner, Y. Chen, and K. Somiya, Teleportation-based speed meter for precision measurement, arXiv:2504.18111.
  34. Y. Nishino, J. W. Gardner, Y. Chen, and K. Somiya, Quantum backaction evasion with reservoir engineering, Phys. Rev. A 112, 023512 (2025).
  35. A. Buonanno and Y. Chen, Scaling law in signal recycled laser-interferometer gravitational-wave detectors, Phys. Rev. D 67, 062002 (2003).
  36. R. W. P. Drever, J. L. Hall, F. V. Kowalski, J. Hough, G. M. Ford, A. J. Munley, and H. Ward, Laser phase and frequency stabilization using an optical resonator, Appl. Phys. B 31, 97 (1983).
  37. D. Pascucci, On optics surface imperfections and their effects on the sensitivity of speed meters, Ph.D. thesis, University of Glasgow, 2019, https://theses.gla.ac.uk/id/eprint/40989.
  38. M. Korobko, X. Li, T. Sobottke, Y. Ma, Y. Chen, and R. Schnabel, Simultaneous speedmeter and position-meter response in a single tabletop interferometer, arXiv:2509.15285.
  39. S. Goßler et al., The AEI 10 m prototype interferometer, Classical Quantum Gravity 27, 084023 (2010).
  40. A. Utina et al., Etpathfinder: A cryogenic testbed for interferometric gravitational-wave detectors, Classical Quantum Gravity 39, 215008 (2022).
  41. S. L. Kranzhoff et al., Dataset for: Demonstrating the velocity response of a table-top EPR speedmeter, 10.5281/zenodo.16880848 (2025).
