Open Access

Production of $D_{s} {\bar{D}}_{s}$ and $D \bar{D}$ bound states in the $B$ decays within the Bethe-Salpeter framework

Zhen-Yang Wang ^1,*, Jing-Juan Qi^2,1,†, Zhen-Hua Zhang^3,‡, and Xin-Heng Guo ^4,§

¹Physics Department, Ningbo University, Zhejiang 315211, China
²College of Information and Intelligence Engineering, Zhejiang Wanli University, Zhejiang 315101, China
³School of Nuclear Science and Technology, University of South China, Hengyang, 421001, Hunan, China
⁴School of Physics Science and Technology, Kunming University, Kunming 650214, China

^*Contact author: wangzhenyang@nbu.edu.cn
^†Contact author: qijj@mail.bnu.edu.cn
^‡Contact author: zhangzh@usc.edu.cn
^§Contact author: xhguo@bnu.edu.cn

Phys. Rev. D 114, 034002 – Published 3 August, 2026

DOI: https://doi.org/10.1103/qnmq-cqvc

Abstract

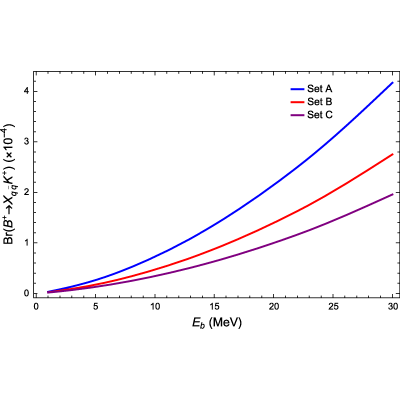

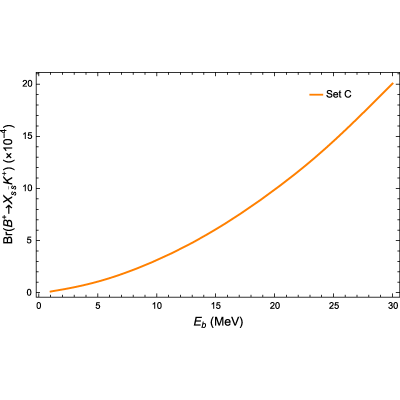

Within a Bethe-Salpeter model, we investigate the production of possible $D_{s} {\bar{D}}_{s}$ $(X_{s \bar{s}})$ and $D \bar{D}$ $(X_{q \bar{q}})$ bound states in $B$ decays. The bound state properties of the two heavy meson systems are studied in the one-boson-exchange kernel, and the resulting normalized Bethe-Salpeter wave functions are used to calculate the branching fractions of $B^{+} \to X_{s \bar{s}} K^{+}$ and $B^{+} \to X_{q \bar{q}} K^{+}$ . We find that bound-state solutions for the $D \bar{D}$ system exist for all three coupling sets considered, whereas the $D_{s} {\bar{D}}_{s}$ system supports a bound state solution only in a restricted parameter region. The predicted branching fractions are in the ranges of $1.09 \times 10^{- 5} - 20.06 \times 10^{- 4}$ for the $D_{s} {\bar{D}}_{s}$ bound state and $1.56 \times 10^{- 6} - 4.14 \times 10^{- 4}$ for the $D \bar{D}$ bound state. In particular, if $X (3915)$ is interpreted as a predominantly $D_{s} {\bar{D}}_{s}$ bound state, its production branching fraction in $B$ decay is found to be $5.79 \times 10^{- 4}$ .

Physics Subject Headings (PhySH)

Article Text

References (44)

M. Gell-Mann, A schematic model of baryons and mesons, Phys. Lett. 8, 214 (1964).
G. Zweig, An SU(3) model for strong interaction symmetry and its breaking, Version 1 (1964) 10.17181/CERN-TH-401.
S. K. Choi et al. (Belle Collaboration), Observation of a narrow charmonium-like state in exclusive $B^{\pm} \to K^{\pm} π^{+} π^{-} J / ψ$ decays, Phys. Rev. Lett. 91, 262001 (2003).
S. Navas et al. (Particle Data Group), Review of particle physics, Phys. Rev. D 110, 030001 (2024).
R. Aaij et al. (LHCb Collaboration), Observation of a resonant structure near the $D_{s}^{+} D_{s}^{-}$ threshold in the $B^{+} \to D_{s}^{+} D_{s}^{-} K^{+}$ decay, Phys. Rev. Lett. 131, 071901 (2023).
R. Aaij et al. (LHCb Collaboration), Amplitude analysis of the $B^{+} \to D^{+} D^{-} K^{+}$ decay, Phys. Rev. D 102, 112003 (2020).
K. Abe et al. (Belle Collaboration), Observation of a near-threshold omega J/psi mass enhancement in exclusive $B \to K$ omega J/psi decays, Phys. Rev. Lett. 94, 182002 (2005).
T. Ji, X.-K. Dong, M. Albaladejo, M.-L. Du, F.-K. Guo, and J. Nieves, Establishing the heavy quark spin and light flavor molecular multiplets of the $X (3872)$ , $Zc (3900)$ , and $X (3960)$ , Phys. Rev. D 106, 094002 (2022).
M. Bayar, A. Feijoo, and E. Oset, $X (3960)$ seen in $D_{s}^{+} D_{s}^{-}$ as the $X (3930)$ state seen in $D^{+} D^{-}$ , Phys. Rev. D 107, 034007 (2023).
S. Prelovsek, S. Collins, D. Mohler, M. Padmanath, and S. Piemonte, Charmonium-like resonances with $J^{P C} = 0^{+ +}, 2^{+ +}$ in coupled $D \bar{D}$ , $D_{s} {\bar{D}}_{s}$ scattering on the lattice, J. High Energy Phys. 06 (2021) 035.
F.-Z. Peng, M.-J. Yan, and M. Pavon Valderrama, Heavy- and light-flavor symmetry partners of the $Tcc + (3875)$ , the $X (3872)$ , and the $X (3960)$ from light-meson exchange saturation, Phys. Rev. D 108, 114001 (2023).
X.-K. Dong, F.-K. Guo, and B.-S. Zou, A survey of heavy-antiheavy hadronic molecules, Prog. Phys. 41, 65 (2021).
Z.-M. Ding, H.-Y. Jiang, D. Song, and J. He, Hidden and doubly heavy molecular states from interactions $D_{(s)}^{(*)} {\bar{D}}_{s}^{(*)} / B_{(s)}^{(*)} {\bar{B}}_{s}^{(*)}$ and $D_{(s)}^{(*)} D_{s}^{(*)} / B_{(s)}^{(*)} B_{s}^{(*)}$ , Eur. Phys. J. C 81, 732 (2021).
M.-Z. Liu, D.-J. Jia, and D.-Y. Chen, Possible hadronic molecular states composed of $S$ -wave heavy-light mesons, Chin. Phys. C 41, 053105 (2017).
H.-W. Ke and Y.-L. Shi, Study of possible molecular states of $D_{s}^{(*)} D_{s}^{(*)}$ and $B_{s}^{(*)} B_{s}^{(*)}$ , Phys. Rev. D 105, 114019 (2022).
L. Meng, B. Wang, and S.-L. Zhu, Predicting the ${\bar{D}}_{s}^{(*)} D_{s}^{(*)}$ bound states as the partners of X(3872), Sci. Bull. 66, 1288 (2021).
L. M. Abreu and J. M. Torres-Rincon, Searching for femtoscopic signatures of the $D D$ ( $I = 0$ ), $X (3700)$ , bound state, Phys. Rev. D 112, 016003 (2025).
D. Gamermann, E. Oset, D. Strottman, and M. J. Vicente Vacas, Dynamically generated open and hidden charm meson systems, Phys. Rev. D 76, 074016 (2007).
J.-M. Xie, M.-Z. Liu, and L.-S. Geng, Production rates of $D_{s}^{+} D_{s}^{-}$ and $D D$ molecules in $B$ decays, Phys. Rev. D 107, 016003 (2023).
Q. Wu, Y.-K. Chen, G. Li, S.-D. Liu, and D.-Y. Chen, Hunting for the hidden-charm molecular states with strange quarks in $B$ and Bs decays, Phys. Rev. D 107, 054044 (2023).
E. Wang, H.-S. Li, W.-H. Liang, and E. Oset, Analysis of the $γ γ \to D \bar{D}$ reaction and the $D \bar{D}$ bound state, Phys. Rev. D 103, 054008 (2021).
O. Deineka, I. Danilkin, and M. Vanderhaeghen, Dispersive analysis of the $γ γ \to {DD}^{-}$ data and the confirmation of the ${DD}^{-}$ bound state, Phys. Lett. B 827, 136982 (2022).
L. R. Dai, J.-J. Xie, and E. Oset, $B^{0} \to D^{0} {\bar{D}}^{0} K^{0}$ , $B^{+} \to D^{0} {\bar{D}}^{0} K^{+}$ , and the scalar $D \bar{D}$ bound state, Eur. Phys. J. C 76, 121 (2016).
L. Dai, G. Toledo, and E. Oset, Searching for a $D \bar{D}$ bound state with the $ψ (3770) \to γ D^{0} {\bar{D}}^{0}$ decay, Eur. Phys. J. C 80, 510 (2020).
L.-L. Wei, H.-S. Li, E. Wang, J.-J. Xie, D.-M. Li, and Y.-X. Li, Search for a $D \bar{D}$ bound state in the $Λ_{b} \to Λ D \bar{D}$ process, Phys. Rev. D 103, 114013 (2021).
X.-Q. Li, L.-J. Liu, E. Wang, and L.-L. Wei, Study of the $B \to K_{- η η c}$ decay due to the ${DD}^{-}$ bound state, Phys. Rev. D 109, 094014 (2024).
L. M. Abreu, M. Albaladejo, A. Feijoo, E. Oset, and J. Nieves, Shedding light on the $X (3930)$ and $X (3960)$ states with the $B^{-} \to K^{-} J / ψ ω$ reaction, Eur. Phys. J. C 83, 309 (2023).
X. Li and M. B. Voloshin, $X (3915)$ as a $D_{s} {\bar{D}}_{s}$ bound state, Phys. Rev. D 91, 114014 (2015).
J.-J. Qi, Z.-Y. Wang, Z.-F. Zhang, and X.-H. Guo, The properties of the $S$ -wave $D_{s} D_{s}$ bound state*, Chin. Phys. C 50, 022001 (2026).
M.-Z. Liu, X.-Z. Ling, L.-S. Geng, En-Wang, and J.-J. Xie, Production of $D_{s 0}^{*} (2317)$ and $D_{s 1} (2460)$ in $B$ decays as $D^{(*)} K$ and $D_{s}^{(*)} η$ $η$ molecules, Phys. Rev. D 106, 114011 (2022).
E. Oset, L. Roca, and M. Whitehead, Production of pentaquarks with hidden charm and double strangeness in $Ξ b$ and $Ω b$ decays, Phys. Rev. D 110, 034016 (2024).
Y. Yu, Z. Xiong, H. Zhang, B.-C. Ke, J.-W. Zhang, D.-Z. He, and R.-Y. Zhou, Investigating $Z_{c s} (3985)$ and $Z_{c s} (4000)$ exotic states in $Λ_{b} \to Z_{c s}^{-} p$ decays, Phys. Lett. B 848, 138363 (2024).
S. X. Nakamura and J. J. Wu, Pole determination of $P ψ s Λ (4338)$ and possible $P ψ s Λ (4255)$ in $B \to J / ψ Λ p^{-}$ , Phys. Rev. D 108, L011501 (2023).
Q. Wu, D.-Y. Chen, and R. Ji, Production of $P_{c s} (4459)$ from $Ξ_{b}$ Decay, Chin. Phys. Lett. 38, 071301 (2021).
M. Beneke and M. Neubert, QCD factorization for $B \to PP$ and $B \to P V$ decays, Nucl. Phys. B675, 333 (2003).
R. C. Verma, Decay constants and form factors of s-wave and p-wave mesons in the covariant light-front quark model, J. Phys. G 39, 025005 (2012).
H.-Y. Cheng, C.-K. Chua, and A. Soni, Final state interactions in hadronic $B$ decays, Phys. Rev. D 71, 014030 (2005).
X.-H. Guo and X.-H. Wu, Studying the scalar bound states of $K \bar{K}$ system in Bethe-Salpeter formalism, Phys. Rev. D 76, 056004 (2007).
R. Casalbuoni, A. Deandrea, N. Di Bartolomeo, R. Gatto, F. Feruglio, and G. Nardulli, Phenomenology of heavy meson chiral Lagrangians, Phys. Rep. 281, 145 (1997).
K. U. Can, G. Erkol, M. Oka, A. Ozpineci, and T. T. Takahashi, Vector and axial-vector couplings of $D$ and $D *$ mesons in $2 + 1$ flavor Lattice QCD, Phys. Lett. B 719, 103 (2013).
P. Ball and R. Zwicky, $B_{d, s} \to ρ, ω, K^{*}, ϕ$ decay form-factors from light-cone sum rules revisited, Phys. Rev. D 71, 014029 (2005).
H.-Y. Jiang and S.-P. Jin, Precision calculations of the $D_{(s)} D_{(s)} V$ and $B_{(s)} B_{(s)} V$ couplings from light-cone sum rules, J. High Energy Phys. 03 (2025) 106.
Z.-L. Li, X.-Y. Tan, Z.-F. Zhang, Z.-Y. Wang, and X.-H. Guo, Investigating $S$ -wave bound states composed of two pseudoscalar mesons*, Chin. Phys. C 47, 013102 (2023).
G.-J. Ding, $Y (4260)$ and $Z_{2}^{+} (4250)$ are $D_{1} D$ or $D_{0} D *$ hadronic molecules?Phys. Rev. D 79, 014001 (2009).

Phys. Rev. D 114, 034002– Published 3 August, 2026

Vol. 114, Iss. 3 — 1 August 2026

Received 5 May 2026
Accepted 14 July 2026

DOI: https://doi.org/10.1103/qnmq-cqvc

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article’s title, journal citation, and DOI. Funded by SCOAP³.
