Neutron emission associated with γγ→γγ scattering in ultraperipheral collisions of heavy ions at the LHC

P. Jucha1,*, M. Kłusek-Gawenda1,†, and A. Szczurek1,2,‡

  • *Contact author: Pawel.Jucha@ifj.edu.pl
  • †Contact author: Mariola.Klusek@ifj.edu.pl
  • ‡Contact author: Antoni.Szczurek@ifj.edu.pl
PDF

Phys. Rev. D 112, L051501 – Published 8 September, 2025

DOI: https://doi.org/10.1103/qf5z-wsmb

Abstract

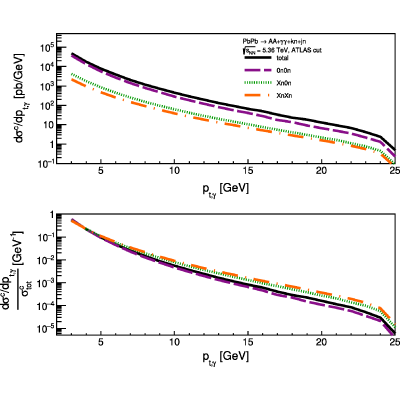

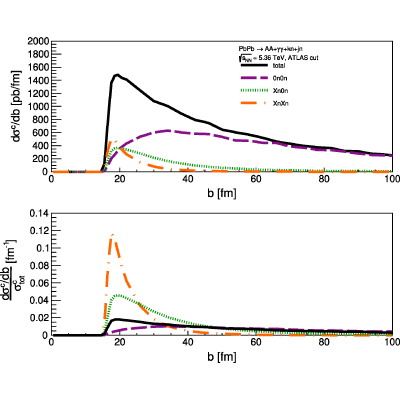

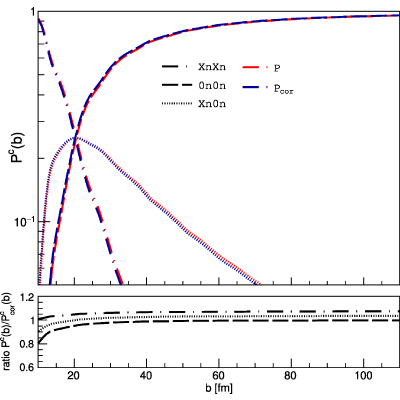

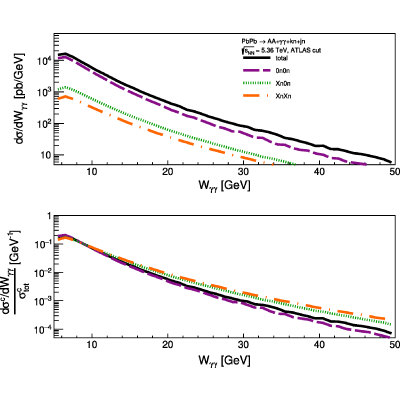

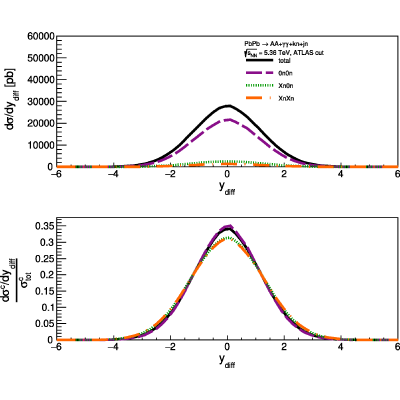

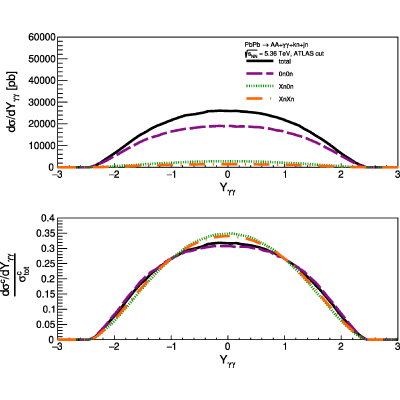

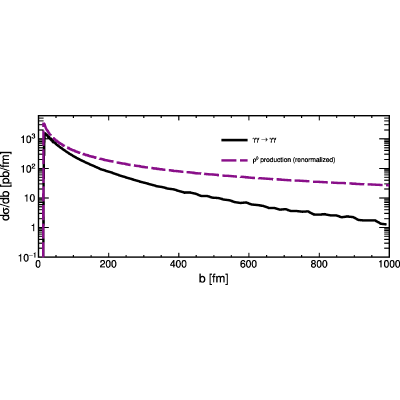

We calculate cross sections for the production of different neutron classes 0n0n, 0nXn+Xn0n and XnXn, possible to measure in Zero Degree Calorimeters (ZDCs), associated with photon-photon scattering in ultraperipheral collisions (UPC) of lead on lead. The calculations are performed for the ATLAS kinematics. Our calculations for neutron classes are tested against existing data for ρ0 production in UPC. We get a good agreement for absolute cross section as well as very good results for fractional cross section which gives confidence to the analogous calculation for diphoton production, corresponding to γγ→γγ scattering. We present both absolute as well as fractional cross sections for the different neutron classes. We also show different distributions in impact parameter, photon rapidity, transverse momentum, diphoton invariant mass, and photon rapidity difference. The shapes of the photon distributions depend on the neutron classes which we quantify in this paper. It would be valuable to test our predictions using the ATLAS main detector and the ATLAS ZDCs.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (29)

  1. ATLAS Collaboration, Evidence for light-by-light scattering in heavy-ion collisions with the ATLAS detector at the LHC, Nat. Phys. 13, 852 (2017).
  2. A. M. Sirunyan et al. (CMS Collaboration), Evidence for light-by-light scattering and searches for axion-like particles in ultraperipheral PbPb collisions at sNN=5.02  TeV, Phys. Lett. B 797, 134826 (2019).
  3. G. Aad et al. (ATLAS Collaboration), Observation of light-by-light scattering in ultraperipheral Pb+Pb collisions with the ATLAS detector, Phys. Rev. Lett. 123, 052001 (2019).
  4. G. Aad et al. (ATLAS Collaboration), Measurement of light-by-light scattering and search for axion-like particles with 2.2  nb−1 of Pb+Pb data with the ATLAS detector, J. High Energy Phys. 03 (2021) 243; 11 (2021) 50.
  5. A. Abreu et al. (CMS Collaboration), Measurement of light-by-light scattering and the Breit–Wheeler process, and search for axion-like particles in ultraperipheral PbPb collisions at sNN=5.02  TeV, CERN Document Server Report No. CMS-PAS-HIN-21-015, 2024.
  6. M. Kłusek-Gawenda, P. Lebiedowicz, and A. Szczurek, Light-by-light scattering in ultraperipheral Pb-Pb collisions at energies available at the CERN Large Hadron Collider, Phys. Rev. C 93, 044907 (2016).
  7. M. Kłusek-Gawenda, W. Schäfer, and A. Szczurek, Two-gluon exchange contribution to elastic γγ→γγ scattering and production of two-photons in ultraperipheral ultrarelativistic heavy ion and proton-proton collisions, Phys. Lett. B 761, 399 (2016).
  8. P. Lebiedowicz and A. Szczurek, The role of meson exchanges in light-by-light scattering, Phys. Lett. B 772, 330 (2017).
  9. M. Kłusek-Gawenda, R. McNulty, R. Schicker, and A. Szczurek, Light-by-light scattering in ultraperipheral heavy-ion collisions at low diphoton masses, Phys. Rev. D 99, 093013 (2019).
  10. C. Loizides, W. Riegler et al. (ALICE Collaboration), Letter of intent: A forward calorimeter (FoCal) in the ALICE experiment, CERN Document Server, Reports No. CERN-LHCC-2020-009, No. LHCC-I-036, 2020.
  11. L. Musa, W. Riegler et al. (ALICE Collaboration), Letter of intent for ALICE 3: A next-generation heavy-ion experiment at the LHC, CERN Document Server, Reports No. CERN-LHCC-2022-009, No. LHCC-I-038, 2022.
  12. P. Jucha, M. Kłusek-Gawenda, and A. Szczurek, Light-by-light scattering in ultraperipheral collisions of heavy ions at two future detectors, Phys. Rev. D 109, 014004 (2024).
  13. M. Klusek-Gawenda, V. P. Gonçalves, and A. Szczurek, Light-by-light scattering in ultraperipheral heavy ion collisions: Estimating inelastic contributions, Phys. Lett. B 867, 139614 (2025).
  14. A. Baltz, S. R. Klein, and J. Nystrand, Coherent vector-meson photoproduction with nuclear breakup in relativistic heavy-ion collisions, Phys. Rev. Lett. 89, 012301 (2002).
  15. A. Baltz, Y. Gorbunov, S. R. Klein, and J. Nystrand, Two-photon interactions with nuclear breakup in relativistic heavy ion collision, Phys. Rev. C 80, 044902 (2009).
  16. I. A. Pshenichnov, Multiphoton exchanges in peripheral heavy ion collisions, Phys. Part. Nucl. 42, 215 (2011).
  17. M. Kłusek-Gawenda, M. Ciemała, W. Schäfer, and A. Szczurek, Electromagnetic excitation of nuclei and neutron evaporation in ultrarelativistic ultraperipheral heavy ion collisions, Phys. Rev. C 89, 054907 (2014).
  18. S. R. Klein, J. Nystrand, J. Seger, Y. Gorbunov, and J. Butterworth, Starlight: A Monte Carlo simulation program for ultra-peripheral collisions of relativistic ions, Comput. Phys. Commun. 212, 258 (2017).
  19. M. Broz, J. G. Contreras, and J. D. Tapia Takaki, A generator of forward neutrons for ultra-peripheral collisions: nnoo, Comput. Phys. Commun. 253, 107181 (2020).
  20. E. Kryshen, M. Strikman, and M. Zhalov, Photoproduction of J/ψ with neutron tagging in ultraperipheral collisions at RHIC and at the LHC, Phys. Rev. C 108, 024904 (2023).
  21. P. Jucha, M. Kłusek-Gawenda, A. Szczurek, M. Ciemała, and K. Mazurek, Neutron emission from the photon-induced reactions in ultraperipheral ultrarelativistic heavy-ion collisions, Phys. Rev. C 111, 034901 (2025).
  22. M. Kłusek-Gawenda and A. Szczurek, Exclusive muon-pair productions in ultrarelativistic heavy-ion collisions—realistic nucleus charge form factor and differential distributions, Phys. Rev. C 82, 014904 (2010).
  23. I. Gheorghe et al., Photoneutron cross section measurements on Pb208 in the giant dipole resonance region, Phys. Rev. C 110, 014619 (2024).
  24. G. Agakishiev et al., ρ0 photoproduction in AuAu collisions at sNN=62.4  GeV with STAR, Phys. Rev. C 85, 014910 (2012).
  25. C. Adler et al., Coherent ρ0 production in ultraperipheral heavy ion collisions, Phys. Rev. Lett. 89, 272302 (2002).
  26. B. I. Abelev et al., ρ0 photoproduction in ultraperipheral relativistic heavy ion collisions at sNN=200  GeV, Phys. Rev. C 77, 034910 (2008).
  27. L. Adamczyk et al., Coherent diffractive photoproduction of ρ0 mesons on gold nuclei at 200  GeV/nucleon-pair at the Relativistic Heavy Ion Collider, Phys. Rev. C 96, 054904 (2017).
  28. J. Adam et al., Coherent ρ0 photoproduction in ultra-peripheral Pb-Pb collisions at sNN=2.76  TeV, J. High Energy Phys. 09 (2015) 095.
  29. S. Acharya et al., Coherent photoproduction of ρ0 vector mesons in ultra-peripheral Pb-Pb collisions at sNN=5.02  TeV, J. High Energy Phys. 06 (2020) 035.
