Jet reconstruction with Mamba networks in collider events

Jinmian Li1,*, Peng Li1,†, Bingwei Long1,2,‡, and Rao Zhang1,§

  • *Contact author: jmli@scu.edu.cn
  • †Contact author: lipeng@scu.edu.cn
  • ‡Contact author: bingwei@scu.edu.cn
  • §Contact author: rzhang9527@gmail.com
PDF

Phys. Rev. D 112, 056017 – Published 15 September, 2025

DOI: https://doi.org/10.1103/pwp8-ffqk

Abstract

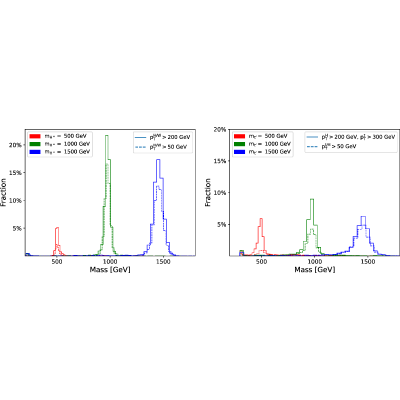

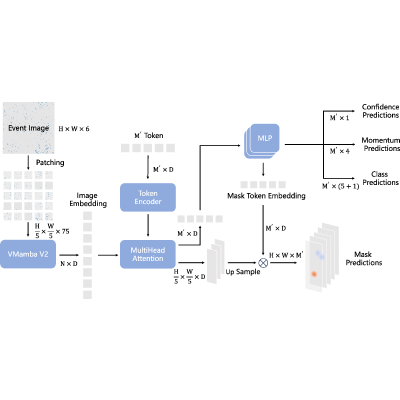

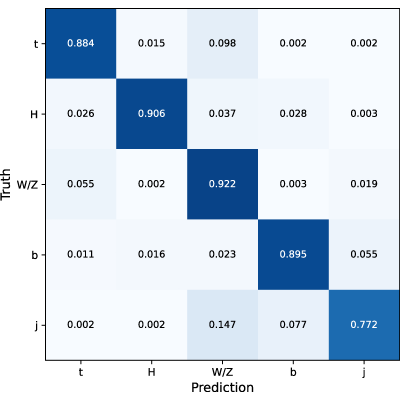

We introduce a novel end-to-end framework for jet reconstruction in high-energy collider events, leveraging the efficiency and long-range modeling capabilities of the Mamba architecture. Our model unifies instance segmentation, classification, and kinematic regression into a single multitask learning system, enabling a sophisticated multilevel reconstruction that simultaneously identifies primary heavy jets (t, H, W/Z) and their constituent subjets. To facilitate supervised learning for this complex task, we develop a novel method for assigning final-state hadrons to their ancestor colored partons using a mixed-integer linear programming solver, which generates high-fidelity ground-truth labels. The model achieves high classification accuracy, with an average precision score of 0.569 for W/Z-jets and 0.568 for b-jets, and shows exceptional precision in kinematic reconstruction. Furthermore, we show that the model not only maintains stable performance in high-pileup environments but also successfully reconstructs the mass peaks of beyond the standard model particles. This work presents a powerful and versatile new tool for comprehensive event reconstruction at the LHC.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (54)

  1. G. P. Salam, Towards jetography, Eur. Phys. J. C 67, 637 (2010).
  2. M. Cacciari, G. P. Salam, and G. Soyez, The anti-kt jet clustering algorithm, J. High Energy Phys. 04 (2008) 063.
  3. A. Abdesselam et al., Boosted objects: A probe of beyond the standard model physics, Eur. Phys. J. C 71, 1661 (2011).
  4. A. Altheimer et al., Jet substructure at the tevatron and LHC: New results, new tools, new benchmarks, J. Phys. G 39, 063001 (2012).
  5. A. Altheimer et al., Boosted objects and jet substructure at the LHC. Report of BOOST2012, held at IFIC Valencia, 23rd–27th of July 2012, Eur. Phys. J. C 74, 2792 (2014).
  6. D. Adams et al., Towards an understanding of the correlations in jet substructure, Eur. Phys. J. C 75, 409 (2015).
  7. A. J. Larkoski, I. Moult, and B. Nachman, Jet substructure at the Large Hadron Collider: A review of recent advances in theory and machine learning, Phys. Rep. 841, 1 (2020).
  8. R. Kogler et al., Jet substructure at the Large Hadron Collider: Experimental review, Rev. Mod. Phys. 91, 045003 (2019).
  9. J. M. Butterworth, A. R. Davison, M. Rubin, and G. P. Salam, Jet substructure as a new Higgs search channel at the LHC, Phys. Rev. Lett. 100, 242001 (2008).
  10. T. Plehn, M. Spannowsky, M. Takeuchi, and D. Zerwas, Stop reconstruction with tagged tops, J. High Energy Phys. 10 (2010) 078.
  11. J. Thaler and K. Van Tilburg, Identifying boosted objects with N-subjettiness, J. High Energy Phys. 03 (2011) 015.
  12. J. Thaler and K. Van Tilburg, Maximizing boosted top identification by minimizing N-subjettiness, J. High Energy Phys. 02 (2012) 093.
  13. D. Krohn, J. Thaler, and L.-T. Wang, Jet trimming, J. High Energy Phys. 02 (2010) 084.
  14. S. D. Ellis, C. K. Vermilion, and J. R. Walsh, Techniques for improved heavy particle searches with jet substructure, Phys. Rev. D 80, 051501 (2009).
  15. A. J. Larkoski, S. Marzani, G. Soyez, and J. Thaler, Soft drop, J. High Energy Phys. 05 (2014) 146.
  16. D. Bertolini, P. Harris, M. Low, and N. Tran, Pileup per particle identification, J. High Energy Phys. 10 (2014) 059.
  17. D. Guest, K. Cranmer, and D. Whiteson, Deep learning and its application to LHC physics, Annu. Rev. Nucl. Part. Sci. 68, 161 (2018).
  18. K. Albertsson et al., Machine learning in high energy physics community white paper, J. Phys. Conf. Ser. 1085, 022008 (2018).
  19. A. Radovic, M. Williams, D. Rousseau, M. Kagan, D. Bonacorsi, A. Himmel, A. Aurisano, K. Terao, and T. Wongjirad, Machine learning at the energy and intensity frontiers of particle physics, Nature (London) 560, 41 (2018).
  20. A. J. Larkoski, QCD masterclass lectures on jet physics and machine learning, Eur. Phys. J. C 84, 1117 (2024).
  21. L. de Oliveira, M. Kagan, L. Mackey, B. Nachman, and A. Schwartzman, Jet-images—Deep learning edition, J. High Energy Phys. 07 (2016) 069.
  22. P. T. Komiske, E. M. Metodiev, and M. D. Schwartz, Deep learning in color: towards automated quark/gluon jet discrimination, J. High Energy Phys. 01 (2017) 110.
  23. G. Kasieczka, T. Plehn, M. Russell, and T. Schell, Deep-learning top taggers or the end of QCD?, J. High Energy Phys. 05 (2017) 006.
  24. S. Macaluso and D. Shih, Pulling out all the tops with computer vision and deep learning, J. High Energy Phys. 10 (2018) 121.
  25. E. A. Moreno, O. Cerri, J. M. Duarte, H. B. Newman, T. Q. Nguyen, A. Periwal, M. Pierini, A. Serikova, M. Spiropulu, J.-R. Vlimant, JEDI-net: A jet identification algorithm based on interaction networks, Eur. Phys. J. C 80, 58 (2020).
  26. P. T. Komiske, E. M. Metodiev, and J. Thaler, Energy flow networks: Deep sets for particle jets, J. High Energy Phys. 01 (2019) 121.
  27. H. Qu and L. Gouskos, ParticleNet: Jet tagging via particle clouds, Phys. Rev. D 101, 056019 (2020).
  28. G. Louppe, K. Cho, C. Becot, and K. Cranmer, QCD-Aware recursive neural networks for jet physics, J. High Energy Phys. 01 (2019) 057.
  29. T. Cheng, Recursive neural networks in quark/gluon tagging, Comput. Software Big Sci. 2, 3 (2018).
  30. A. Andreassen, I. Feige, C. Frye, and M. D. Schwartz, JUNIPR: A framework for unsupervised machine learning in particle physics, Eur. Phys. J. C 79, 102 (2019).
  31. Y. Semlani, M. Relan, and K. Ramesh, PCN: A deep learning approach to jet tagging utilizing novel graph construction methods and Chebyshev graph convolutions, J. High Energy Phys. 07 (2024) 247.
  32. X. Ai, W. Y. Feng, S.-C. Hsu, K. Li, and C.-T. Lu, Detecting highly collimated photon-jets from Higgs boson exotic decays with deep learning, arXiv:2401.15690.
  33. A. Hammad and M. M. Nojiri, Streamlined jet tagging network assisted by jet prong structure, J. High Energy Phys. 06 (2024) 176.
  34. V. Mikuni and B. Nachman, Method to simultaneously facilitate all jet physics tasks, Phys. Rev. D 111, 054015 (2025).
  35. M. A. Jahin, S. Soudeep, A. R. Aditta, M. F. Mridha, N. Fahad, and M. J. Hossen, Vision transformers for end-to-end quark-gluon jet classification from calorimeter images, arXiv:2506.14934.
  36. H. Qu, C. Li, and S. Qian, Particle transformer for jet tagging, Proc. Mach. Learn. Res. 162, 18281 (2022).
  37. J. Brehmer, V. Bresó, P. de Haan, T. Plehn, H. Qu, J. Spinner et al., A Lorentz-equivariant transformer for all of the LHC, arXiv:2411.00446.
  38. S. Gong, Q. Meng, J. Zhang, H. Qu, C. Li, S. QianW. Du, Z.-M. Ma, and T.-Y. Liu, An efficient Lorentz equivariant graph neural network for jet tagging, J. High Energy Phys. 07 (2022) 030.
  39. A. Bogatskiy, T. Hoffman, D. W. Miller, and J. T. Offermann, PELICAN: Permutation Equivariant and Lorentz Invariant or Covariant Aggregator Network for particle physics, arXiv:2211.00454.
  40. X. Ju and B. Nachman, Supervised jet clustering with graph neural networks for Lorentz boosted bosons, Phys. Rev. D 102, 075014 (2020).
  41. J. Guo, J. Li, T. Li, and R. Zhang, Boosted Higgs boson jet reconstruction via a graph neural network, Phys. Rev. D 103, 116025 (2021).
  42. J. Li, T. Li, and F.-Z. Xu, Reconstructing boosted Higgs jets from event image segmentation, J. High Energy Phys. 04 (2021) 156.
  43. S. K. Choi, J. Li, C. Zhang, and R. Zhang, Automatic detection of boosted Higgs boson and top quark jets in an event image, Phys. Rev. D 108, 116002 (2023).
  44. K. He, G. Gkioxari, P. Dollár, and R. Girshick, Mask R-CNN, arXiv:1703.06870.
  45. A. Gu and T. Dao, Mamba: Linear-time sequence modeling with selective state spaces, arXiv:2312.00752.
  46. A. Dosovitskiy, L. Beyer, A. Kolesnikov, D. Weissenborn, X. Zhai, T. Unterthiner et al., An image is worth 16×16 words: Transformers for image recognition at scale, arXiv:2010.11929.
  47. Y. Liu, Y. Tian, Y. Zhao, H. Yu, L. Xie, Y. Wang et al., Vmamba: Visual state space model, arXiv:2401.10166.
  48. J. Alwall, R. Frederix, S. Frixione, V. Hirschi, F. Maltoni, O. Mattelaer, H.-S. Shao, T. Stelzer, P. Torrielli, and M. Zaro, The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations, J. High Energy Phys. 07 (2014) 079.
  49. T. Sjöstrand, S. Mrenna, and P. Skands, A brief introduction to pythia 8.1, Comput. Phys. Commun. 178, 852 (2008).
  50. ATLAS Collaboration, Summary of ATLAS pythia 8 tunes, ATLAS Report No. ATL-PHYS-PUB-2012-003, CERN, 2012.
  51. P. Skands, S. Carrazza, and J. Rojo, Tuning pythia 8.1: The Monash 2013 tune, Eur. Phys. J. C 74, 3024 (2014).
  52. ATLAS Collaboration, The pythia 8 A3 tune description of ATLAS minimum bias and inelastic measurements incorporating the Donnachie-Landshoff diffractive model, ATLAS Report No. ATL-PHYS-PUB-2016-017, CERN, 2016.
  53. Z. Wang, T. Popordanoska, J. Bertels, R. Lemmens, and M. B. Blaschko, Dice semimetric losses: Optimizing the dice score with soft labels, arXiv:2303.16296.
  54. R. Zhang, https://github.com/scu-heplab/seg-any-sm-jet, 2025.

Outline

Information

Phys. Rev. D 112, 056017– Published 15 September, 2025
  • Received 30 June 2025
  • Accepted 25 August 2025
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article’s title, journal citation, and DOI. Funded by SCOAP3.
