Novel method for determining the light quark mass ratio using $η^{'} \to η π π$ decays

Adolfo Guevara ^1,2,*, Feng-Kun Guo ^1,3,4,†, and Hao-Jie Jing ^3,5,‡

¹Institute of Theoretical Physics, Chinese Academy of Sciences, Beijing 100190, China
²Área Académica de Matemáticas y Física, Universidad Autónoma del Estado de Hidalgo, Ciudad del conocimiento, Carr. Pachuca-Tulancingo Km. 4.5, Mineral de la Reforma, Hidalgo, 42184, Mexico
³School of Physical Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
⁴Southern Center for Nuclear-Science Theory (SCNT), Institute of Modern Physics, Chinese Academy of Sciences, Huizhou 516000, China
⁵College of Physics and Electronic Engineering, Shanxi University, Taiyuan 030006, China

^*Contact author: adolfo_guevara@uaeh.edu.mx
^†Contact author: fkguo@itp.ac.cn
^‡Contact author: jinghaojie@sxu.edu.cn

Phys. Rev. D 114, 014021 – Published 8 July, 2026

DOI: https://doi.org/10.1103/j982-c64r

Abstract

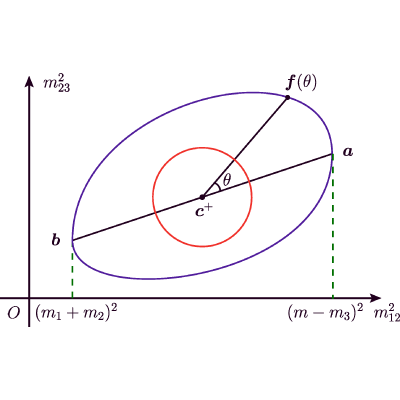

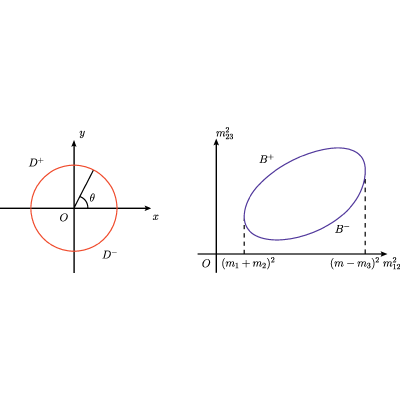

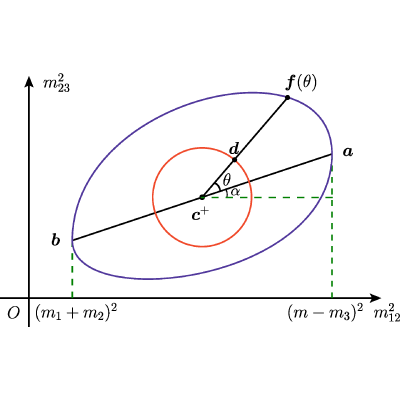

We propose a novel approach for extracting symmetry breaking effects from symmetry conserving three-body decays. The method is based on mapping the Dalitz plot to a unit disk, and the difference of the disk distributions of two related decays isolates purely symmetry breaking effects. We demonstrate this method by extracting the fundamental parameter $Q$ , an isospin breaking ratio of light quark masses defined as $Q^{2} \equiv (m_{s}^{2} - {\hat{m}}^{2}) / (m_{d}^{2} - m_{u}^{2})$ with $\hat{m}$ the average of up and down quark masses, from the decays $η^{'} \to η π^{+} π^{-}$ and $η^{'} \to η π^{0} π^{0}$ . With the Dalitz plot distributions for these two decays reported by BESIII, we illustrate the method and obtain $Q = 22.5 \pm 1.0$ , which is consistent with previous determinations and has a comparable uncertainty. With the full BESIII dataset, which is eight times larger than the one used here, a more precise determination of $Q$ should become possible. This promising and novel method can be generalized to other three-body decays to extract symmetry breaking effects.

Physics Subject Headings (PhySH)

Article Text

References (48)

R. H. Dalitz, On the analysis of tau-meson data and the nature of the tau-meson, Philos. Mag. 7 44, 1068 (1953).
E. Fabri, A study of tau-meson decay, Nuovo Cimento 11, 479 (1954).
H. Leutwyler, Bounds on the light quark masses, Phys. Lett. B 374, 163 (1996).
J. Gasser and H. Leutwyler, $η \to 3 π$ to one loop, Nucl. Phys. B250, 539 (1985).
S. Navas et al. (Particle Data Group), Review of particle physics, Phys. Rev. D 110, 030001 (2024).
B. Borasoy, U.-G. Meißner, and R. Nißler, On the extraction of the quark mass ratio $(m_{d} - m_{u}) / m_{s}$ from $Γ (η^{'} \to π^{0} π^{+} π^{-}) / Γ (η^{'} \to η π^{+} π^{-})$ , Phys. Lett. B 643, 41 (2006).
M. Ablikim et al. (BESIII Collaboration), Measurement of the matrix elements for the decays $η^{'} \to η π^{+} π^{-}$ and $η^{'} \to η π^{0} π^{0}$ , Phys. Rev. D 97, 012003 (2018).
M. Ablikim et al. (BESIII Collaboration), Evidence for the cusp effect in $η^{'}$ decays into $η π^{0} π^{0}$ , Phys. Rev. Lett. 130, 081901 (2023).
L. Gan, B. Kubis, E. Passemar, and S. Tulin, Precision tests of fundamental physics with $η$ and $η^{'}$ mesons, Phys. Rep. 945, 1 (2022).
S. Weinberg, Phenomenological Lagrangians, Physica (Amsterdam) 96A, 327 (1979).
J. Gasser and H. Leutwyler, Chiral perturbation theory to one loop, Ann. Phys. (Amsterdam) 158, 142 (1984).
J. Gasser and H. Leutwyler, Chiral perturbation theory: Expansions in the mass of the strange quark, Nucl. Phys. B250, 465 (1985).
R. Urech, Virtual photons in chiral perturbation theory, Nucl. Phys. B433, 234 (1995).
C. Ditsche, B. Kubis, and U.-G. Meißner, Electromagnetic corrections in $η \to 3 π$ decays, Eur. Phys. J. C 60, 83 (2009).
B. Kubis and S. P. Schneider, The cusp effect in $η^{'} \to η π π$ decays, Eur. Phys. J. C 62, 511 (2009).
R. Kaiser and H. Leutwyler, Large $N_{c}$ in chiral perturbation theory, Eur. Phys. J. C 17, 623 (2000).
A. H. Fariborz and J. Schechter, $η^{'} \to η π π$ decay as a probe of a possible lowest lying scalar nonet, Phys. Rev. D 60, 034002 (1999).
A. V. Anisovich and H. Leutwyler, Dispersive analysis of the decay $η \to 3 π$ , Phys. Lett. B 375, 335 (1996).
B. Borasoy and R. Nißler, Hadronic $η$ and $η^{'}$ decays, Eur. Phys. J. A 26, 383 (2005).
R. Escribano, P. Masjuan, and J. J. Sanz-Cillero, Chiral dynamics predictions for $η^{'} \to η π π$ , J. High Energy Phys. 05 (2011) 094.
S. Gonzàlez-Solís and E. Passemar, $η^{'} \to η π π$ decays in unitarized resonance chiral theory, Eur. Phys. J. C 78, 758 (2018).
T. Isken, B. Kubis, S. P. Schneider, and P. Stoffer, Dispersion relations for $η^{'} \to η π π$ , Eur. Phys. J. C 77, 489 (2017).
H. Akdag, T. Isken, and B. Kubis, Patterns of C- and $C P$ -violation in hadronic $η$ and $η^{'}$ three-body decays, J. High Energy Phys. 02 (2022) 137; 12 (2022) 156(E).
G. F. Chew and S. Mandelstam, Theory of low-energy pion pion interactions, Phys. Rev. 119, 467 (1960).
J. A. Oller and E. Oset, $N / D$ description of two meson amplitudes and chiral symmetry, Phys. Rev. D 60, 074023 (1999).
M. Knecht and R. Urech, Virtual photons in low-energy $π − π$ scattering, Nucl. Phys. B519, 329 (1998).
H. Osborn and D. J. Wallace, $η − X$ mixing, $η \to 3 π$ and chiral lagrangians, Nucl. Phys. B20, 23 (1970).
J. Schechter, A. Subbaraman, and H. Weigel, Effective hadron dynamics: From meson masses to the proton spin puzzle, Phys. Rev. D 48, 339 (1993).
A. Kisselev and V. Petrov, Two schemes of $η − η^{'}$ mixing, Z. Phys. C 58, 595–600 (1993).
T. Feldmann, P. Kroll, and B. Stech, Mixing and decay constants of pseudoscalar mesons, Phys. Rev. D 58, 114006 (1998).
T. Feldmann, P. Kroll, and B. Stech, Mixing and decay constants of pseudoscalar mesons: The sequel, Phys. Lett. B 449, 339 (1999).
A. Guevara, P. Roig, and J. J. Sanz-Cillero, Pseudoscalar pole light-by-light contributions to the muon ( $g - 2$ ) in resonance chiral theory, J. High Energy Phys. 06 (2018) 160.
S. P. Schneider and B. Kubis, Cusps in $η^{'} \to η π π$ decays, Proc. Sci. CD09 (2009) 120 [arXiv:0910.0200].
B. Kubis, Cusp effects in meson decays, EPJ Web Conf. 3, 01008 (2010).
R. D. Ball et al. (NNPDF Collaboration), Parton distributions for the LHC Run II, J. High Energy Phys. 04 (2015) 040.
L. Del Debbio, T. Giani, and M. Wilson, Bayesian approach to inverse problems: An application to NNPDF closure testing, Eur. Phys. J. C 82, 330 (2022).
J. Bijnens and J. Prades, Electromagnetic corrections for pions and kaons: Masses and polarizabilities, Nucl. Phys. B490, 239 (1997).
R. T. Birge, The calculation of errors by the method of least squares, Phys. Rev. 40, 207 (1932).
J. Kambor, C. Wiesendanger, and D. Wyler, Final state interactions and Khuri-Treiman equations in $η \to 3 π$ decays, Nucl. Phys. B465, 215 (1996).
J. Bijnens and K. Ghorbani, $η \to 3 π$ at Two loops in chiral perturbation theory, J. High Energy Phys. 11 (2007) 030.
K. Kampf, M. Knecht, J. Novotny, and M. Zdrahal, Analytical dispersive construction of $η \to 3 π$ amplitude: First order in isospin breaking, Phys. Rev. D 84, 114015 (2011).
G. Colangelo et al., Review of lattice results concerning low energy particle physics, Eur. Phys. J. C 71, 1695 (2011).
G. Colangelo, S. Lanz, H. Leutwyler, and E. Passemar, $η \to 3 π$ : Study of the Dalitz plot and extraction of the quark mass ratio $Q$ , Phys. Rev. Lett. 118, 022001 (2017).
G. Colangelo, S. Lanz, H. Leutwyler, and E. Passemar, Dispersive analysis of $η \to 3 π$ , Eur. Phys. J. C 78, 947 (2018).
M. Albaladejo and B. Moussallam, Extended chiral Khuri-Treiman formalism for $η \to 3 π$ and the role of the $a_{0} (980)$ , $f_{0} (980)$ resonances, Eur. Phys. J. C 77, 508 (2017).
Y. Aoki et al. (Flavour Lattice Averaging Group (FLAG), FLAG review 2024, Phys. Rev. D 113, 014508 (2026).
R. F. Dashen, Chiral $SU (3) \times SU (3)$ as a symmetry of the strong interactions, Phys. Rev. 183, 1245 (1969).
D. Stamen, D. Hariharan, M. Hoferichter, B. Kubis, and P. Stoffer, Kaon electromagnetic form factors in dispersion theory, Eur. Phys. J. C 82, 432 (2022).
