Sensitivity to single vectorlike bottom quark production at 3 TeV CLIC

R. Benbrik1,*, M. Berrouj1,†, M. Boukidi2,‡, M. Ech-chaouy1,§, K. Kahime3,∥, and K. Salime1,¶

  • *Contact author: r.benbrik@uca.ac.ma
  • †Contact author: mbark.berrouj@ced.uca.ma
  • ‡Contact author: mohammed.boukidi@ifj.edu.pl
  • §Contact author: m.echchaouy.ced@uca.ma
  • ∥Contact author: Kahimek@gmail.com
  • Contact author: k.salime.ced@uca.ma
PDF

Phys. Rev. D 114, 053006 – Published 15 September, 2026

DOI: https://doi.org/10.1103/hq19-dn7s

Abstract

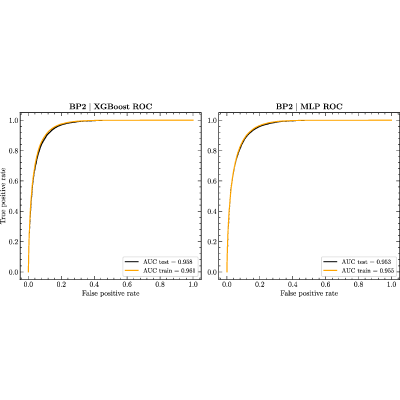

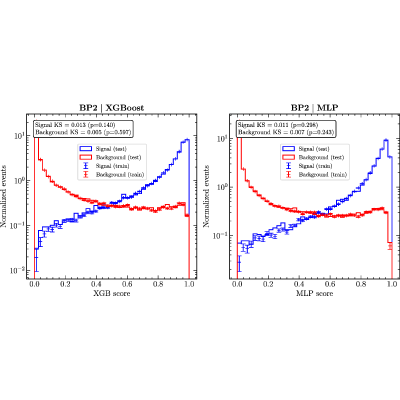

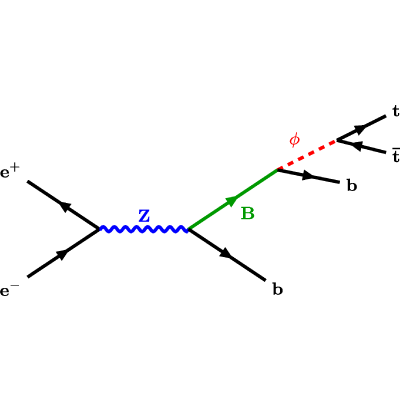

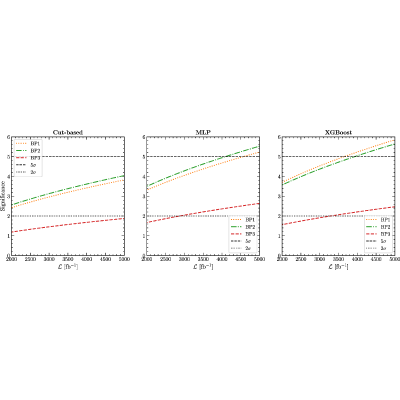

We study the sensitivity of the Compact Linear Collider at s=3  TeV to the single electroweak production of a vectorlike bottom quark in a type II two-Higgs-doublet model extended by vectorlike quarks. We consider the process e+e−→Bb¯+B¯b, followed by B→ϕb with ϕ=H, A and ϕ→tt¯. We focus on the semileptonic final state with one charged lepton, missing transverse momentum, four b-tagged jets, and two light jets. This channel directly probes the interplay between the extended quark and Higgs sectors. After applying theoretical constraints, electroweak precision constraints, Higgs-sector bounds, and current collider limits, we perform detector-level cut-based and multivariate analyses. The cut-based analysis remains below discovery sensitivity at 5  ab−1, while a multilayer perceptron and an xgboost classifier provide substantially improved signal-background separation. For viable scenarios with mB≃1.3–1.5  TeV, the expected significance remains above 5σ even for a 15% uncertainty on the background normalization.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (88)

  1. G. Aad et al. (ATLAS Collaboration), Phys. Lett. B 716, 1 (2012).
  2. S. Chatrchyan et al. (CMS Collaboration), Phys. Lett. B 716, 30 (2012).
  3. A. Djouadi, Phys. Rep. 459, 1 (2008).
  4. B. Bellazzini, C. Csáki, and J. Serra, Eur. Phys. J. C 74, 2766 (2014).
  5. J. Mrazek, A. Pomarol, R. Rattazzi, M. Redi, J. Serra, and A. Wulzer, Nucl. Phys. B853, 1 (2011).
  6. J. F. Gunion, H. E. Haber, G. L. Kane, and S. Dawson, arXiv:hep-ph/9302272.
  7. G. C. Branco, P. M. Ferreira, L. Lavoura, M. N. Rebelo, M. Sher, and J. P. Silva, Phys. Rep. 516, 1 (2012).
  8. S. Gopalakrishna, T. S. Mukherjee, and S. Sadhukhan, Phys. Rev. D 93, 055004 (2016).
  9. L. Buonocore, C. Frugiuele, F. Maltoni, O. Mattelaer, and F. Tramontano, J. High Energy Phys. 05 (2019) 028.
  10. A. Arhrib, R. Benbrik, M. Berrouj, M. Boukidi, and B. Manaut, Phys. Rev. D 111, 095026 (2025).
  11. R. Benbrik, M. Berrouj, M. Boukidi, A. Habjia, E. Ghourmin, and L. Rahili, Phys. Lett. B 843, 138024 (2023).
  12. R. Benbrik, M. Berrouj, M. Boukidi, and K. Kahime, Eur. Phys. J. C 85, 500 (2025).
  13. J. A. Aguilar-Saavedra, J. High Energy Phys. 11 (2009) 030.
  14. Y. Okada and L. Panizzi, Adv. High Energy Phys. 2013, 364936 (2013).
  15. M. Buchkremer, G. Cacciapaglia, A. Deandrea, and L. Panizzi, Nucl. Phys. B876, 376 (2013).
  16. S. Chang, J. Hisano, H. Nakano, N. Okada, and M. Yamaguchi, Phys. Rev. D 62, 084025 (2000).
  17. T. Gherghetta and A. Pomarol, Nucl. Phys. B586, 141 (2000).
  18. R. Contino, Y. Nomura, and A. Pomarol, Nucl. Phys. B671, 148 (2003).
  19. N. Arkani-Hamed, A. G. Cohen, E. Katz, A. E. Nelson, T. Gregoire, and J. G. Wacker, J. High Energy Phys. 08 (2002) 021.
  20. M. Schmaltz, Nucl. Phys. B, Proc. Suppl. 117, 40 (2003).
  21. S. Chang and H.-J. He, Phys. Lett. B 586, 95 (2004).
  22. T. Han, H. E. Logan, B. McElrath, and L.-T. Wang, Phys. Rev. D 67, 095004 (2003).
  23. K. Agashe, R. Contino, and A. Pomarol, Nucl. Phys. B719, 165 (2005).
  24. R. Contino, L. Da Rold, and A. Pomarol, Phys. Rev. D 75, 055014 (2007).
  25. P. Lodone, J. High Energy Phys. 12 (2008) 029.
  26. O. Matsedonskyi, G. Panico, and A. Wulzer, J. High Energy Phys. 01 (2012) 164.
  27. K. Tauqeer et al. (CMS Collaboration), arXiv:2606.01423.
  28. G. Aad et al. (ATLAS Collaboration), Phys. Rev. D 110, 052009 (2024).
  29. G. Aad et al. (ATLAS Collaboration), J. High Energy Phys. 11 (2023) 168.
  30. A. Hayrapetyan et al. (CMS Collaboration), Phys. Rep. 1115, 570 (2025).
  31. W.-C. Gan, D.-H. Du, and F.-W. Shu (CMS Collaboration), J. High Energy Phys. 07 (2022) 020.
  32. G. Aad et al. (ATLAS Collaboration), Phys. Rev. D 111, 012012 (2025).
  33. A. Tumasyan et al. (CMS Collaboration), J. High Energy Phys. 04 (2021) 048.
  34. G. Aad et al. (ATLAS Collaboration), Eur. Phys. J. C 83, 719 (2023).
  35. G. Aad et al. (ATLAS Collaboration), Phys. Lett. B 854, 138743 (2024).
  36. S. Puhan, S. Sharma, N. Kaur, N. Kumar, and H. Dahiya (ATLAS Collaboration), J. High Energy Phys. 02 (2024) 075.
  37. A. Bhardwaj, T. Mandal, S. Mitra, and C. Neeraj, Phys. Rev. D 106, 095014 (2022).
  38. J. Bardhan, T. Mandal, S. Mitra, and C. Neeraj, Phys. Rev. D 107, 115001 (2023).
  39. R. Benbrik, M. Berrouj, M. Boukidi, M. Ech-chaouy, K. Kahime, and K. Salime, Nucl. Phys. B1026, 117436 (2026).
  40. R. Benbrik, M. Berrouj, M. Boukidi, M. Ech-chaouy, K. Kahime, and K. Salime, Eur. Phys. J. C 85, 1275 (2025).
  41. R. Benbrik, M. Boukidi, and S. Moretti, Phys. Rev. D 109, 055016 (2024).
  42. R. Benbrik, M. Berrouj, and M. Boukidi, Phys. Rev. D 111, 015027 (2025).
  43. R. Benbrik, M. Boukidi, and S. Moretti, Proc. Sci. ICHEP2024 (2025) 083 [arXiv:2409.16054].
  44. A. Arhrib, R. Benbrik, M. Boukidi, and S. Moretti, J. Phys. G 52, 105002 (2025).
  45. A. Arhrib, R. Benbrik, M. Boukidi, and S. Moretti, Eur. Phys. J. C 84, 1008 (2024).
  46. A. Arhrib, R. Benbrik, M. Boukidi, B. Manaut, and S. Moretti, Eur. Phys. J. C 85, 2 (2025).
  47. A. Arhrib, R. Benbrik, S. J. D. King, B. Manaut, S. Moretti, and C. S. Un, Phys. Rev. D 97, 095015 (2018).
  48. H. Abouabid, A. Arhrib, R. Benbrik, M. Boukidi, and J. E. Falaki, J. Phys. G 51, 075001 (2024).
  49. A. Angelescu, A. Djouadi, and G. Moreau, Phys. Lett. B 756, 126 (2016).
  50. A. Ghosh and P. Konar, Phys. Dark Universe 47, 101746 (2025).
  51. R. Dermíšek, E. Lunghi, and S. Shin, J. High Energy Phys. 04 (2019) 019; 10 (2020) 058(E).
  52. K. Y. Cingiloglu and M. Frank, Phys. Rev. D 109, 036016 (2024).
  53. S. Banerjee, D. Barducci, G. Bélanger, and C. Delaunay, J. High Energy Phys. 11 (2016) 154.
  54. R. Dermisek, E. Lunghi, N. McGinnis, and S. Shin, J. High Energy Phys. 07 (2020) 241.
  55. R. Dermisek, E. Lunghi, N. Mcginnis, and S. Shin, J. High Energy Phys. 08 (2021) 159.
  56. R. Benbrik, M. Berrouj, M. Boukidi, H. Chatoui, M. Ech-chaouy, K. Kahime, and K. Salime, Eur. Phys. J. C 86, 511 (2026).
  57. R. Benbrik, M. Berrouj, M. Boukidi, M. Ech-chaouy, K. Kahime, and K. Salime, Phys. Lett. B 879, 140701 (2026).
  58. H. Abramowicz et al. (CLIC Detector, Physics Study Collaboration), in Snowmass 2013: Snowmass on the Mississippi (2013), arXiv:1307.5288.
  59. J. de Blas et al. (CLIC Collaboration), CERN Yellow Rep. Monogr. 3, 1 (2018).
  60. J. F. Gunion, H. E. Haber, G. L. Kane, and S. Dawson, The Higgs Hunter’s Guide (Westview Press, Boulder, CO, 2000), Vol. 80.
  61. J. A. Aguilar-Saavedra, Phys. Rev. D 67, 035003 (2003); 69, 099901(E) (2004).
  62. S. Kanemura, T. Kubota, and E. Takasugi, Phys. Lett. B 313, 155 (1993).
  63. N. G. Deshpande and E. Ma, Phys. Rev. D 18, 2574 (1978).
  64. A. Barroso, P. M. Ferreira, I. P. Ivanov, and R. Santos, J. High Energy Phys. 06 (2013) 045.
  65. F. Takahashi et al. (Particle Data Group Collaboration), Int. J. Mod. Phys. A 41, 2630011 (2026).
  66. D. Eriksson, J. Rathsman, and O. Stal, Comput. Phys. Commun. 181, 189 (2010).
  67. P. Bechtle, O. Brein, S. Heinemeyer, G. Weiglein, and K. E. Williams, Comput. Phys. Commun. 181, 138 (2010).
  68. P. Bechtle, O. Brein, S. Heinemeyer, G. Weiglein, and K. E. Williams, Comput. Phys. Commun. 182, 2605 (2011).
  69. P. Bechtle, O. Brein, S. Heinemeyer, O. Stål, T. Stefaniak, G. Weiglein, and K. E. Williams, Eur. Phys. J. C 74, 2693 (2014).
  70. P. Bechtle, S. Heinemeyer, O. Stal, T. Stefaniak, and G. Weiglein, Eur. Phys. J. C 75, 421 (2015).
  71. H. Bahl, T. Biekötter, S. Heinemeyer, C. Li, S. Paasch, G. Weiglein, and J. Wittbrodt, Comput. Phys. Commun. 291, 108803 (2023).
  72. P. Bechtle, S. Heinemeyer, T. Klingl, T. Stefaniak, G. Weiglein, and J. Wittbrodt, Eur. Phys. J. C 81, 145 (2021).
  73. P. Bechtle, D. Dercks, S. Heinemeyer, T. Klingl, T. Stefaniak, G. Weiglein, and J. Wittbrodt, Eur. Phys. J. C 80, 1211 (2020).
  74. R. Benbrik, M. Boukidi, M. Ech-chaouy, S. Moretti, K. Salime, and Q.-S. Yan, J. High Energy Phys. 03 (2024) 020.
  75. J. Alwall, R. Frederix, S. Frixione, V. Hirschi, F. Maltoni, O. Mattelaer, H. S. Shao, T. Stelzer, P. Torrielli, and M. Zaro, J. High Energy Phys. 07 (2014) 079.
  76. R. Benbrik, M. Berrouj, M. Boukidi, M. Ech-Chaouy, K. Kahime, and K. Salime, Nucl. Phys. B1026, 117436 (2026).
  77. T. Sjöstrand, S. Ask, J. R. Christiansen, R. Corke, N. Desai, P. Ilten, S. Mrenna, S. Prestel, C. O. Rasmussen, and P. Z. Skands, Comput. Phys. Commun. 191, 159 (2015).
  78. J. de Favereau, C. Delaere, P. Demin, A. Giammanco, V. Lemaître, A. Mertens, and M. Selvaggi (DELPHES 3 Collaboration), J. High Energy Phys. 02 (2013) 057.
  79. M. Boronat, J. Fuster, I. Garcia, E. Ros, and M. Vos, Phys. Lett. B 750, 95 (2015).
  80. M. Boronat, J. Fuster, I. Garcia, P. Roloff, R. Simoniello, and M. Vos, Eur. Phys. J. C 78, 144 (2018).
  81. E. Conte and B. Fuks, J. Phys. Conf. Ser. 523, 012032 (2014).
  82. T. Chen and C. Guestrin, KDD ’16: Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining (2016), arXiv:1603.02754.
  83. F. Chollet, kerashttps://keras.io (2015).
  84. D. Wang, L. Wu, and M. Zhang, Phys. Rev. D 103, 115017 (2021).
  85. B. Yang, Z. Li, X. Jia, S. Moretti, and L. Shang, Eur. Phys. J. C 84, 1124 (2024).
  86. A. Hammad, S. Khalil, and S. Moretti, Phys. Rev. D 107, 075027 (2023).
  87. A. Hammad, R. Ramos, A. Chakraborty, P. Ko, and S. Moretti, J. High Energy Phys. 02 (2025) 077.
  88. G. Cowan, K. Cranmer, E. Gross, and O. Vitells, Eur. Phys. J. C 71, 1554 (2011); 73, 2501(E) (2013).

Outline

Information

Phys. Rev. D 114, 053006– Published 15 September, 2026
