Shedding light on the nature of the ϕ(2170) state in the e+e−→ϕπ+π− reaction

Xiang Wei1,2, Qing-Hua Shen1,3,2, Xiao-Hai Liu4,*, and Ju-Jun Xie1,2,5,†

  • *Contact author: xiaohai.liu@tju.edu.cn
  • †Contact author: xiejujun@impcas.ac.cn
PDF

Phys. Rev. D 113, 014022 – Published 20 January, 2026

DOI: https://doi.org/10.1103/frs3-zpt2

Abstract

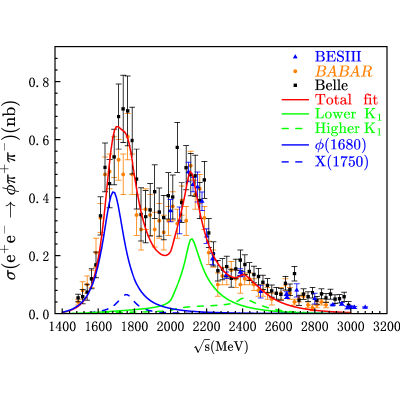

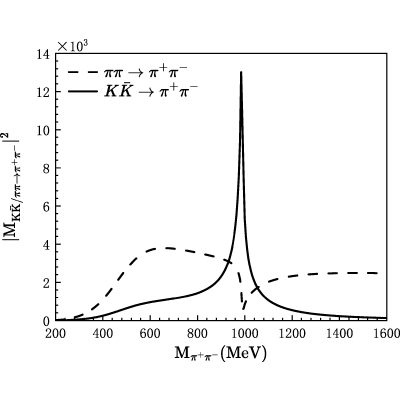

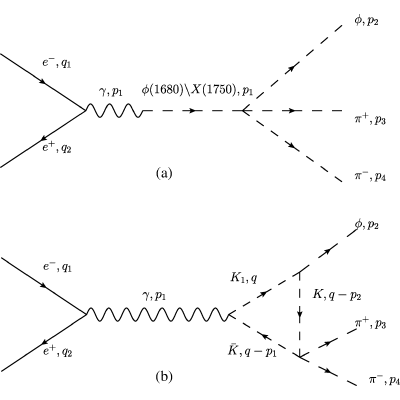

We investigate the production of the ϕ(2170) state in the e+e−→ϕπ+π− reaction with the effective Lagrangian approach. In addition to the tree level contributions from the ϕ(1680) meson and a possible X(1750) state, we consider also the K1−K−K¯ intermediate state process from the perspective of triangular singularity. Based on the one-photon exchange approximation, a pair of K1K¯ mesons was firstly produced, and then the K1 meson subsequently decays into ϕ and K, and the KK¯ pair produce the π+π− through the final state interactions, in which the scalar meson f0(980) is dynamically generated. We show that the inclusion of the triangle loop diagrams leads to a good description of the new BESIII measurements, especially for the structure of ϕ(2170). This provides a novel interpretation of the ϕ(2170) state, offering new insights into its fundamental nature, which are still unclear. Furthermore, it is found that these measurements on the e+e−→ϕπ+π− reaction can be used to determine some of the properties of two K1 mesons with masses around 1613 MeV and 1890 MeV, which are crucial to reproduce the experimental data.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (74)

  1. B. Aubert et al. (BABAR Collaboration, Phys. Rev. D 74, 091103 (2006).
  2. C. P. Shen et al. (Belle Collaboration), Phys. Rev. D 80, 031101 (2009).
  3. M. Ablikim et al. (BES Collaboration), Phys. Rev. Lett. 100, 102003 (2008).
  4. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 91, 052017 (2015).
  5. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 99, 012014 (2019).
  6. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 102, 012008 (2020).
  7. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 104, 032007 (2021).
  8. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 108, 032011 (2023).
  9. B. Aubert et al. (BABAR Collaboration, Phys. Rev. D 76, 012008 (2007).
  10. J. P. Lees et al. (BABAR Collaboration, Phys. Rev. D 86, 012008 (2012).
  11. C. P. Shen and C. Z. Yuan, Chin. Phys. C 34, 1045 (2010).
  12. S. Navas et al. (Particle Data Group Collaboration), Phys. Rev. D 110, 030001 (2024).
  13. G. Huang, Proc. Sci., ICHEP2020 (2021) 463.
  14. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 99, 032001 (2019).
  15. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 104, 092014 (2021).
  16. B. Aubert et al. (BABAR Collaboration, Phys. Rev. D 77, 092002 (2008).
  17. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. Lett. 124, 112001 (2020).
  18. M. Ablikim et al. (BESIII Collaboration), Phys. Lett. B 813, 136059 (2021).
  19. G.-J. Ding and M.-L. Yan, Phys. Lett. B 657, 49 (2007).
  20. X. Wang, Z.-F. Sun, D.-Y. Chen, X. Liu, and T. Matsuki, Phys. Rev. D 85, 074024 (2012).
  21. S. S. Afonin and I. V. Pusenkov, Phys. Rev. D 90, 094020 (2014).
  22. C.-Q. Pang, Phys. Rev. D 99, 074015 (2019).
  23. C.-G. Zhao, G.-Y. Wang, G.-N. Li, E. Wang, and D.-M. Li, Phys. Rev. D 99, 114014 (2019).
  24. Q. Li, L.-C. Gui, M.-S. Liu, Q.-F. Lü, and X.-H. Zhong, Chin. Phys. C 45, 023116 (2021).
  25. G.-J. Ding and M.-L. Yan, Phys. Lett. B 650, 390 (2007).
  26. J. Ho, R. Berg, T. G. Steele, W. Chen, and D. Harnett, Phys. Rev. D 100, 034012 (2019).
  27. Z.-G. Wang, Nucl. Phys. A791, 106 (2007).
  28. H.-X. Chen, X. Liu, A. Hosaka, and S.-L. Zhu, Phys. Rev. D 78, 034012 (2008).
  29. N. V. Drenska, R. Faccini, and A. D. Polosa, Phys. Lett. B 669, 160 (2008).
  30. C. Deng, J. Ping, F. Wang, and T. Goldman, Phys. Rev. D 82, 074001 (2010).
  31. H.-W. Ke and X.-Q. Li, Phys. Rev. D 99, 036014 (2019).
  32. S. S. Agaev, K. Azizi, and H. Sundu, Phys. Rev. D 101, 074012 (2020).
  33. F.-X. Liu, M.-S. Liu, X.-H. Zhong, and Q. Zhao, Phys. Rev. D 103, 016016 (2021).
  34. L. Zhao, N. Li, S.-L. Zhu, and B.-S. Zou, Phys. Rev. D 87, 054034 (2013).
  35. C. Deng, J. Ping, Y. Yang, and F. Wang, Phys. Rev. D 88, 074007 (2013).
  36. Y. Dong, A. Faessler, T. Gutsche, Q. Lü, and V. E. Lyubovitskij, Phys. Rev. D 96, 074027 (2017).
  37. A. Martinez Torres, K. P. Khemchandani, L. S. Geng, M. Napsuciale, and E. Oset, Phys. Rev. D 78, 074031 (2008).
  38. S. Gómez-Avila, M. Napsuciale, and E. Oset, Phys. Rev. D 79, 034018 (2009).
  39. B. B. Malabarba, K. P. Khemchandani, and A. Martinez Torres, Phys. Rev. D 108, 036010 (2023).
  40. B. B. Malabarba, X.-L. Ren, K. P. Khemchandani, and A. Martinez Torres, Phys. Rev. D 103, 016018 (2021).
  41. S. Jafarzade and R. F. Lebed, Phys. Rev. D 112, 014034 (2025).
  42. X.-H. Liu, M. Oka, and Q. Zhao, Phys. Lett. B 753, 297 (2016).
  43. M. Bayar, F. Aceti, F.-K. Guo, and E. Oset, Phys. Rev. D 94, 074039 (2016).
  44. F.-K. Guo, X.-H. Liu, and S. Sakai, Prog. Part. Nucl. Phys. 112, 103757 (2020).
  45. J. A. Oller and E. Oset, Nucl. Phys. A620, 438 (1997); A652, 407(E) (1999).
  46. J. A. Oller and E. Oset, Phys. Rev. D 60, 074023 (1999).
  47. D. Gamermann, E. Oset, D. Strottman, and M. J. Vicente Vacas, Phys. Rev. D 76, 074016 (2007).
  48. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 100, 032009 (2019).
  49. H.-X. Chen, C.-P. Shen, and S.-L. Zhu, Phys. Rev. D 98, 014011 (2018).
  50. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 101, 032008 (2020).
  51. M. Atkinson et al. (Omega Photon Collaboration), Z. Phys. C 27, 233 (1985).
  52. J. Busenitz et al., Phys. Rev. D 40, 1 (1989).
  53. J. M. Link et al. (FOCUS Collaboration), Phys. Lett. B 545, 50 (2002).
  54. P. Lichard, Phys. Rev. D 111, L071903 (2025).
  55. L. C. Liu, Q. Haider, and J. T. Londergan, Phys. Rev. C 51, 3427 (1995).
  56. H. Haberzettl, C. Bennhold, T. Mart, and T. Feuster, Phys. Rev. C 58, R40 (1998).
  57. R. M. Davidson and R. Workman, Phys. Rev. C 63, 025210 (2001).
  58. S. Janssen, J. Ryckebusch, D. Debruyne, and T. Van Cauteren, Phys. Rev. C 65, 015201 (2002).
  59. D.-Y. Chen, J. Liu, and J. He, Phys. Rev. D 101, 074045 (2020).
  60. J.-Z. Wang, L.-M. Wang, X. Liu, and T. Matsuki, Phys. Rev. D 104, 054045 (2021).
  61. Q.-S. Zhou, J.-Z. Wang, and X. Liu, Phys. Rev. D 106, 034010 (2022).
  62. D.-Y. Chen, J. Liu, Y. Bai, C.-H. Liu, W.-B. Yan, and Z.-X. Meng, Eur. Phys. J. C 85, 1388 (2025).
  63. J.-J. Xie, B.-S. Zou, and B.-C. Liu, Chin. Phys. Lett. 22, 2215 (2005).
  64. J.-J. Xie, B.-S. Zou, and H.-C. Chiang, Phys. Rev. C 77, 015206 (2008).
  65. J.-J. Xie and B.-S. Zou, Phys. Lett. B 649, 405 (2007).
  66. C. Cheng, J.-J. Xie, and X. Cao, Commun. Theor. Phys. 66, 675 (2016).
  67. H.-N. Wang, Q. Wang, and J.-J. Xie, Phys. Rev. D 106, 056022 (2022).
  68. X.-K. Dong, F.-K. Guo, and B.-S. Zou, Phys. Rev. Lett. 126, 152001 (2021).
  69. C. Garcia-Recio, L. S. Geng, J. Nieves, and L. L. Salcedo, Phys. Rev. D 83, 016007 (2011).
  70. C. García-Recio, L. S. Geng, J. Nieves, L. L. Salcedo, E. Wang, and J.-J. Xie, Phys. Rev. D 87, 096006 (2013).
  71. R. Aaij et al. (LHCb Collaboration), Phys. Rev. Lett. 127, 082001 (2021).
  72. A. V. Anisovich and V. V. Anisovich, Phys. Lett. B 345, 321 (1995).
  73. V. R. Debastiani, S. Sakai, and E. Oset, Eur. Phys. J. C 79, 69 (2019).
  74. L. Roca, E. Oset, and J. Singh, Phys. Rev. D 72, 014002 (2005).
