Role of angular observables in probing nonstandard $H Z Z$ couplings at an electron-proton collider

Indian Institute of Science Education and Research, Knowledge City, Sector 81, S. A. S. Nagar, Manauli PO 140306, Punjab, India

^*Contact author: pramodsharma.iiser@gmail.com
^†Contact author: ashivaji@iisermohali.ac.in

Phys. Rev. D 113, 015014 – Published 14 January, 2026

DOI: https://doi.org/10.1103/d66c-8jtg

Abstract

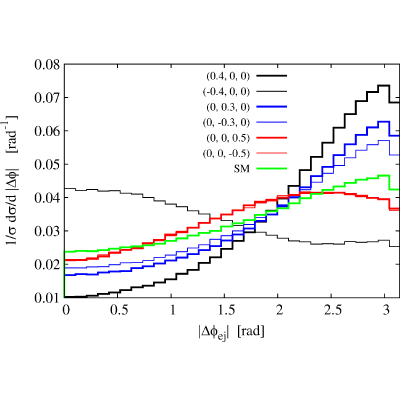

In this study, we explore various lab-frame angular observables at the Large Hadron-electron Collider (LHeC) to test their sensitivity to the most general structure of the Higgs ( $H$ ) to neutral weak boson ( $Z$ ) coupling ( $H Z Z$ ) via the process $e^{-} p \to e^{-} H j$ at the center of mass energy $\sqrt{s} \approx 1.3 TeV$ . The most general Lorentz structure of the $H Z Z$ coupling beyond the standard model is composed of two $C P$ -even ( $λ_{1 Z}$ and $λ_{2 Z}$ ) and one $C P$ -odd ( ${\tilde{λ}}_{Z}$ ) component. In a previous study, we investigated the absolute value of azimuthal correlation ( $| Δ ϕ |$ ) between the final state electron and the jet to derive constraints on the nonstandard $H Z Z$ couplings. This choice of observable is motivated by its potential to discriminate between $C P$ -odd and $C P$ -even couplings in the $e^{-} p \to ν_{e} H j$ process. Since the process $e^{-} p \to e^{-} H j$ has an electron in the final state, one can construct more angular observables. In addition to $| Δ ϕ |$ , we identify new angular observables: the sign-sensitive azimuthal correlation ( $Δ ϕ$ ) and the polar angle of the final state electron ( $θ$ ), which are suitable for constraining nonstandard $H Z Z$ coupling. Our analysis shows that these new angles improve the constraints on $λ_{2 Z}$ and ${\tilde{λ}}_{Z}$ in the range of 48%–67%. We also study the potential of the asymmetry in $Δ ϕ$ to constrain the parameters corresponding to the $C P$ -odd coupling.

Physics Subject Headings (PhySH)

Article Text

References (53)

Georges Aad et al., Observation of a new particle in the search for the standard model Higgs boson with the ATLAS detector at the LHC, Phys. Lett. B 716, 1 (2012).
Serguei Chatrchyan et al., Observation of a new boson at a mass of 125 GeV with the CMS experiment at the LHC, Phys. Lett. B 716, 30 (2012).
Armen Tumasyan et al., A portrait of the Higgs boson by the CMS experiment ten years after the discovery, Nature (London) 607, 60 (2022); 623, E4(E) (2023).
Georges Aad et al., A detailed map of Higgs boson interactions by the ATLAS experiment ten years after the discovery, Nature (London) 607, 52 (2022); 612, E24(E) (2022).
M. Cepeda et al., Report from Working Group 2: Higgs physics at the HL-LHC and HE-LHC, CERN Yellow Rep. Monogr. 7, 221 (2019).
P. Agostini et al., The large hadron–electron collider at the HL-LHC, J. Phys. G 48, 110501 (2021).
Kaoru Hagiwara and Mary Louise Stong, Probing the scalar sector in $e^{+} e^{-} \to f \bar{f} h$ , Z. Phys. C 62, 99 (1993).
Sukanta Dutta, Kaoru Hagiwara, and Yu Matsumoto, Measuring the Higgs-vector boson couplings at linear $e^{+} e^{-}$ collider, Phys. Rev. D 78, 115016 (2008).
Sudhansu S. Biswal, Rohini M. Godbole, Bruce Mellado, and Sreerup Raychaudhuri, Azimuthal angle probe of anomalous $H W W$ couplings at a high energy $e p$ collider, Phys. Rev. Lett. 109, 261801 (2012).
Adam Alloul, Benjamin Fuks, and Verónica Sanz, Phenomenology of the Higgs effective Lagrangian via FEYNRULES, J. High Energy Phys. 04 (2014) 110.
Mukesh Kumar, Xifeng Ruan, Rashidul Islam, Alan S. Cornell, Max Klein, Uta Klein, and Bruce Mellado, Probing anomalous couplings using di-Higgs production in electron–proton collisions, Phys. Lett. B 764, 247 (2017).
A. I. Hernández-Juárez, G. Tavares-Velasco, and A. Fernández-Téllez, New evaluation of the HZZ coupling: Direct bounds on anomalous contributions and $C P$ -violating effects via a new asymmetry, Phys. Rev. D 107, 115031 (2023).
Pramod Sharma and Ambresh Shivaji, Probing non-standard HVV ( $V = W, Z$ ) couplings in single Higgs production at future electron-proton collider, J. High Energy Phys. 10 (2022) 108.
A. Soni and R. M. Xu, Probing $C P$ violation via Higgs decays to four leptons, Phys. Rev. D 48, 5259 (1993).
Rohini M. Godbole, D. J. Miller, and M. Margarete Muhlleitner, Aspects of $C P$ violation in the H ZZ coupling at the LHC, J. High Energy Phys. 12 (2007) 031.
Gerhard Buchalla, Oscar Cata, and Giancarlo D’Ambrosio, Nonstandard Higgs couplings from angular distributions in $h \to Z ℓ^{+} ℓ^{-}$ , Eur. Phys. J. C 74, 2798 (2014).
Yi Chen, Roni Harnik, and Roberto Vega-Morales, Probing the Higgs couplings to photons in $h \to 4 ℓ$ at the LHC, Phys. Rev. Lett. 113, 191801 (2014).
Felipe Ferreira, Benjamin Fuks, Verónica Sanz, and Dipan Sengupta, Probing $C P$ -violating Higgs and gauge-boson couplings in the Standard Model effective field theory, Eur. Phys. J. C 77, 675 (2017).
Stefano Boselli, Carlo M. Carloni Calame, Guido Montagna, Oreste Nicrosini, Fulvio Piccinini, and Ambresh Shivaji, Higgs decay into four charged leptons in the presence of dimension-six operators, J. High Energy Phys. 01 (2018) 096.
Sally Dawson and Pier Paolo Giardino, Higgs decays to $Z Z$ and $Z γ$ in the standard model effective field theory: An NLO analysis, Phys. Rev. D 97, 093003 (2018).
Hua-Rong He, Xia Wan, and You-Kai Wang, Anomalous $H \to Z Z \to 4 ℓ$ decay and its interference effects on gluon–gluon contribution at the LHC, Chin. Phys. C 44, 123101 (2020).
Shankha Banerjee, Rick S. Gupta, Oscar Ochoa-Valeriano, Michael Spannowsky, and Elena Venturini, A fully differential SMEFT analysis of the golden channel using the method of moments, J. High Energy Phys. 06 (2021) 031.
A. I. Hernández-Juárez, R. Gaitán, and G. Tavares-Velasco, Polarized and unpolarized off-shell $H^{*} \to Z Z \to 4 ℓ$ decay above the $2 m_{Z}$ threshold*, Chin. Phys. C 48, 113103 (2024).
A. I. Hernández-Juárez and R. Gaitán, $C P$ violation in the $H Z Z$ vertex and left-right asymmetries, Phys. Rev. D 112, 033006 (2025).
Georges Aad et al., Test of $C P$ invariance in vector-boson fusion production of the Higgs boson in the $H − > τ τ$ channel in proton–proton collisions at $s = 13 TeV$ with the ATLAS detector, Phys. Lett. B 805, 135426 (2020).
Georges Aad et al., Test of $C P$ -invariance of the Higgs boson in vector-boson fusion production and in its decay into four leptons, J. High Energy Phys. 05 (2024) 105.
Albert M. Sirunyan et al., Constraints on anomalous Higgs boson couplings using production and decay information in the four-lepton final state, Phys. Lett. B 775, 1 (2017).
Albert M. Sirunyan et al., Constraints on anomalous $H V V$ couplings from the production of Higgs bosons decaying to $τ$ lepton pairs, Phys. Rev. D 100, 112002 (2019).
Albert M. Sirunyan et al., Measurements of the Higgs boson width and anomalous $H V V$ couplings from on-shell and off-shell production in the four-lepton final state, Phys. Rev. D 99, 112003 (2019).
Albert M. Sirunyan et al., Constraints on anomalous Higgs boson couplings to vector bosons and fermions in its production and decay using the four-lepton final state, Phys. Rev. D 104, 052004 (2021).
Armen Tumasyan et al., Constraints on anomalous Higgs boson couplings to vector bosons and fermions from the production of Higgs bosons using the $τ τ$ final state, Phys. Rev. D 108, 032013 (2023).
Aram Hayrapetyan et al., Constraints on anomalous Higgs boson couplings from its production and decay using the WW channel in proton–proton collisions at $\sqrt{s} = 13 TeV$ , Eur. Phys. J. C 84, 779 (2024).
J. L. Abelleira Fernandez et al., A large hadron electron collider at CERN: Report on the physics and design concepts for machine and detector, J. Phys. G 39, 075001 (2012).
J. Alwall, R. Frederix, S. Frixione, V. Hirschi, F. Maltoni, O. Mattelaer, H. S. Shao, T. Stelzer, P. Torrielli, and M. Zaro, The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations, J. High Energy Phys. 07 (2014) 079.
Pramod Sharma and Ambresh Shivaji, Study of new physics effects in HVV ( $V = W$ , $Z$ ) couplings via single Higgs production at future electron-proton collider, Springer Proc. Phys. 304, 426 (2024).
Tao Han and J. Jiang, $C P$ violating Z Z H coupling at $e^{+} e^{-}$ linear colliders, Phys. Rev. D 63, 096007 (2001).
Kaoru Hagiwara, S. Ishihara, J. Kamoshita, and Bernd A. Kniehl, Prospects of measuring general Higgs couplings at $e^{+} e^{-}$ linear colliders, Eur. Phys. J. C 14, 457 (2000).
Sudhansu S. Biswal, Debajyoti Choudhury, Rohini M. Godbole, and Mamta, Role of polarization in probing anomalous gauge interactions of the Higgs boson, Phys. Rev. D 79, 035012 (2009).
Tao Han and Yingchuan Li, Genuine $C P$ -odd observables at the LHC, Phys. Lett. B 683, 278 (2010).
Neil D. Christensen, Tao Han, and Yingchuan Li, Testing $C P$ violation in ZZH interactions at the LHC, Phys. Lett. B 693, 28 (2010).
Nishita Desai, Dilip Kumar Ghosh, and Biswarup Mukhopadhyaya, $C P$ -violating HWW couplings at the large hadron collider, Phys. Rev. D 83, 113004 (2011).
Nicolas Mileo, Ken Kiers, Alejandro Szynkman, Daniel Crane, and Ethan Gegner, Pseudoscalar top-Higgs coupling: Exploration of $C P$ -odd observables to resolve the sign ambiguity, J. High Energy Phys. 07 (2016) 056.
N. Belyaev, R. Konoplich, and K. Prokofiev, $C P$ sensitive observables of a hypothetical heavy Spin-0 particle with the dominant photon–photon interaction, Phys. At. Nucl. 81, 758 (2018).
Hua-Dong Li, Cai-Dian Lü, and Lian-You Shan, Sensitivity study of anomalous $H Z Z$ couplings at a future Higgs factory, Chin. Phys. C 43, 103001 (2019).
Apurba Tiwari and Sudhir Kumar Gupta, T-odd anomalous interactions of the top-quark at the large hadron collider, Adv. High Energy Phys. 2021, 6676930 (2021).
Kumar Rao, Saurabh D. Rindani, and Priyanka Sarmah, Probing anomalous gauge-Higgs couplings using Z boson polarization at $e^{+} e^{-}$ colliders, Nucl. Phys. B950, 114840 (2020).
Darius A. Faroughy, Jernej F. Kamenik, Nejc Košnik, and Aleks Smolkovič, Probing the $C P$ nature of the top quark Yukawa at hadron colliders, J. High Energy Phys. 02 (2020) 085.
Rahool Kumar Barman, Dorival Gonçalves, and Felix Kling, Machine learning the Higgs boson-top quark $C P$ phase, Phys. Rev. D 105, 035023 (2022).
Kumar Rao, Saurabh D. Rindani, Priyanka Sarmah, and Balbeer Singh, Polarized $Z$ cross sections in Higgsstrahlung for the determination of anomalous $Z Z H$ couplings, Phys. Lett. B 840, 137847 (2023).
Duarte Azevedo, Rodrigo Capucha, António Onofre, and Rui Santos, $C P$ -violation, asymmetries and interferences in $t \bar{t} ϕ$ , J. High Energy Phys. 09 (2022) 246.
Cheng Li and Gudrid Moortgat-Pick, Impact of longitudinally and transversely polarized beams on probing $C P$ -violating HZZ interactions at the ILC, EPJ Web Conf. 315, 01006 (2024).
Tilman Plehn, David L. Rainwater, and Dieter Zeppenfeld, Determining the structure of Higgs couplings at the LHC, Phys. Rev. Lett. 88, 051801 (2002).
V. Hankele, G. Klamke, D. Zeppenfeld, and T. Figy, Anomalous Higgs boson couplings in vector boson fusion at the CERN LHC, Phys. Rev. D 74, 095001 (2006).
