Illuminating sequential freeze-in dark matter with dark photon signal at the CERN SHiP experiment

Xinyue Yin and Sibo Zheng*

  • *Contact author: sibozheng.zju@gmail.com
PDF

Phys. Rev. D 113, 075013 – Published 13 April, 2026

DOI: https://doi.org/10.1103/cxyx-37kq

Abstract

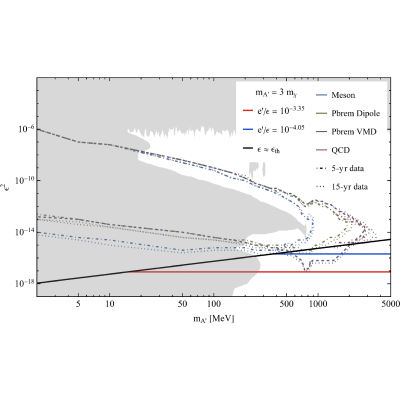

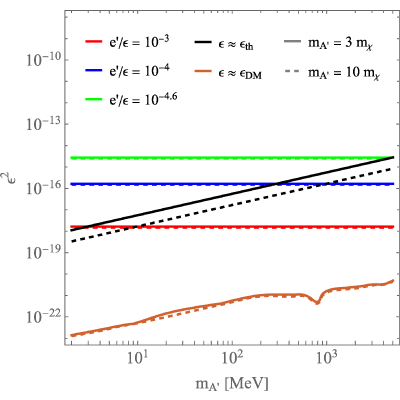

Single-field freeze-in dark matter barely leaves observable footprints in dark matter direct detection, collider, or fixed-target experiments, which can be altered in the two-field context. In this work, we consider sequential freeze-in dark matter through signals of a dark photon mediator with a mass range of mA′∼10−2–10  GeV covered by the proposed SHiP experiment. We show that the dark charge is fixed to be e′∼1.3×10−12 and the mixing parameter is restricted to 10−11≤ε<10−8–10−7.5, as a result of the out-of-equilibrium condition of dark photon and the observed relic abundance of dark matter. Within this ε region, the 5-yr (15-yr) data of the proton bremsstrahlung process for the dark photon, assuming vector meson (dipole) dominance, excludes ε≥10−8.5(10−7.9) at 90% confidence level, implying only a narrow region of ε close to ∼10−11 left for alternative tests.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. N. Aghanim et al. (Planck Collaboration), Astron. Astrophys. 641, A6 (2020); 652, C4(E) (2021).
  2. L. J. Hall, K. Jedamzik, J. March-Russell, and S. M. West, J. High Energy Phys. 03 (2010) 080.
  3. X. Chu, T. Hambye, and M. H. G. Tytgat, J. Cosmol. Astropart. Phys. 05 (2012) 034.
  4. B. Holdom, Phys. Lett. 166B, 196 (1986).
  5. D. Feldman, Z. Liu, and P. Nath, Phys. Rev. D 75, 115001 (2007).
  6. T. Asaka, K. Ishiwata, and T. Moroi, Phys. Rev. D 73, 051301 (2006).
  7. M. Becker, Eur. Phys. J. C 79, 611 (2019).
  8. A. Datta, R. Roshan, and A. Sil, Phys. Rev. Lett. 127, 231801 (2021).
  9. J. McDonald, Phys. Rev. Lett. 88, 091304 (2002).
  10. Z. Xu and S. Zheng, Phys. Rev. D 111, 063525 (2025).
  11. Z. Xu, Q. Zhou, and S. Zheng, Phys. Rev. D 110, 115003 (2024).
  12. A. G. Hessler, A. Ibarra, E. Molinaro, and S. Vogl, J. High Energy Phys. 01 (2017) 100.
  13. A. Ghosh, T. Mondal, and B. Mukhopadhyaya, J. High Energy Phys. 12 (2017) 136.
  14. L. Calibbi, L. Lopez-Honorez, S. Lowette, and A. Mariotti, J. High Energy Phys. 09 (2018) 037.
  15. G. Bélanger, N. Desai, A. Goudelis, J. Harz, A. Lessa, J. M. No, A. Pukhov, S. Sekmen, D. Sengupta, B. Zaldivar et al., J. High Energy Phys. 02 (2019) 186.
  16. X. Yin, S. Xu, and S. Zheng, Phys. Rev. D 112, 035034 (2025).
  17. M. Fabbrichesi, E. Gabrielli, and G. Lanfranchi, arXiv:2005.01515.
  18. E. D. Kovetz, V. Poulin, V. Gluscevic, K. K. Boddy, R. Barkana, and M. Kamionkowski, Phys. Rev. D 98, 103529 (2018).
  19. H. Liu, N. J. Outmezguine, D. Redigolo, and T. Volansky, Phys. Rev. D 100, 123011 (2019).
  20. A. E. Nelson and J. Scholtz, Phys. Rev. D 84, 103501 (2011).
  21. P. Arias, D. Cadamuro, M. Goodsell, J. Jaeckel, J. Redondo, and A. Ringwald, J. Cosmol. Astropart. Phys. 06 (2012) 013.
  22. P. W. Graham, J. Mardon, and S. Rajendran, Phys. Rev. D 93, 103520 (2016).
  23. Y. Nakai, R. Namba, and Z. Wang, J. High Energy Phys. 12 (2020) 170.
  24. S. Alekhin, W. Altmannshofer, T. Asaka, B. Batell, F. Bezrukov, K. Bondarenko, A. Boyarsky, K. Y. Choi, C. Corral, N. Craig et al., Rep. Prog. Phys. 79, 124201 (2016).
  25. M. Anelli et al. (SHiP Collaboration), arXiv:1504.04956.
  26. R. Albanese et al. (SHiP and HI-ECN3 Project Team), arXiv:2504.06692.
  27. T. Hambye, M. H. G. Tytgat, J. Vandecasteele, and L. Vanderheyden, Phys. Rev. D 100, 095018 (2019).
  28. J. Blümlein and J. Brunner, Phys. Lett. B 731, 320 (2014).
  29. E. Kriukova, Proc. Sci., ICPPCRubakov2023 (2024) 011 [arXiv:2404.04704].
  30. J. Alwall, R. Frederix, S. Frixione, V. Hirschi, F. Maltoni, O. Mattelaer, H. S. Shao, T. Stelzer, P. Torrielli, and M. Zaro, J. High Energy Phys. 07 (2014) 079.
  31. J. D. Bjorken, R. Essig, P. Schuster, and N. Toro, Phys. Rev. D 80, 075018 (2009).
  32. K. A. Olive et al. (Particle Data Group), Chin. Phys. C 38, 090001 (2014).
  33. C. Ahdida et al. (SHiP Collaboration), Eur. Phys. J. C 81, 451 (2021).
  34. D. Banerjee et al. (NA64 Collaboration), Phys. Rev. D 101, 071101 (2020).
  35. R. Aaij et al. (LHCb Collaboration), Phys. Rev. Lett. 124, 041801 (2020).
  36. J. P. Lees et al. (BABAR Collaboration), Phys. Rev. Lett. 113, 201801 (2014).
  37. B. Batell, R. Essig, and Z. Surujon, Phys. Rev. Lett. 113, 171802 (2014).
  38. F. Bergsma et al. (CHARM Collaboration), Phys. Lett. 157B, 458 (1985).
  39. S. N. Gninenko, Phys. Lett. B 713, 244 (2012).
  40. J. Beacham, C. Burrage, D. Curtin, A. De Roeck, J. Evans, J. L. Feng, C. Gatto, S. Gninenko, A. Hartin, I. Irastorza et al., J. Phys. G 47, 010501 (2020).
