Search for light dark sectors with GeV muon beams

Zijian Wang*, Leyun Gao, Zhuo Chen, Cheng-en Liu, Jinning Li, Qite Li, Chen Zhou, and Qiang Li

Yu Xu, Xueheng Zhang, Liangwen Chen, and Zhiyu Sun

Ce Zhang†

  • School of Physics and State Key Laboratory of Nuclear Physics and Technology, Peking University, Beijing, 100871, China

  • *Contact author: wangzijian@stu.pku.edu.cn
  • †Contact author: ce.zhang@liverpool.ac.uk
PDF

Phys. Rev. D 113, 072008 – Published 13 April, 2026

DOI: https://doi.org/10.1103/9srh-sw94

Abstract

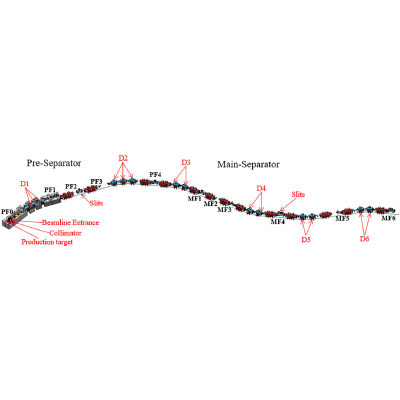

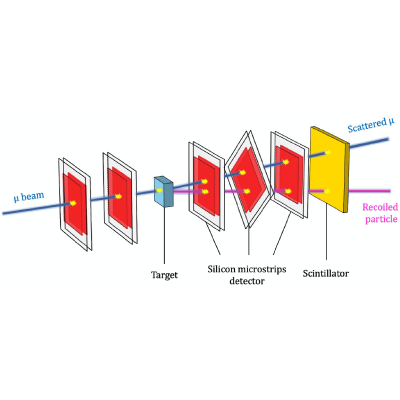

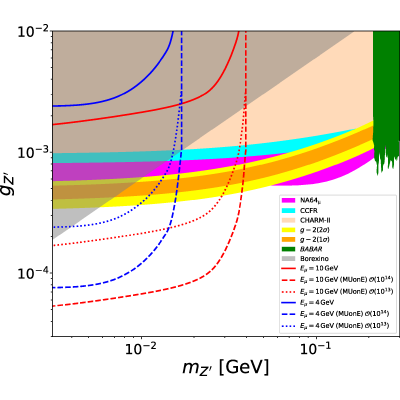

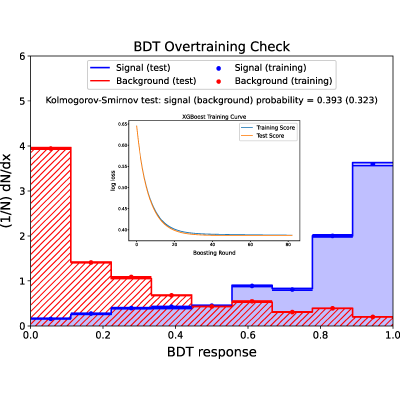

Sub-GeV light dark matter often requires new light mediators, such as a dark Z boson in the Lμ−Lτ gauge theory. We study the search potential for such a Z′ boson via the process μe−→μe−X, with X decaying invisibly, in a muon on-target experiment using a high-intensity 1–10 GeV muon beam from facilities such as HIAF-HIRIBL. Events are identified by the scattered muon and electron from the target using the silicon strip detectors in a single-station telescope system. Backgrounds are suppressed through a trained boosted decision tree classifier, and activity in downstream subdetectors remains low. We find that this approach can probe a Z′ in the 10 MeV mass range with improved sensitivity.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (44)

  1. Marco Battaglieri et al., US Cosmic Visions: New ideas in dark matter 2017: Community Report, in U.S. Cosmic Visions: New Ideas in Dark Matter, Report No. FERMILAB-CONF-17-282-AE-PPD-T (2017), p. 7.
  2. Karim Ghorbani, Light vector dark matter with scalar mediator and muon g−2 anomaly, Phys. Rev. D 104, 115008 (2021).
  3. Prateek Agrawal, Zackaria Chacko, and Christopher B. Verhaaren, Leptophilic dark matter and the anomalous magnetic moment of the Muon, J. High Energy Phys. 08 (2014) 147.
  4. Ayuki Kamada, Kunio Kaneta, Keisuke Yanagi, and Hai-Bo Yu, Self-interacting dark matter and muon (g−2) in a gauged U(1)Lμ−Lτ model, J. High Energy Phys. 06 (2018) 117.
  5. Gerrit Bickendorf and Manuel Drees, Constraints on light leptophilic dark matter mediators from decay experiments, Eur. Phys. J. C 82, 1163 (2022).
  6. Robert Foot, New physics from electric charge quantization?, Mod. Phys. Lett. A 06, 527 (1991).
  7. X. G. He, Girish C. Joshi, H. Lew, and R. R. Volkas, New Z-prime phenomenology, Phys. Rev. D 43, 22 (1991).
  8. Xiao-Gang He, Girish C. Joshi, H. Lew, and R. R. Volkas, Simplest Z-prime model, Phys. Rev. D 44, 2118 (1991).
  9. Robert Foot, X. G. He, H. Lew, and R. R. Volkas, Model for a light Z-prime boson, Phys. Rev. D 50, 4571 (1994).
  10. W. Altmannshofer, S. Gori, S. Profumo, and F. S. Queiroz, Explaining dark matter and B decay anomalies with an Lμ−Lτ model, J. High Energy Phys. 12 (2016) 106.
  11. J. Kile, A. Kobach, and A. Soni, Lepton-flavored dark matter, Phys. Lett. B 744, 330 (2015).
  12. J.-C. Park, J. Kim, and S. C. Park, Galactic center GeV gamma-ray excess from dark matter with gauged lepton numbers, Phys. Lett. B 752, 59 (2016).
  13. Yu. M. Andreev et al., Shedding light on dark sectors with high-energy muons at the NA64 experiment at the CERN SPS, Phys. Rev. D 110, 112015 (2024).
  14. Yonatan Kahn, Gordan Krnjaic, Nhan Tran, and Andrew Whitbeck, M3: A new muon missing momentum experiment to probe (g−2)μ and dark matter at Fermilab, J. High Energy Phys. 09 (2018) 153.
  15. Albert M. Sirunyan et al., Search for an Lμ−Lτ gauge boson using Z→4μ events in proton-proton collisions at s=13  TeV, Phys. Lett. B 792, 345 (2019).
  16. Yu. M. Andreev et al., First results in the search for dark sectors at NA64 with the CERN SPS high energy muon beam, Phys. Rev. Lett. 132, 211803 (2024).
  17. Kento Asai et al., Probing the Lμ−Lτ gauge boson at the MUonE experiment, Phys. Rev. D 106, L051702 (2022).
  18. MUonE Collaboration, Letter of Intent: The MUonE project, 2019. Report No. CERN-SPSC-2019-026/SPSC-I-252.
  19. Yu Xu et al., Feasibility study of the GeV-energy muon source based on the high intensity heavy-ion accelerator facility, Phys. Rev. Accel. Beams 28, 053401 (2025).
  20. FengPeng An et al., High-precision physics experiments at Huizhou large-scale scientific facilities, Chin. Phys. Lett. 42, 110102 (2025).
  21. Xudong Yu et al., Proposed Peking University muon experiment for muon tomography and dark matter search, Phys. Rev. D 110, 016017 (2024).
  22. J. Alwall, R. Frederix, S. Frixione, V. Hirschi, F. Maltoni, O. Mattelaer, H. S. Shao, T. Stelzer, P. Torrielli, and M. Zaro, The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations, J. High Energy Phys. 07 (2014) 079.
  23. J. Allison et al., Recent developments in geant4, Nucl. Instrum. Methods Phys. Res., Sect. A 835, 186 (2016).
  24. John Allison et al., geant4 developments and applications, IEEE Trans. Nucl. Sci. 53, 270 (2006).
  25. S. Agostinelli et al., geant4–a simulation toolkit, Nucl. Instrum. Methods Phys. Res., Sect. A 506, 250 (2003).
  26. geant4 Collaboration, geant4 User’s Guide for Toolkit Developers, Release 11.2, https://geant4.web.cern.ch/docs/#for-toolkit-developers (2023).
  27. geant4 Collaboration, Guide For Physics Lists, Release 11.2, https://geant4.web.cern.ch/docs/#physics-list-guide (2023).
  28. Irene Zoi, Design and construction of the CMS outer tracker for the phase-2 upgrade, Nucl. Instrum. Methods Phys. Res., Sect. A 1078, 170599 (2025).
  29. Tianqi Chen and Carlos Guestrin, XGBoost: A scalable tree boosting system, In Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD ’16 (ACM, New York, 2016), pp. 785–794.
  30. J. Li, W. Wang, X. Cai, C. Yang, M. Lu, Z. You, S. Qian, and Q.iang Li, A comparative study of Z′ mediated charged lepton flavor violation at future lepton colliders, J. High Energy Phys. 03 (2023) 190.
  31. Glen Cowan, Kyle Cranmer, Eilam Gross, and Ofer Vitells, Asymptotic formulae for likelihood-based tests of new physics, Eur. Phys. J. C 71, 1554 (2011); 73, 2501(E) (2013).
  32. D. Geiregat et al., First observation of neutrino trident production, Phys. Lett. B 245, 271 (1990).
  33. S. R. Mishra et al., Neutrino tridents and w-z interference, Phys. Rev. Lett. 66, 3117 (1991).
  34. J. P. Lees et al., Search for a muonic dark force at BABAR, Phys. Rev. D 94, 011102 (2016).
  35. G. Bellini et al., Precision measurement of the Be7 solar neutrino interaction rate in Borexino, Phys. Rev. Lett. 107, 141302 (2011).
  36. T. Albahri et al., Magnetic-field measurement and analysis for the muon g−2 experiment at Fermilab, Phys. Rev. A 103, 042208 (2021).
  37. G. W. Bennett et al., Final report of the muon E821 anomalous magnetic moment measurement at BNL, Phys. Rev. D 73, 072003 (2006).
  38. Wolfgang Altmannshofer, Stefania Gori, Maxim Pospelov, and Itay Yavin, Neutrino trident production: A powerful probe of new physics with neutrino beams, Phys. Rev. Lett. 113, 091801 (2014).
  39. D. P. Aguillard et al., Measurement of the positive muon anomalous magnetic moment to 127 ppb, Phys. Rev. Lett. 135, 101802 (2025).
  40. D. P. Aguillard et al., Detailed report on the measurement of the positive muon anomalous magnetic moment to 0.20 ppm, Phys. Rev. D 110, 032009 (2024).
  41. D. P. Aguillard et al., Measurement of the positive muon anomalous magnetic moment to 0.20 ppm, Phys. Rev. Lett. 131, 161802 (2023).
  42. T. Albahri et al., Beam dynamics corrections to the Run-1 measurement of the muon anomalous magnetic moment at Fermilab, Phys. Rev. Accel. Beams 24, 044002 (2021).
  43. T. Albahri et al., Measurement of the anomalous precession frequency of the muon in the Fermilab muon g−2 experiment, Phys. Rev. D 103, 072002 (2021).
  44. B. Abi et al., Measurement of the positive muon anomalous magnetic moment to 0.46 ppm, Phys. Rev. Lett. 126, 141801 (2021).

Outline

Information

Phys. Rev. D 113, 072008– Published 13 April, 2026
  • Received 19 November 2025
  • Accepted 19 March 2026
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article’s title, journal citation, and DOI. Funded by SCOAP3.
