Fragmentation contributions to transverse nucleon spin observables in semi-inclusive deep-inelastic scattering at NLO

Diego Scantamburlo* and Marc Schlegel†

  • *Contact author: diego.scantamburlo@student.uni-tuebingen.de
  • †Contact author: marc.schlegel@uni-tuebingen.de
PDF

Phys. Rev. D 113, 114036 – Published 22 June, 2026

DOI: https://doi.org/10.1103/9n3x-4xv8

Abstract

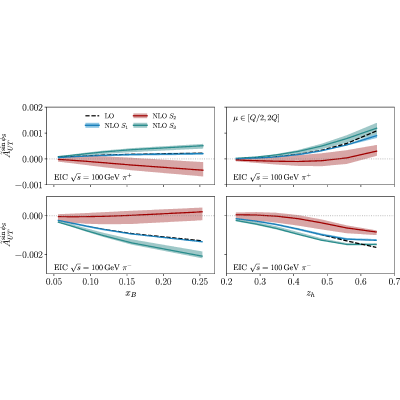

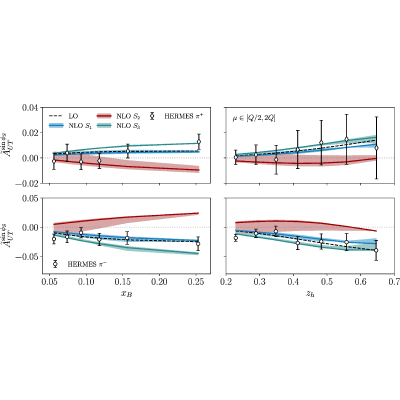

We study the spin-dependent cross section in semi-inclusive deep-inelastic lepton-nucleon collisions, ℓ+N↑→ℓ+h+X. We focus on the cross section that is integrated over the transverse momentum Ph⊥ of the detected unpolarized hadron. We analyze this cross section at large virtuality Q2 of the exchanged virtual photon within the framework of collinear twist-3 factorization in perturbative QCD. The two main transverse spin observables, the single nucleon spin asymmetry, and the double longitudinal lepton-transverse nucleon spin asymmetry, both receive contributions from chiral-odd twist-3 three-parton fragmentation functions. We study these fragmentation contributions to next-to-leading order (NLO) in perturbative QCD. We explicitly observe that collinear twist-3 factorization holds for these contributions at the one-loop level. We confront our NLO formulas with HERMES data and provide numerical predictions for EIC kinematics.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (97)

  1. G. Bunce et al., Phys. Rev. Lett. 36, 1113 (1976).
  2. L. Schachinger et al., Phys. Rev. Lett. 41, 1348 (1978).
  3. K. J. Heller et al., Phys. Rev. Lett. 41, 607 (1978).
  4. K. J. Heller et al., Phys. Rev. Lett. 51, 2025 (1983).
  5. B. Lundberg et al., Phys. Rev. D 40, 3557 (1989).
  6. B. S. Yuldashev et al., Phys. Rev. D 43, 2792 (1991).
  7. E. J. Ramberg et al., Phys. Lett. B 338, 403 (1994).
  8. V. Fanti et al., Eur. Phys. J. C 6, 265 (1999).
  9. C. E. Allgower et al., Phys. Rev. D 65, 092008 (2002).
  10. J. Adams et al. (STAR Collaboration), Phys. Rev. Lett. 92, 171801 (2004).
  11. S. S. Adler et al. (PHENIX Collaboration), Phys. Rev. Lett. 95, 202001 (2005).
  12. J. H. Lee and F. Videbaek (BRAHMS Collaboration), AIP Conf. Proc. 915, 533 (2007).
  13. B. I. Abelev et al. (STAR Collaboration), Phys. Rev. Lett. 101, 222001 (2008).
  14. I. Arsene et al. (BRAHMS Collaboration), Phys. Rev. Lett. 101, 042001 (2008).
  15. L. Adamczyk et al. (STAR Collaboration), Phys. Rev. D 86, 032006 (2012).
  16. A. Adare et al. (PHENIX Collaboration), Phys. Rev. D 90, 012006 (2014).
  17. A. Adare et al. (PHENIX Collaboration), Phys. Rev. D 90, 072008 (2014).
  18. J. Adam et al. (STAR Collaboration), Phys. Rev. D 103, 092009 (2021).
  19. L. Adamczyk et al. (STAR Collaboration), Phys. Rev. D 86, 051101 (2012).
  20. L. C. Bland et al. (AnDY Collaboration), Phys. Lett. B 750, 660 (2015).
  21. U. A. Acharya et al. (PHENIX Collaboration), Phys. Rev. Lett. 127, 162001 (2021).
  22. D. W. Sivers, Phys. Rev. D 41, 83 (1990).
  23. D. W. Sivers, Phys. Rev. D 43, 261 (1991).
  24. J. C. Collins, Nucl. Phys. B396, 161 (1993).
  25. A. Airapetian et al. (HERMES Collaboration), Phys. Rev. Lett. 84, 4047 (2000).
  26. A. Airapetian et al. (HERMES Collaboration), Phys. Rev. D 64, 097101 (2001).
  27. A. Airapetian et al. (HERMES Collaboration), Phys. Lett. B 562, 182 (2003).
  28. A. Airapetian et al. (HERMES Collaboration), Phys. Rev. Lett. 94, 012002 (2005).
  29. A. Airapetian et al. (HERMES Collaboration), J. High Energy Phys. 12 (2020) 010.
  30. V. Y. Alexakhin et al. (COMPASS Collaboration), Phys. Rev. Lett. 94, 202002 (2005).
  31. A. Accardi et al., Eur. Phys. J. A 52, 268 (2016).
  32. R. Abdul Khalek et al., Nucl. Phys. A1026, 122447 (2022).
  33. R. Abdul Khalek et al., arXiv:2203.13199.
  34. V. D. Burkert et al., Prog. Part. Nucl. Phys. 131, 104032 (2023).
  35. R. Abir et al., arXiv:2305.14572.
  36. A. V. Efremov and O. V. Teryaev, Sov. J. Nucl. Phys. 36, 140 (1982).
  37. A. V. Efremov and O. V. Teryaev, Phys. Lett. B 150, 383 (1985).
  38. J.-w. Qiu and G. Sterman, Phys. Rev. Lett. 67, 2264 (1991).
  39. J.-w. Qiu and G. Sterman, Nucl. Phys. B378, 52 (1992).
  40. J.-w. Qiu and G. Sterman, Phys. Rev. D 59, 014004 (1999).
  41. H. Eguchi, Y. Koike, and K. Tanaka, Nucl. Phys. B752, 1 (2006).
  42. C. Kouvaris, J.-W. Qiu, W. Vogelsang, and F. Yuan, Phys. Rev. D 74, 114013 (2006).
  43. H. Eguchi, Y. Koike, and K. Tanaka, Nucl. Phys. B763, 198 (2007).
  44. Y. Koike, Nucl. Phys. A721, C364 (2003).
  45. Y. Koike and K. Tanaka, Phys. Lett. B 646, 232 (2007); 668, 458(E) (2008).
  46. Z.-B. Kang, J.-W. Qiu, W. Vogelsang, and F. Yuan, Phys. Rev. D 78, 114013 (2008).
  47. A. Metz and D. Pitonyak, Phys. Lett. B 723, 365 (2013); 762, 549(E) (2016).
  48. H. Beppu, K. Kanazawa, Y. Koike, and S. Yoshida, Phys. Rev. D 89, 034029 (2014).
  49. A. Metz, M. Schlegel, and K. Goeke, Phys. Lett. B 643, 319 (2006).
  50. A. Afanasev and C. E. Carlson, Phys. Rev. D 77, 014028 (2008).
  51. A. Metz, D. Pitonyak, A. Schafer, M. Schlegel, W. Vogelsang et al., Phys. Rev. D 86, 094039 (2012).
  52. M. Schlegel, Phys. Rev. D 87, 034006 (2013).
  53. Z.-B. Kang, A. Metz, J.-W. Qiu, and J. Zhou, Phys. Rev. D 84, 034046 (2011).
  54. L. Gamberg, Z.-B. Kang, A. Metz, D. Pitonyak, and A. Prokudin, Phys. Rev. D 90, 074012 (2014).
  55. K. Kanazawa, Y. Koike, A. Metz, D. Pitonyak, and M. Schlegel, Phys. Rev. D 93, 054024 (2016).
  56. D. Rein, M. Schlegel, P. Tollkühn, and W. Vogelsang, Phys. Rev. Lett. 135, 251901 (2025).
  57. D. Rein, M. Schlegel, P. Tollkühn, and W. Vogelsang, Phys. Rev. D 112, 114024 (2025).
  58. L. Gamberg, Z.-B. Kang, D. Pitonyak, M. Schlegel, and S. Yoshida, J. High Energy Phys. 01 (2019) 111.
  59. W. S. Albaltan, A. Prokudin, and M. Schlegel, Phys. Lett. B 804, 135367 (2020).
  60. M. Harris, J. Marsh, D. Pitonyak, A. Prokudin, J. Putnam, D. Rein, and M. Schlegel, Phys. Lett. B 869, 139793 (2025).
  61. R. Boussarie et al., arXiv:2304.03302.
  62. P. J. Mulders and R. D. Tangerman, Nucl. Phys. B461, 197 (1996).
  63. A. Bacchetta, M. Diehl, K. Goeke, A. Metz, P. Mulders, and M. Schlegel, J. High Energy Phys. 02 (2007) 093.
  64. S. Arnold, A. Metz, and M. Schlegel, Phys. Rev. D 79, 034005 (2009).
  65. D. Pitonyak, M. Schlegel, and A. Metz, Phys. Rev. D 89, 054032 (2014).
  66. A. V. Efremov and O. V. Teryaev, Sov. J. Nucl. Phys. 39, 962 (1984).
  67. W. Vogelsang and F. Yuan, Phys. Rev. D 79, 094010 (2009).
  68. Z.-B. Kang, I. Vitev, and H. Xing, Phys. Rev. D 87, 034024 (2013).
  69. L.-Y. Dai, Z.-B. Kang, A. Prokudin, and I. Vitev, Phys. Rev. D 92, 114024 (2015).
  70. A. P. Chen, J. P. Ma, and G. P. Zhang, Phys. Rev. D 95, 074005 (2017).
  71. A. P. Chen, J. P. Ma, and G. P. Zhang, Phys. Rev. D 97, 054003 (2018).
  72. S. Yoshida, Phys. Rev. D 93, 054048 (2016).
  73. M. G. Alexeev et al. (COMPASS Collaboration), Nucl. Phys. B940, 34 (2019).
  74. G.-P. Zhang, J. High Energy Phys. 03 (2026) 258.
  75. A. Bacchetta, U. D’Alesio, M. Diehl, and C. A. Miller, Phys. Rev. D 70, 117504 (2004).
  76. Y. Koike, J. Nagashima, and W. Vogelsang, Nucl. Phys. B744, 59 (2006).
  77. X.-d. Ji, J.-p. Ma, and F. Yuan, Phys. Rev. D 71, 034005 (2005).
  78. J. Collins, Cambridge Monogr. Part. Phys., Nucl. Phys., Cosmol. 32, 1 (2011).
  79. A. V. Belitsky, X. Ji, and F. Yuan, Nucl. Phys. B656, 165 (2003).
  80. J. P. Ralston and D. E. Soper, Nucl. Phys. B152, 109 (1979).
  81. X. Artru and M. Mekhfi, Z. Phys. C 45, 669 (1990).
  82. R. L. Jaffe and X.-D. Ji, Phys. Rev. Lett. 67, 552 (1991).
  83. R. L. Jaffe and X.-D. Ji, Nucl. Phys. B375, 527 (1992).
  84. J. L. Cortes, B. Pire, and J. P. Ralston, Z. Phys. C 55, 409 (1992).
  85. K. Goeke, A. Metz, and M. Schlegel, Phys. Lett. B 618, 90 (2005).
  86. J. C. Collins and A. Metz, Phys. Rev. Lett. 93, 252001 (2004).
  87. D. de Florian, M. Stratmann, and W. Vogelsang, Phys. Rev. D 57, 5811 (1998).
  88. S. Meissner and A. Metz, Phys. Rev. Lett. 102, 172003 (2009).
  89. J. P. Ma and G. P. Zhang, Phys. Lett. B 772, 559 (2017).
  90. W. Vogelsang, Phys. Rev. D 57, 1886 (1998).
  91. T. Kinoshita, J. Math. Phys. (N.Y.) 3, 650 (1962).
  92. T. D. Lee and M. Nauenberg, Phys. Rev. 133, B1549 (1964).
  93. W. Furmanski and R. Petronzio, Z. Phys. C 11, 293 (1982).
  94. L. Gamberg, M. Malda, J. A. Miller, D. Pitonyak, A. Prokudin, and N. Sato (Jefferson Lab Angular Momentum (JAM), Jefferson Lab Angular Momentum Collaboration), Phys. Rev. D 106, 034014 (2022).
  95. S. Rodini, L. Rossi, and A. Vladimirov, Eur. Phys. J. C 84, 732 (2024).
  96. A. Accardi, L. T. Brady, W. Melnitchouk, J. F. Owens, and N. Sato, Phys. Rev. D 93, 114017 (2016).
  97. D. de Florian, R. Sassot, M. Epele, R. J. Hernández-Pinto, and M. Stratmann, Phys. Rev. D 91, 014035 (2015).
