Analytical two-loop amplitudes of e+e−→J/ψ+ηc at B factories

Xiang Chen1,*, Xin Guan2,†, Chuan-Qi He3,4,5,‡, Yan-Qing Ma6,7,§, Jian Wang8,7,∥, and Da-Jiang Zhang8,¶

  • *Contact author: xiang.chen@physik.uzh.ch
  • †Contact author: guanxin@slac.stanford.edu
  • ‡Contact author: legend_he@m.scnu.edu.cn
  • §Contact author: yqma@pku.edu.cn
  • ∥Contact author: j.wang@sdu.edu.cn
  • Contact author: zhangdajiang@mail.sdu.edu.cn
PDF

Phys. Rev. D 113, 074023 – Published 17 April, 2026

DOI: https://doi.org/10.1103/93kb-dqz6

Abstract

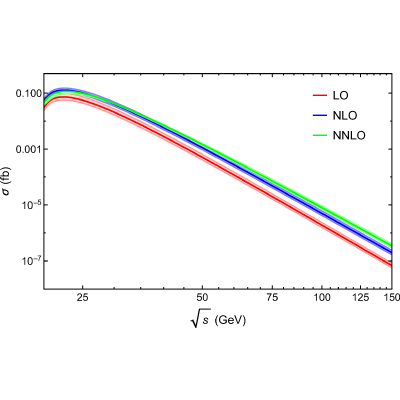

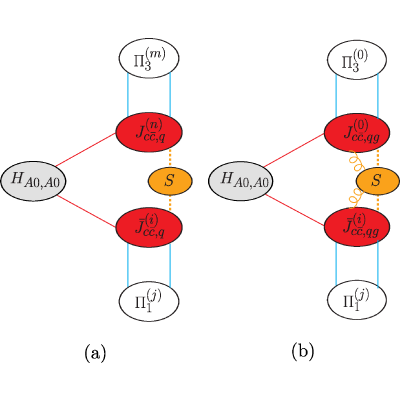

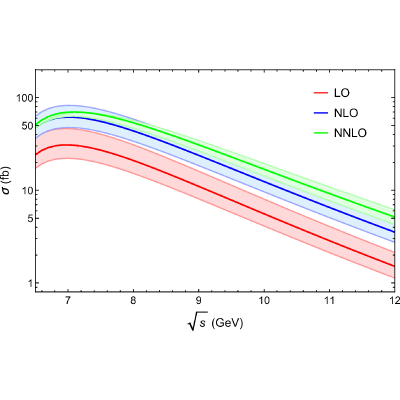

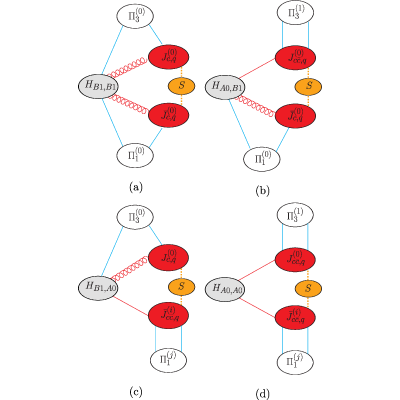

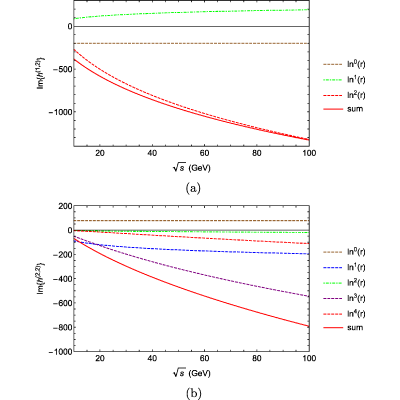

In double charmonium production, a long-standing challenge is that the theoretical predictions are not consistent with the measurements at B factories. Within the Non-Relativistic Quantum Chromodynamics (NRQCD) framework, the next-to-leading order calculation has proved its power to cut down the discrepancy between theory and experiments. To further clarify this puzzle, we have performed the next-to-next-to-leading order calculation. The amplitude is obtained as an analytical asymptotic expansion in the ratio of the squared charm-quark mass over the squared center-of-mass energy, mc2/s. We investigate the origin of the leading logarithms by performing a region analysis, revealing the intricate factorization structure in this process. We provide numerical predictions on the total cross sections of J/ψ+ηc production, which agree with the experimental results. Extension of our computation to ϒ+ηb production is also discussed.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (72)

  1. K. Abe et al. (Belle Collaboration), Phys. Rev. Lett. 89, 142001 (2002).
  2. K. Abe et al. (Belle Collaboration), Phys. Rev. D 70, 071102 (2004).
  3. B. Aubert et al. (BABAR Collaboration), Phys. Rev. D 72, 031101 (2005).
  4. E. Braaten and J. Lee, Phys. Rev. D 67, 054007 (2003).
  5. J. P. Ma and Z. G. Si, Phys. Rev. D 70, 074007 (2004).
  6. A. E. Bondar and V. L. Chernyak, Phys. Lett. B 612, 215 (2005).
  7. N. Isgur and C. H. L. Smith, Phys. Rev. Lett. 52, 1080 (1984).
  8. J. H. Yin et al. (Belle Collaboration), J. High Energy Phys. 08 (2023) 121.
  9. W. Altmannshofer et al. (Belle-II Collaboration), Prog. Theor. Exp. Phys. 2019, 123C01 (2019); 2020, 029201(E) (2020).
  10. M. Dong et al. (CEPC Study Group Collaboration), arXiv:1811.10545.
  11. Ó. Durán, L. García-Tabarés, L. A. González, F. Toral, Y. Arimoto, T. Yamada, and A. Yamamoto, IEEE Trans. Appl. Supercond. 35, 4003605 (2025).
  12. A. Abada et al. (FCC Collaboration), Eur. Phys. J. Special Topics 228, 261 (2019).
  13. G. T. Bodwin, E. Braaten, and G. P. Lepage, Phys. Rev. D 51, 1125 (1995); 55, 5853(E) (1997).
  14. Y.-J. Zhang, Y.-j. Gao, and K.-T. Chao, Phys. Rev. Lett. 96, 092001 (2006).
  15. B. Gong and J.-X. Wang, Phys. Rev. D 77, 054028 (2008).
  16. E. Braaten and J. Lee, Phys. Rev. D 67, 054007 (2003); 72, 099901(E) (2005).
  17. Z.-G. He, Y. Fan, and K.-T. Chao, Phys. Rev. D 75, 074011 (2007).
  18. G. T. Bodwin, J. Lee, and C. Yu, Phys. Rev. D 77, 094018 (2008).
  19. H.-R. Dong, F. Feng, and Y. Jia, Phys. Rev. D 85, 114018 (2012).
  20. F. Feng, Y. Jia, Z. Mo, W.-L. Sang, and J.-Y. Zhang, Phys. Lett. B 850, 138506 (2024).
  21. X.-D. Huang, B. Gong, and J.-X. Wang, J. High Energy Phys. 02 (2023) 049.
  22. Y. Jia, J.-X. Wang, and D. Yang, J. High Energy Phys. 10 (2011) 105.
  23. G. T. Bodwin, H. S. Chung, and J. Lee, Phys. Rev. D 90, 074028 (2014).
  24. See Supplemental Material at http://link.aps.org/supplemental/10.1103/93kb-dqz6 for analytical expressions and numerical expansion.
  25. Z. Sun, J. High Energy Phys. 09 (2021) 073.
  26. P. Nogueira, J. Comput. Phys. 105, 279 (1993).
  27. T. Hahn, Comput. Phys. Commun. 140, 418 (2001).
  28. https://gitee.com/multiloop-pku/calcloop.
  29. X. Guan, X. Liu, Y.-Q. Ma, and W.-H. Wu, Comput. Phys. Commun. 310, 109538 (2025).
  30. T. Peraro, J. High Energy Phys. 12 (2016) 030.
  31. T. Peraro, J. High Energy Phys. 07 (2019) 031.
  32. R. N. Lee, arXiv:1212.2685.
  33. F. Tkachov, Phys. Lett. 100B, 65 (1981).
  34. K. Chetyrkin and F. Tkachov, Nucl. Phys. B192, 159 (1981).
  35. S. Laporta, Int. J. Mod. Phys. A 15, 5087 (2000).
  36. Z.-F. Liu and Y.-Q. Ma, Phys. Rev. Lett. 129, 222001 (2022).
  37. X. Liu and Y.-Q. Ma, Comput. Phys. Commun. 283, 108565 (2023).
  38. A. V. Kotikov, Phys. Lett. B 254, 158 (1991).
  39. X. Liu, Y.-Q. Ma, and C.-Y. Wang, Phys. Lett. B 779, 353 (2018).
  40. X. Liu and Y.-Q. Ma, Phys. Rev. D 105, L051503 (2022).
  41. M. Caffo, H. Czyz, M. Gunia, and E. Remiddi, Comput. Phys. Commun. 180, 427 (2009).
  42. M. Czakon, Phys. Lett. B 664, 307 (2008).
  43. R. N. Lee, J. High Energy Phys. 04 (2015) 108.
  44. F. Moriello, J. High Energy Phys. 01 (2020) 150.
  45. M. Hidding, Comput. Phys. Commun. 269, 108125 (2021).
  46. T. Armadillo, R. Bonciani, S. Devoto, N. Rana, and A. Vicini, Comput. Phys. Commun. 282, 108545 (2023).
  47. H. R. P. Ferguson, D. H. Bailey, and S. Arno, Math. Comput. 68, 351 (1999).
  48. M. Czakon, A. Mitov, and S. Moch, Nucl. Phys. B798, 210 (2008).
  49. P. Bärnreuther, M. Czakon, and P. Fiedler, J. High Energy Phys. 02 (2014) 078.
  50. A. Czarnecki and K. Melnikov, Phys. Lett. B 519, 212 (2001).
  51. B. A. Kniehl, A. Onishchenko, J. H. Piclum, and M. Steinhauser, Phys. Lett. B 638, 209 (2006).
  52. M. Beneke, A. Signer, and V. A. Smirnov, Phys. Rev. Lett. 80, 2535 (1998).
  53. A. Czarnecki and K. Melnikov, Phys. Rev. Lett. 80, 2531 (1998).
  54. Z. L. Liu and M. Neubert, J. High Energy Phys. 04 (2020) 033.
  55. J. Wang, arXiv:1912.09920.
  56. J.-Y. Hou, J. Wang, and D.-J. Zhang, J. High Energy Phys. 06 (2025) 164.
  57. T. Liu and A. Penin, J. High Energy Phys. 11 (2018) 158.
  58. Z. L. Liu, M. Neubert, M. Schnubel, and X. Wang, J. High Energy Phys. 06 (2023) 183.
  59. M. Beneke, M. Garny, S. Jaskiewicz, J. Strohm, R. Szafron, L. Vernazza, and J. Wang, J. High Energy Phys. 07 (2022) 144.
  60. G. Bell, P. Böer, and T. Feldmann, J. High Energy Phys. 09 (2022) 183.
  61. G. Bell, P. Böer, T. Feldmann, D. Horstmann, and V. Shtabovenko, J. High Energy Phys. 09 (2025) 098.
  62. J. ter Hoeve, E. Laenen, C. Marinissen, L. Vernazza, and G. Wang, J. High Energy Phys. 02 (2024) 024.
  63. V. A. Smirnov, Phys. Lett. B 404, 101 (1997).
  64. M. Beneke and V. A. Smirnov, Nucl. Phys. B522, 321 (1998).
  65. A. V. Manohar and I. W. Stewart, Phys. Rev. D 76, 074002 (2007).
  66. M. Beneke, M. Garny, R. Szafron, and J. Wang, J. High Energy Phys. 03 (2018) 001.
  67. M. Beneke, M. Garny, R. Szafron, and J. Wang, J. High Energy Phys. 11 (2018) 112.
  68. E. J. Eichten and C. Quigg, Phys. Rev. D 52, 1726 (1995).
  69. N. Brambilla, H. S. Chung, A. Vairo, and X.-P. Wang, J. High Energy Phys. 03 (2023) 242.
  70. G. T. Bodwin, J. Lee, and C. Yu, Phys. Rev. D 77, 094018 (2008).
  71. L. Bündgen, R. V. Harlander, S. Y. Klein, and M. C. Schaaf, Comput. Phys. Commun. 314, 109662 (2025).
  72. C. Li, X.-D. Huang, and W.-L. Sang, Phys. Lett. B 873, 140150 (2026).
