Energy levels of multiscale bound states from QED energy-momentum trace

Michael I. Eides1,* and Vladimir A. Yerokhin2,†

  • *Contact author: meides@g.uky.edu
  • †Contact author: vladimir.yerokhin@mpi-hd.mpg.de
PDF

Phys. Rev. D 113, 056012 – Published 9 March, 2026

DOI: https://doi.org/10.1103/8mx9-6583

Abstract

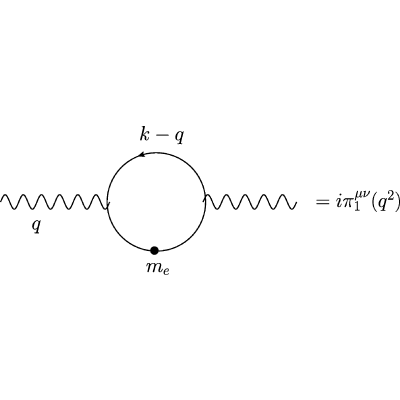

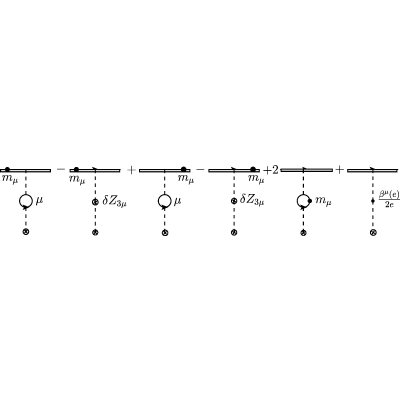

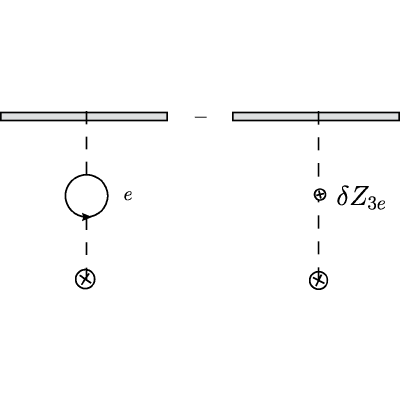

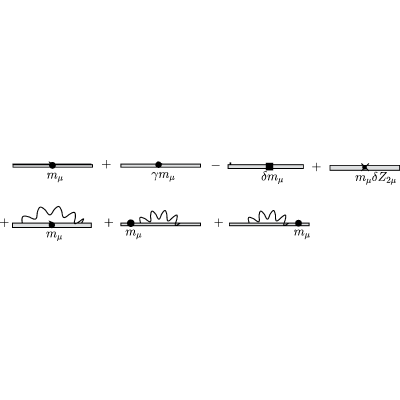

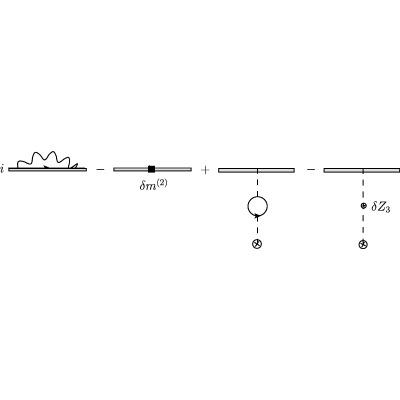

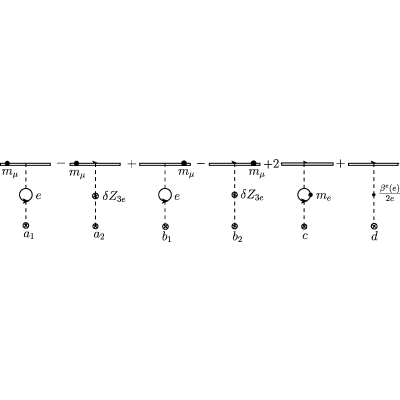

Energy levels of quantum electrodynamics (QED) bound states, which depend on a number of independent mass parameters, can be calculated as matrix elements of the QED energy-momentum tensor trace. As an example of such system we consider muonic hydrogen. The leading one-loop corrections to its energy levels depend on the electron and muon masses. These corrections are calculated as matrix elements of the energy-momentum tensor trace. Respective one-loop trace diagrams are different from the standard Lamb shift diagrams. We explain analytically and diagrammatically why two different sets of diagrams lead to the same results. Similar relationships should also hold beyond the one-loop approximation.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (48)

  1. X. D. Ji, Gauge-invariant decomposition of nucleon spin, Phys. Rev. Lett. 78, 610 (1997).
  2. X. D. Ji, Deeply virtual Compton scattering, Phys. Rev. D 55, 7114 (1997).
  3. A. V. Radyushkin, Asymmetric gluon distributions and hard diffractive electroproduction, Phys. Lett. B 385, 333 (1996).
  4. J. C. Collins, L. Frankfurt, and M. Strikman, Factorization for hard exclusive electroproduction of mesons in QCD, Phys. Rev. D 56, 2982 (1997).
  5. D. Kharzeev, H. Satz, A. Syamtomov, and G. Zinovjev, J/ψ photoproduction and the gluon structure of the nucleon, Eur. Phys. J. C 9, 459 (1999).
  6. E. R. Berger, M. Diehl, and B. Pire, Time-like Compton scattering: Exclusive photoproduction of lepton pairs, Eur. Phys. J. C 23, 675 (2002).
  7. M. V. Polyakov, Generalized parton distributions and strong forces inside nucleons and nuclei, Phys. Lett. B 555, 57 (2003).
  8. I. Y. Kobzarev and L. B. Okun, Gravitational interaction of fermions, Zh. Eksp. Teor. Fiz. 43, 1904 (1962), https://jetp.ras.ru/cgi-bin/e/index/e/16/5/p1343?a=list.
  9. H. Pagels, Energy-momentum structure form factors of particles, Phys. Rev. 144, 1250 (1966).
  10. X. D. Ji, A QCD analysis of the mass structure of the nucleon, Phys. Rev. Lett. 74, 1071 (1995).
  11. X. D. Ji, Breakup of hadron masses and energy—momentum tensor of QCD, Phys. Rev. D 52, 271 (1995).
  12. J. Hudson and P. Schweitzer, D term and the structure of pointlike and composed spin-0 particles, Phys. Rev. D 96, 114013 (2017).
  13. M. V. Polyakov and P. Schweitzer, Forces inside hadrons: Pressure, surface tension, mechanical radius, and all that, Int. J. Mod. Phys. A 33, 1830025 (2018).
  14. D. E. Kharzeev, Mass radius of the proton, Phys. Rev. D 104, 054015 (2021).
  15. K. F. Liu, Proton mass decomposition and hadron cosmological constant, Phys. Rev. D 104, 076010 (2021).
  16. C. Lorcé, A. Metz, B. Pasquini, and S. Rodini, Energy-momentum tensor in QCD: Nucleon mass decomposition and mechanical equilibrium, J. High Energy Phys. 11 (2021) 121.
  17. X. Ji, Y. Liu, and I. Zahed, Mass structure of hadrons and light-front sum rules in the ′t Hooft model, Phys. Rev. D 103, 074002 (2021).
  18. X. Ji and Y. Liu, Quantum anomalous energy effects on the nucleon mass, Sci. China Phys. Mech. Astron. 64, 281012 (2021).
  19. X. Ji, Proton mass decomposition: Naturalness and interpretations, Front. Phys. (Beijing) 16, 64601 (2021).
  20. A. Metz, B. Pasquini, and S. Rodini, Revisiting the proton mass decomposition, Phys. Rev. D 102, 114042 (2020).
  21. K. A. Milton, Quantum corrections to stress tensors and conformal invariance, Phys. Rev. D 4, 3579 (1971).
  22. K. A. Milton, Scale invariance and spectral forms for conformal stress tensors. (Erratum), Phys. Rev. D 7, 1120 (1973); 7, 3821(E) (1973).
  23. F. A. Berends and R. Gastmans, Quantum electrodynamical corrections to graviton-matter vertices, Ann. Phys. (N.Y.) 98, 225 (1976).
  24. K. A. Milton, Quantum electrodynamic corrections to the gravitational interaction of the electron, Phys. Rev. D 15, 538 (1977).
  25. X. D. Ji and W. Lu, A modern anatomy of electron mass, arXiv:hep-ph/9802437.
  26. B. Kubis and U. G. Meissner, Virtual photons in the pion form-factors and the energy momentum tensor, Nucl. Phys. A671, 332 (2000); A692, 647(E) (2001).
  27. J. F. Donoghue, B. R. Holstein, B. Garbrecht, and T. Konstandin, Quantum corrections to the Reissner-Nordström and Kerr-Newman metrics, Phys. Lett. B 529, 132 (2002); 612, 311(E) (2005).
  28. S. Rodini, A. Metz, and B. Pasquini, Mass sum rules of the electron in quantum electrodynamics, J. High Energy Phys. 09 (2020) 067.
  29. B. d. Sun, Z. h. Sun, and J. Zhou, Trace anomaly contribution to hydrogen atom mass, Phys. Rev. D 104, 056008 (2021).
  30. X. Ji, Y. Liu, and A. Schäfer, Scale symmetry breaking, quantum anomalous energy and proton mass decomposition, Nucl. Phys. B971, 115537 (2021).
  31. A. Metz, B. Pasquini, and S. Rodini, The gravitational form factor D(t) of the electron, Phys. Lett. B 820, 136501 (2021).
  32. X. Ji and Y. Liu, Momentum-current gravitational multipoles of hadrons, Phys. Rev. D 106, 034028 (2022).
  33. X. Ji and Y. Liu, Gravitational tensor-monopole moment of hydrogen atom to order O(α), Phys. Rev. D 110, 114045 (2024).
  34. A. Freese, A. Metz, B. Pasquini, and S. Rodini, The gravitational form factors of the electron in quantum electrodynamics, Phys. Lett. B 839, 137768 (2023).
  35. M. I. Eides, One-loop electron mass and QED trace anomaly, Eur. Phys. J. C 83, 356 (2023).
  36. A. Czarnecki, Y. Liu, and S. N. Reza, Energy-momentum tensor of a hydrogen atom: Stability, D-term, and the Lamb shift, Acta Phys. Pol. B Proc. Suppl. 16, 7 (2023).
  37. A. Czarnecki, Radiative corrections to mechanical properties of bound states, Proc. Sci. Radcor2023 (2024) 094.
  38. M. I. Eides, Hydrogen energy levels from the anomalous energy-momentum QED trace, Phys. Rev. D 110, 076020 (2024).
  39. M. I. Eides, My friends and hadron physics, Acta Phys. Pol. B 56, 3 (2025).
  40. L. Chen, Z. Li, and M. Niggetiedt, On-shell matrix elements of the EMT trace in gauge theories and heavy quark masses, Phys. Lett. B 871, 139935 (2025).
  41. E. A. Dudas and D. Pirjol, A virial theorem in quantum field theory, Phys. Lett. B 260, 186 (1991).
  42. W. H. Furry, On bound states and scattering in positron theory, Phys. Rev. 81, 115 (1951).
  43. J. R. Sapirstein and D. R. Yennie, Theory of hydrogenic bound states, Adv. Ser. Dir. High Energy Phys. 7, 560 (1990).
  44. S. Weinberg, The Quantum Theory of Fields. Vol. 1: Foundations (Cambridge University Press, Cambridge, England, 2005), ISBN [Amazon][WorldCat], [Amazon][WorldCat].
  45. V. B. Berestetskii, E. M. Lifshitz, and L. P. Pitaevskii, Quantum Electrodynamics (Pergamon Press, New York, 1982), ISBN [Amazon][WorldCat].
  46. V. M. Shabaev, Generalizations of the virial relations for the Dirac equation in a central field and their applications to the Coulomb field, J. Phys. B 24, 4479 (1991).
  47. V. M. Shabaev, Virial relations for the Dirac equation and their applications to calculations of hydrogen-like atoms, in Precision Physics of Simple Atomic Systems, edited by S. G. Karshenboim and V. B. Smirnov (Springer, Berlin, 2003), p. 97.
  48. L. D. Landau and E. M. Lifshits, Quantum Mechanics: Non-Relativistic Theory (Butterworth-Heinemann, Oxford, Boston, Johannesburg, 1991), ISBN [Amazon][WorldCat].
