Calorimetric approach to paleodetection of dark matter

S. C. Hedges and P. Huber*

  • Center for Neutrino Physics, Virginia Tech, Blacksburg, Virginia, USA

  • *Contact author: pahuber@vt.edu
PDF

Phys. Rev. D 114, 063062 – Published 29 September, 2026

DOI: https://doi.org/10.1103/818g-2t94

Abstract

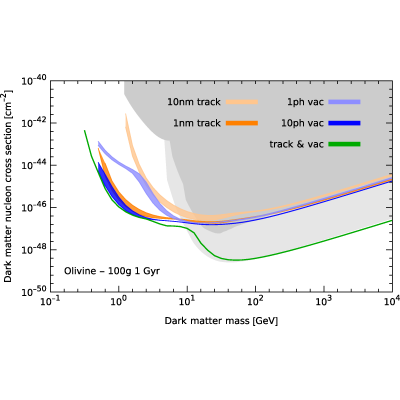

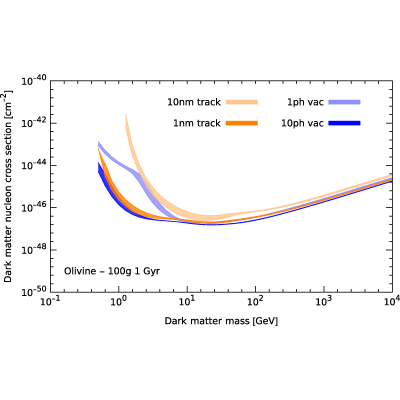

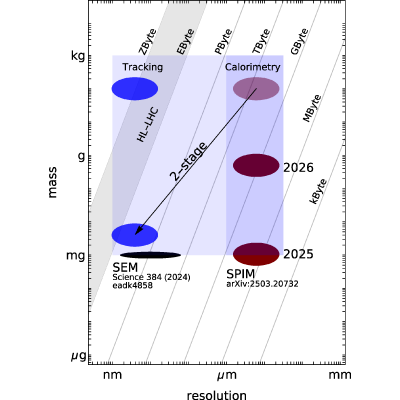

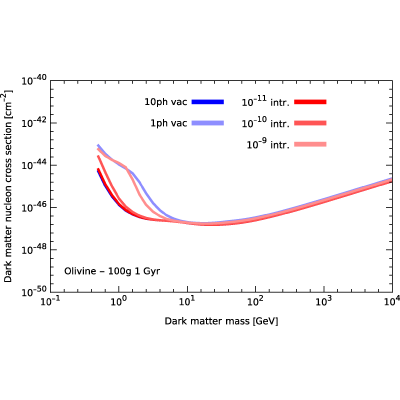

We present the first paleodetector dark-matter sensitivity analysis based on a calorimetric readout, in which the number of stable lattice vacancies produced by each nuclear recoil is used as a per-event observable complementary to the track length. Using full-cascade srim simulations in olivine, we compute the expected sensitivity for a 100  g·1  Gyr exposure. We find that a vacancy-only readout reaches a sensitivity envelope very similar to that of state-of-the-art track-only analyses. The combination of the two observables provides an event-by-event proxy for |dE/dx| and hence for the recoiling nuclear species. Since the neutron-nucleus cross section is approximately flat in nuclear mass while the dark-matter–nucleus cross section scales as A2, this discrimination suppresses the dominant neutron background by more than an order of magnitude at moderate dark-matter masses. The combined-analysis sensitivity reaches spin-independent dark-matter–nucleon cross sections of order 10−48  cm2 at weakly interacting massive particle masses of a few tens of GeV, comparable to future direct-detection experiments. A two-stage readout combining selective-plane illumination microscopy with scanning electron microscopy is identified as a path to making a 100 g-scale analysis plausible.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. P. B. Price and R. M. Walker, Fossil tracks of charged particles in mica and the age of minerals, J. Geophys. Res. 68, 4847 (1963).
  2. G. A. Wagner and P. Van den haute, Fission Track Dating (Ferdinand Enke Verlag, Stuttgart, 1992).
  3. A. J. W. Gleadow, D. X. Belton, B. P. Kohn, and R. W. Brown, Fission track dating of phosphate minerals and the thermochronology of apatite, Rev. Mineral. Geochem. 48, 579 (2002).
  4. R. L. Fleischer, H. R. Hart, Jr., I. S. Jacobs, P. B. Price, W. M. Schwarz, and F. Aumento, Search for magnetic monopoles in deep ocean deposits, Phys. Rev. 184, 1393 (1969).
  5. P. B. Price and M. H. Salamon, Search for supermassive magnetic monopoles using mica crystals, Phys. Rev. Lett. 56, 1226 (1986).
  6. D. P. Snowden-Ifft, M. K. Y. Chan, and R. Frenkel, Compositional dependence of the formation of nuclear tracks in muscovite mica, Phys. Rev. Lett. 74, 4133 (1995).
  7. Andrzej K. Drukier, Sebastian Baum, Katherine Freese, Maciej Górski, and Patrick Stengel, Paleo-detectors: Searching for dark matter with ancient minerals, Phys. Rev. D 99, 043014 (2019).
  8. Sebastian Baum, Andrzej K. Drukier, Katherine Freese, Maciej Górski, and Patrick Stengel, Searching for dark matter with Paleo-detectors, Phys. Lett. B 803, 135325 (2020).
  9. Sebastian Baum et al., Mineral detection of neutrinos and dark matter. A whitepaper, Phys. Dark Universe 41, 101245 (2023).
  10. J. Aalbers et al. (DARWIN Collaboration), DARWIN: Towards the ultimate dark matter detector, J. Cosmol. Astropart. Phys. 11 (2016) 017.
  11. J. Aalbers et al. (XLZD Collaboration), The XLZD design book: Towards the next-generation dark matter observatory (2024).
  12. Johnathon R. Jordan, Sebastian Baum, Patrick Stengel, Alfredo Ferrari, Maria Cristina Morone, Paola Sala, and Joshua Spitz, Measuring changes in the atmospheric neutrino rate over gigayear timescales, Phys. Rev. Lett. 125, 231802 (2020).
  13. Natalia Tapia-Arellano and Shunsaku Horiuchi, Measuring solar neutrinos over gigayear timescales with Paleo detectors, Phys. Rev. D 103, 123016 (2021).
  14. Sebastian Baum, Francesco Capozzi, and Shunsaku Horiuchi, Rocks, water, and noble liquids: Unfolding the flavor contents of supernova neutrinos, Phys. Rev. D 106, 123008 (2022).
  15. Lorenzo Caccianiga, Lorenzo Apollonio, Federico Maria Mariani, Paolo Magnani, Claudio Galelli, and Alessandro Veutro, Sedimentary rocks from Mediterranean drought in the Messinian age as a probe of the past cosmic ray flux, Phys. Rev. D 110, L121301 (2024).
  16. Claudio Galelli, Lorenzo Caccianiga, Lorenzo Apollonio, Paolo Magnani, and Vincent Breton, A volcanic chronosequence as a time-resolved paleo-detector array to study the cosmic-ray flux in the late Pleistocene and Holocene, J. Cosmol. Astropart. Phys. 04 (2026) 023.
  17. S. Baum, T. D. P. Edwards, K. Freese, and P. Stengel, New projections for dark matter searches with Paleo-detectors, Instruments 5, 21 (2021).
  18. A. Fung, T. Lucas, L. Balogh, M. Leybourne, and A. C. Vincent, Refining the sensitivity of new physics searches with ancient minerals, Phys. Rev. D 112, 043040 (2025).
  19. B. K. Cogswell, A. Goel, and P. Huber, Passive low-energy nuclear-recoil detection with color centers, Phys. Rev. Appl. 16, 064060 (2021).
  20. Gabriela R. Araujo et al., Nuclear recoil detection with color centers in bulk lithium fluoride, Eur. Phys. J. C 86, 887 (2026).
  21. N. Vladimirov et al., Benchtop mesoSPIM: A next-generation open-source light-sheet microscope for cleared samples, Nat. Commun. 15, 2679 (2024).
  22. S. Chatrchyan et al. (CMS Collaboration), The CMS experiment at the CERN LHC, J. Instrum. 3, S08004 (2008).
  23. G. Aad et al. (ATLAS Collaboration), The ATLAS Experiment at the CERN Large Hadron Collider, J. Instrum. 3, S08003 (2008).
  24. J. F. Ziegler, M. D. Ziegler, and J. P. Biersack, srim—The stopping and range of ions in matter, Nucl. Instrum. Methods Phys. Res., Sect. B 268, 1818 (2010).
  25. S. Agarwal, Y. Lin, C. Li, R. E. Stoller, and S. J. Zinkle, On the use of srim for computing radiation damage exposure, Nucl. Instrum. Methods Phys. Res., Sect. B 503, 11 (2021).
  26. J. Billard, L. Strigari, and E. Figueroa-Feliciano, Implication of neutrino backgrounds on the reach of next generation dark matter direct detection experiments, Phys. Rev. D 89, 023524 (2014).
  27. Ciaran A. J. O’Hare, New definition of the neutrino floor for direct dark matter searches, Phys. Rev. Lett. 127, 251802 (2021).
  28. L Wang, W Gong, S Wang, and R C Ewing, Comparison of ion-beam irradiation effects in X2YO4 compounds, J. Am. Ceram. Soc. 82, 3321 (1999).
  29. P. W. May, G. Pineau des Forêts, D. R. Flower, D. Field, N. L. Allan, and J. A. Purton, Sputtering of grains in c-type shocks, Mon. Not. R. Astron. Soc. 318, 809 (2000).
  30. Marco Bocchio, Modelling dust processing and evolution in extreme environments as seen by herschel space observatory, Ph.D. thesis, Institut d’Astrophysique Spatiale, 2014.
  31. Webmineral Mineralogy Database, Olivine Mineral Data, https://webmineral.com/data/Olivine.shtml, (accessed: 2026-05-07).
  32. J. Nahum and D. A. Wiegand, Optical properties of some F-aggregate centers in LiF, Phys. Rev. 154, 817 (1967).
  33. G. Baldacchini, M. Cremona, G. d’Auria, R. M. Montereali, and V. Kalinov, Optical bands of F2 and F3+ color centers in LiF, Phys. Rev. B 54, 17508 (1996).
  34. A. M. Zaitsev, Optical Properties of Diamond: A Data Handbook (Springer, Berlin, Heidelberg, 2001).
  35. S. Castelletto and A. Boretti, Silicon carbide color centers for quantum applications, J. Phys. 2, 022001 (2020).
  36. R. H. Helm, Inelastic and elastic scattering of 187-Mev electrons from selected even-even nuclei, Phys. Rev. 104, 1466 (1956).
  37. J. D. Lewin and P. F. Smith, Review of mathematics, numerical factors, and corrections for dark matter experiments based on elastic nuclear recoil, Astropart. Phys. 6, 87 (1996).
  38. M. C. Smith et al., The RAVE Survey: Constraining the local galactic escape speed, Mon. Not. R. Astron. Soc. 379, 755 (2007).
  39. J. I. Read, The local dark matter density, J. Phys. G 41, 063101 (2014).
  40. J. Aalbers et al. (LZ Collaboration), Dark matter search results from 4.2  tonne−years of exposure of the LUX-ZEPLIN (LZ) experiment, Phys. Rev. Lett. 135, 011802 (2025).
  41. A. Zabi et al., The CMS data acquisition system for the Phase-2 upgrade, in Proceedings of Science (Topical Workshop on Electronics for Particle Physics 2018) (2019), 10.22323/1.343.0129.
  42. A. Elykov et al., Mineral Detection of Neutrinos and Dark Matter 2026 Proceedings (2026), arXiv:2609.20552.
  43. A. Shapson-Coe et al., A petavoxel fragment of human cerebral cortex reconstructed at nanoscale resolution, Science 384, eadk4858 (2024).
