Turbulent transport of galactic magnetic fields into cosmic voids: Insights from IllustrisTNG

Yuri Yamashita1,*, Hiroyuki Tashiro1, and Kiyotomo Ichiki1,2,3

  • *Contact author: yamashita.yuri.h4@s.mail.nagoya-u.ac.jp
PDF

Phys. Rev. D 114, 083517 – Published 13 October, 2026

DOI: https://doi.org/10.1103/76ck-4yfs

Abstract

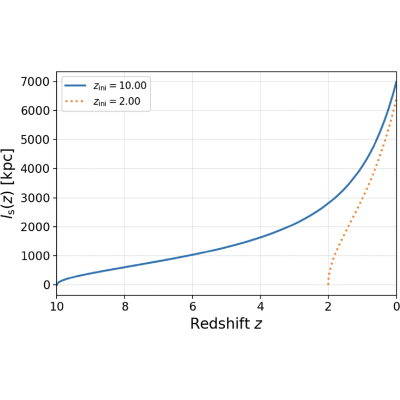

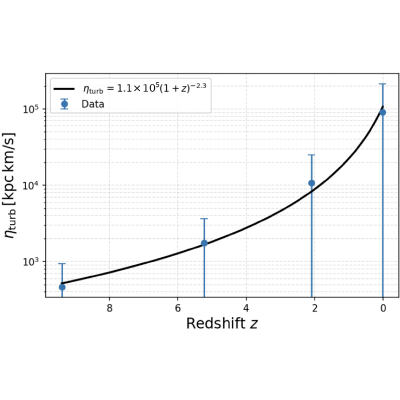

Astrophysical processes associated with galaxies may contribute to the magnetization of cosmic voids. We investigate the diffusion of galactic magnetic fields in an expanding Universe in the presence of turbulent magnetic diffusivity. To estimate the turbulent magnetic diffusivity, we analyze the TNG50-1 dataset of the IllustrisTNG simulation and derive its redshift dependence from the characteristic turbulent velocity and turbulent scale of the intergalactic medium. Using the resulting diffusivity, we find a present-day magnetic screening length of ∼7  Mpc, roughly 20 times larger than previous estimates based on a constant turbulent diffusivity due to the larger turbulent scale obtained in our analysis. This scale corresponds to a significant fraction of the characteristic size of cosmic voids and suggests that galactic magnetic fields can play a more important role in void magnetization than previously estimated.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (30)

  1. A. Neronov and I. Vovk, Evidence for strong extragalactic magnetic fields from Fermi observations of TeV blazars, Science 328, 73 (2010).
  2. K. Dolag, M. Kachelriess, S. Ostapchenko, and R. Tomas, Lower limit on the strength and filling factor of extragalactic magnetic fields, Astrophys. J. Lett. 727, L4 (2010).
  3. C. D. Dermer, M. Cavadini, S. Razzaque, J. D. Finke, J. Chiang, and B. Lott, Time delay of cascade radiation for tev blazars and the measurement of the intergalactic magnetic field, Astrophys. J. Lett. 733, L21 (2011).
  4. K. Takahashi, M. Mori, K. Ichiki, and S. Inoue, Lower bounds on intergalactic magnetic fields from simultaneously observed GeV–TeV light curves of the blazar Mrk 501, Astrophys. J. Lett. 744, L7 (2012).
  5. I. Vovk, A. M. Taylor, D. Semikoz, and A. Neronov, Fermi/LAT observations of 1ES 0229+200: Implications for extragalactic magnetic fields and background light, Astrophys. J. Lett. 747, L14 (2012).
  6. H. Tashiro and T. Vachaspati, Cosmological magnetic field correlators from blazar induced cascade, Phys. Rev. D 87, 123527 (2013).
  7. V. A. Acciari, I. Agudo, T. Aniello, S. Ansoldi, L. Antonelli, A. A. Engels, M. Artero, K. Asano, D. Baack, A. Babić et al., A lower bound on intergalactic magnetic fields from time variability of 1ES 0229+200 from magic and Fermi/LAT observations, Astron. Astrophys. 670, A145 (2023).
  8. T. Minoda, K. Ichiki, and H. Tashiro, Small-scale CMB anisotropies induced by the primordial magnetic fields, J. Cosmol. Astropart. Phys. 03 (2021) 093.
  9. P. A. R. Ade et al. (Planck Collaboration), Planck 2015 results. XIX. Constraints on primordial magnetic fields, Astron. Astrophys. 594, A19 (2016).
  10. M. Pavičević, V. Iršič, M. Viel, J. S. Bolton, M. G. Haehnelt, S. Martin-Alvarez, E. Puchwein, and P. Ralegankar, Constraints on primordial magnetic fields from the Lyman-α forest, Phys. Rev. Lett. 135, 071001 (2025).
  11. K. Takahashi, M. Mori, K. Ichiki, S. Inoue, and H. Takami, Lower bounds on magnetic fields in intergalactic voids from long-term GeV-TeV light curves of the blazar Mrk 421, Astrophys. J. Lett. 771, L42 (2013).
  12. L. Burmeister, P. Da Vela, F. Longo, G. Martí-Devesa, M. Meyer, F. G. Saturni, A. Stamerra, and P. Veres, Constraints on the intergalactic magnetic field from Fermi-LAT observations of GRB 221009A, Phys. Rev. D 113, 043041 (2026).
  13. S. Dey and G. Sigl, Impact of Plasma instabilities and of the intergalactic magnetic field on blazar-induced electromagnetic cascades, Proc. Sci. ICRC2025 (2025) 627 [arXiv:2509.17104].
  14. S. Dey, S. Rossoni, and G. Sigl, The impact of plasma instability cooling on intergalactic magnetic field constraints in GeV cascades for optimized instability cooling parameters, Astropart. Phys. 182, 103275 (2026).
  15. D. Garg, R. Durrer, and J. Schober, Are magnetic fields in cosmic voids primordial?, arXiv:2505.14774.
  16. K. Seller and G. Sigl, On the contribution of galaxies to the magnetic field in cosmic voids, Astron. Astrophys. 709, A45 (2026).
  17. O. Ghosh, A. Brandenburg, C. Caprini, A. Neronov, and F. Vazza, Can galactic magnetic fields diffuse into the voids?, Phys. Rev. D 113, 023523 (2026).
  18. A. Pillepich, D. Nelson, V. Springel, R. Pakmor, P. Torrey, R. Weinberger, M. Vogelsberger, F. Marinacci, S. Genel, A. van der Wel, and L. Hernquist, First results from the TNG50 simulation: The evolution of stellar and gaseous discs across cosmic time, Mon. Not. R. Astron. Soc. 490, 3196 (2019).
  19. D. Nelson, A. Pillepich, V. Springel, R. Pakmor, R. Weinberger, S. Genel, P. Torrey, M. Vogelsberger, F. Marinacci, and L. Hernquist, First results from the TNG50 simulation: Galactic outflows driven by supernovae and black hole feedback, Mon. Not. R. Astron. Soc. 490, 3234 (2019).
  20. A. Pillepich, D. Nelson, L. Hernquist, V. Springel, R. Pakmor, P. Torrey, R. Weinberger, S. Genel, J. P. Naiman, F. Marinacci et al., First results from the illustristng simulations: The stellar mass content of groups and clusters of galaxies, Mon. Not. R. Astron. Soc. 475, 648 (2018).
  21. A. Pillepich, V. Springel, D. Nelson, S. Genel, J. Naiman, R. Pakmor, L. Hernquist, P. Torrey, M. Vogelsberger, R. Weinberger et al., Simulating galaxy formation with the illustristng model, Mon. Not. R. Astron. Soc. 473, 4077 (2018).
  22. F. Marinacci, M. Vogelsberger, R. Pakmor, P. Torrey, V. Springel, L. Hernquist, D. Nelson, R. Weinberger, A. Pillepich, J. Naiman et al., First results from the illustristng simulations: Radio haloes and magnetic fields, Mon. Not. R. Astron. Soc. 480, 5113 (2018).
  23. D. Nelson, A. Pillepich, V. Springel, R. Weinberger, L. Hernquist, R. Pakmor, S. Genel, P. Torrey, M. Vogelsberger, G. Kauffmann et al., First results from the illustristng simulations: The galaxy colour bimodality, Mon. Not. R. Astron. Soc. 475, 624 (2018).
  24. K. Jedamzik and G. Sigl, Evolution of the large-scale tail of primordial magnetic fields, Phys. Rev. D 83, 103005 (2011).
  25. A. Lewis, A. Challinor, and A. Lasenby, Efficient computation of CMB anisotropies in closed FRW models, Astrophys. J. 538, 473 (2000).
  26. W. Malkus, Magnetic field generation in electrically conducting fluids, J. Fluid Mech. 92, 397 (1979).
  27. T. Shibuya, M. Ouchi, and Y. Harikane, Morphologies of 190,000 galaxies at z= 0–10 revealed with HST legacy data. I. Size evolution, Astrophys. J. Suppl. Ser. 219, 15 (2015).
  28. A. Aramburo-Garcia, K. Bondarenko, A. Boyarsky, D. Nelson, A. Pillepich, and A. Sokolenko, Magnetization of the intergalactic medium in the illustristng simulations: The importance of extended, outflow-driven bubbles, Mon. Not. R. Astron. Soc. 505, 5038 (2021).
  29. A. Arámburo-García, K. Bondarenko, A. Boyarsky, A. Neronov, A. Scaife, and A. Sokolenko, The contribution of magnetized galactic outflows to extragalactic Faraday rotation, Mon. Not. R. Astron. Soc. 519, 4030 (2023).
  30. J. Blunier and A. Neronov, Constraint on magnetized galactic outflows from LOFAR rotation measure data, Astron. Astrophys. 691, A34 (2024).
