Sensitivity of the photon-induced processes to the proton charge radius

Nikhil Krishna*, Mariola Kłusek-Gawenda†, and Rafał Staszewski‡

  • *Contact author: Nikhil.Krishna@ifj.edu.pl
  • †Contact author: Mariola.Klusek@ifj.edu.pl
  • ‡Contact author: Rafal.Staszewski@ifj.edu.pl
PDF

Phys. Rev. D 114, 076003 – Published 2 October, 2026

DOI: https://doi.org/10.1103/47cq-vdfk

Abstract

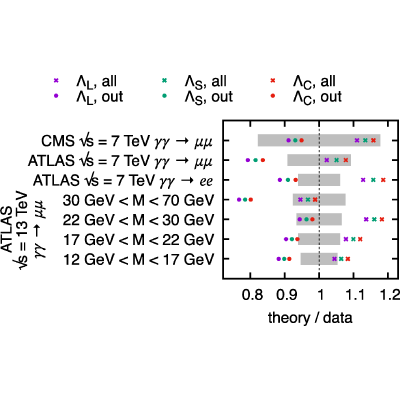

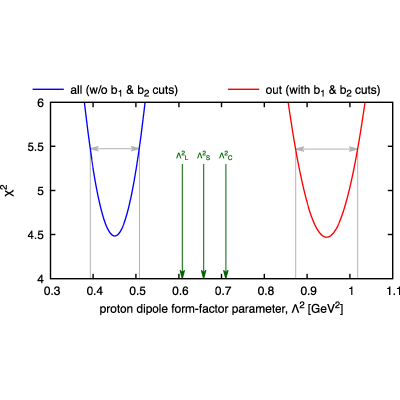

We study the exclusive production of dileptons in proton-proton collisions as a probe of the proton charge-radius scale. Using a dipole form factor model, we compare the conventional choice of Λ2=0.71  GeV2 with Particle Data Group test scenarios corresponding to rp=0.8751±0.0061  fm and rp=0.84087±0.00039  fm, representative of the historical large radius from CODATA and smaller radius from muonic-hydrogen determinations, respectively. The sensitivity is greatest at large dilepton invariant masses and forward/backward rapidity. Fitting to the current ATLAS and CMS data within the adopted model gives Λ2=0.465±0.056  GeV2, corresponding to an effective radius rp=1.002±0.038  fm, which indicates nontrivial sensitivity on the proton-radius scale, but is not yet a definitive solution to the proton-radius puzzle. While this result depends on the theoretical model used in the calculation, it shows that exclusive dilepton production at the LHC can provide complementary model-dependent information on the proton electromagnetic form factor.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. H. Gao and M. Vanderhaeghen, The proton charge radius, Rev. Mod. Phys. 94, 015002 (2022).
  2. Carl E. Carlson, The proton radius puzzle, Prog. Part. Nucl. Phys. 82, 59 (2015).
  3. Randolf Pohl, Aldo Antognini, François Nez, Fernando D. Amaro, François Biraben, João M. R. Cardoso, Daniel S. Covita, Andreas Dax, Satish Dhawan, Luis M. P. Fernandes et al., The size of the proton, Nature (London) 466, 213 (2010).
  4. Aldo Antognini et al., Proton structure from the measurement of 2S−2P transition frequencies of muonic hydrogen, Science 339, 417 (2013).
  5. V. M. Budnev, I. F. Ginzburg, G. V. Meledin, and V. G. Serbo, The two photon particle production mechanism. Physical problems. Applications. Equivalent photon approximation, Phys. Rep. 15, 181 (1975).
  6. Mateusz Dyndal and Laurent Schoeffel, The role of finite-size effects on the spectrum of equivalent photons in proton–proton collisions at the LHC, Phys. Lett. B 741, 66 (2015).
  7. R. G. Sachs, High-energy behavior of nucleon electromagnetic form factors, Phys. Rev. 126, 2256 (1962).
  8. J. C. Bernauer et al., High-precision determination of the electric and magnetic form factors of the proton, Phys. Rev. Lett. 105, 242001 (2010).
  9. C. F. Perdrisat, V. Punjabi, and M. Vanderhaeghen, Nucleon electromagnetic form factors, Prog. Part. Nucl. Phys. 59, 694 (2007).
  10. Georges Aad et al., Measurement of exclusive γγ→ℓ+ℓ− production in proton-proton collisions at s=7  TeV with the ATLAS detector, Phys. Lett. B 749, 242 (2015).
  11. Serguei Chatrchyan et al., Exclusive photon-photon production of muon pairs in proton-proton collisions at s=7  TeV, J. High Energy Phys. 01 (2012) 052.
  12. Morad Aaboud et al., Measurement of the exclusive γγ→μ+μ− process in proton-proton collisions at s=13  TeV with the ATLAS detector, Phys. Lett. B 777, 303 (2018).
  13. Georges Aad et al., Electroweak, QCD and flavour physics studies with ATLAS data from Run 2 of the LHC, Phys. Rep. 1116, 57 (2025).
  14. Agnieszka Ogrodnik, BSM physics using photon-photon fusion processes in UPC in Pb+Pb collisions with the ATLAS detector, Proc. Sci. HardProbes2023 (2024) 067.
  15. Laurent Thomas, Searches for BSM physics in dilepton, multilepton, and lepton+MET final states at CMS, Proc. Sci. DIS2016 (2016) 111.
  16. W. Xiong et al., A small proton charge radius from an electron–proton scattering experiment, Nature (London) 575, 147 (2019).
  17. Yong-Hui Lin, Hans-Werner Hammer, and Ulf-G. Meißner, Dispersion-theoretical analysis of the electromagnetic form factors of the nucleon: Past, present and future, Eur. Phys. J. A 57, 255 (2021).
  18. Yong-Hui Lin, Hans-Werner Hammer, and Ulf-G. Meißner, New insights into the Nucleon’s electromagnetic structure, Phys. Rev. Lett. 128, 052002 (2022).
  19. Masaharu Tanabashi, K. Hagiwara, K. Hikasa, Katsumasa Nakamura, Y. Sumino, F. Takahashi, J. Tanaka, K. Agashe, Giulio Aielli, Claude Amsler et al., Review of particle physics: Particle data groups, Phys. Rev. D 98, 1 (2018).
  20. Peter J. Mohr, David B. Newell, and Barry N. Taylor, CODATA recommended values of the fundamental physical constants: 2014, Rev. Mod. Phys. 88, 035009 (2016).
  21. Jan C. Bernauer, P. Achenbach, C. Ayerbe Gayoso, R. Böhm, Damir Bosnar, L. Debenjak, M. O. Distler, L. Doria, A. Esser, H. Fonvieille et al., High-precision determination of the electric and magnetic form factors of the proton, Phys. Rev. Lett. 105, 242001 (2010).
  22. J. C. Bernauer et al., Electric and magnetic form factors of the proton, Phys. Rev. C 90, 015206 (2014).
  23. Muhammad Goharipour, Fatemeh Irani, Hadi Hashamipour, and K. Azizi, The charge and magnetic radii of the nucleons from the generalized parton distributions, Phys. Lett. B 864, 139423 (2025).
  24. Muhammad Goharipour, Fatemeh Irani, M. H. Amiri, H. Fatehi, Behnam Falahi, A. Moradi, and K. Azizi, Can we determine the exact size of the nucleon?: A comprehensive study of different radii, Nucl. Phys. B1017, 116962 (2025).
  25. Anoushiravan Moradi, Muhammad Goharipour, H. Fatehi, and K. Azizi, Determination of proton electromagnetic form factors from DVCS measurements, Phys. Rev. D 113, 054034 (2026).
  26. M. K. Jones et al., GEp/GMp ratio by polarization transfer in e→p→ep→, Phys. Rev. Lett. 84, 1398 (2000).
  27. Francis Halzen and Alan D. Martin, Quarks and Leptons: An Introductory Course in Modern Particle Physics (John Wiley & Sons, New York, 1984).
  28. Jan C. Bernauer, Measurement of the elastic electron-proton cross section and separation of the electric and magnetic form factor in the Q2 range from 0.004 to 1  (GeV/c)2. Ph.D. thesis, Mainz U., Inst. Kernphys., 2010.
  29. G. Hohler, E. Pietarinen, I. Sabba Stefanescu, F. Borkowski, G. G. Simon, V. H. Walther, and R. D. Wendling, Analysis of electromagnetic nucleon form-factors, Nucl. Phys. B114, 505 (1976).
  30. M. Klusek-Gawenda and A. Szczurek, Exclusive muon-pair productions in ultrarelativistic heavy-ion collisions—realistic nucleus charge form factor and differential distributions, Phys. Rev. C 82, 014904 (2010).
  31. E. J. Williams, Nature of the high-energy particles of penetrating radiation and status of ionization and radiation formulae, Phys. Rev. 45, 729 (1934).
  32. Mikhail I. Vysotskii and Evgeny Zhemchugov, Equivalent photons in proton and ion—ion collisions at the LHC, Phys. Usp. 62, 910 (2019).
  33. S. I. Godunov, E. K. Karkaryan, V. A. Novikov, A. N. Rozanov, M. I. Vysotsky, and E. V. Zhemchugov, Weak interaction corrections to muon pair production via the photon fusion at the LHC, Phys. Rev. D 108, 093006 (2023).
  34. G. Peter Lepage, A new algorithm for adaptive multidimensional integration, J. Comput. Phys. 27, 192 (1978).
  35. Georges Aad et al., Measurement of the total cross section from elastic scattering in pp collisions at s=7  TeV with the ATLAS detector, Nucl. Phys. B889, 486 (2014).
  36. Georges Aad et al., Measurement of the total cross section and ρ-parameter from elastic scattering in pp collisions at s=13  TeV with the ATLAS detector, Eur. Phys. J. C 83, 441 (2023).
  37. A. J. Buchmann, Charge form factors and nucleon shape, AIP Conf. Proc. 904, 110 (2007).
  38. A. Abada et al., FCC-hh: The hadron collider: Future circular collider conceptual design report volume 3, Eur. Phys. J. Special Topics 228, 755 (2019).
  39. Ya-Ping Xie and V. P. Gonçalves, Exclusive dilepton production in photon-induced interactions at RHIC, Eur. Phys. J. C 83, 528 (2023).
  40. Janusz J. Chwastowski, Krzysztof Piotrzkowski, and Mariusz Przybycien, Exclusive lepton pair production at the electron–ion collider, Eur. Phys. J. C 82, 846 (2022).
