Dark photon dark matter constraints at the Taiwan Axion Search Experiment with Haloscope

Yuan-Hann Chang1,2,*, Cheng-Wei Chiang3,4,†, Hien Thi Doan5,‡, Nick Houston6,§, Jinmian Li7,∥, Tianjun Li8,9,10,¶, Lina Wu11,**, and Xin Zhang12,13,††

  • *Contact author: changy@gate.sinica.edu.tw
  • †Contact author: chengwei@phys.ntu.edu.tw
  • ‡Contact author: hiendoan86@gmail.com
  • §Contact author: nhouston@bjut.edu.cn
  • ∥Contact author: jmli@scu.edu.cn
  • Contact author: tli@itp.ac.cn
  • **Contact author: wulina@xatu.edu.cn
  • ††Contact author: zhangxin104774@lnnu.edu.cn
PDF

Phys. Rev. D 113, 052013 – Published 30 March, 2026

DOI: https://doi.org/10.1103/3yn8-xxrx

Abstract

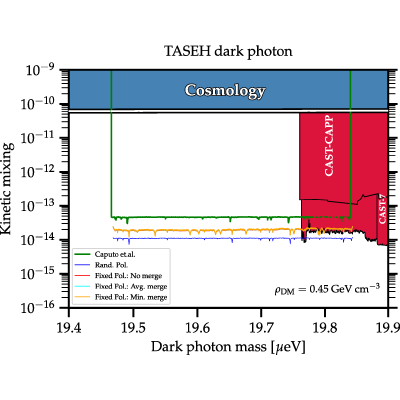

The dark photon is a well motivated candidate for the dark matter that comprises most of the mass of our visible Universe, leading to worldwide experimental and observational efforts toward its discovery. A primary tool in this search is the cavity haloscope, which facilitates resonantly enhanced conversion to photons from both dark photons and axions. In this context, limits from axion search experiments are often directly converted into dark photon constraints, without re-analyzing the original data. However, this rescaling may not fully capture all of the relevant physics due to various reasons. By reexamining data taken by the Taiwan Axion Search Experiment with Haloscope experiment, we derive a world-leading constraint on the dark photon parameter space, excluding |ε|≳2×10−14 in the 19.46–19.84  μeV mass range, which exceeds the naïve “rescaling limit” by roughly a factor of two. We emphasize that accounting for the scanning timing information is crucial for deriving limits for the polarized dark photon case. In the data, we also analyze a tentative signal excess with a local significance of 4.7σ (mX≃19.5  μeV) that persists in the absence of a magnetic field. While this excess mimics the behavior of a dark photon signal, it has been excluded by recent results from the HAYSTAC and ORGAN-Q experiments. This case study, nevertheless, highlights the risk of discarding valid dark photon signals when relying on axion-specific magnetic field vetoes.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (51)

  1. M. Fabbrichesi, E. Gabrielli, and G. Lanfranchi, The Physics of the Dark Photon (Springer, Cham, 2021), 10.1007/978-3-030-62519-1.
  2. B. M. Brubaker et al., First results from a microwave cavity axion search at 24  μeV, Phys. Rev. Lett. 118, 061302 (2017).
  3. ADMX Collaboration, A search for invisible axion dark matter with the axion dark matter experiment, Phys. Rev. Lett. 120, 151301 (2018).
  4. L. H. Nguyen, A. Lobanov, and D. Horns, First results from the WISPDMX radio frequency cavity searches for hidden photon dark matter, J. Cosmol. Astropart. Phys. 10 (2019) 014.
  5. HAYSTAC Collaboration, A quantum-enhanced search for dark matter axions, Nature (London) 590, 238 (2021).
  6. CAPP Collaboration, First results from an axion haloscope at CAPP around 10.7  μeV, Phys. Rev. Lett. 126, 191802 (2021).
  7. A. Álvarez Melcón et al., Scalable haloscopes for axion dark matter detection in the 30  μeV range with RADES, J. High Energy Phys. 07 (2020) 084.
  8. CAST Collaboration, First results of the CAST-RADES haloscope search for axions at 34.67  μeV, J. High Energy Phys. 10 (2021) 075.
  9. T. Grenet, R. Ballou, Q. Basto, K. Martineau, P. Perrier, P. Pugnat et al., The grenoble axion haloscope platform (GrAHal): Development plan and first results, arXiv:2110.14406.
  10. R. Cervantes et al., ADMX-Orpheus first search for 70 μeV dark photon dark matter: Detailed design, operations, and analysis, Phys. Rev. D 106, 102002 (2022).
  11. R. Cervantes et al., Deepest sensitivity to wavelike dark photon dark matter with superconducting radio frequency cavities, Phys. Rev. D 110, 043022 (2024).
  12. B. T. McAllister, A. Quiskamp, C. A. J. O’Hare, P. Altin, E. N. Ivanov, M. Goryachev et al., Limits on dark photons scalars, and axion-electromagnetodynamics with the ORGAN experiment, Ann. Phys. (Berlin) 536, 2200622 (2024).
  13. R. Cervantes et al., Search for 70  μeV dark photon dark matter with a dielectrically loaded multiwavelength microwave cavity, Phys. Rev. Lett. 129, 201301 (2022).
  14. ALPHA Collaboration, Searching for dark matter with plasma haloscopes, Phys. Rev. D 107, 055013 (2023).
  15. T. Schneemann, K. Schmieden, and M. Schott, First results of the SUPAX experiment: Probing dark photons, arXiv:2308.08337.
  16. SHANHE Collaboration, First scan search for dark photon dark matter with a tunable superconducting radio-frequency cavity, Phys. Rev. Lett. 133, 021005 (2024).
  17. APEX Collaboration, Dark photon constraints from a 7.139 GHz cavity haloscope experiment, Phys. Rev. D 110, L021101 (2024).
  18. D. He et al., Calibration of the cryogenic measurement system of a resonant haloscope cavity*, Chin. Phys. C 48, 073004 (2024).
  19. QUAX Collaboration, Search for axion dark matter with the QUAX–LNF tunable haloscope, Phys. Rev. D 110, 022008 (2024).
  20. MADMAX Collaboration, First search for axion dark matter with a MADMAX prototype, Phys. Rev. Lett. 135, 041001 (2025).
  21. P. Sikivie, Experimental tests of the invisible axion, Phys. Rev. Lett. 51, 1415 (1983).
  22. A. Caputo, A. J. Millar, C. A. J. O’Hare, and E. Vitagliano, Dark photon limits: A handbook, Phys. Rev. D 104, 095029 (2021).
  23. TASEH Collaboration, First results from the Taiwan axion search experiment with a haloscope at 19.6 μeV, Phys. Rev. Lett. 129, 111802 (2022).
  24. TASEH Collaboration, Taiwan axion search experiment with haloscope: CD102 analysis details, Phys. Rev. D 106, 052002 (2022).
  25. C. O’Hare, cajohare/axionlimits: Axionlimits, https://cajohare.github.io/AxionLimits/ (2020), 10.5281/zenodo.3932430.
  26. X. Bai et al., Search for dark photons between 16.96–19.52 ev with the HAYSTAC experiment, arXiv:2510.15848.
  27. ORGAN Collaboration, Follow-up search for a tentative dark photon signal near 19.5 ev using ORGAN-Q infrastructure, arXiv:2510.15361.
  28. TASEH Collaboration, Taiwan axion search experiment with haloscope: Designs and operations, Rev. Sci. Instrum. 93, 084501 (2022).
  29. J. W. Foster, N. L. Rodd, and B. R. Safdi, Revealing the dark matter halo with axion direct detection, Phys. Rev. D 97, 123006 (2018).
  30. P. W. Graham, J. Mardon, and S. Rajendran, Vector dark matter from inflationary fluctuations, Phys. Rev. D 93, 103520 (2016).
  31. Y. Ema, K. Nakayama, and Y. Tang, Production of purely gravitational dark matter: The case of fermion and vector boson, J. High Energy Phys. 07 (2019) 060.
  32. E. W. Kolb and A. J. Long, Completely dark photons from gravitational particle production during the inflationary era, J. High Energy Phys. 03 (2021) 283.
  33. A. Ahmed, B. Grzadkowski, and A. Socha, Gravitational production of vector dark matter, J. High Energy Phys. 08 (2020) 059.
  34. P. Agrawal, N. Kitajima, M. Reece, T. Sekiguchi, and F. Takahashi, Relic abundance of dark photon dark matter, Phys. Lett. B 801, 135136 (2020).
  35. R. T. Co, A. Pierce, Z. Zhang, and Y. Zhao, Dark photon dark matter produced by axion oscillations, Phys. Rev. D 99, 075002 (2019).
  36. M. Bastero-Gil, J. Santiago, L. Ubaldi, and R. Vega-Morales, Vector dark matter production at the end of inflation, J. Cosmol. Astropart. Phys. 04 (2019) 015.
  37. G. Alonso-Álvarez, T. Hugle, and J. Jaeckel, Misalignment & Co.: (Pseudo-)scalar and vector dark matter with curvature couplings, J. Cosmol. Astropart. Phys. 02 (2020) 014.
  38. A. J. Long and L.-T. Wang, Dark photon dark matter from a network of cosmic strings, Phys. Rev. D 99, 063529 (2019).
  39. Y. Nakai, R. Namba, and Z. Wang, Light dark photon dark matter from inflation, J. High Energy Phys. 12 (2020) 170.
  40. R. T. Co, K. Harigaya, and A. Pierce, Gravitational waves and dark photon dark matter from axion rotations, J. High Energy Phys. 12 (2021) 099.
  41. D. Cyncynates and Z. J. Weiner, Detectable and defect-free dark photon dark matter, Phys. Rev. Lett. 134, 211002 (2025).
  42. D. Cyncynates and Z. J. Weiner, Experimental targets for dark photon dark matter, Phys. Rev. D 111, 103535 (2025).
  43. C. Beaufort, M. Bastero-Gil, A. Catalano, D.-S. Erfani-Harami, O. Guillaudin, J. Macias-Perez et al., Directional detection of meV dark photons with dandelion, J. Cosmol. Astropart. Phys. 06 (2024) 058.
  44. J. Preskill, M. B. Wise, and F. Wilczek, Cosmology of the invisible axion, Phys. Lett. 120B, 127 (1983).
  45. L. Abbott and P. Sikivie, A cosmological bound on the invisible axion, Phys. Lett. 120B, 133 (1983).
  46. M. Dine and W. Fischler, The not so harmless axion, Phys. Lett. 120B, 137 (1983).
  47. P. Arias, D. Cadamuro, M. Goodsell, J. Jaeckel, J. Redondo, and A. Ringwald, WISPy cold dark matter, J. Cosmol. Astropart. Phys. 06 (2012) 013.
  48. T. Sato, F. Takahashi, and M. Yamada, Gravitational production of dark photon dark matter with mass generated by the Higgs mechanism, J. Cosmol. Astropart. Phys. 08 (2022) 022.
  49. M. Redi and A. Tesi, Dark photon dark matter without Stueckelberg mass, J. High Energy Phys. 10 (2022) 167.
  50. N. Kitajima and K. Nakayama, Dark photon dark matter from cosmic strings and gravitational wave background, J. High Energy Phys. 08 (2023) 068.
  51. B. M. Brubaker, L. Zhong, S. K. Lamoreaux, K. W. Lehnert, and K. A. van Bibber, HAYSTAC axion search analysis procedure, Phys. Rev. D 96, 123008 (2017).

Outline

Information

Phys. Rev. D 113, 052013– Published 30 March, 2026
  • Received 9 July 2025
  • Accepted 27 February 2026
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article’s title, journal citation, and DOI. Funded by SCOAP3.

Published by the American Physical Society
