Short-range intervortex forces

Martin Speight*

Thomas Winyard†

  • *Contact author: j.m.speight@leeds.ac.uk
  • †Contact author: twinyard@ed.ac.uk
PDF

Phys. Rev. D 112, 055024 – Published 17 September, 2025

DOI: https://doi.org/10.1103/2m3b-gr79

Abstract

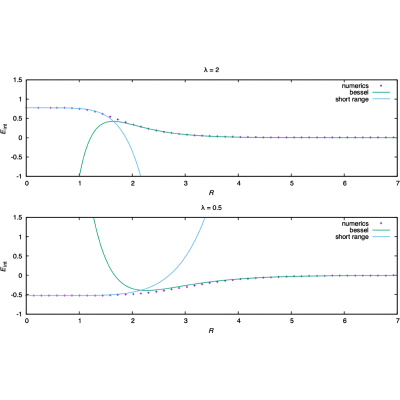

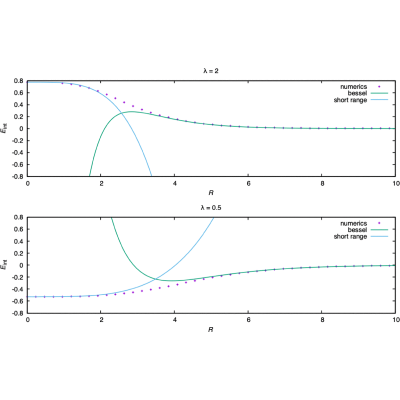

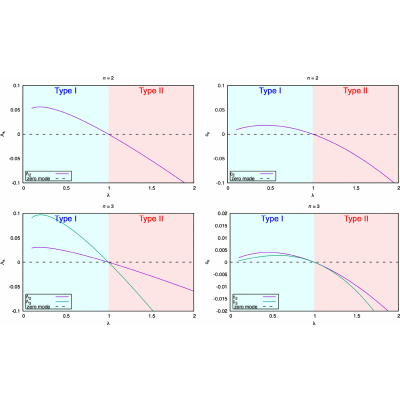

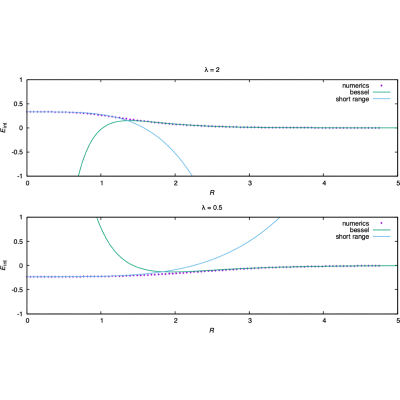

An explicit formula for the interaction energy of n vortices in the Abelian Higgs (or Ginzburg-Landau) model is derived, valid in the regime where all vortices are close to one another. An immediate consequence of this formula is that the interaction energy of a vortex pair with separation d varies as d4, not d2. The formula contains n−1 real coefficients, which are fixed by certain spectral data of the Jacobi operator of the cocentered n-vortex. The coefficients are computed numerically for n=2 and n=3 for couplings 0.1≤λ≤2.5. The resulting short-range interaction potentials are compared with the results of full field theory simulations for λ=0.5 and λ=2, with excellent agreement at small to moderate vortex separation.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (16)

  1. J. M. Speight, Static intervortex forces, Phys. Rev. D 55, 3830 (1997).
  2. N. S. Manton and J. M. Speight, Asymptotic interactions of critically coupled vortices, Commun. Math. Phys. 236, 535 (2003).
  3. M. Barkman, A. Samoilenka, T. Winyard, and E. Babaev, Ring solitons and soliton sacks in imbalanced fermionic systems, Phys. Rev. Res. 2, 043282 (2020).
  4. J. Carlström, E. Babaev, and M. Speight, Type-1.5 superconductivity in multiband systems: Effects of interband couplings, Phys. Rev. B 83, 174509 (2011).
  5. J. Garaud, J. Carlström, E. Babaev, and M. Speight, Chiral CP2 skyrmions in three-band superconductors, Phys. Rev. B 87, 014507 (2013).
  6. M. Silaev, T. Winyard, and E. Babaev, Non-London electrodynamics in a multiband London model: Anisotropy-induced nonlocalities and multiple magnetic field penetration lengths, Phys. Rev. B 97, 174504 (2018).
  7. N. M. Romão and J. M. Speight, The geometry of the space of BPS vortex-antivortex pairs, Commun. Math. Phys. 379, 723 (2020).
  8. M. Speight and T. Winyard, Intervortex forces in competing-order superconductors, Phys. Rev. B 103, 014514 (2021).
  9. J. Carlström, J. Garaud, and E. Babaev, Semi-Meissner state and nonpairwise intervortex interactions in type-1.5 superconductors, Phys. Rev. B 84, 134515 (2011).
  10. M. Goodband and M. Hindmarsh, Bound states and instabilities of vortices, Phys. Rev. D 52, 4621 (1995).
  11. A. Alonso-Izquierdo and D. Miguélez-Caballero, Dissecting normal modes of vibration on vortices in Ginzburg-Landau superconductors, Phys. Rev. D 110, 125026 (2024).
  12. A. Alonso-Izquierdo, D. Miguélez-Caballero, and J. Queiruga, Spectral structure of fluctuations around n-vortices in the Abelian-Higgs model, arXiv:2505.05039.
  13. M. Speight and T. Winyard, Skyrmions and spin waves in frustrated ferromagnets at low applied magnetic field, Phys. Rev. B 101, 134420 (2020).
  14. M. Speight and T. Winyard, Short range intervortex force coefficients, 10.7488/ds/7975 (2025).
  15. A. Alonso Izquierdo, N. Manton, J. Mateos Guilarte, and A. Wereszczynski, Collective coordinate models for 2-vortex shape mode dynamics, Phys. Rev. D 110, 085006 (2024).
  16. S. Krusch, M. Rees, and T. Winyard, Scattering of vortices with excited normal modes, Phys. Rev. D 110, 056050 (2024).

Outline

Information

Phys. Rev. D 112, 055024– Published 17 September, 2025
  • Received 24 July 2025
  • Accepted 20 August 2025
