General amplitude of near-threshold hadron scattering for exotic hadrons

Katsuyoshi Sone ^* and Tetsuo Hyodo ^†,‡

Department of Physics, Tokyo Metropolitan University, Hachioji 192-0397, Japan

^*Contact author: sone-katsuyoshi@ed.tmu.ac.jp
^†Contact author: hyodo@tmu.ac.jp
^‡Present address: Research Center for Nuclear Physics (RCNP), Ibaraki, Osaka 567-0047, Japan.

Phys. Rev. C 112, 065207 – Published 19 December, 2025

DOI: https://doi.org/10.1103/qp1j-slqg

Abstract

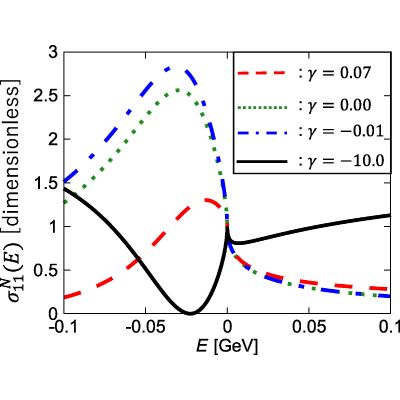

We discuss the general behavior of the scattering amplitude with channel couplings near the two-body threshold. It is known that the Flatté amplitude, which is often used in the analysis of experimental data involving exotic hadrons, has some constraint in the near-threshold energy region. While the $M$ -matrix gives the general expression of the scattering amplitude, it is not smoothly connected to the Flatté amplitude, due to the property of the determinant of the amplitude in channel space. In this paper, based on the effective field theory, we propose new parametrization of the scattering amplitude which gives the general expression near the threshold and has a well-defined limit reproducing the Flatté amplitude. We show that the nonresonant background contribution exists in the general amplitude even in the first order in the momentum. Finally, we quantitatively evaluate the cross sections by changing the strength of the background contribution. We find that the interference with the background term may induce a dip structure of the cross section near the threshold, in addition to the peak and threshold cusp structures.

Physics Subject Headings (PhySH)

Article Text

References (39)

F.-K. Guo, C. Hanhart, U.-G. Meißner, Q. Wang, Q. Zhao, and B.-S. Zou, Hadronic molecules, Rev. Mod. Phys. 90, 015004 (2018); 94, 029901(E) (2022).
N. Brambilla, S. Eidelman, C. Hanhart, A. Nefediev, C.-P. Shen, C.E. Thomas, A. Vairo, and C.-Z. Yuan, The $X Y Z$ states: Experimental and theoretical status and perspectives, Phys. Rep. 873, 1 (2020).
R. L. Workman et al. (Particle Data Group), Review of particle physics, Progr. Theor. Exp. Phys. 2022, 083C01 (2022).
J. R. Taylor, Scattering Theory: The Quantum Theory on Nonrelativistic Collisions (Wiley, New York, 1972).
T. Hyodo and M. Niiyama, QCD and the strange baryon spectrum, Prog. Part. Nucl. Phys. 120, 103868 (2021).
S. M. Flatte, Coupled-channels analysis of the $π η$ and $K \bar{K}$ systems near $K \bar{K}$ threshold, Phys. Lett. B 63, 224 (1976).
D. V. Bugg, V. V. Anisovich, A. Sarantsev, and B. S. Zou, Coupled-channels analysis of data on $\bar{p} p \to 3 π^{0}, η η π^{0}$ , and $η π^{0} π^{0}$ at rest, with the $N / D$ method, Phys. Rev. D 50, 4412 (1994).
S. Teige et al. (E852 Collaboration), Properties of the $a_{0}$ (980) meson, Phys. Rev. D 59, 012001 (1998).
M. N. Achasov et al., The $ϕ \to η π^{0} γ$ decay, Phys. Lett. B 479, 53 (2000).
M. N. Achasov et al., The $ϕ (1020) \to π^{0} π^{0} γ$ decay, Phys. Lett. B 485, 349 (2000).
J. M. Link et al. (FOCUS Collaboration), Study of the $D^{0} \to K^{+} K^{-} π^{+} π^{-}$ decay, Phys. Lett. B 610, 225 (2005).
M. Ablikim et al. (BES Collaboration), Resonances in $J / ψ \to ϕ π^{+} π^{-}$ and $ϕ K^{+} K^{-}$ , Phys. Lett. B 607, 243 (2005).
F. Ambrosino et al. (KLOE Collaboration), Study of the decay $ϕ \to f^{0} (980) γ \to π^{+} π^{-} γ$ with the KLOE detector, Phys. Lett. B 634, 148 (2006).
A. Garmash et al. (Belle Collaboration), Evidence for large direct $C P$ violation in $B^{\pm} \to ρ {(770)}^{0} K^{\pm}$ from analysis of three-body charmless $B^{\pm} \to K^{\pm} π^{\pm} π^{\pm}$ decays, Phys. Rev. Lett. 96, 251803 (2006).
F. Ambrosino et al. (KLOE Collaboration), Dalitz plot analysis of $e^{+} e^{-} \to π^{0} π^{0} γ$ events at $\sqrt{s} ≃ M_{ϕ}$ with the KLOE detector, Eur. Phys. J. C 49, 473 (2007).
D. V. Bugg, Reanalysis of data on $a_{0} (1450)$ and $a_{0} (980)$ , Phys. Rev. D 78, 074023 (2008).
F. Ambrosino et al. (KLOE Collaboration), Study of the $a_{0} (980)$ meson via the radiative decay $ϕ \to η π^{0} γ$ with the KLOE detector, Phys. Lett. B 681, 5 (2009).
T. Aaltonen et al. (CDF Collaboration), Measurement of branching ratio and $B_{s}^{0}$ lifetime in the decay $B_{s}^{0} \to J / ψ f_{0} (980)$ at CDF, Phys. Rev. D 84, 052012 (2011).
G. S. Adams et al. (CLEO Collaboration), Amplitude analyses of the decays $χ_{c 1} \to η π^{+} π^{-}$ and $χ_{c 1} \to η^{'} π^{+} π^{-}$ , Phys. Rev. D 84, 112009 (2011).
R. Aaij et al. (LHCb Collaboration), Study of the lineshape of the $χ_{c 1} (3872)$ state, Phys. Rev. D 102, 092005 (2020).
V. Baru, J. Haidenbauer, C. Hanhart, A. E. Kudryavtsev, and U.-G. Meissner, Flatte-like distributions and the $a_{0} (980) / f_{0} (980)$ mesons, Eur. Phys. J. A 23, 523 (2005).
A. Esposito, L. Maiani, A. Pilloni, A. D. Polosa, and V. Riquer, From the line shape of the $X (3872)$ to its structure, Phys. Rev. D 105, L031503 (2022).
R. Aaij et al. (LHCb Collaboration), Study of the doubly charmed tetraquark $T_{c c}^{+}$ , Nat. Commun. 13, 3351 (2022).
V. Baru, X.-K. Dong, M.-L. Du, A. Filin, F.-K. Guo, C. Hanhart, A. Nefediev, J. Nieves, and Q. Wang, Effective range expansion for narrow near-threshold resonances, Phys. Lett. B 833, 137290 (2022).
A. M. Badalian, L. P. Kok, M. I. Polikarpov, and Y. A. Simonov, Resonances in coupled channels in nuclear and particle physics, Phys. Rep. 82, 31 (1982).
P. Artoisenet and E. Braaten, Gluon fragmentation into quarkonium at next-to-leading order, J. High Energy Phys. 04 (2015) 121.
K. Sone and T. Hyodo, Near-threshold hadron scattering with effective field theory, EPJ Web Conf. 291, 05004 (2024).
T. D. Cohen, B. A. Gelman, and U. van Kolck, An effective field theory for coupled channel scattering, Phys. Lett. B 588, 57 (2004).
E. Braaten, M. Kusunoki, and D. Zhang, Scattering models for ultracold atoms, Ann. Phys. 323, 1770 (2008).
X.-K. Dong, F.-K. Guo, and B.-S. Zou, Explaining the many threshold structures in the heavy-quark hadron spectrum, Phys. Rev. Lett. 126, 152001 (2021).
T. Kinugawa and T. Hyodo, Compositeness of $T_{c c}$ and $X (3872)$ by considering decay and coupled-channels effects, Phys. Rev. C 109, 045205 (2024).
L. Castillejo, R. H. Dalitz, and F. J. Dyson, Low's scattering equation for the charged and neutral scalar theories, Phys. Rev. 101, 453 (1956).
V. Baru, C. Hanhart, Y. S. Kalashnikova, A. E. Kudryavtsev, and A. V. Nefediev, Interplay of quark and meson degrees of freedom in a near-threshold resonance, Eur. Phys. J. A 44, 93 (2010).
Y. Kamiya and T. Hyodo, Structure of hadron resonances with a nearby zero of the amplitude, Phys. Rev. D 97, 054019 (2018).
V. Baru, F.-K. Guo, C. Hanhart, and A. Nefediev, How does the $X (3872)$ show up in $e^{+} e^{-}$ collisions: Dip versus peak, Phys. Rev. D 109, L111501 (2024).
J. A. Oller, E. Oset, and J. R. Pelaez, Meson meson interaction in a nonperturbative chiral approach, Phys. Rev. D 59, 074001 (1999); 60, 099906(E) (1999); 75, 099903(E) (2007).
T. Nishibuchi and T. Hyodo, Analysis of the $Ξ (1620)$ resonance and $\bar{K} Λ$ scattering length with a chiral unitary approach, Phys. Rev. C 109, 015203 (2024).
L.-Y. Dai and M. R. Pennington, Comprehensive amplitude analysis of $γ γ \to π^{+} π^{-}, π^{0} π^{0}$ , and $\bar{K} K$ below 1.5 GeV, Phys. Rev. D 90, 036004 (2014).
M. Hoferichter, D. R. Phillips, and C. Schat, Roy-Steiner equations for $γ γ \to π π$ , Eur. Phys. J. C 71, 1743 (2011).

Phys. Rev. C 112, 065207– Published 19 December, 2025

Vol. 112, Iss. 6 — December 2025

Received 20 May 2024
Revised 15 October 2025
Accepted 31 October 2025

DOI: https://doi.org/10.1103/qp1j-slqg

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI. Funded by SCOAP³.
