Gain-driven magnon-polariton dynamics in the ultrastrong coupling regime: Effective circuit approach for coherence versus nonlinearity

Ryunosuke Suzuki1,2,*, Takahiro Chiba1,2,†, and Hiroaki Matsueda1,3

  • 1Department of Applied Physics, Graduate School of Engineering, Tohoku University, Sendai, Miyagi 980-8579, Japan
  • 2Department of Information Science and Technology, Graduate School of Science and Engineering, Yamagata University, Yonezawa, Yamagata 992-8510, Japan
  • 3Center for Science and Innovation in Spintronics, Tohoku University, Sendai 980-8577, Japan

  • *Contact author: suzuki.ryunosuke.r4@dc.tohoku.ac.jp
  • †Contact author: t.chiba@yz.yamagata-u.ac.jp
PDF

Phys. Rev. B 113, 024412 – Published 13 January, 2026

DOI: https://doi.org/10.1103/q418-bxr6

Abstract

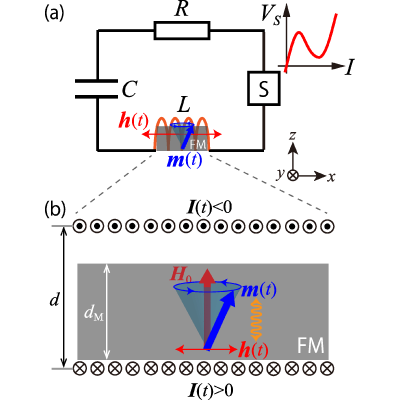

We theoretically study the dynamics of gain-driven magnon-polaritons (MPs), which characterizes auto-oscillation of MPs, across the strong coupling (SC) and ultrastrong coupling (USC) regimes. Taking into account the magnon dynamics via the magnetic flux, we present an effective circuit model of gain-driven MPs, which allows us to manipulate the coupling strength of MPs by tuning the size of a ferromagnet and incorporates the self-Kerr nonlinearity of magnons due to the shape magnetic anisotropy. In the SC regime, we find that the self-Kerr nonlinearity generates a frequency shift and reduces the coherent magnon-photon coupling. In contrast, in the USC regime, we find that the coherent magnon-photon coupling not only overcomes the self-Kerr nonlinearity but also effectively couples to gain via the imaginary part of complex eigenfrequencies, resulting in magnonlike auto-oscillations. Subsequently, the USC enables one to widely tune the auto-oscillation frequency by means of an external magnetic field. These findings indicate that there is a trade-off relation between the coupling strength of MPs and the self-Kerr nonlinearity of magnons. This work contributes to the understanding of the interplay between gain-loss and USC in nonlinear polariton dynamics, offering a novel principle for frequency-tunable maserlike devices based on gain-driven MPs.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. M. Harder, B. M. Yao, Y. S. Gui, and C.-M. Hu, Coherent and dissipative cavity magnonics, J. Appl. Phys. 129, 201101 (2021).
  2. B. Z. Rameshti, S. V. Kusminskiy, J. A. Haigh, K. Usami, D. L.-Quirion, Y. Nakamura, C.-M. Hu, H. X. Tang, G. E. Bauer, and Y. M. Blanter, Cavity magnonics, Phys. Rep. 979, 1 (2022).
  3. H. Y. Yuan, Y. Cao, A. Kamra, R. A. Duine, and P. Yan, Quantum magnonics: When magnon spintronics meets quantum information science, Phys. Rep. 965, 1 (2022).
  4. D. L.-Quirion, S. P. Wolski, Y. Tabuchi, S. Kono, K. Usami, and Y. Nakamura, Entanglement-based single-shot detection of a single magnon with a superconducting qubit, Science 367, 425 (2020).
  5. X. Zhang, C.-L. Zou, N. Zhu, F. Marquardt, L. Jiang, and H. X. Tang, Magnon dark modes and gradient memory, Nat. Commun. 6, 8914 (2015).
  6. R.-C. Shen, Y.-P. Wang, J. Li, S.-Y. Zhu, G. S. Agarwal, and J. Q. You, Long-Time memory and ternary logic gate using a multistable cavity magnonic system, Phys. Rev. Lett. 127, 183202 (2021).
  7. J. T. Hou, P. Zhang, and L. Liu, Proposal for a spin-torque-oscillator maser enabled by microwave photon-spin coupling, Phys. Rev. Appl. 16, 034034 (2021).
  8. B. Yao, Y. S. Gui, J. W. Rao, Y. H. Zhang, W. Lu, and C.-M. Hu, Coherent microwave emission of gain-driven polaritons, Phys. Rev. Lett. 130, 146702 (2023).
  9. P. F.-Díaz, L. Lamata, E. Rico, J. Kono, and E. Solano, Ultrastrong coupling regimes of light-matter interaction, Rev. Mod. Phys. 91, 025005 (2019).
  10. A. F. Kockum, A. Miranowicz, S. D. Liberato, S. Savasta, and F. Nori, Ultrastrong coupling between light and matter, Nat. Rev. Phys. 1, 19 (2019).
  11. A. Baydin, H. Zhu, M. Bamba, K. R. A. Hazzard, and J. Kono, Perspective on the quantum vacuum in matter, Opt. Mater. Express 15, 1833 (2025).
  12. P. F.-Díaz, J. Lisenfeld, D. Marcos, J. J. García-Ripoll, E. Solano, C. J. P. M. Harmans, and J. E. Mooij, Observation of the Bloch-Siegert shift in a qubit-oscillator system in the ultrastrong coupling regime, Phys. Rev. Lett. 105, 237001 (2010).
  13. X. Li, M. Bamba, Q. Zhang, S. Fallahi, G. C. Gardner, W. Gao, M. Lou, K. Yoshioka, M. J. Manfra, and J. Kono, Vacuum Bloch-Siegert shift in Landau polaritons with ultra-high cooperativity, Nat. Photon. 12, 324 (2018).
  14. I. A. Golovchanskiy, N. N. Abramov, V. S. Stolyarov, M. Weides, V. V. Ryazanov, A. A. Golubov, A. V. Ustinov, and M. Y. Kupriyanov, Ultrastrong photon-to-magnon coupling in multilayered heterostructures involving superconducting coherence via ferromagnetic layers, Sci. Adv. 7, eabe8638 (2021).
  15. I. Golovchanskiy, N. N. Abramov, V. S. Stolyarov, A. A. Golubov, M. Yu. Kupriyanov, V. V. Ryazanov, and A. V. Ustinov, Approaching deep-strong on-chip photon-to-magnon coupling, Phys. Rev. Appl. 16, 034029 (2021).
  16. A. Ghirri, C. Bonizzoni, M. Maksutoglu, A. Mercurio, O. Di Stefano, S. Savasta, and M. Affronte, Ultrastrong magnon-photon coupling achieved by magnetic films in contact with superconducting resonators, Phys. Rev. Appl. 20, 024039 (2023).
  17. G. Bourcin, J. Bourhill, V. Vlaminck, and V. Castel, Strong to ultrastrong coherent coupling measurements in a YIG/cavity system at room temperature, Phys. Rev. B 107, 214423 (2023).
  18. K. Mita, T. Chiba, T. Kodama, T. Ueda, T. Nakanishi, K. Sawada, and S. Tomita, Ultrastrongly coupled and directionally nonreciprocal magnon polaritons in magnetochiral metamolecules, Phys. Rev. Appl. 23, L011004 (2025).
  19. K. Mita, T. Kodama, T. Nakanishi, T. Ueda, K. Sawada, T. Chiba, and S. Tomita, Microwave one-way transparency by large synthetic motion of magnetochiral polaritons in metamolecules, arXiv:2503.22279.
  20. C. Zhang, M. Kim, Y.-H. Zhang, Y.-P. Wang, D. Trivedi, A. Krasnok, J. Wang, D. Isleifson, R. Roshko, and C.-M. Hu, Gainloss coupled systems, APL Quantum 2, 011501 (2025).
  21. M. Kim, C. Zhang, C. Lu, and C.-M. Hu, Low phase noise microwave oscillator based on gain driven polariton, Appl. Phys. Lett. 124, 114103 (2024).
  22. Y. S. Gui and C.-M. Hu, Transient response of a gain-driven polariton, Phys. Rev. Appl. 21, 044023 (2024).
  23. C. Lu, M. Kim, C. Zhang, and C.-M. Hu, Solid-state injection locking microwave amplifier, J. Appl. Phys. 136, 053903 (2024).
  24. Y. S. Gui, G. S. Kozyniak, and C.-M. Hu, Broadband microwave emission from acoustically modulated gain-driven polaritons, J. Appl. Phys. 137, 043905 (2025).
  25. J. Rao, C. Y. Wang, B. Yao, Z. J. Chen, K. X. Zhao, and W. Lu, Meterscale strong coupling between magnons and photons, Phys. Rev. Lett. 131, 106702 (2023).
  26. S. Zheng, Z. Wang, Y. Wang, F. Sun, Q. He, P. Yan, and H. Y. Yuan, Tutorial: Nonlinear magnonics, J. Appl. Phys. 134, 151101 (2023).
  27. M. Elyasi, Y. M. Blanter, and G. E. W. Bauer, Resources of nonlinear cavity magnonics for quantum information, Phys. Rev. B 101, 054402 (2020).
  28. R. Tatsumi, T. Chiba, T. Komine, and H. Matsueda, Chaotic magnetization dynamics in magnetic duffing oscillator, Phys. Rev. E 111, 064202 (2025).
  29. Y.-P. Wang, G.-Q. Zhang, D. Zhang, X.-Q. Luo, W. Xiong, S.-P. Wang, T.-F. Li, C.-M. Hu, and J. Q. You, Magnon Kerr effect in a strongly coupled cavity-magnon system, Phys. Rev. B 94, 224410 (2016).
  30. Y.-P. Wang, G.-Q. Zhang, D. Zhang, T.-F. Li, C.-M. Hu, and J. Q. You, Bistability of cavity magnon polaritons, Phys. Rev. Lett. 120, 057202 (2018).
  31. L. Bai, M. Harder, Y. P. Chen, X. Fan, J. Q. Xiao, and C.-M. Hu, Spin pumping in electrodynamically coupled magnon-photon systems, Phys. Rev. Lett. 114, 227201 (2015).
  32. V. L. Grigoryan, K. Shen, and K. Xia, Synchronized spin-photon coupling in a microwave cavity, Phys. Rev. B 98, 024406 (2018).
  33. T. Chiba, T. Komine, and T. Aono, Ultrastrong-coupled magnon-polariton in a dynamical inductor based on magnetic-insulator/topological-insulator bilayers, Appl. Phys. Lett. 124, 012402 (2024).
  34. T. Chiba, T. Komine, and T. Aono, Microwave transmission theory for on-chip ultrastrong-coupled magnon-polariton in dynamical inductors, J. Magn. Soc. Jpn. 48, 21 (2024).
  35. T. Chiba, R. Suzuki, T. Otaki, and H. Matsueda, Circuit-based cavity magnonics in the ultrastrong and deep-strong coupling regimes, Phys. Rev. B 112, 174403 (2025).
  36. S. H. Strogatz, Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering, 2nd ed. (CRC Press, Boca Raton, 2015).
  37. M. Schreier, T. Chiba, A. Niedermayr, J. Lotze, H. Huebl, S. Geprägs, S. Takahashi, G. E. W. Bauer, R. Gross, and S. T. B. Goennenwein, Current-induced spin torque resonance of a magnetic insulator, Phys. Rev. B 92, 144411 (2015).
  38. C. Zhang, M. Kim, J. Wang, and C.-M. Hu, Van der pol-duffing oscillator and its application to gain-driven light-matter interaction, Phys. Rev. Appl. 22, 014034 (2024).
  39. S. T. Tanekou, J. Ramadoss, J. Kengne, G. D. Kenmoe, and K. Rajagopal, Coexistence of periodic, chaotic and hyperchaotic attractors in a system consisting of a duffing oscillator coupled to a van der Pol oscillator, Int. J. Bifurcation Chaos 33, 2330004 (2023).
  40. R. Cheng, D. Xiao, and A. Brataas, Terahertz antiferromagnetic spin Hall nano-oscillator, Phys. Rev. Lett. 116, 207603 (2016).
  41. S. Sugimoto, S. Iwakiri, Y. Kozuka, Y. Takahashi, Y. Niimi, K. Kobayashi, and S. Kasai, Multiple modes of a single spin torque oscillator under the non-linear region, AIP Adv. 10, 075115 (2020).
  42. I. N. Yemeli, S. Perna, D. Gouéré, A. Kolli, S. Sangiao, J. M. De Teresa, M. Muñoz, A. Anane, M. d' Aquino, et al., Self-Modulation instability in high power ferromagnetic resonance of BiYIG nanodisks, Phys. Rev. Lett. 135, 056703 (2025).
  43. S. Jiang, L. Yao, S. Wang, D. Wang, L. Liu, A. Kumar, A. A. Awad, A. Litvinenko, M. Ahlberg, R. Khymyn, S. Chung, G. Xing, and J. Åkerman, Spin-torque nano-oscillators and their applications, Appl. Phys. Rev. 11, 041309 (2024).
