Unveiling complex magnetic structures of the $4 f − 4 d$ exchange coupled antiferromagnets $B a_{3} R R u_{2} O_{9}$ $(R = Tb, Er)$

Deepak Garg ^1,*, C. Ritter ², M. Skoulatos ³, S. Nandi ^4,5, and Yixi Su ¹

¹Jülich Centre for Neutron Science (JCNS) at Heinz Maier-Leibnitz Zentrum (MLZ), Forschungszentrum Jülich GmbH, Lichtenbergstrasse 1, D-85748, Garching, Germany
²Institut Laue-Langevin, Boite Postale 156, 38042 Grenoble Cedex, France
³Heinz Maier-Leibnitz Zentrum (MLZ), Technische Universität München, Lichtenbergstrasse 1, D-85748 Garching, Germany
⁴Forschungszentrum Jülich GmbH, Jülich Centre for Neutron Science (JCNS-2), 52425 Jülich, Germany
⁵RWTH Aachen, Lehrstuhl für Experimentalphysik IVc, Jülich-Aachen Research Alliance (JARA-FIT), 52074 Aachen, Germany

^*Contact author: deepak1.phy@gmail.com

Phys. Rev. B 113, 144435 – Published 28 April, 2026

DOI: https://doi.org/10.1103/pbtn-g5wz

Abstract

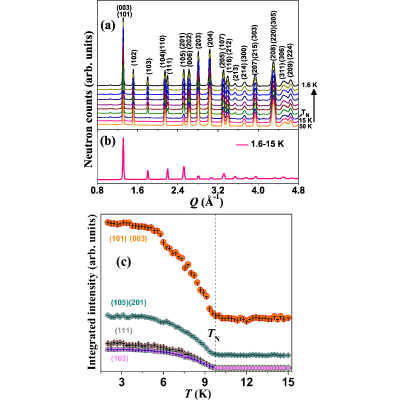

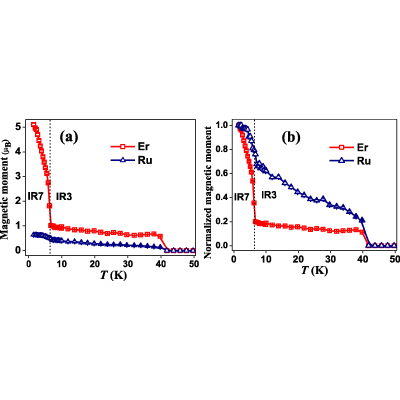

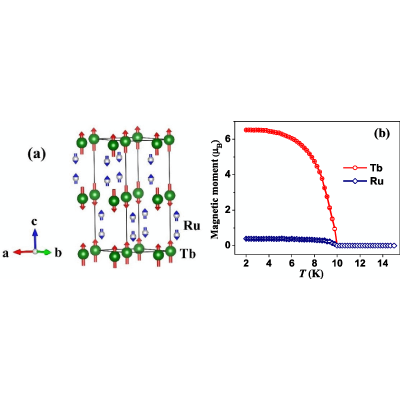

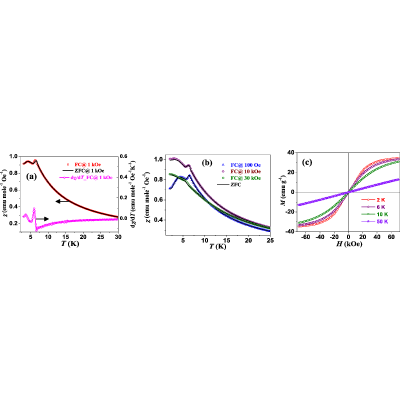

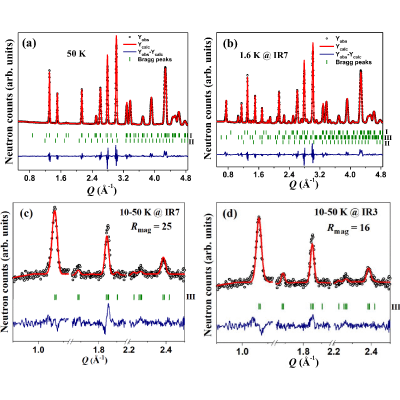

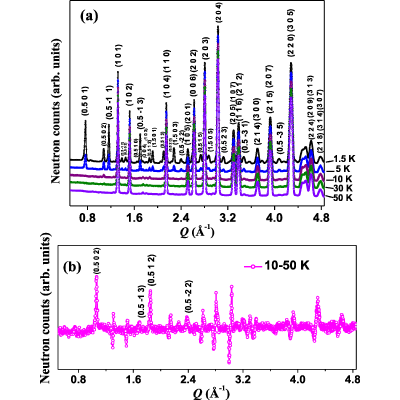

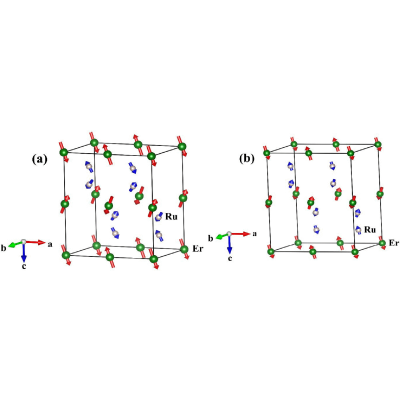

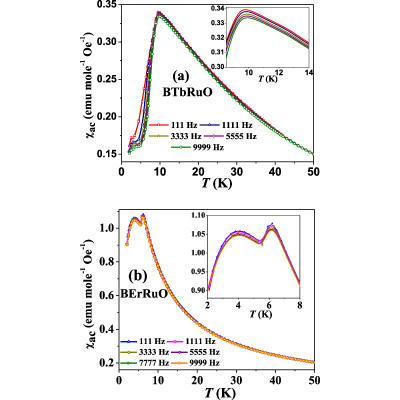

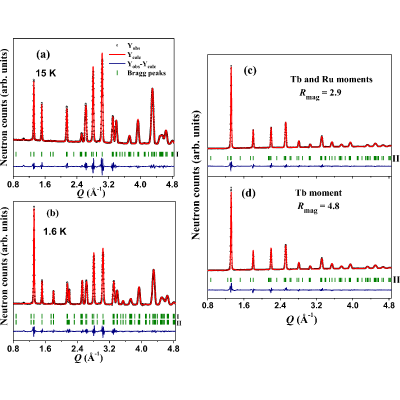

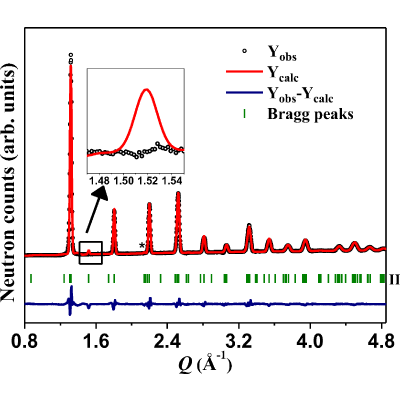

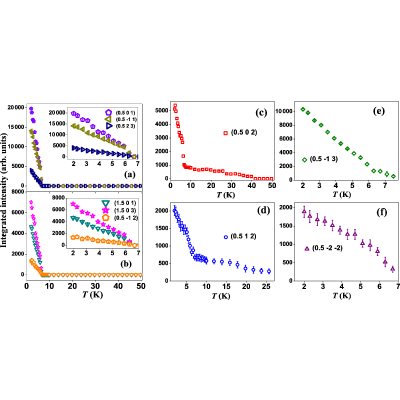

The magnetic structures of $B a_{3} R R u_{2} O_{9}$ $(R = Tb, Er)$ have been investigated using high-intensity neutron powder diffraction (NPD) supported by dc and ac susceptibility studies. The NPD data reveal antiferromagnetic (AFM) ground states below $T_{N} \sim 9.8$ and 6 K in $B a_{3} TbR u_{2} O_{9}$ and $B a_{3} ErR u_{2} O_{9}$ , respectively, consistent with the magnetic transitions observed in dc and ac susceptibility measurements. In $B a_{3} TbR u_{2} O_{9}$ , the magnetic structure is characterized by a propagation vector, $k = (0, 0, 0)$ , where Tb and Ru order ferromagnetically in the $ab$ plane. Neighboring planes of Tb are coupled antiferromagnetically along the $c$ direction as are neighboring planes of Ru, which leads to an AFM order between Tb and Ru as well. In contrast, the magnetic structure of $B a_{3} ErR u_{2} O_{9}$ is characterized by $k = (0.5, 0, 0)$ , with Er and Ru moments exhibiting a canted AFM ordering. Interestingly, the collinear (noncollinear) AFM order of Tb (Er) accompanied by the collinear (noncollinear) magnetic order of Ru in $B a_{3} TbR u_{2} O_{9}$ ( $B a_{3} ErR u_{2} O_{9}$ ) along with the concurrent ordering of the rare earth and Ru in both compounds suggests a strong coupling between $4 f$ and $4 d$ electrons. Both compounds show weak magnetic ordering above $T_{N}$ similar to that reported for $B a_{3} HoR u_{2} O_{9}$ . We have understood this intriguing feature by preparing a $B a_{3} ErR u_{2} O_{9}$ sample with 3% excess $Ru O_{2}$ . Our analysis suggests that the weak magnetic ordering above $T_{N}$ is strongly dependent on the excess $Ru O_{2}$ ; however, and interestingly, the magnetic structure below $T_{N}$ is robust against this $Ru O_{2}$ surplus. Our detailed study provides insights into the magnetic ground states of these two compounds, thereby enhancing the understanding of magnetic ordering in this fascinating family.

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (36)

P. Yanda, N. Boudjada, J. Rodríguez-Carvajal, and A. Sundaresan, Exploring magnetism and magnetoelectric properties in the green phase of $R_{2} {BaCuO}_{5}$ ( $R =$ Er, Eu, Y, Tm, and Lu): The role of $4 f − 3 d$ exchange coupling, Phys. Rev. B 109, 104411 (2024).
B. Rajeswaran, D. I. Khomskii, A. K. Zvezdin, C. N. R. Rao, and A. Sundaresan, Field-induced polar order at the Néel temperature of chromium in rare-earth orthochromites: Interplay of rare-earth and Cr magnetism, Phys. Rev. B 86, 214409 (2012).
T. Basu, A. Pautrat, V. Hardy, A. Loidl, and S. Krohns, Magnetodielectric coupling in a Ru-based 6H-perovskite, ${Ba}_{3} {NdRu}_{2} O_{9}$ , Appl. Phys. Lett. 113, 042902 (2018).
T. Basu, V. Caignaert, S. Ghara, X. Ke, A. Pautrat, S. Krohns, A. Loidl, and B. Raveau, Enhancement of magnetodielectric coupling in 6H-perovskites $B a_{3} R R u_{2} O_{9}$ for heavier rare-earth cations ( $R =$ Ho, Tb), Phys. Rev. Mater. 3, 114401 (2019).
D. Garg, A. Kumar, and S. M. Yusuf, Unraveling intricate magnetic behavior involving negative magnetization and exchange-bias in ${ErFe}_{0.5} {Co}_{0.5} O_{3}$ , Phys. Rev. B 110, 104401 (2024).
D. Garg, A. Kumar, S. M. Yusuf, M. Skoulatos, S. N. Sarangi, D. Topwal, and Y. Su, Internal and external magnetic-field engineering of negative magnetization and exchange bias in $L a_{1 - x} P r_{x} Cr O_{3} (0.8 \leq x \leq 0.9)$ , Phys. Rev. Mater. 9, 054406 (2025).
L. J. Chang, M. Prager, J. Perßon, J. Walter, E. Jansen, Y. Y. Chen, and J. S. Gardner, Magnetic order in the double pyrochlore ${Tb}_{2} {Ru}_{2} O_{7}$ , J. Phys.: Condens. Matter 22, 076003 (2010).
C. R. Wiebe, J. S. Gardner, S. J. Kim, G. M. Luke, A. S. Wills, B. D. Gaulin, J. E. Greedan, I. Swainson, Y. Qiu, and C. Y. Jones, Magnetic Ordering in the Spin-Ice Candidate ${Ho}_{2} {Ru}_{2} O_{7}$ , Phys. Rev. Lett. 93, 076403 (2004).
S. T. Ku, D. Kumar, M. R. Lees, W. T. Lee, R. Aldus, A. Studer, P. Imperia, S. Asai, T. Masuda, S. W. Chen, et al., Low temperature magnetic properties of ${Nd}_{2} {Ru}_{2} O_{7}$ , J. Phys.: Condens. Matter 30, 155601 (2018).
Y. Doi, Y. Hinatsu, A. Nakamura, Y. Ishii, and Y. Morii, Magnetic and neutron diffraction studies on double perovskites $A_{2} {LnRuO}_{6}$ ( $A =$ Sr, Ba; Ln $=$ Tm, Yb), J. Mater. Chem. 13, 1758 (2003).
D. T. Adroja, S. Sharma, C. Ritter, A. D. Hillier, D. Le, C. V. Tomy, R. Singh, R. I. Smith, M. Koza, A. Sundaresan, et al., Muon spin rotation and neutron scattering investigations of the $B$ -site ordered double perovskite ${Sr}_{2} {DyRuO}_{6}$ , Phys. Rev. B 101, 094413 (2020).
H. Guo, C. Ritter, and A. C. Komarek, Direct determination of the spin structure of $Nd 2 {Ir}_{2} O_{7}$ by means of neutron diffraction, Phys. Rev. B 94, 161102(R) (2016).
H. Guo, C. Ritter, and A. C. Komarek, Magnetic structure of ${Tb}_{2} {Ir}_{2} O_{7}$ determined by powder neutron diffraction, Phys. Rev. B 96, 144415 (2017).
E. Lefrançois, V. Simonet, R. Ballou, E. Lhotel, A. Hadj-Azzem, S. Kodjikian, P. Lejay, P. Manuel, D. Khalyavin, and L. C. Chapon, Anisotropy-tuned magnetic order in pyrochlore iridates, Phys. Rev. Lett. 114, 247202 (2015).
M. Hase, A. Dönni, and V. Y. Pomjakushin, Magnetic structures of nearly isostructural ${Tb}_{3} {RuO}_{7}$ and ${Nd}_{3} {RuO}_{7}$ : Appearance of a partially disordered state only in the Tb compound, Phys. Rev. B 104, 214430 (2021).
M. S. Senn, S. A. J. Kimber, A. M. Arevalo Lopez, A. H. Hill, and J. P. Attfield, Spin orders and lattice distortions of geometrically frustrated 6H-perovskites $B a_{3} B^{'} {Ru}_{2} O_{9}$ ( $B^{'} = L a^{3 +}, N d^{3 +}$ , and $Y^{3 +}$ ), Phys. Rev. B 87, 134402 (2013).
Y. Doi and Y. Hinatsu, Magnetic and calorimetric studies on ${Ba}_{3} {LnRu}_{2} O_{9}$ (Ln $=$ Gd, Ho–Yb) with 6H-perovskite structure, J. Mater. Chem. 12, 1792 (2002).
Y. Doi, Y. Hinatsu, Y. Shimojo, and Y. Ishii, Crystal structure and magnetic properties of 6H-perovskite ${Ba}_{3} {NdRu}_{2} O_{9}$ , J. Solid State Chem. 161, 113 (2001).
Y. Doi, M. Wakeshima, Y. Hinatsu, A. Tobo, K. Ohoyama, and Y. Yamaguchi, Magnetic and calorimetric studies on 6H-perovskite $B a_{3} TbR u_{2} O_{9}$ , J. Alloys Compd. 344, 166 (2002).
Y. Doi, M. Wakeshima, Y. Hinatsu, A. Tobo, K. Ohoyama, and Y. Yamaguchi, Crystal structures and magnetic properties of the 6H-perovskites ${Ba}_{3} {LnRu}_{2} O_{9}$ ( $Ln =$ Ce, Pr and Tb), J. Mater. Chem. 11, 3135 (2001).
E. Kushwaha, G. Roy, A. M. dos Santos, M. Kumar, S. Ghosh, T. Heitmann, and T. Basu, Unconventional $S$ -orbital state of Tb and cooperative Ru( $4 d$ )-Tb( $4 f$ ) spin-ordering in the strongly correlated $4 d$ – $4 f$ system $B a_{3} TbR u_{2} O_{9}$ , J. Mater. Chem. C 13, 15384 (2025).
T. Basu, V. Caignaert, F. Damay, T. W. Heitmann, B. Raveau, and X. Ke, Cooperative Ru( $4 d$ ) –Ho( $4 f$ ) magnetic ordering and phase coexistence in the 6H perovskite multiferroic $B a_{3} HoR u_{2} O_{9}$ , Phys. Rev. B 102, 020409(R) (2020).
H. Rietveld, A profile refinement method for nuclear and magnetic structures, J. Appl. Crystallogr. 2, 65 (1969).
J. Rodríguez-Carvajal, Recent advances in magnetic structure determination by neutron powder diffraction, Physica B 192, 55 (1993).
M. I. Aroyo, J. M. Perez-Mato, C. Capillas, E. Kroumova, S. Ivantchev, G. Madariaga, A. Kirov, and H. Wondratschek, Bilbao Crystallographic Server: I. Databases and crystallographic computing programs, Z. Kristallogr. - Cryst. Mater. 221, 15 (2006).

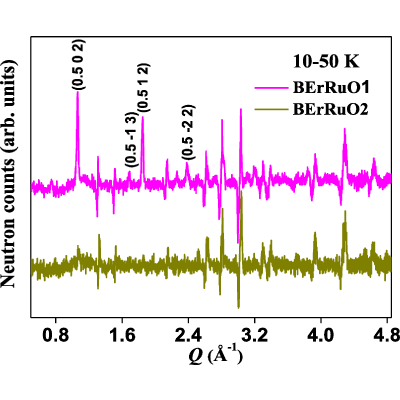

See Supplemental Material at http://link.aps.org/supplemental/10.1103/pbtn-g5wz for the details of Rietveld refinement of the XRD data at 300 K for both compounds, structural parameter details from XRD at 300 K and NPD at 1.6 K for both compounds, dc susceptibility data of both compounds over the temperature range of 1.8–380 K, NPD data of BTbRuO compound at 15 and 50 K in the paramagnetic state, additional Rietveld refined NPD results on BTbRuO, NPD data of the $BEr Ru O 2$ compound (with 3% excess $Ru O_{2}$ ) and the Rietveld refinement of 50 and 1.6 K NPD data, and dc susceptibility data of $BEr Ru O 2$ .
A. S. Wills, A new protocol for the determination of magnetic structures using simulated annealing and representational analysis (SARAh), Physica B 276–278, 680 (2000).
V. Hardy, V. Caignaert, F. Veillon, F. Guillou, Y. Bréard, B. Raveau, M. Avdeev, and B. Gonano, Relationship between crystalline anisotropy and magnetic structure in the series ${Ba}_{2} {LnFeO}_{5}$ ( $Ln =$ Tb, Dy, Ho, Er, Yb), Phys. Rev. B 112, 144425 (2025).
N. Taira, M. Wakeshima, Y. Hinatsu, A. Tobo, and K. Ohoyama, Magnetic structure of pyrochlore-type ${Er}_{2} {Ru}_{2} O_{7}$ , J. Solid State Chem. 176, 165 (2003).
Y. Zhou, M.-K. Lee, S. Hammouda, S. Devi, S.-I. Yano, R. Sibille, O. Zaharko, W. Schmidt, K. Schmalzl, K. Beauvois, et al., Ground-state magnetic structures of topological kagome metals $R V_{6} {Sn}_{6}$ ( $R =$ Tb, Dy, Ho, Er), Phys. Rev. Res. 6, 043291 (2024).
D. Ziat, A. A. Aczel, R. Sinclair, Q. Chen, H. D. Zhou, T. J. Williams, M. B. Stone, A. Verrier, and J. A. Quilliam, Frustrated spin-1/2 molecular magnetism in the mixed-valence antiferromagnets $B a_{3} M R u_{2} O_{9}$ ( $M =$ In, Y, Lu), Phys. Rev. B 95, 184424 (2017).
S. V. Streltsov, Magnetic moment suppression in ${Ba}_{3} {CoRu}_{2} O_{9}$ : Hybridization effect, Phys. Rev. B 88, 024429 (2013).
N. Taira, M. Wakeshima, and Y. Hinatsu, Magnetic susceptibility and specific heat studies on heavy rare earth ruthenate pyrochlores $R_{2} R u_{2} O_{7}$ ( $R =$ Gd-Yb), J. Mater. Chem. 12, 1475 (2002).
R. M. Moon, W. C. Koehler, H. R. Child, and L. J. Raubenheimer, Magnetic structures of ${Er}_{2} O_{3}$ and ${Yb}_{2} O_{3}$ , Phys. Rev. 176, 722 (1968).
D. Garg, C. Ritter, and Y. Su, Investigations of Ru ordering and magnetic structure of 6H-perovskite, $B a_{3} TbR u_{2} O_{9}$ , Institut Laue-Langevin (ILL) (2024), doi:10.5291/ILL-DATA.5-31-3048.
D. Garg, C. Ritter, and Y. Su, Study of magnetic structure of triangular lattice $B a_{3} ErR u_{2} O_{9}$ using neutron diffraction, Institut Laue-Langevin (ILL) (2025), doi:10.5291/ILL-DATA.5-31-3081.
