Observation of a topological phase transition in random coaxial cable structures with chiral symmetry

D. M. Whittaker

Maxine M. McCarthy

Qingqing Duan

  • Physics and Astronomy, School of Mathematical and Physical Sciences, University of Sheffield, Sheffield S3 7RH, United Kingdom

  • Physics and Astronomy, School of Mathematical and Physical Sciences, University of Sheffield, Sheffield S3 7RH, United Kingdom and Max Planck Institute for the Science of Light, Staudstraße 2, 91058 Erlangen, Germany

PDF

Phys. Rev. B 114, 144203 – Published 16 September, 2026

DOI: https://doi.org/10.1103/hnqs-xh69

Abstract

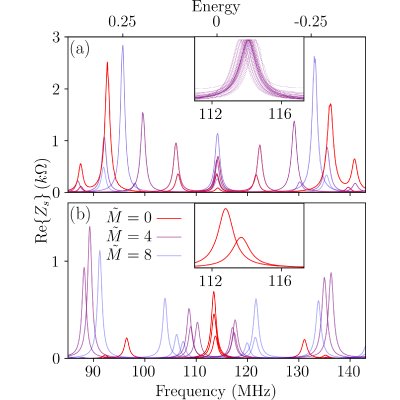

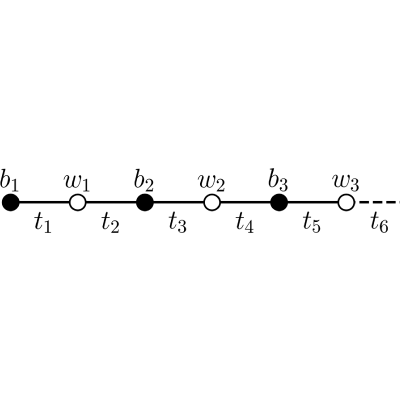

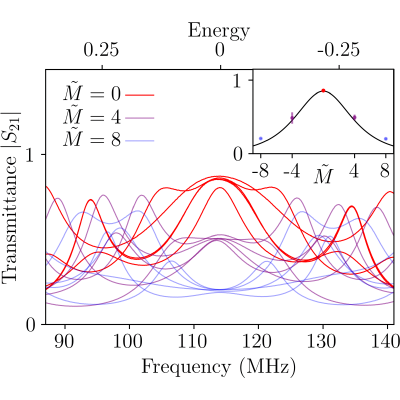

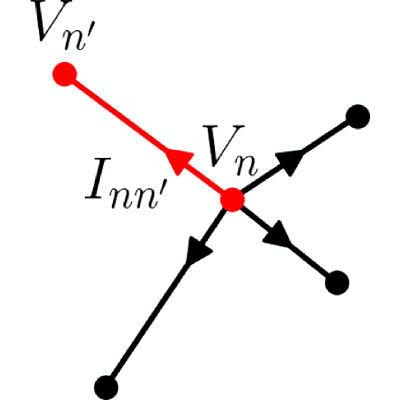

We report an experimental study of the disordered Su-Schrieffer-Heeger (SSH) model, implemented in a system of coaxial cables, whose radio frequency properties map onto the SSH Hamiltonian. By measuring multiple chains with random hopping terms, we demonstrate the presence of a topologically protected state, with frequency variation of less than 0.2% over the ensemble, evidence of near-perfect chiral symmetry. When the ends of the chains are connected to form loops, we observe a topological phase transition, characterized by the closure of the band gap and the appearance of states that are delocalized, despite the strong disorder.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (34)

  1. W. P. Su, J. R. Schrieffer, and A. J. Heeger, Solitons in polyacetylene, Phys. Rev. Lett. 42, 1698 (1979).
  2. A. Kitaev, Periodic table for topological insulators and superconductors, AIP Conf. Proc. 1134, 22 (2009).
  3. A. P. Schnyder, S. Ryu, A. Furusaki, and A. W. W. Ludwig, Classification of topological insulators and superconductors, AIP Conf. Proc. 1134, 10 (2009).
  4. I. Mondragon-Shem, T. L. Hughes, J. Song, and E. Prodan, Topological criticality in the chiral-symmetric AIII class at strong disorder, Phys. Rev. Lett. 113, 046802 (2014).
  5. F. J. Dyson, The dynamics of a disordered linear chain, Phys. Rev. 92, 1331 (1953).
  6. G. Theodorou and M. H. Cohen, Extended states in a one-dimensional system with off-diagonal disorder, Phys. Rev. B 13, 4597 (1976).
  7. T. P. Eggarter and R. Riedinger, Singular behavior of tight-binding chains with off-diagonal disorder, Phys. Rev. B 18, 569 (1978).
  8. R. H. McKenzie, Exact results for quantum phase transitions in random XY spin chains, Phys. Rev. Lett. 77, 4804 (1996).
  9. L. Balents and M. P. A. Fisher, Delocalization transition via supersymmetry in one dimension, Phys. Rev. B 56, 12970 (1997).
  10. P. W. Brouwer, C. Mudry, and A. Furusaki, Density of states in coupled chains with off-diagonal disorder, Phys. Rev. Lett. 84, 2913 (2000).
  11. M. Titov, P. W. Brouwer, A. Furusaki, and C. Mudry, Fokker-Planck equations and density of states in disordered quantum wires, Phys. Rev. B 63, 235318 (2001).
  12. F. Evers and A. D. Mirlin, Anderson transitions, Rev. Mod. Phys. 80, 1355 (2008).
  13. N. Malkova, I. Hromada, X. Wang, G. Bryant, and Z. Chen, Observation of optical Shockley-like surface states in photonic superlattices, Opt. Lett. 34, 1633 (2009).
  14. T. Ozawa, H. M. Price, A. Amo, N. Goldman, M. Hafezi, L. Lu, M. C. Rechtsman, D. Schuster, J. Simon, O. Zilberberg, and I. Carusotto, Topological photonics, Rev. Mod. Phys. 91, 015006 (2019).
  15. C. Poli, M. Bellec, U. Kuhl, F. Mortessagne, and H. Schomerus, Selective enhancement of topologically induced interface states in a dielectric resonator chain, Nat. Commun. 6, 6710 (2015).
  16. P. St-Jean, V. Goblot, E. Galopin, A. Lemaître, T. Ozawa, L. Le Gratiet, I. Sagnes, J. Bloch, and A. Amo, Lasing in topological edge states of a one-dimensional lattice, Nat. Photon. 11, 651 (2017)
  17. F. Bleckmann, Z. Cherpakova, S. Linden, and A. Alberti, Spectral imaging of topological edge states in plasmonic waveguide arrays, Phys. Rev. B 96, 045417 (2017).
  18. A. Coutant, A. Sivadon, L. Zheng, V. Achilleos, O. Richoux, G. Theocharis, and V. Pagneux, Acoustic Su-Schrieffer-Heeger lattice: Direct mapping of acoustic waveguides to the Su-Schrieffer-Heeger model, Phys. Rev. B 103, 224309 (2021).
  19. W. Tan, Y. Sun, H. Chen, and S.-Q. Shen, Photonic simulation of topological excitations in metamaterials, Sci. Rep. 4, 3842 (2014).
  20. J. Ningyuan, C. Owens, A. Sommer, D. Schuster, and J. Simon, Time- and site-resolved dynamics in a topological circuit, Phys. Rev. X 5, 021031 (2015).
  21. C. H. Lee, S. Imhof, C. Berger, F. Bayer, J. Brehm, L. W. Molenkamp, T. Kiessling, and R. Thomale, Topolectrical circuits, Commun. Phys. 1, 39 (2018).
  22. E. J. Meier, F. A. An, A. Dauphin, M. Maffei, P. Massignan, T. L. Hughes, and B. Gadway, Observation of the topological Anderson insulator in disordered atomic wires, Science 362, 929 (2018).
  23. M. Atala, M. Aidelsburger, J. T. Barreiro, D. Abanin, T. Kitagawa, E. Demler, and T. Bloch, Direct measurement of the Zak phase in topological Bloch bands, Nat. Phys. 9, 795 (2013).
  24. Z. Q. Zhang, C. C. Wong, K. K. Fung, Y. L. Ho, W. L. Chan, S. C. Kan, T. L. Chan, and N. Cheung, Observation of localized electromagnetic waves in three-dimensional networks of waveguides, Phys. Rev. Lett. 81, 5540 (1998).
  25. T. Jiang, M. Xiao, W-J. Chen, L. Yang, Y. Fang, W. Y. Tam, and C. T. Chan, Experimental demonstration of angular momentum-dependent topological transport using a transmission line network, Nat. Commun. 10, 434 (2019).
  26. Q. Guo, T. Jiang, R.-Y. Zhang, L. Zhang, Z.-Q. Zhang, B. Yang, S. Zhang, and C. T. Chan, Experimental observation of non-Abelian topological charges and edge states, Nature (London) 594, 195 (2021).
  27. C. Oliver, D. Nabari, H. M. Price, L. Ricci, and I. Carusotto, Photonic lattices of coaxial cables: Flat bands and artificial magnetic fields, arXiv:2310.18325.
  28. M. M. McCarthy and D. M. Whittaker, Classifying the topology of finite chiral structures using complete matchings, Phys. Rev. B 114, 024210 (2026).
  29. D. M. Whittaker and R. Ellis, Topological protection in disordered photonic multilayers and transmission lines, arXiv:2102.03641.
  30. All the experimental data shown in the figures is available at, D. M. Whittaker, M. M. McCarthy, and Q. Duan, Experimental data for “Observation of a topological phase transition in random coaxial cable structures with chiral symmetry”, The University of Sheffield, Dataset, https://doi.org/10.15131/shef.data.29226071.
  31. In more complicated networks, it is also possible to have pairs of topologically protected states when nb=nw, in which case |Q| is always zero, However, this does not occur in the simple structures considered here.
  32. N. Marzari and D. Vanderbilt, Maximally localized generalized Wannier functions for composite energy bands, Phys. Rev. B 56, 12847 (1997).
  33. There is also unit transmission when λ=−1, which corresponds to a phase transition when the network is periodically repeated, but not for the finite structure.
  34. I. C. Fulga, F. Hassler, and A. R. Akhmerov, Scattering theory of topological insulators and superconductors, Phys. Rev. B 85, 165409 (2012).
