Phase transitions and polarization switching in quasi-one-dimensional organic ferroelectrics of the phenyltetrazole family

A. P. Moina*

  • *Contact author: alla@icmp.lviv.ua
PDF

Phys. Rev. B 112, 214111 – Published 15 December, 2025

DOI: https://doi.org/10.1103/cf7x-szr4

Abstract

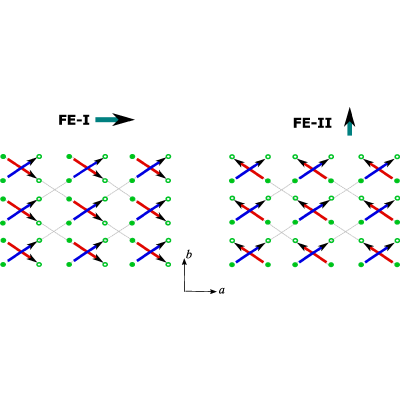

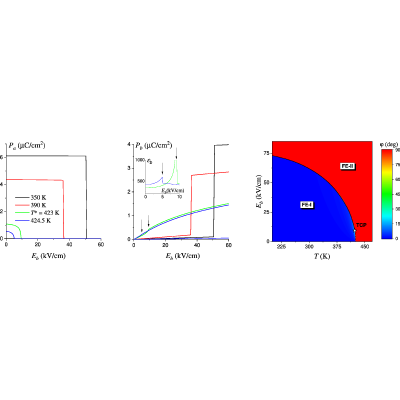

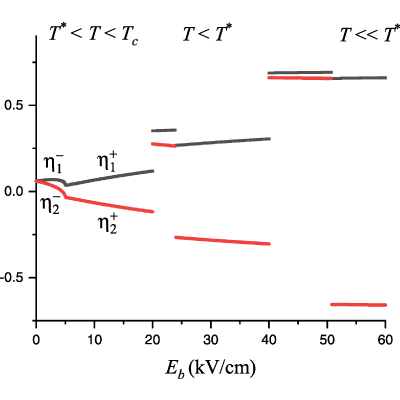

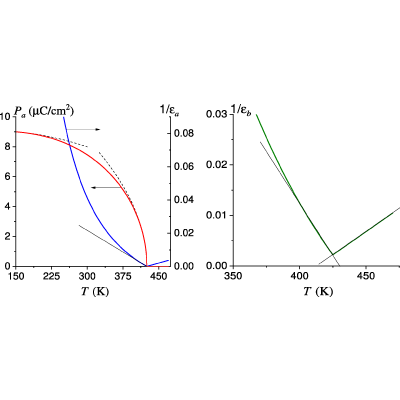

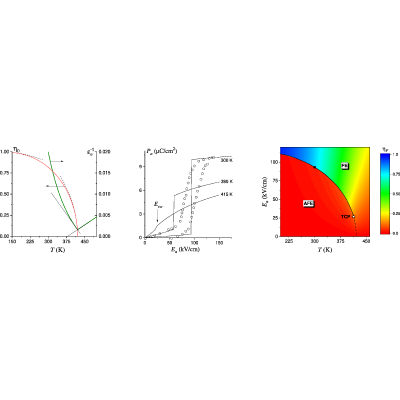

Pseudospin models are proposed for the description of the phase transitions, dielectric characteristics, and polarization switching in two crystals of the phenyltetrazole family. One of them, APHTZ, is a canted ferroelectric, whereas the other, MPHTZ is a simple antiferroelectric. In APHTZ, the electric field, applied perpendicularly to the axis of spontaneous polarization, flips the polarization in one of the two sublattices, effectively rotating the nonzero net polarization by 90∘ and switching the system between two different ferroelectric configurations. The temperature-electric field phase diagrams are constructed. The diagram topology appears to be typical for the Ising-like antiferroelectric systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (24)

  1. S. Horiuchi, H. Minemawari, J. Tsutsumi, S. Ishibashi, Field-effect crystal engineering in proton–π-electron correlated systems, Crystals 15, 736 (2025).
  2. S. Horiuchi, H. Minemawari, and S. Ishibashi, Competition of polar and antipolar states hidden behind a variety of polarization switching modes in hydrogen-bonded molecular chains, Mater. Horiz. 10, 2149 (2023).
  3. S. Horiuchi, R. Kumai, and S. Ishibashi, Strong polarization switching with low-energy loss in hydrogen-bonded organic antiferroelectrics, Chem. Sci. 9, 425 (2018).
  4. A. P. Moina, Polarization rotation by external electric field in the two-dimensional antiferroelectric squaric acid H2C4O4, Phys. Rev. B 103, 214104 (2021).
  5. A. P. Moina, Influence of external field direction on polarization rotation in antiferroelectric squaric acid H2C4O4, Condens. Matter Phys. 24, 43703 (2021).
  6. S. Horiuchi and S. Ishibashi, Large polarization and record-high performance of energy storage induced by a phase change in organic molecular crystal, Chem. Sci. 12, 14198 (2021).
  7. A. P. Moina, Effects of diagonal strains and H-bond geometry in antiferroelectric squaric acid crystals, Condens. Matter Phys. 23, 33704 (2020).
  8. R. Blinc, On the isotopic effects in the ferroelectric of crystals with short hydrogen bonds, J. Phys. Chem. Solids 13, 204 (1960).
  9. P. G. de Gennes, Collective motions of hydrogen bonds, Solid State Commun. 1, 132 (1963).
  10. V. G. Vaks, N. E. Zein, and B. A. Strukov, On the theory of ferroelectrics of KH2PO4-KDP type, Phys. Stat. Sol. (a) 30, 801 (1975).
  11. M. Tokunaga, Models of the phase transition in KDP type ferroelectrics, Ferroelectrics 1, 195 (1970).
  12. I. R. Zachek and R. R. Levitskii, Relaxation dynamics of deuterated ferroelectric orthophosphates, Theor. Math. Phys. 43, 364 (1980).
  13. I. V. Stasyuk, R. R. Levitskii, and A. P. Moina, External pressure influence on ferroelectrics and antiferroelectrics of the KH2PO4 family: A unified model, Phys. Rev. B 59, 8530 (1999).
  14. A. V. de Carvalho and S. R. Salinas, Theory of the phase transition in the quasi-one-dimensional hydrogen-bonded ferroelectric crystal PbHPO4, J. Phys. Soc. Jpn. 44, 2383 (1978).
  15. I. R. Zachek, Y. Shchur, R. R. Levitskii, and O. B. Bilenka, On thermodynamic and dielectric properties of PbHPO4 and PbHAsO4 crystals, Phys. B: Condens. Matter 452, 152 (2014).
  16. I. R. Zachek, Y. Shchur, R. R. Levitskii, and A. S. Vdovych, Thermodynamic properties of ferroelectric NH3CH2COOH·H2PO3 crystal, Phys. B: Condens. Matter 520, 164 (2017).
  17. C. F. Macrae, I. Sovago, S. J. Cottrell, P. T. A. Galek, P. McCabe, E. Pidcock, M. Platings, G. P. Shields, J. S. Stevens, M. Towler, and P. A. Wood, Mercury 4.0: From visualization to analysis, design and prediction, J. Appl. Cryst. 53, 226 (2020).
  18. M. E. Lines and A. M. Glass, Principles and Applications of Ferroelectrics and Related Materials (Clarendon Press, Oxford, 1977).
  19. C. Kittel, Theory of antiferroelectric crystals, Phys. Rev. 82, 729 (1951).
  20. R. Bidaux, P. Carrra, and B. Vivet, Antiferromagnetisme dans un champ magnetique I. Traitement de champ moleculaire, J. Phys. Chem. Solids 28, 2453 (1967).
  21. P. Tolèdano and M. Guennou, Theory of antiferroelectric phase transitions, Phys. Rev. B 94, 014107 (2016).
  22. A. Grünebohm, Y.-B. Ma, M. Marathe, B.-X. Xu et al., Origins of the inverse electrocaloric effect, Energy Technol. 6, 1491 (2018).
  23. A. P. Moina, Negative/positive electrocaloric effect in antiferroelectric squaric acid, J. Appl. Phys. 133, 094101 (2023).
  24. A. Moina, Phase transition and polarization switching in quasi-one-dimensional ferroelectrics of phenyltetrazole family, Mendeley Data, V2 (2025), doi:10.17632/8tb356ydyh.2.

Outline

Information

Phys. Rev. B 112, 214111– Published 15 December, 2025
  • Received 30 September 2025
  • Revised 23 November 2025
  • Accepted 25 November 2025
