High microwave frequency EPR study of the axial Fe3+−VO centers in the quantum paraelectrics SrTiO3 and KTaO3

Ikram Zdeg, Oleksii Laguta*, and Petr Neugebauer†

Valentyn Laguta

  • *Contact author: oleksii.laguta@ceitec.vutbr.cz
  • †Contact author: petr.neugebauer@ceitec.vutbr.cz
PDF

Phys. Rev. B 112, 214117 – Published 29 December, 2025

DOI: https://doi.org/10.1103/7nzh-gq85

Abstract

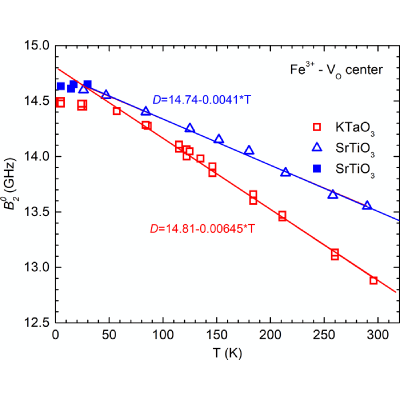

Oxygen vacancies are the most common defects in oxide materials. They frequently couple with transition-metal ions to form charge-compensated paramagnetic Me-VO pair centers, which exhibit large zero-field splitting of 2.6−6cm−1. Such splitting requires the use of high microwave frequencies in electron paramagnetic resonance (EPR) spectroscopy. Using high-frequency EPR (up to 210 GHz), we investigated Fe3+−VO centers in the quantum paraelectrics SrTiO3 and KTaO3 over the temperature range 5–296 K. These materials have attracted significant interest due to their unique dielectric properties and recently discovered spin-electric phenomena, including two-dimensional superconductivity and the anomalous Rashba effect in spin-charge conversion. To probe spin-electric coupling, we also performed pulse EPR measurements at 9.79 GHz under applied electric fields. Our results show that the axial crystal-field parameter increases nearly linearly from 13.1 GHz in KTaO3 and 13.55 GHz in SrTiO3 at room temperature to ≃14.6GHz at 20 K, below which it saturates. This temperature dependence is attributed to anomalous displacements of four lateral oxygen ions relative to Fe3+, likely governed by the soft optical mode. Application of electric fields up to 30 kV/cm revealed not only splitting of the EPR lines but also redistribution of domain populations, observable at fields as low as 10 kV/cm in the nonpolar tetragonal phase of SrTiO3.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (38)

  1. U. T. Hochli, K. Knorr, and A. Loidl, Orientational glasses, Adv. Phys. 51, 589 (2002).
  2. A. Bussmann-Holder, R. K. Kremer, K. Roleder, and E. K. H. Salje, SrTiO3: Thoroughly investigated but still good for surprises, Condensed Matter 9, 3 (2024).
  3. A. Gupta, H. Silotia, A. Kumari, M. Dumen, S. Goyal, R. Tomar, N. Wadehra, P. Ayyub, and S. Chakraverty, KTaO3–the new kid on the spintronics block, Adv. Mater. 34, 2106481 (2022).
  4. H. Nakamura and T. Kimura, Electric field tuning of spin-orbit coupling in KTaO3 field-effect transistors, Phys. Rev. B 80, 121308 (2009).
  5. P. Noël, F. Trier, L. M. V. Arche, J. Brehin, D. C. Vaz, V. Garcia, S. Fusil, A. Barthelemy, L. Vila, M. Bibes, and J.-P. Attane, Non-volatile electric control of spin-charge conversion in a SrTiO3 Rashba system, Nature (London) 580, 483 (2020).
  6. S. Varotto, A. Johansson, B. Göbel, L. M. Vicente-Arche, S. Mallik, J. Bréhin, R. Salazar, F. Bertran, P. L. Fèvre, N. Bergeal, J. Rault, I. Mertig, and M. Bibes, Direct visualization of Rashba-split bands and spin/orbital–charge interconversion at KTaO3 interfaces, Nat. Commun. 13, 6165 (2022).
  7. N. P. de Leon, K. M. Itoh, D. Kim, K. K. Mehta, T. E. Northup, H. Paik, B. S. Palmer, N. Samarth, S. Sangtawesin, and D. W. Steuerman, Materials challenges and opportunities for quantum computing hardware, Science 372, eabb2823 (2021).
  8. S. E. Crawford, R. A. Shugayev, H. P. Paudel, P. Lu, M. Syamlal, P. R. Ohodnicki, B. Chorpening, R. Gentry, and Y. Duan, Quantum sensing for energy applications: Review and perspective, Adv. Quantum Tech. 4, 2100049 (2021).
  9. V. Laguta, V. Bovtun, M. Kempa, O. Laguta, P. Neugebauer, M. Simenas, J. Banys, and S. Kamba, Enhancement of microwave fields in pulse EPR of quantum paraelectrics, Appl. Phys. Lett. 123, 214001 (2023).
  10. T. V. Waldkirch, K. A. Muller, and W. Berlinger, Analysis of the Fe3+–VO center in the tetragonal phase of SrTiO3, Phys. Rev. B 5, 4324 (1972).
  11. G. F. Reiter, W. Berlinger, and K. A. Muller, Paramagnetic-resonance studies of local fluctuations in SrTiO3 above Tc, Phys. Rev. B 21, 1 (1980).
  12. O. Schirmer, W. Berlinger, and K. Müller, Electron spin resonance and optical identification of Fe4+−VO in SrTiO3, Solid State Commun. 16, 1289 (1975).
  13. D. N. Hannon, Electron paramagnetic resonance of Fe3+ and Ni3+ in KTaO3, Phys. Rev. 164, 366 (1967).
  14. I. N. Geifman, M. D. Glinchuk, and B. K. Krulikovskii, Electric-field effect in ESR and local fields in KTaO3, Sov. Phys. JETP 48, 741 (1978).
  15. R. G. Pontin, E. F. Slade, and D. J. E. Ingram, Millimeter wave e.s.r. Studies of ferric iron in perovskite-type oxides, J. Phys. C: Solid State Phys. 2, 1146 (1969).
  16. R. Baer, G. Wessel, and R. S. Rubins, Magnetic resonance study at millimeter wavelengths of an axial Fe3+ spectrum in strontium titanate, J. Appl. Phys. 39, 23 (1968).
  17. S. Zlotnik, P. Vilarinho, M. Costa, J. Moreira, and A. Almeida, Growth of incipient ferroelectric KTaO3 single crystals by a modified self-flux method, Cryst. Growth Des. 10, 3397 (2010).
  18. A. Sojka, M. Šedivý, A. Lagiň, A. Gabriš, T. Láznička, V. T. Santana, O. Laguta, and P. Neugebauer, Sample holders for Sub-THz electron spin resonance spectroscopy, IEEE Trans. Instrum. Meas. 71, 8002812 (2022).
  19. O. Laguta, A. Sojka, A. Marko, and P. Neugebauer, Rapid scan ESR: A versatile tool for the spin relaxation studies at (sub)THz frequencies, Appl. Phys. Lett. 120, 120502 (2022).
  20. M. Šedivý, V. Santana, A. Sojka, O. Laguta, and P. Neugebauer, MEPROS—modular electron paramagnetic resonance operating software for multifunctional high-frequency EPR spectrometer, J. Magn. Reson. 355, 107556 (2023).
  21. S. Stoll and A. Schweiger, EasySpin, a comprehensive software package for spectral simulation and analysis in EPR, J. Magn. Reson. 178, 42 (2006).
  22. A. Abragam and B. Bleaney, Electron Paramagnetic Resonance of Transition Ions (Claredon Press, Oxford, 1970).
  23. See the Supplemental Material at http://link.aps.org/supplemental/10.1103/7nzh-gq85 for calculated energy levels diagram of Fe3+−VO center in KTaO3 and SrTiO3,
  24. S. A. Andrews, X-ray scattering study of the random electric dipole system KTaO3:Li, J. Phys. C: Solid State Phys. 18, 1357 (1985).
  25. I. P. Bykov, M. D. Glinchuk, A. A. Karmazin, and V. V. Laguta, Sov. Phys. Solid State 25, 1239 (1983).
  26. A. Okazaki and M. Kawaminami, Lattice constant of strontium titanate at low temperatures, Mater. Res. Bull. 8, 545 (1973).
  27. E. Siegel and K. A. Muller, Structure of transition-metal-oxygen-vacancy pair centers, Phys. Rev. B 19, 109 (1979).
  28. R. D. Shannon, Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides, Acta Cryst. A 32, 751 (1976).
  29. K. Leung, Transition-metal ion impurities in KTaO3, Phys. Rev. B 65, 012102 (2001).
  30. M. Exner, H. Donnerberg, C. R. A. Catlow, and O. F. Schirmer, Computer simulation of defects in KTaO3, Phys. Rev. B 52, 3930 (1995).
  31. H. Vogt and H. Uve, Hyper-Raman scattering from the incipient ferroelectric KTaO3, Phys. Rev. B 29, 1030 (1984).
  32. H. Vogt, Refined treatment of the model of linearly coupled anharmonic oscillators and its application to the temperature dependence of the zone-center soft-mode frequencies of KTaO3 and SrTiO3, Phys. Rev. B 51, 8046 (1995).
  33. D. N. Hannon, Electron paramagnetic resonance of Mn2+ in KTaO3, Phys. Rev. B 3, 2153 (1971).
  34. E. Hegenbarth and C. Frenzel, The pressure dependence of the dielectric constants of SrTiO3 and (Ba0.05Sr0.95)TiO3 at low temperatures, Cryogenics 7, 331 (1967).
  35. E. Hegenbarth, Die feldstärkeabhängigkeit der dielektrizitätskonstanten von SrTiO3-Einkristallen im temperaturbereich von 15 bis 80∘K, Phys. Stat. Solid (b) 6, 333 (1964).
  36. J. Hemberger, P. Lunkenheimer, R. Viana, R. Böhmer, and A. Loidl, Electric-field-dependent dielectric constant and nonlinear susceptibility in SrTiO3, Phys. Rev. B 52, 13159 (1995).
  37. P. A. Fleury and J. M. Worlock, Electric-field-induced Raman scattering in SrTiO3 and KTaO3, Phys. Rev. 174, 613 (1968).
  38. O. Laguta, Originlab files for figures with complete dataset are available at 10.5281/zenodo.17277038.
