Feynman paradox in a spherical axion insulator

Anastasiia Chyzhykova1,2, Jeroen van den Brink2,3, and Flavio S. Nogueira2

Phys. Rev. B 113, 115414 – Published 13 March, 2026

DOI: https://doi.org/10.1103/1zq6-w193

Abstract

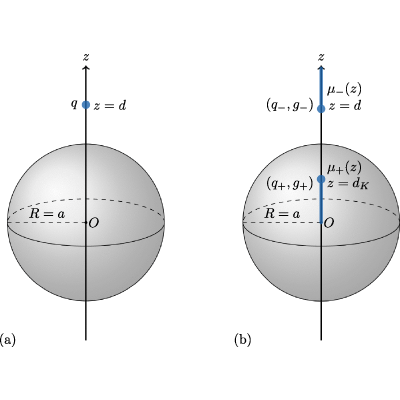

We show that a small charged probe near a spherical topological insulator causes the latter to rotate around a symmetry axis defined by the center of the sphere and the position of the charge outside the latter. The rotation occurs when the distance from the charge to the center of the sphere is changed. This phenomenon occurs due to induced static fields and is a consequence of the axion electrodynamics underlying the electromagnetic response of a topological insulator. Assuming a regime where the charged probe can be regarded as a point charge q=Ne, where N is a positive integer and e is the elementary electric charge, we obtain that the rotation frequency is given by ω=(Nα)2Υ(ε,d/a)/I, where I is the moment of inertia, α is the fine-structure constant, and the function Υ depends on the dielectric constant ε and the relative distance d/a of the charge from the center of the sphere of radius a. Since the point charge also induces Hall currents on the surface, we also compute their associated angular momentum. This allows us to derive an exact expression for the electronic velocity on the surface as a function of a/d.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (25)

  1. X.-L. Qi, T. L. Hughes, and S.-C. Zhang, Topological field theory of time-reversal invariant insulators, Phys. Rev. B 78, 195424 (2008).
  2. A. M. Essin, J. E. Moore, and D. Vanderbilt, Magnetoelectric polarizability and axion electrodynamics in crystalline insulators, Phys. Rev. Lett. 102, 146805 (2009).
  3. S. Ryu, J. E. Moore, and Andreas W. W. Ludwig, Electromagnetic and gravitational responses and anomalies in topological insulators and superconductors, Phys. Rev. B 85, 045104 (2012).
  4. F. Wilczek, Two applications of axion electrodynamics, Phys. Rev. Lett. 58, 1799 (1987).
  5. A. Karch, Electric-magnetic duality and topological insulators, Phys. Rev. Lett. 103, 171601 (2009).
  6. L. Wu, M. Salehi, N. Koirala, J. Moon, S. Oh, and N. P. Armitage, Quantized faraday and kerr rotation and axion electrodynamics of a 3D topological insulator, Science 354, 1124 (2016).
  7. V. Dziom, A. Shuvaev, A. Pimenov, G. V. Astakhov, C. Ames, K. Bendias, J. Böttcher, G. Tkachov, E. M. Hankiewicz, C. Brüne, H. Buhmann, and L. W. Molenkamp, Observation of the universal magnetoelectric effect in a 3D topological insulator, Nat. Commun. 8, 15197 (2017).
  8. X.-L. Qi, R. Li, J. Zang, and S.-C. Zhang, Inducing a magnetic monopole with topological surface states, Science 323, 1184 (2009).
  9. A. Martín-Ruiz, M. Cambiaso, and L. F. Urrutia, Electromagnetic description of three-dimensional time-reversal invariant ponderable topological insulators, Phys. Rev. D 94, 085019 (2016).
  10. F. S. Nogueira, Z. Nussinov, and J. van den Brink, Fractional angular momentum at topological insulator interfaces, Phys. Rev. Lett. 121, 227001 (2018).
  11. F. S. Nogueira and J. van den Brink, Absence of induced magnetic monopoles in maxwellian magnetoelectrics, Phys. Rev. Res. 4, 013074 (2022).
  12. R. P. Feynman, R. Leighton, and M. Sands, The Feynman Lectures on Physics, Vol. II (Basic Books, New York, (2011).
  13. N. L. Sharma, Field versus action‐at‐a‐distance in a static situation, Am. J. Phys. 56, 420 (1988).
  14. D. J. Griffiths, Note on ‘‘field versus action‐at‐a‐distance in a static situation,'’ by N. L. Sharma [Am. J. Phys. 56, 420–423 (1988)], Am. J. Phys. 57, 558 (1989).
  15. A. Zangwill, Modern Electrodynamics (Cambridge University Press, Cambridge, 2013).
  16. I. V. Lindell, Electrostatic image theory for the dielectric sphere, Radio Sci. 27, 1 (1992).
  17. W. Norris, Charge images in a dielectric sphere, IEE Proc.-Sci. Meas. Technol. 142, 142 (1995).
  18. W. Norris, Comment: Charge images in a dielectric sphere, IEE Proc.-Sci. Meas. Technol. 142, 495 (1995).
  19. C. Neumann, Hydrodynamische untersuchungen: nebst einem Anhange über die Probleme der Elektrostatik und der magnetischen Induction (BG Teubner, Stuttgart, 1883).
  20. I. V. Lindell, Image theory for electrostatic and magnetostatic problems involving a material sphere, Am. J. Phys. 61, 39 (1993).
  21. P. Bussemer, Comment on image theory for electrostatic and magnetostatic problems involving a material sphere, by Ismo V. Lindell [Am. J. Phys. 61, 39-44 (1993)], Am. J. Phys. 62, 657 (1994).
  22. J. A. Stratton, Electromagnetic Theory (John Wiley & Sons, New York, 2007).
  23. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  24. Y. Xia, D. Qian, D. Hsieh, L. Wray, A. Pal, H. Lin, A. Bansil, D. Grauer, Y. S. Hor, R. J. Cava, and M. Z. Hasan, Observation of a large-gap topological-insulator class with a single Dirac cone on the surface, Nat. Phys. 5, 398 (2009).
  25. B. Voigtländer, V. Cherepanov, S. Korte, A. Leis, D. Cuma, S. Just, and F. Lüpke, Invited review article: Multi-tip scanning tunneling microscopy: Experimental techniques and data analysis, Rev. Sci. Instrum. 89, 101101 (2018).
