Few-MHz bandwidth tunable optical filter based on a fiber-ring resonator

Gabriele Maron, Anton Bölian, Xin-Xin Hu, Luke Masters, Arno Rauschenbeutel*, and Jürgen Volz†

  • *Contact author: arno.rauschenbeutel@hu-berlin.de
  • †Contact author: juergen.volz@hu-berlin.de
PDF

Phys. Rev. Applied 26, 024029 – Published 12 August, 2026

DOI: https://doi.org/10.1103/yw1q-f6f4

Abstract

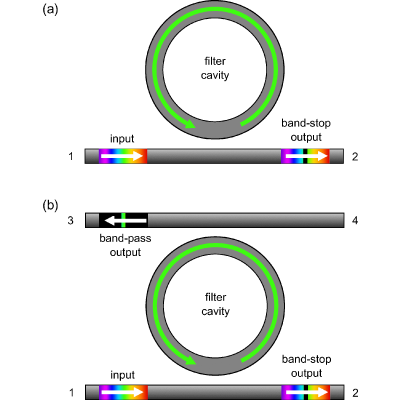

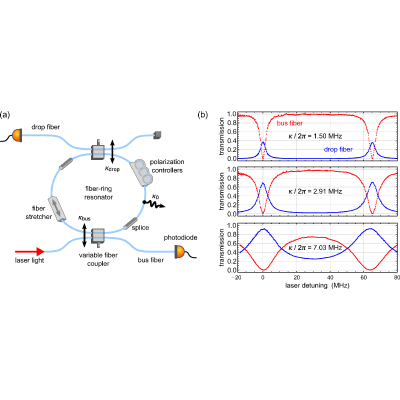

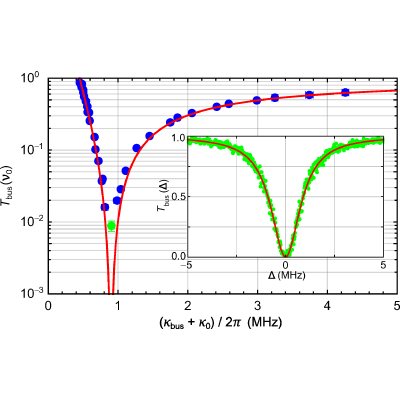

We present a fiber-ring resonator that realizes an ultranarrowband, high-extinction, low-loss, tunable optical filter. It consists of a pair of commercial variable ratio directional couplers that allow precise adjustment of the filter bandwidth and its on-resonance transmission. This design also grants access to multiple modes of operation, such as a simultaneous band-stop and band-pass filter. Our characterization reveals a bandwidth of less than 2 MHz, together with an extinction exceeding 20 dB. The tunability of the filter properties establishes our device as a versatile platform for selective frequency filtering with sub-natural atomic linewidth resolution.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. M. Bass, Handbook of Optics (McGraw-Hill, Inc., New York, 1995).
  2. H. A. Macleod, Thin-Film Optical Filters (CRC Press, Boca Raton, Florida, USA, 2010).
  3. P. Giacomo, P. W. Baumeister, and F. A. Jenkins, On the limiting band width of interference filters, Proceed. Phys. Soc. 73, 480 (1959).
  4. T. Koonen, Fabry-Perot interferometer filters, in Wavelength Filters in Fibre Optics, edited by H. Venghaus (Springer Berlin Heidelberg, Berlin Heidelberg, 2006), p. 287.
  5. I. Divliansky, Chap. 3: Volume Bragg gratings: Fundamentals and applications in laser beam combining and beam phase transformations, in Holographic Materials and Optical Systems, edited by I. Naydenova, D. Nazarova, and T. Babeva (IntechOpen, Rijeka, 2017).
  6. X. Xue, Z. Tao, Q. Sun, Y. Hong, W. Zhuang, B. Luo, J. Chen, and H. Guo, Faraday anomalous dispersion optical filter with a single transmission peak using a buffer-gas-filled rubidium cell, Opt. Lett. 37, 2274 (2012).
  7. M. Widmann, S. L. Portalupi, P. Michler, J. Wrachtrup, and I. Gerhardt, Faraday filtering on the Cs−D1-line for quantum hybrid systems, IEEE Photon. Technol. Lett. 30, 2083 (2018).
  8. P. Palittapongarnpim, A. MacRae, and A. I. Lvovsky, Note: A monolithic filter cavity for experiments in quantum optics, Rev. Sci. Instrum. 83, 066101 (2012).
  9. A. Ahlrichs, C. Berkemeier, B. Sprenger, and O. Benson, A monolithic polarization-independent frequency-filter system for filtering of photon pairs, Appl. Phys. Lett. 103, 241110 (2013).
  10. C. L. Phillips, A. J. Brash, D. P. S. McCutcheon, J. Iles-Smith, E. Clarke, B. Royall, M. S. Skolnick, A. M. Fox, and A. Nazir, Photon statistics of filtered resonance fluorescence, Phys. Rev. Lett. 125, 043603 (2020).
  11. M. Cordier, M. Schemmer, P. Schneeweiss, J. Volz, and A. Rauschenbeutel, Tailoring photon statistics with an atom-based two-photon interferometer, Phys. Rev. Lett. 131, 183601 (2023).
  12. G. T. Reed, Silicon Photonics: The State of the Art (John Wiley & Sons, Inc., New York, 2008).
  13. W. Fox, C. W. Oates, and W. Hollberg, 1. Stabilizing Diode Lasers to High-Finesse Cavities (Academic Press, New York, 2003), Vol. 40, pp. 1–46.
  14. S. J. B. Yoo, Wavelength conversion technologies for WDM network applications, J. Lightwave Technol. 14, 955 (1996).
  15. S. Hou, P. Chen, M. Shah, I. Briggs, W. Xing, Z. Liu, and L. Fan, Programmable optical filter in thin-film lithium niobate with simultaneous tunability of extinction ratio and wavelength, ACS Photon. 10, 3896 (2023).
  16. C. Sun, Z. Chen, Y. Yin, Y. Ye, Y. Luo, H. Ma, J. Jian, Y. Shi, C. Zhong, D. Zhang, H. Lin, and L. Li, Broadband and high-resolution integrated spectrometer based on a tunable FSR-free optical filter array, ACS Photon. 9, 2973 (2022).
  17. H. Tong, Y. Xiong, H. Ding, Z. Chen, Z. Qin, W. Chen, J. Tang, S. Yu, and F. Xu, Lithium niobate piezoelectric actuator-integrated fiber Fabry-Pérot tunable filter with ultrahigh speed and linearity, ACS Photon. 11, 1574 (2024).
  18. B. L. Ng, C. H. Chow, and C. Kurtsiefer, Observation of the mollow triplet from an optically confined single atom, arXiv:2208.06575.
  19. L. Masters, X.-X. Hu, M. Cordier, G. Maron, L. Pache, A. Rauschenbeutel, M. Schemmer, and J. Volz, On the simultaneous scattering of two photons by a single two-level atom, Nat. Photonics 17, 972 (2023).
  20. S. Liu, O. A. Dall’Alba Sandberg, M. L. Chan, B. Schrinski, Y. Anyfantaki, R. B. Nielsen, R. G. Larsen, A. Skalkin, Y. Wang, L. Midolo, S. Scholz, A. D. Wieck, A. Ludwig, A. S. Sørensen, A. Tiranov, and P. Lodahl, Violation of Bell inequality by photon scattering on a two-level emitter, Nat. Phys. 20, 1429 (2024).
  21. H. A. Haus, Waves and Fields in Optoelectronics (Prentice-Hall, Englewood Cliffs, New Jersey, 1984).
  22. J. E. Heebner, Vincent Wong, A. Schweinsberg, R. W. Boyd, and D. J. Jackson, Optical transmission characteristics of fiber ring resonators, IEEE J. Quantum Electron. 40, 726 (2004).
  23. J. L. H. Mik, B. M. Sparkes, C. Perrella, P. S. Light, S. Ng, A. N. Luiten, and D. J. Ottaway, High-transmission fiber ring resonator for spectral filtering of master oscillator power amplifiers, OSA Continuum 22487 (2019).
  24. T. A. Birks, P. S. J. Russell, and D. O. Culverhouse, The acousto-optic effect in single-mode fiber tapers and couplers, J. Lightwave Technol. 14, 2519 (1996).
  25. L. A. Fuderer, L. Wang, J. S. Stuart, M. P. Hedges, A. G. Truscott, and S. S. Hodgman, In-fibre temperature tuned fibre ring resonator for laser mode monitoring, Opt. Continuum 1, 306 (2022).
  26. F. Bessin, A. M. Perego, K. Staliunas, S. K. Turitsyn, A. Kudlinski, M. Conforti, and A. Mussot, Gain-through-filtering enables tuneable frequency comb generation in passive optical resonators, Nat. Commun. 10, 4489 (2019).
  27. T. D. Barrett, O. Barter, D. Stuart, B. Yuen, and A. Kuhn, Polarization oscillations in birefringent emitter-cavity systems, Phys. Rev. Lett. 122, 083602 (2019).
  28. G. Maron, A. Bölian, X.-X. Hu, L. Masters, A. Rauschenbeutel, and J. Volz, Few-MHz bandwidth tunable optical filter based on a fiber-ring resonator, 10.18452/34989 (2025).
