Spectral approach to electron emission analysis from heterogeneous surfaces

J. Ludwick1,2, G. Saiz3, L. Douillard3, T.C. Back1,*, and A. Sayir4

  • *Contact author: tyson.back.1@us.af.mil
PDF

Phys. Rev. Applied 25, 044070 – Published 24 April, 2026

DOI: https://doi.org/10.1103/p1lh-79xp

Abstract

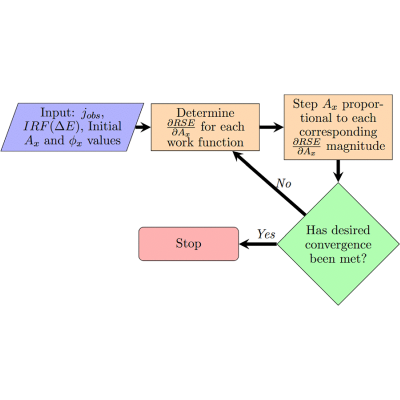

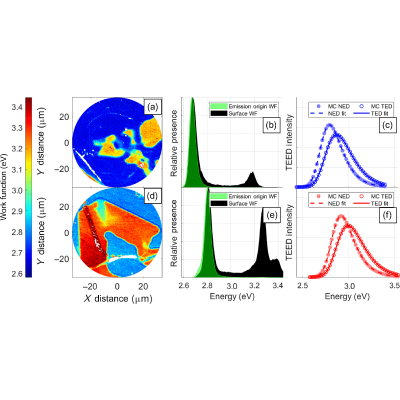

This study introduces a methodology to extract multiwork function distributions directly from thermally emitted electron distribution (ThEED) data, addressing the limitations of traditional Richardson–Laue–Dushman methods for heterogeneous thermal emission cathodes. This approach involves deconvolving measured thermally emitted electron distributions with an instrument response function (derived from a homogeneous sample) and then applying a steepest-descent algorithm to determine the relative contributions of various work functions, while also considering the impact of external electrostatic fields on patch field effects. The methodology is validated using single-phase Mayenite [Ca24Al28O64]4+(4e−), an electride material with spatially varying work functions, by comparing the predicted distributions with photoemission electron microscopy (PEEM) work function maps and Monte Carlo simulations. The results demonstrate excellent agreement between the predicted and measured work function distributions, highlighting the method’s accuracy in resolving surface heterogeneity. Furthermore, the technique is successfully applied to ThEED data taken at a characterized surface location, showing promise for analyzing complex emission patterns in thermal emission cathodes. This methodology eliminates the need for complementary, potentially spatially mismatched, surface characterization techniques, offering a powerful tool for understanding and designing advanced thermal emitters.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. O. W. Richardson, Electron emission from metals as a function of temperature, Phys. Rev. 23, 153 (1924).
  2. S. Dushman, Thermionic emission, Rev. Mod. Phys. 2, 381 (1930).
  3. C. Herring and M. H. Nichols, Thermionic emission, Rev. Mod. Phys. 21, 185 (1949).
  4. D. Chen, Modeling Nonuniform Thermionic Emission from Heterogeneous Cathodes (University of Wisconsin-Madison, 2022).
  5. D. Chen, R. Jacobs, J. Petillo, V. Vlahos, K. L. Jensen, D. Morgan, and J. Booske, Physics-based model for nonuniform thermionic electron emission from polycrystalline cathodes, Phys. Rev. Appl. 18, 054010 (2022).
  6. S. W. Kim and H. Hosono, Synthesis and properties of 12CaO⋅7Al2O3 electride: review of single crystal and thin film growth, Philos. Mag. 92, 2596 (2012).
  7. J. Mackey, T. Back, M. Berger, and A. Sayir, Processing and thermal properties of mayenite electride, J. Am. Ceram. Soc. 104, 2238 (2021).
  8. A. Sayir, M. Berger, T. C. Back, and J. Mackey, Microstructure of mayenite 12CaO⋅7Al2O3 and electron emission characteristics, J. Am. Ceram. Soc. 104, 5750 (2021).
  9. L. P. Rand and J. D. Williams, A calcium aluminate electride hollow cathode, IEEE Trans. Plasma Sci. 43, 190 (2015).
  10. Y. Huang, X. Wang, G. Cui, P. Wang, and D. Cai, Effect of working current on C12A7 hollow cathode, Aerospace 10, 4 (2023).
  11. A. Post, et al., Key design and operation factors for high performance of C12A7:e-based cathodes, IOP Conf. Ser.: Mater. Sci. Eng. 1226, 012092 (2022).
  12. C. Mathieu, N. Barrett, J. Rault, Y. Y. Mi, B. Zhang, W. A. de Heer, C. Berger, E. H. Conrad, and O. Renault, Microscopic correlation between chemical and electronic states in epitaxial graphene on SiC(0001), Phys. Rev. B 83, 235436 (2011).
  13. M. Escher, K. Winkler, O. Renault, and N. Barrett, Applications of high lateral and energy resolution imaging XPS with a double hemispherical analyser based spectromicroscope, J. Electron Spectrosc. Relat. Phenom. 178–179, 303 (2010).
  14. J. Rault, Structure Chimique et Électronique Des Interfaces Métal/Ferroélectrique En Fonction de La Polarisation Ferroélectrique, Université Pierre et Marie Curie, 2013.
  15. G. F. Rempfer, K. K. Nadakavukaren, and O. H. Griffith, Topographical effects in emission microscopy, Ultramicroscopy 5, 437 (1980).
  16. T. J. M. Zouros and E. P. Benis, The hemispherical deflector analyser revisited. I. Motion in the ideal 1/r potential, generalized entry conditions, Kepler orbits and spectrometer basic equation, J. Electron Spectrosc. Relat. Phenom. 125, 221 (2002).
  17. J. W. Gadzuk and E. W. Plummer, Field emission energy distribution (FEED), Rev. Mod. Phys. 45, 487 (1973).
  18. E. L. Murphy and R. H. Good, Thermionic emission, field emission, and the transition region, Phys. Rev. 102, 1464 (1956).
  19. R. H. Fowler and L. Nordheim, Electron emission in intense electric fields, Proc. R. Soc. A 119, 173 (1928).
  20. R. D. Young, Theoretical total-energy distribution of field-emitted electrons, Phys. Rev. 113, 110 (1959).
  21. L. B. Lucy, An iterative technique for the rectification of observed distributions, Astron. J. 79, 745 (1974).
  22. W. H. Richardson, Bayesian-based iterative method of image restoration*, J. Opt. Soc. Am. 62, 55 (1972).
  23. R. D. Young and C. E. Kuyatt, Resolution determination in field emission energy analyzers, Rev. Sci. Instrum. 39, 1477 (1968).
  24. T. L. Westover, G. Powell, and T. S. Fisher, in ASME/JSME 2007 Thermal Engineering Heat Transfer Summer Conference (ASMEDC, Vancouver, British Columbia, Canada, 2007), Vol. 2, pp. 493–498.
  25. R. Reifenberger, H. A. Goldberg, and M. J. G. Lee, Measurement of the total energy distribution in photo-induced field emission, Surf. Sci. 83, 599 (1979).
  26. L. Lin, R. Jacobs, T. Ma, D. Chen, J. Booske, and D. Morgan, Work function: Fundamentals, measurement, calculation, engineering, and applications, Phys. Rev. Appl. 19, 037001 (2023).
  27. R. Bachelet, F. Sánchez, F. J. Palomares, C. Ocal, and J. Fontcuberta, Atomically flat SrO-terminated SrTiO3(001) substrate, Appl. Phys. Lett. 95, 141915 (2009).
  28. Z. Zhang, P. Qian, X. Yang, B. Wu, H. L. Cai, F. M. Zhang, and X. S. Wu, Manipulating the carrier concentration and phase transition via Nb content in SrTiO3, Sci. Rep. 12, 2499 (2022).
  29. D. Wrana, C. Rodenbücher, W. Bełza, K. Szot, and F. Krok, In situ study of redox processes on the surface of SrTiO3 single crystals, Appl. Surf. Sci. 432, 46 (2018).
  30. D. Wrana, K. Cieślik, W. Belza, C. Rodenbücher, K. Szot, and F. Krok, Kelvin probe force microscopy work function characterization of transition metal oxide crystals under ongoing reduction and oxidation, Beilstein J. Nanotechnol. 10, 1596 (2019).
  31. T. J. Whittles, S. C. Parks, H. Wang, P. Jiang, Z. Zhong, P. A. van Aken, and J. Mannhart, Tailoring work functions of heterostructures by varying the depth of a buried monolayer, Adv. Mater. Interfaces 11, 2400109 (2024).
  32. S.-H. Phark and Y. J. Chang, Nucleation and growth of primary nanostructures in SrTiO3 homoepitaxy, Nanoscale Res. Lett. 10, 80 (2015).
  33. S. W. Kim, R. Tarumi, H. Iwasaki, H. Ohta, M. Hirano, and H. Hosono, Thermal conductivity and Seebeck coefficient of 12CaO⋅7Al2O3 electride with a cage structure, Phys. Rev. B 80, 075201 (2009).
  34. P. V. Sushko, A. L. Shluger, M. Hirano, and H. Hosono, From insulator to electride: A theoretical model of nanoporous oxide 12CaO⋅7Al2O3, J. Am. Chem. Soc. 129, 942 (2007).
  35. O. Richardson and A. Young, The thermionic work-functions and photo-electric thresholds of the alkali metals, Proc. R. Soc. A 107, 377 (1925).
  36. S. Dushman, Electron emission from metals as a function of temperature, Phys. Rev. 21, 623 (1923).
  37. E. Bauer, Surface Microscopy with Low Energy Electrons (Springer New York, New York, NY, 2014).
  38. C. Nakakura, M. Anderson, and G. Kellogg, Imaging Doped Silicon Test Structures Using Low Energy Electron Microscopy, Sandia National Laboratories (SNL), 2010.
  39. J. Jobst, L. M. Boers, C. Yin, J. Aarts, R. M. Tromp, and S. J. van der Molen, Quantifying work function differences using low-energy electron microscopy: The case of mixed-terminated strontium titanate, Ultramicroscopy 200, 43 (2019).
  40. A. L. Fernandes Cauduro, L. H. Hess, D. F. Ogletree, J. W. Schwede, and A. K. Schmid, Tailoring low energy electron absorption via surface nano-engineering of cesiated chromium films, Appl. Phys. Lett. 115, 071602 (2019).
  41. H. Kawano, Effective work functions of the elements, Prog. Surf. Sci. 97, 100583 (2022).
