Perturbation theory for generalized van der Pol-type resonant-tunneling-diode oscillators

Michael Feiginov* and Petr Ourednik

  • Department of Electrical Engineering and Information Technology, TU Wien, 1040 Vienna, Austria

  • *Contact author: michael.feiginov@tuwien.ac.at
PDF

Phys. Rev. Applied 25, 054075 – Published 28 May, 2026

DOI: https://doi.org/10.1103/hcqb-44hy

Abstract

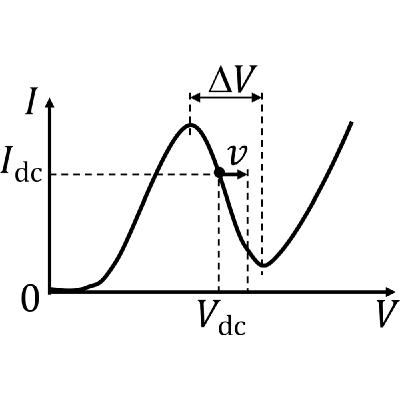

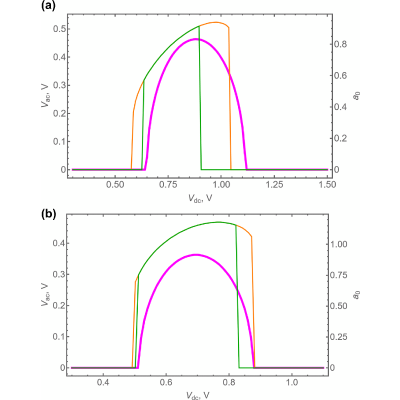

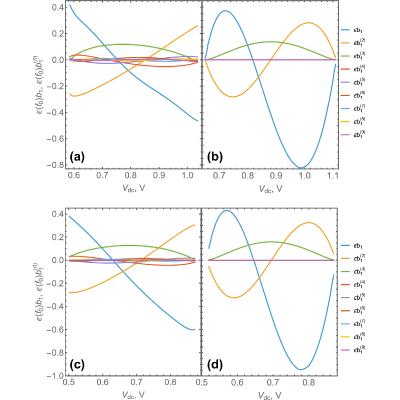

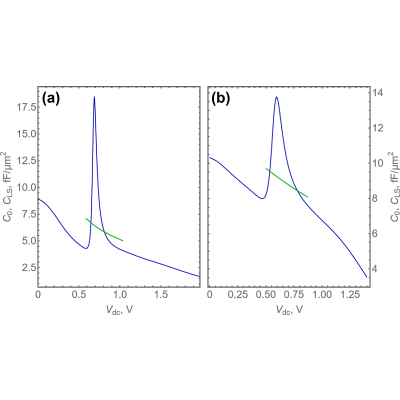

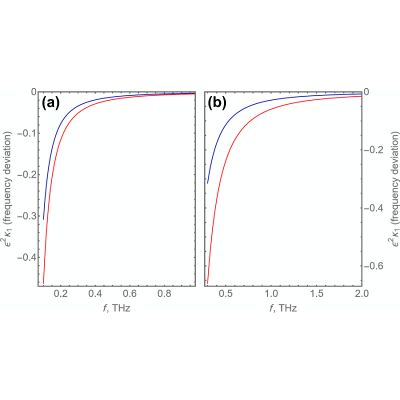

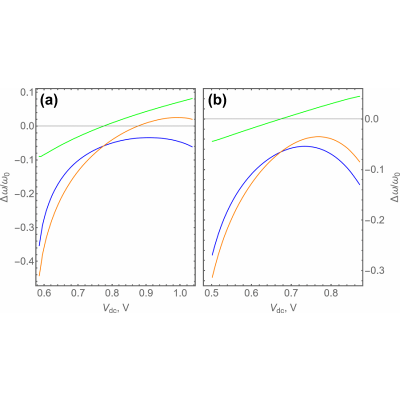

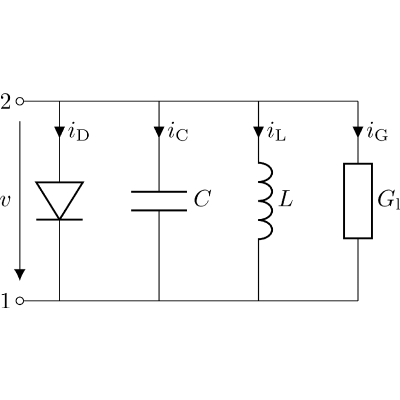

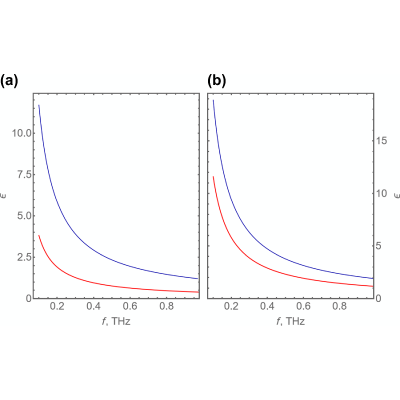

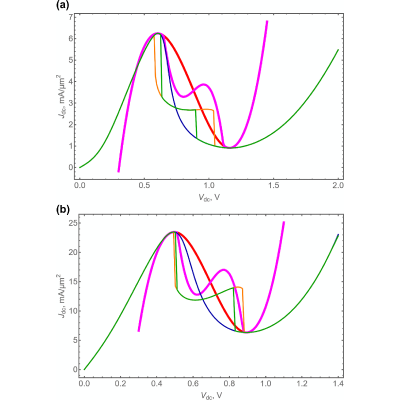

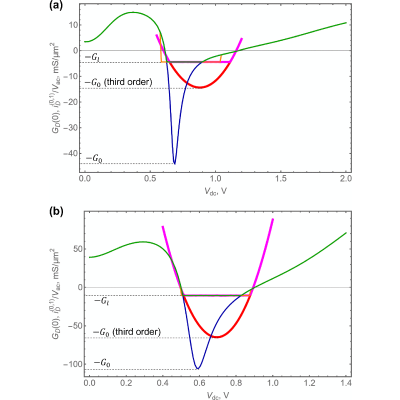

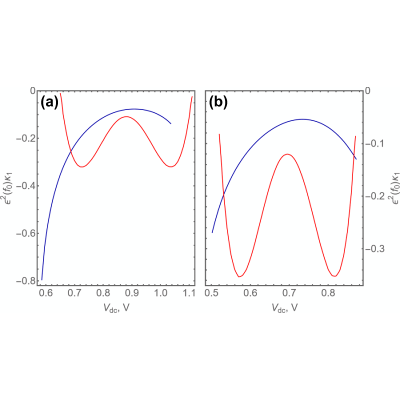

We generalize the van der Pol oscillator model to account for a realistic nonlinearity of the resonant-tunneling-diode (RTD) I-V curve. In the case of weak nonlinearity, perturbation theory is applied, and analytical expressions are derived for first-order corrections to the oscillation frequency, quadrature component (phase shift), and higher harmonics. Applicability requirements for perturbation theory are discussed. These requirements are always satisfied at sufficiently high frequencies, but they can fail already at frequencies as low as a few hundred GHz for RTDs with thicker barriers and at slightly above 500 GHz for thin-barrier RTDs, where oscillators transition to a strongly nonlinear regime. Calculation results for the above corrections for several RTD wafers, with typical parameters for sub-THz and THz oscillators, are presented. In particular, our calculations indicate that first-order correction terms play an essential role in the mechanism of variation of the RTD-oscillator frequency with bias. Taking into account the realistic nonlinearity of the RTD I-V curve leads to significant quantitative and even qualitative differences in the behavior of RTD oscillators, compared to the conventional van der Pol oscillator model. The presented generalized model lays the groundwork for a more accurate analysis of nonlinear phenomena in RTD oscillators, it can serve as a reference for numerical simulations, it is also essential for qualitative and semiquantitative analysis of RTD oscillators.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. G. Carpintero, E. Garcia-Munoz, H. Hartnagel, S. Preu, and A. Raisanen, Semiconductor Terahertz Technology: Devices and Systems at Room Temperature Operation (John Wiley & Sons, Chichester, 2015).
  2. A. Leitenstorfer et al., The 2023 terahertz science and technology roadmap, J. Phys. D: Appl. Phys. 56, 223001 (2023).
  3. M. Feiginov, Frequency limitations of resonant-tunnelling diodes in sub-THz and THz oscillators and detectors, J. Infrared Millimeter Terahertz Waves 40, 365 (2019).
  4. S. Suzuki and M. Asada, Fundamentals and recent advances of terahertz resonant tunneling diodes, Appl. Phys. Express 17, 070101 (2024).
  5. E. R. Brown, J. R. Söderström, C. D. Parker, L. J. Mahoney, K. M. Molvar, and T. C. McGill, Oscillations up to 712 GHz in InAs/AlSb resonant-tunneling diodes, Appl. Phys. Lett. 58, 2291 (1991).
  6. M. Reddy, S. C. Martin, A. C. Molnar, R. E. Muller, R. P. Smith, P. H. Siegel, M. J. Mondry, M. J. W. Rodwell, H. Kroemer, and S. J. Allen, Monolithic Schottky-collector resonant tunnel diode oscillator arrays to 650 GHz, IEEE Electron Device Lett. 18, 218 (1997).
  7. D. Tuan Nguyen, P. Ourednik, and M. Feiginov, Island THz on-chip slot-antenna resonant-tunneling-diode oscillators, Appl. Phys. Lett. 123, 043508 (2023).
  8. R. Izumi, S. Suzuki, and M. Asada, in 42nd Int. Conf. Infrared, Millimeter, and Terahertz Waves (IRMMW-THz) (IEEE, Cancún, Mexico, 2017), pp. 1–2.
  9. R. Adler, A study of locking phenomena in oscillators, Proc. IRE 34, 351 (1946).
  10. Y. Suzuki, T. Van Mai, X. Yu, S. Suzuki, and M. Asada, Phase control of terahertz waves using injection-locked resonant tunneling diode oscillator, IEEE Trans. Terahertz Sci. Technol. 12, 481 (2022).
  11. N. Orihashi, S. Suzuki, and M. Asada, One THz harmonic oscillation of resonant tunneling diodes, Appl. Phys. Lett. 87, 233501 (2005).
  12. M. Asada, Theoretical analysis of subharmonic injection locking in resonant-tunneling-diode terahertz oscillators, Japanese J. Appl. Phys. 59, 018001 (2020).
  13. K. Arzi, S. Suzuki, A. Rennings, D. Erni, N. Weimann, M. Asada, and W. Prost, Subharmonic injection locking for phase and frequency control of RTD-based THz oscillator, IEEE Trans. Terahertz Sci. Technol. 10, 221 (2020).
  14. C. Spudat, P. Ourednik, G. Picco, D. T. Nguyen, and M. Feiginov, Limitations of output power and efficiency of simple resonant-tunneling-diode oscillators, IEEE Trans. Terahertz Sci. Technol. 13, 82 (2023).
  15. E. R. Brown, C. D. Parker, S. Verghese, M. W. Geis, and J. F. Harvey, Resonant-tunneling transmission-line relaxation oscillator, Appl. Phys. Lett. 70, 2787 (1997).
  16. G. Picco, P. Ourednik, D. T. Nguyen, and M. Feiginov, Generalized analysis of output-power limitations of resonant-tunnelling-diode oscillators with symmetrical slot antennas, IEEE Trans. Terahertz Sci. Technol. 14, 621 (2024).
  17. M. Feiginov, C. Sydlo, O. Cojocari, and P. Meissner, High-frequency nonlinear characteristics of resonant-tunnelling diodes, Appl. Phys. Lett. 99, 133501 (2011).
  18. P. Ourednik, G. Picco, D. Tuan Nguyen, C. Spudat, and M. Feiginov, Large-signal dynamics of resonant-tunneling diodes, J. Appl. Phys. 133, 014501 (2023).
  19. R. Grimshaw, Nonlinear Ordinary Differential Equations (Blackwell Scientific Publications, Oxford, 1990), p. 173.
  20. F. Verhulst, Nonlinear Differential Equations and Dynamical Systems (Springer, Berlin Heidelberg, 1996), p. 122.
  21. M. N. Feiginov, Effect of the Coulomb interaction on the response time and impedance of the resonant-tunneling diodes, Appl. Phys. Lett. 76, 2904 (2000).
  22. M. N. Feiginov, Does the quasibound-state lifetime restrict the high-frequency operation of resonant-tunnelling diodes? Nanotechnology 11, 359 (2000).
  23. M. N. Feiginov, Displacement currents and the real part of high-frequency conductance of the resonant-tunneling diode, Appl. Phys. Lett. 78, 3301 (2001).
  24. P. Ourednik and M. Feiginov, Unified admittance model for resonant tunneling diodes: Incorporating the space-charge dynamics of the quantum well and collector, Phys. Rev. Appl. 25, 024033 (2026).
  25. P. Ourednik, T. Hackl, C. Spudat, D. Tuan Nguyen, and M. Feiginov, Double-resonant-tunneling-diode patch-antenna oscillators, Appl. Phys. Lett. 119, 263509 (2021).
  26. D. T. Nguyen, G. Picco, P. Ourednik, C. Spudat, and M. Feiginov, Impact of slot width on performance of symmetrical-slot-antenna resonant-tunneling-diode oscillators, IEEE Trans. Terahertz Sci. Technol. 14, 29 (2024).
  27. P. Ourednik and M. Feiginov, Double-resonant-tunneling-diode bridge-less patch-antenna oscillators operating up to 1.09 THz, Appl. Phys. Lett. 120, 183501 (2022).
  28. P. Ourednik, G. Picco, and M. Feiginov, in 2022 47th Int. Conf. Infrared, Millimeter, and Terahertz Waves (IRMMW-THz) (IEEE, Delft, Netherlands, 2022), pp. 1–2.
  29. P. Ourednik and M. Feiginov, in 2022 15th UK-Europe-China Workshop on Millimetre-Waves and Terahertz Technologies (UCMMT) (IEEE, Tonsberg, Norway, 2022), pp. 1–3.
  30. N. Orihashi, S. Hattori, S. Suzuki, and M. Asada, Voltage-controlled sub-terahertz oscillation of resonant tunnelling diode integrated with slot antenna, Electron. Lett. 41, 872 (2005).
  31. M. Feiginov, C. Sydlo, O. Cojocari, and P. Meissner, Operation of resonant-tunnelling oscillators beyond tunnel lifetime limit, Europhys. Lett. 94, 48007 (2011).
