Near-field enhancement by a metasurface at octupole plasmon resonance in periodic disk dimers

Sagar Sehrawat1,*, Klas Lindfors1,2, and Andriy Shevchenko1

  • 1Department of Applied Physics, Aalto University, P.O. Box 13500, FI-00076 Aalto, Finland
  • 2Institute for Light and Matter, University of Cologne, Greinstraße 4–6, 50939 Cologne, Germany

  • *Contact author: sagar.sehrawat@aalto.fi
PDF

Phys. Rev. Applied 24, 064031 – Published 9 December, 2025

DOI: https://doi.org/10.1103/h3t1-srh9

Abstract

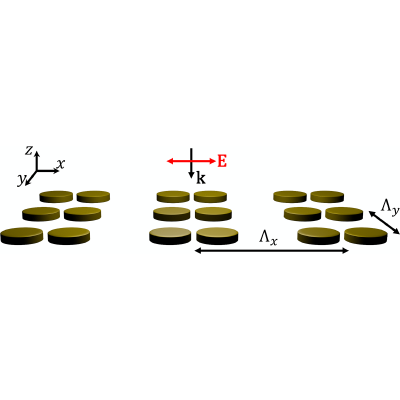

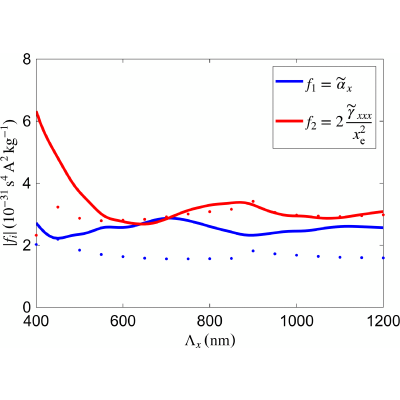

Local intensity enhancement by plasmonic nanoparticles is widely used in optics and photonics; however, the effect is usually based on dipole resonances in the particles. Recently, it has been shown that quadrupole and octupole resonances can exhibit comparable or even higher near-field enhancement. In this work, we focus on the near-field enhancement by a metasurface composed of gold-disk dimers arranged in a rectangular array. We find that, owing to an octupole plasmon resonance coupled to a surface lattice resonance, exceptionally high near-field enhancement in the dimer gaps can be achieved in the visible spectral range. To gain insight into the effect, we develop an analytical model for the effective dipole and octupole polarizabilities of the particles in an array, and discover that at decreasing array periods, the dipole polarizability tends to vanish, while the octupole polarizability rapidly increases. Hence, octupole resonances can find applications in high-density arrays of plasmonic resonators. We propose a method to numerically evaluate multipole polarizabilities of a single particle, applying it to the gold dimer that we consider. The influence of the array on the effective polarizabilities is then verified by numerical calculations, and good agreement is obtained. Our results may open new avenues for investigating the properties of periodic plasmonic structures based on higher-order multipole resonances and their applications.

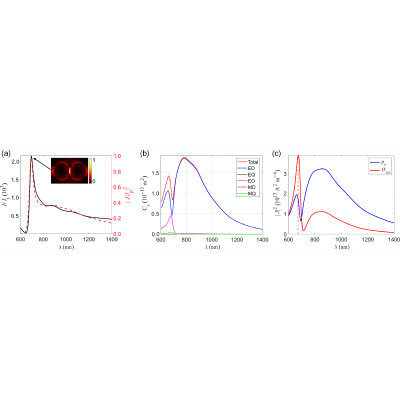

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (45)

  1. S. A. Maier et al., Plasmonics: Fundamentals and Applications (Springer, New York, 2007), Vol. 1.
  2. V. Amendola, R. Pilot, M. Frasconi, O. M. Maragò, and M. A. Iatì, Surface plasmon resonance in gold nanoparticles: A review, J. Phys.: Condens. Matter 29, 203002 (2017).
  3. E. Hutter and J. H. Fendler, Exploitation of localized surface plasmon resonance, Adv. Mater. 16, 1685 (2004).
  4. A. J. Haes, L. Chang, W. L. Klein, and R. P. Van Duyne, Detection of a biomarker for alzheimer’s disease from synthetic and clinical samples using a nanoscale optical biosensor, J. Am. Chem. Soc. 127, 2264 (2005).
  5. S. Nie and S. R. Emory, Probing single molecules and single nanoparticles by surface-enhanced Raman scattering, Science 275, 1102 (1997).
  6. T. Endo, K. Kerman, N. Nagatani, Y. Takamura, and E. Tamiya, Label-free detection of peptide nucleic acid-DNA hybridization using localized surface plasmon resonance based optical biosensor, Anal. Chem. 77, 6976 (2005).
  7. G. Raschke, S. Kowarik, T. Franzl, C. Sönnichsen, T. Klar, J. Feldmann, A. Nichtl, and K. Kürzinger, Biomolecular recognition based on single gold nanoparticle light scattering, Nano Lett. 3, 935 (2003).
  8. A. J. Haes and R. P. Van Duyne, A unified view of propagating and localized surface plasmon resonance biosensors, Anal. Bioanal. Chem. 379, 920 (2004).
  9. E. Petryayeva and U. J. Krull, Localized surface plasmon resonance: Nanostructures, bioassays and biosensing—A review, Anal. Chim. Acta 706, 8 (2011).
  10. K. T. Carron, W. Fluhr, M. Meier, A. Wokaun, and H. Lehmann, Resonances of two-dimensional particle gratings in surface-enhanced Raman scattering, J. Opt. Soc. Am. B 3, 430 (1986).
  11. V. G. Kravets, A. V. Kabashin, W. L. Barnes, and A. N. Grigorenko, Plasmonic surface lattice resonances: a review of properties and applications, Chem. Rev. 118, 5912 (2018).
  12. S. Zou and G. C. Schatz, Silver nanoparticle array structures that produce giant enhancements in electromagnetic fields, Chem. Phys. Lett. 403, 62 (2005).
  13. M. S. Bin-Alam, O. Reshef, Y. Mamchur, M. Z. Alam, G. Carlow, J. Upham, B. T. Sullivan, J.-M. Ménard, M. J. Huttunen, R. W. Boyd et al., Ultra-high-Q resonances in plasmonic metasurfaces, Nat. Commun. 12, 974 (2021).
  14. A. E. Miroshnichenko, S. Flach, and Y. S. Kivshar, Fano resonances in nanoscale structures, Rev. Mod. Phys. 82, 2257 (2010).
  15. Q. Le-Van, E. Zoethout, E.-J. Geluk, M. Ramezani, M. Berghuis, and J. Gómez Rivas, Enhanced quality factors of surface lattice resonances in plasmonic arrays of nanoparticles, Adv. Opt. Mater. 7, 1801451 (2019).
  16. R. Kolkowski and A. Shevchenko, Enabling infinite Q factors in absorbing optical systems, Nanophotonics 12, 3443 (2023).
  17. X. Zang and A. Shevchenko, Near-field enhancement by waveguide-plasmon polaritons in a nonlocal metasurface, New J. Phys. 25, 113024 (2023).
  18. S. Rodriguez and J. G. Rivas, Surface lattice resonances strongly coupled to Rhodamine 6G excitons: Tuning the plasmon-exciton-polariton mass and composition, Opt. Express 21, 27411 (2013).
  19. S. Sadeghi, W. Wing, and Q. Campbell, Tunable plasmonic-lattice mode sensors with ultrahigh sensitivities and figure-of-merits, J. Appl. Phys. 119, 243105 (2016).
  20. Y. Shi, Y. Dong, D. Sun, and G. Li, Significant near-field enhancement over large volumes around metal nanorods via strong coupling of surface lattice resonances and Fabry–Pérot resonance, Materials 15, 1523 (2022).
  21. D. C. Hooper, C. Kuppe, D. Wang, W. Wang, J. Guan, T. W. Odom, and V. K. Valev, Second harmonic spectroscopy of surface lattice resonances, Nano Lett. 19, 165 (2018).
  22. B. D. Thackray, V. G. Kravets, F. Schedin, G. Auton, P. A. Thomas, and A. N. Grigorenko, Narrow collective plasmon resonances in nanostructure arrays observed at normal light incidence for simplified sensing in asymmetric air and water environments, ACS Photonics 1, 1116 (2014).
  23. M. J. Huttunen, P. Rasekh, R. W. Boyd, and K. Dolgaleva, Using surface lattice resonances to engineer nonlinear optical processes in metal nanoparticle arrays, Phys. Rev. A 97, 053817 (2018).
  24. L. Michaeli, S. Keren-Zur, O. Avayu, H. Suchowski, and T. Ellenbogen, Nonlinear surface lattice resonance in plasmonic nanoparticle arrays, Phys. Rev. Lett. 118, 243904 (2017).
  25. R. Czaplicki, A. Kiviniemi, M. J. Huttunen, X. Zang, T. Stolt, I. Vartiainen, J. Butet, M. Kuittinen, O. J. Martin, and M. Kauranen, Less is more: Enhancement of second-harmonic generation from metasurfaces by reduced nanoparticle density, Nano Lett. 18, 7709 (2018).
  26. T. Hakala, H. Rekola, A. Väkeväinen, J.-P. Martikainen, M. Nečada, A. Moilanen, and P. Törmä, Lasing in dark and bright modes of a finite-sized plasmonic lattice, Nat. Commun. 8, 13687 (2017).
  27. D. Wang, M. R. Bourgeois, J. Guan, A. K. Fumani, G. C. Schatz, and T. W. Odom, Lasing from finite plasmonic nanoparticle lattices, ACS Photonics 7, 630 (2020).
  28. R. Adato, A. A. Yanik, J. J. Amsden, D. L. Kaplan, F. G. Omenetto, M. K. Hong, S. Erramilli, and H. Altug, Ultra-sensitive vibrational spectroscopy of protein monolayers with plasmonic nanoantenna arrays, Proc. Natl. Acad. Sci. 106, 19227 (2009).
  29. Y.-J. Oh, M. Kang, M. Park, and K.-H. Jeong, Engineering hot spots on plasmonic nanopillar arrays for SERS: A review, Biochip. J. 10, 297 (2016).
  30. J. Theiss, P. Pavaskar, P. M. Echternach, R. E. Muller, and S. B. Cronin, Plasmonic nanoparticle arrays with nanometer separation for high-performance SERS substrates, Nano Lett. 10, 2749 (2010).
  31. T. G. Habteyes, S. Dhuey, S. Cabrini, P. J. Schuck, and S. R. Leone, Theta-shaped plasmonic nanostructures: Bringing “dark” multipole plasmon resonances into action via conductive coupling, Nano Lett. 11, 1819 (2011).
  32. T. Bauer, S. Orlov, G. Leuchs, and P. Banzer, Towards an optical far-field measurement of higher-order multipole contributions to the scattering response of nanoparticles, Appl. Phys. Lett. 106, 091108 (2015).
  33. S. Sehrawat and A. Shevchenko, Octupole plasmon resonance improves light enhancement by a metal nanodimer, Opt. Lett. 49, 3432 (2024).
  34. S. Sehrawat and A. Shevchenko, Near-field enhancement of light by higher-order multipole excitations in a metal nanodisc trimer, Opt. Express 32, 37624 (2024).
  35. S. Sehrawat, R. Kolkowski, and A. Shevchenko, Hybridization of electromagnetic multipoles in a nanoscatterer in the presence of another nanoscatterer, New J. Phys. 26, 023050 (2024).
  36. P. Grahn, A. Shevchenko, and M. Kaivola, Electromagnetic multipole theory for optical nanomaterials, New J. Phys. 14, 093033 (2012).
  37. P. Grahn, A. Shevchenko, and M. Kaivola, Multipole polarizability of a nanodimer in optical waves, J. Eur. Opt. Soc.-Rapid Publ. 8, 13009 (2013).
  38. L. Qin, S. Zou, C. Xue, A. Atkinson, G. C. Schatz, and C. A. Mirkin, Designing, fabricating, and imaging Raman hot spots, Proc. Nat. Acad. Sci. 103, 13300 (2006).
  39. A. Shevchenko, V. Ovchinnikov, and A. Shevchenko, Large-area nanostructured substrates for surface enhanced Raman spectroscopy, Appl. Phys. Lett. 100, 171913 (2012).
  40. M. Rycenga, P. H. Camargo, W. Li, C. H. Moran, and Y. Xia, Understanding the SERS effects of single silver nanoparticles and their dimers, one at a time, J. Phys. Chem. Lett. 1, 696 (2010).
  41. P. B. Johnson and R.-W. Christy, Optical constants of the noble metals, Phys. Rev. B 6, 4370 (1972).
  42. A. Han, J. V. Moloney, and V. E. Babicheva, Applicability of multipole decomposition to plasmonic-and dielectric-lattice resonances, J. Chem. Phys. 156, 114104 (2022).
  43. B. Luk’Yanchuk, N. I. Zheludev, S. A. Maier, N. J. Halas, P. Nordlander, H. Giessen, and C. T. Chong, The Fano resonance in plasmonic nanostructures and metamaterials, Nat. Mater. 9, 707 (2010).
  44. R. Kolkowski, T. K. Hakala, A. Shevchenko, and M. J. Huttunen, Nonlinear nonlocal metasurfaces, Appl. Phys. Lett. 122, 161103 (2023).
  45. L. Novotny and B. Hecht, Principles of Nano-optics (Cambridge University Press, Cambridge, 2012).

Outline

Information

Phys. Rev. Applied 24, 064031– Published 9 December, 2025
  • Received 25 August 2025
  • Revised 31 October 2025
  • Accepted 18 November 2025
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.
