How geometry tames disorder in lattice fracture

Matthaios Chouzouris1,*, Leo de Waal1,2, Antoine Sanner3, Alessandra Lingua3, David S. Kammer3, and Marcelo A. Dias1,†

  • 1Institute for Infrastructure and Environment, School of Engineering, University of Edinburgh, Edinburgh EH9 3FG, United Kingdom
  • 2Faculty of Engineering Sciences, University College London, London WC1E 7JE, United Kingdom
  • 3Institute for Building Materials, ETH Zurich, 8093 Zurich, Switzerland

  • *Contact author: m.chouzouris@sms.ed.ac.uk
  • †Contact author: mdias@ed.ac.uk
PDF

Phys. Rev. Applied 26, 014011 – Published 6 July, 2026

DOI: https://doi.org/10.1103/634w-nkwl

Abstract

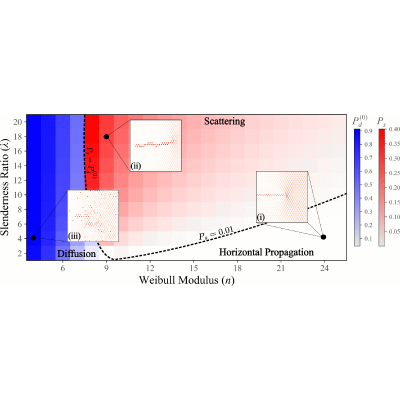

We investigate the fracture behavior of precracked triangular beam lattices whose elements have failure stresses drawn from a Weibull distribution. Through a statistical analysis and numerical simulations, we identify and verify the existence of three distinct failure regimes: (i) disorder is effectively suppressed, (ii) disorder manifests locally near the crack tip, modifying the crack morphology, and (iii) disorder manifests globally, leading to initially diffuse failure. Our model naturally reveals the key parameters governing this behavior: the Weibull modulus, quantifying the spread in failure thresholds, and a geometric quantity termed the slenderness ratio. We also reproduce the disorder-induced toughening reported in previous experimental and numerical studies, further demonstrating that its manifestation depends nonmonotonically on disorder. Crucially, our results indicate that this toughening cannot be simply connected to the amount of damage in the lattice, challenging interpretations that attribute increased fracture energy solely to enhanced crack tortuosity or diffuse failure. Overall, our results establish geometry as a powerful control parameter for regulating how disorder is expressed during fracture in beam lattices, with broader implications for the disorder-induced toughening in engineered materials.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (48)

  1. X. Zheng et al., Ultralight, ultrastiff mechanical metamaterials, Science 344, 1373 (2014).
  2. Y. Lyu, X. Song, H. Wang, and J. Jiang, A novel mechanical metamaterial with tunable stiffness and individually adjustable Poisson’s ratio, Mater. Today Commun. 40, 110135 (2024).
  3. R. Schwaiger, L. R. Meza, and X. Li, The extreme mechanics of micro- and nanoarchitected materials, MRS Bull. 44, 758 (2019).
  4. A. Rafsanjani and D. Pasini, Bistable auxetic mechanical metamaterials inspired by ancient geometric motifs, Extreme Mech. Lett. 9, 291 (2016).
  5. H. Zhang, X. Guo, J. Wu, D. Fang, and Y. Zhang, Soft mechanical metamaterials with unusual swelling behavior and tunable stress-strain curves, Sci. Adv. 4, eaar8535 (2018).
  6. L. de Waal, M. Chouzouris, and M. A. Dias, Cracking down on fracture to functionalize damage, Phys. Rev. Lett. 135, 148202 (2025).
  7. M. R. Khosravani, D. Anders, M. R. Ayatollahi, and T. Reinicke, Fabrication of mechanical metamaterials by 3D printing: Recent advancements and current challenges, Arch. Civil Mech. Eng. 25, 244 (2025).
  8. H. Masuo, Y. Tanaka, S. Morokoshi, H. Yagura, T. Uchida, Y. Yamamoto, and Y. Murakami, Influence of defects, surface roughness and hip on the fatigue strength of Ti-6Al-4 V manufactured by additive manufacturing, Int. J. Fatigue 117, 163 (2018).
  9. B. C. d. S. Silva, B. Callegari, L. F. Seixas, M. Król, W. Sitek, G. Matula, Ł. Krzemiński, R. S. Coelho, and G. F. Batalha, Investigation of distortion, porosity and residual stresses in internal channels fabricated in maraging 300 steel by laser powder bed fusion, Materials 18, 1019 (2025).
  10. J. Lertthanasarn, C. Liu, and M.-S. Pham, Mechanical behaviour of additively manufactured Ti6Al4V meta-crystals containing multi-scale hierarchical lattice structures, arXiv:2011.14201.
  11. A. Shekhawat, S. Zapperi, and J. P. Sethna, From damage percolation to crack nucleation through finite size criticality, Phys. Rev. Lett. 110, 185505 (2013).
  12. P. Ziemke, O. Finney, R. G. Chambers, R. Thiraux, L. Valdevit, and M. R. Begley, The defect sensitivity of brittle truss-based metamaterials, Mater. Des. 239, 112776 (2024).
  13. S. Fulco, P. K. Purohit, M. K. Budzik, and K. T. Turner, Fracture of disordered and stochastic lattice materials, arXiv:2508.21187.
  14. C. Urabe and S. Takesue, Fracture toughness and maximum stress in a disordered lattice system, Phys. Rev. E 82, 016106 (2010).
  15. S. Fulco, M. K. Budzik, H. Xiao, D. J. Durian, and K. T. Turner, Disorder enhances the fracture toughness of 2D mechanical metamaterials, PNAS Nexus 4, pgaf023 (2025).
  16. C. M. Hartquist, S. Wang, B. Deng, H. K. Beech, S. L. Craig, B. D. Olsen, M. Rubinstein, and X. Zhao, Fracture of polymer-like networks with hybrid bond strengths, J. Mech. Phys. Solids 195, 105931 (2025).
  17. M. J. Alava, P. K. V. V. Nukala, and S. Zapperi, Role of disorder in the size scaling of material strength, Phys. Rev. Lett. 100, 055502 (2008).
  18. L. de Waal, M. Chouzouris, and M. A. Dias, Architecting mechanisms of damage in topological metamaterials, Phys. Rev. Res. 7, 033177 (2025).
  19. W. Weibull, A statistical theory of the strength of materials, in Ingeniörs vetenskapsakademiens handlingar (Generalstabens litografiska anstalts förlag, Stockholm, 1939), oCLC: 30416455
  20. Z. Bertalan, A. Shekhawat, J. P. Sethna, and S. Zapperi, Fracture strength: Stress concentration, extreme value statistics, and the fate of the Weibull distribution, Phys. Rev. Appl. 2, 034008 (2014).
  21. A. Sanner, L. Michel, A. Lingua, and D. S. Kammer, Less is more: Removing a single bond increases the toughness of elastic networks, Int. J. Fract. 249, 1 (2025).
  22. Y. Charles and F. Hild, On crack arrest in ceramic/metal assemblies, Int. J. Fract. 115, 251 (2002).
  23. W. A. Curtin and K. Futamura, Microcrack toughening?, Acta. Metall. Mater. 38, 2051 (1990).
  24. D. A. Head, A. J. Levine, and F. C. MacKintosh, Deformation of cross-linked semiflexible polymer networks, Phys. Rev. Lett. 91, 108102 (2003).
  25. Y. Zhang, Z. Lu, Z. Yang, and D. Zhang, Fracture behavior of fibrous network materials: Crack insensitivity and toughening mechanism, Int. J. Mech. Sci. 188, 105910 (2020).
  26. W. Weihull, A statistical distribution function of wide applicability, J. Appl. Mech. 18, 293 (1951).
  27. S. P. Timoshenko and J. M. Gere, Theory of Elastic Stability (McGraw-Hill, New York, New York, USA, 2012).
  28. A. Andrieu, A. Pineau, J. Besson, D. Ryckelynck, and O. Bouaziz, Beremin model: Methodology and application to the prediction of the Euro toughness data set, Eng. Fract. Mech. 95, 102 (2012).
  29. K. G. Wilson, The renormalization group: Critical phenomena and the kondo problem, Rev. Mod. Phys. 47, 773 (1975).

  30. A renormalization can also be performed considering a different σ¯ at each location (exp[−(1/V0)∫V(σ¯(r)/σ0)nd3r]), which would just lead to a different definition of σ¯B, but the same qualitative result. We avoid it to declutter the notation.

  31. C. P. Andrasic and A. P. Parker, Dimensionless stress intensity factors for cracked thick cylinders under polynomial crack face loadings, Eng. Fract. Mech. 19, 187 (1984).
  32. N. A. Fleck and X. M. Qiu, The damage tolerance of elastic–brittle, two-dimensional isotropic lattices, J. Mech. Phys. Solids 55, 562 (2007).
  33. K. Berkache, S. Phani, and J.-F. Ganghoffer, Micropolar effects on the effective elastic properties and elastic fracture toughness of planar lattices, Eur. J. Mech. A/Solids 93, 104489 (2022).
  34. F. Murtagh and P. Contreras, Algorithms for hierarchical clustering: An overview, Wiley Interdisip. Rev.: Data Min. Knowl. Discovery 2, 86 (2012).
  35. X. Li, L. Men, Y. Yu, Z. Hou, and Z. Wang, Specimen size effect on the fracture energy of architected stretchable materials, Int. J. Smart Nano Mater. 14, 420 (2023).
  36. R. C. Picu, Mechanics of random fiber networks–a review, Soft Matter 7, 6768 (2011).
  37. W. Liu, H. Duan, and J. Lu, Damage scaling laws at crack tip in disordered materials, Phys. Rev. Lett. 136, 096102 (2026).
  38. P. Sreejith, K. Kannan, and K. R. Rajagopal, A thermodynamic framework for additive manufacturing, using amorphous polymers, capable of predicting residual stress, warpage and shrinkage, Int. J. Eng. Sci. 159, 103412 (2021).
  39. M. Issametova, N. V. Martyushev, A. Zhastalap, L. B. Sabirova, U. Assemgul, A. Tursynbayeva, and G. Abilezova, Determination of residual stresses in 3D-printed polymer parts, Polym. 16, 2067 (2024).
  40. K. Taherkhani, C. Eischer, and E. Toyserkani, An unsupervised machine learning algorithm for in-situ defect-detection in laser powder-bed fusion, J. Manufac. Process. 81, 476 (2022).
  41. E. Maleki, S. Bagherifard, M. Bandini, and M. Guagliano, Surface post-treatments for metal additive manufacturing: Progress, challenges, and opportunities, Addit. Manuf. 37, 101619 (2021).
  42. X. Yan, R. Lupoi, H. Wu, W. Ma, M. Liu, G. O’Donnell, and S. Yin, Effect of hot isostatic pressing (HIP) treatment on the compressive properties of Ti6Al4V lattice structure fabricated by selective laser melting, Mater. Lett. 255, 126537 (2019).
  43. M. Chouzouris, Simlad—simulator for lattice damage (2026), https://github.com/McHouzou/SimLaD.git.
  44. M. Chouzouris, L. de Waal, A. Sanner, and A. Lingua, How geometry tames disorder in lattice fracture: Data (2026), https://zenodo.org/records/18482638.
  45. E. Bitzek, P. Koskinen, F. Gähler, M. Moseler, and P. Gumbsch, Structural relaxation made simple, Phys. Rev. Lett. 97, 170201 (2006).
  46. J. Guénolé, W. G. Nöhring, A. Vaid, F. Houllé, Z. Xie, A. Prakash, and E. Bitzek, Assessment and optimization of the fast inertial relaxation engine (fire) for energy minimization in atomistic simulations and its implementation in lammps, Comput. Mater. Sci. 175, 109584 (2020).
  47. S. Luan, E. Chen, and S. Gaitanaros, Energy-based fracture mechanics of brittle lattice materials, J. Mech. Phys. Solids 169, 105093 (2022).
  48. A. Lingua, A. Sanner, F. Hild, and D. Kammer, Breaking better: Imperfections increase fracture resistance in architected lattices, arXiv: 2504.08873.
