Time-resolved characterization of pulsed squeezed light from a strongly driven silicon nitride microresonator

Emanuele Brusaschi1,*, Marco Liscidini1, Matteo Galli1, Daniele Bajoni2, and Massimo Borghi1

  • *Contact author: emanuele.brusaschi01@universitadipavia.it
PDF

Phys. Rev. Applied 25, 034008 – Published 3 March, 2026

DOI: https://doi.org/10.1103/37rx-fzfp

Abstract

Silicon nitride microresonators driven by strong pump pulses can generate squeezed light in a dominant spectral-temporal mode, a central resource for continuous-variable quantum computation. In the high parametric gain regime, several effects, including self- and cross-phase modulation as well as time-ordering corrections, become significant and can degrade source performance. In this work, we comprehensively investigate the generation of squeezed light from a silicon nitride resonator under pulsed pumping, spanning from low to high parametric gain up to approximately 16 photons/pulse. We experimentally study how the average photon number and the first- and second-order correlations of the squeezed marginal modes evolve with increasing pulse energy, across various frequency detunings and pulse durations. Furthermore, we analyze the errors introduced by multipair emissions in estimating the joint temporal intensity via time-resolved coincidence measurements. We propose and demonstrate an error-correction strategy based on the marginal distributions of time-resolved multiphoton events. Our results provide a practical strategy for optimizing the gain and the temporal mode structure of pulsed squeezed light sources in microresonators, elucidating the physical mechanisms and limitations that govern source performance in the high-gain regime.

View figure in article

Physics Subject Headings (PhySH)

Corrections

5 October, 2026

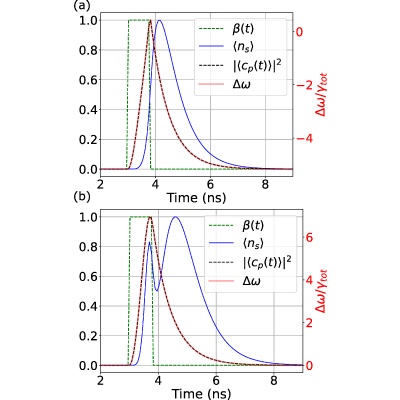

Correction: Figures 3(a) and 3(b) mistakenly displayed the same graph and have been replaced.

Article Text

References (40)

  1. U. L. Andersen, T. Gehring, C. Marquardt, and G. Leuchs, 30 years of squeezed light generation, Phys. Scr. 91, 053001 (2016).
  2. C. Weedbrook, S. Pirandola, R. García-Patrón, N. J. Cerf, T. C. Ralph, J. H. Shapiro, and S. Lloyd, Gaussian quantum information, Rev. Mod. Phys. 84, 621 (2012).
  3. H. Aghaee Rad, T. Ainsworth, R. Alexander, B. Altieri, M. Askarani, R. Baby, L. Banchi, B. Baragiola, J. Bourassa, R. Chadwick et al., Scaling and networking a modular photonic quantum computer, Nature 638, 912 (2025).
  4. K. Alexander, A. Benyamini, D. Black, D. Bonneau, S. Burgos, B. Burridge, H. Cable, G. Campbell, G. Catalano, A. Ceballos et al., A manufacturable platform for photonic quantum computing, Nature 641, 876 (2025).
  5. L. Caspani, C. Xiong, B. J. Eggleton, D. Bajoni, M. Liscidini, M. Galli, R. Morandotti, and D. J. Moss, Integrated sources of photon quantum states based on nonlinear optics, Light: Sci. Appl. 6, e17100 (2017).
  6. Y. Zhang, M. Menotti, K. Tan, V. Vaidya, D. Mahler, L. Helt, L. Zatti, M. Liscidini, B. Morrison, and Z. Vernon, Squeezed light from a nanophotonic molecule, Nat. Commun. 12, 2233 (2021).
  7. A. E. Ulanov, B. Ruhnke, T. Wildi, and T. Herr, Quadrature squeezing in a nanophotonic microresonator, Nat. Commun. 16, 10791 (2025).
  8. Y. Shen, P.-Y. Hsieh, S. K. Sridhar, S. Feldman, Y.-C. Chang, T. A. Smith, and A. Dutt, Strong nanophotonic quantum squeezing exceeding 3.5 dB in a foundry-compatible Kerr microresonator, Optica 12, 302 (2025).
  9. Y. Shen, P.-Y. Hsieh, D. Srinivasan, A. Henry, G. Moille, S. K. Sridhar, A. Restelli, Y.-C. Chang, K. Srinivasan, T. A. Smith et al., Highly squeezed nanophotonic quantum microcombs with broadband frequency tunability, arXiv preprint arXiv:2505.03734.
  10. M. Larsen, J. Bourassa, S. Kocsis, J. Tasker, R. Chadwick, C. González-Arciniegas, J. Hastrup, C. Lopetegui-González, F. Miatto, A. Motamedi et al., Integrated photonic source of Gottesman–Kitaev–Preskill qubits, Nature 642, 587 (2025).
  11. M. Jahanbozorgi, Z. Yang, S. Sun, H. Chen, R. Liu, B. Wang, and X. Yi, Generation of squeezed quantum microcombs with silicon nitride integrated photonic circuits, Optica 10, 1100 (2023).
  12. X. Jia, C. Zhai, X. Zhu, C. You, Y. Cao, X. Zhang, Y. Zheng, Z. Fu, J. Mao, T. Dai et al., Continuous-variable multipartite entanglement in an integrated microcomb, Nature 639, 329 1 (2025).
  13. É. Gouzien, L. Labonté, J. Etesse, A. Zavatta, S. Tanzilli, V. d’Auria, and G. Patera, Hidden and detectable squeezing from microresonators, Phys. Rev. Res. 5, 023178 (2023).
  14. Z. Wang, K. Li, Y. Wang, X. Zhou, Y. Cheng, B. Jing, F. Sun, J. Li, Z. Li, B. Wu et al., Large-scale cluster quantum microcombs, Light: Sci. Appl. 14, 164 (2025).
  15. N. Quesada, L. Helt, M. Menotti, M. Liscidini, and J. Sipe, Beyond photon pairs—nonlinear quantum photonics in the high-gain regime: A tutorial, Adv. Opt. Photonics 14, 291 (2022).
  16. M. Sloan, A. Viola, M. Liscidini, and J. Sipe, High-gain squeezing in lossy resonators: An asymptotic-field approach, Phys. Rev. A 111, 063502 (2025).
  17. C. Vendromin, Y. Liu, Z. Yang, and J. E. Sipe, Highly squeezed states in ring resonators: Beyond the undepleted-pump approximation, Phys. Rev. A 110, 033709 (2024).
  18. Z. Vernon and J. E. Sipe, Strongly driven nonlinear quantum optics in microring resonators, Phys. Rev. A 92, 033840 (2015).
  19. Z. Vernon, N. Quesada, M. Liscidini, B. Morrison, M. Menotti, K. Tan, and J. Sipe, Scalable squeezed-light source for continuous-variable quantum sampling, Phys. Rev. Appl. 12, 064024 (2019).
  20. M. A. Guidry, D. M. Lukin, K. Y. Yang, R. Trivedi, and J. Vučković, Quantum optics of soliton microcombs, Nat. Photonics 16, 52 (2022).
  21. S. Ramelow, A. Farsi, Z. Vernon, S. Clemmen, X. Ji, J. Sipe, M. Liscidini, M. Lipson, and A. L. Gaeta, Strong nonlinear coupling in a Si3N4 ring resonator, Phys. Rev. Lett. 122, 153906 (2019).
  22. Y. Kim, S. Jeon, and Y.-I. Sohn, Simulating quantum light in lossy microring resonators driven by strong pulses, Phys. Rev. Appl. 23, 054045 (2025).
  23. C. Cui, C. N. Gagatsos, S. Guha, and L. Fan, High-purity pulsed squeezing generation with integrated photonics, Phys. Rev. Res. 3, 013199 (2021).
  24. J. M. Arrazola, V. Bergholm, K. Brádler, T. R. Bromley, M. J. Collins, I. Dhand, A. Fumagalli, T. Gerrits, A. Goussev, L. G. Helt et al., Quantum circuits with many photons on a programmable nanophotonic chip, Nature 591, 54 (2021).
  25. M. M. Dignam and M. Liscidini, Modeling and optimization of pulsed-squeezed-state generation in a ring-resonator system, Phys. Rev. A 112, 013710 (2025).
  26. M. Banic, L. Zatti, M. Liscidini, and J. Sipe, Two strategies for modeling nonlinear optics in lossy integrated photonic structures, Phys. Rev. A 106, 043707 (2022).
  27. E. Brusaschi, M. Borghi, M. Bacchi, M. Liscidini, M. Galli, and D. Bajoni, Photon number distribution of squeezed light from a silicon nitride microresonator measured without photon number resolving detectors, Opt. Quantum 2, 214 (2024).
  28. J. Johansson, P. Nation, and F. Nori, Qutip: An open-source python framework for the dynamics of open quantum systems, Comput. Phys. Commun. 183, 1760 (2012).
  29. B. D. Stone, L. Rukh, G. M. Colación, and T. E. Drake, Reduction of thermal instability of soliton states in coupled Kerr-microresonators, APL Photonics 10, 051301 (2025).
  30. A. Christ, K. Laiho, A. Eckstein, K. N. Cassemiro, and C. Silberhorn, Probing multimode squeezing with correlation functions, New J. Phys. 13, 033027 (2011).
  31. K. Laiho, T. Dirmeier, M. Schmidt, S. Reitzenstein, and C. Marquardt, Measuring higher-order photon correlations of faint quantum light: A short review, Phys. Lett. A 435, 128059 (2022).
  32. M. Borghi, P. L. Pagano, M. Liscidini, D. Bajoni, and M. Galli, Uncorrelated photon pair generation from an integrated silicon nitride resonator measured by time-resolved coincidence detection, Opt. Lett. 49, 3966 (2024).
  33. J. B. Christensen, J. G. Koefoed, K. Rottwitt, and C. McKinstrie, Engineering spectrally unentangled photon pairs from nonlinear microring resonators by pump manipulation, Opt. Lett. 43, 859 (2018).
  34. R. Loudon, The Quantum Theory of Light, 3rd ed. (Oxford University Press, Oxford, 2000).
  35. A. Christ, B. Brecht, W. Mauerer, and C. Silberhorn, Theory of quantum frequency conversion and type-II parametric down-conversion in the high-gain regime, New J. Phys. 15, 053038 (2013).
  36. G. Triginer, M. D. Vidrighin, N. Quesada, A. Eckstein, M. Moore, W. S. Kolthammer, J. Sipe, and I. A. Walmsley, Understanding high-gain twin-beam sources using cascaded stimulated emission, Phys. Rev. X 10, 031063 (2020).
  37. Z. Vernon, M. Menotti, C. Tison, J. Steidle, M. Fanto, P. Thomas, S. Preble, A. Smith, P. Alsing, M. Liscidini et al., Truly unentangled photon pairs without spectral filtering, Opt. Lett. 42, 3638 (2017).
  38. G. J. Székely and M. L. Rizzo, Testing for equal distributions in high dimension, InterStat 5, 1249 (2004).
  39. J. N. Q. Mejia, Very Nonlinear Quantum Optics (University of Toronto, Canada, 2015).
  40. S. Panda, S. Palaniappan, J. Xiong, E. W. Bridgeford, R. Mehta, C. Shen, and J. T. Vogelstein, hyppo: A multivariate hypothesis testing python package, arXiv preprint arXiv:1907.02088.
