Electrostatic self-energy of a uniformly charged regular polygon: Exact reduction, closed-form expressions, and convergence to the disk

J. Batle1,* and O. Ciftja2,†

  • 1CRISP—Centre de Recerca Independent de sa Pobla, E-07420 sa Pobla, Mallorca, Spain
  • 2Department of Physics, Prairie View A&M University, Prairie View, Texas 77446, USA

  • *Contact author: batlequantum@gmail.com
  • †Contact author: ogciftja@pvamu.edu
PDF

APS Open Sci. 1, 000183 – Published 23 October, 2026

DOI: https://doi.org/10.1103/c72v-54h8

Abstract

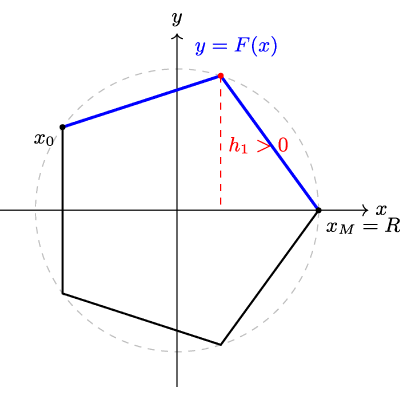

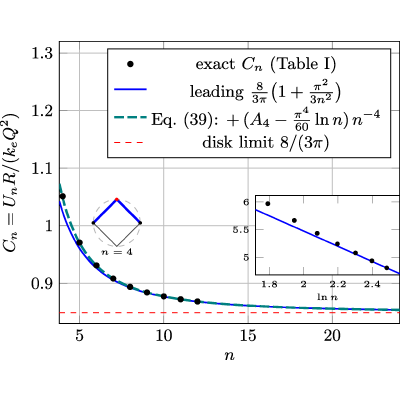

We evaluate the electrostatic self-energy of a uniformly charged regular polygon, treated as a planar charge distribution embedded in three-dimensional space and interacting through the Coulomb potential. By exploiting the piecewise-linear nature of the boundary, the four-dimensional Coulomb integral can be reduced exactly to a finite sum of elementary sector contributions that is valid for any number of sides. This construction leads to closed-form expressions for the uniformly charged triangle, square, pentagon, and hexagon. The pentagon result, although involving a quartic number field, is remarkably compact. As the number of sides increases, the energy decreases monotonically toward the corresponding value for a uniformly charged disk. A boundary-perturbation analysis gives the leading relative correction, which decreases as the inverse square of the number of sides. The second variation of the energy produces a nonanalytic correction proportional to the inverse fourth power of the number of sides multiplied by its logarithm. This term provides a direct signature of the polygonal corners. The arithmetic structure of the exact results also explains why compact closed forms cease to be available beyond the uniformly charged hexagon. All results are validated by high-precision numerical calculations and provide useful benchmarks for studies of confined two-dimensional Coulomb systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. J. C. Maxwell, A Treatise on Electricity and Magnetism (Clarendon Press, Oxford, 1873), Vol. 1.
  2. J. D. Jackson, Classical Electrodynamics, 3rd ed. (John Wiley and Sons, New York, 1999).
  3. W. R. Smythe, Static and Dynamic Electricity, 3rd ed. (McGraw-Hill, New York, 1968).
  4. D. J. Griffiths, Introduction to Electrodynamics, 3rd ed. (Prentice Hall, New Jersey, 1999).
  5. F. R. Zypman, Off-axis electric field of a ring of charge, Am. J. Phys. 74, 295 (2006).
  6. H. R. Noh, Electrostatic potential of a charged ring: Applications to elliptic integral identities, J. Korean Phys. Soc. 71, 37 (2017).
  7. V. Bochko and Z. K. Silagadze, On the electrostatic potential and electric field of a uniformly charged disk, Eur. J. Phys. 41, 045201 (2020).
  8. J. Lekner, Electrostatics of two charged conducting spheres, Proc. R. Soc. A 468, 2829 (2012).
  9. Y.-K. Yu, Electrostatics of charged dielectric spheres with application to biological systems. III. Rigorous ionic screening at the Debye-Hückel level, Phys. Rev. E 102, 052404 (2020).
  10. T. LaFave, Jr., Correspondences between the classical electrostatic Thomson problem and atomic electronic structure, J. Electrost. 71, 1029 (2013).
  11. W. J. Atkinson, J. H. Young, and I. A. Brezovich, An analytic solution for the potential due to a circular parallel plate capacitor, J. Phys. A: Math. Gen. 16, 2837 (1983).
  12. D. F. Bartlett and T. R. Corle, The circular parallel plate capacitor: A numerical solution for the potential, J. Phys. A: Math. Gen. 18, 1337 (1985).
  13. G. Hummer, Electrostatic potential of a homogeneously charged square and cube in two and three dimensions, J. Electrost. 36, 285 (1996).
  14. G. Paffuti, Numerical and analytical results for the two discs capacitor problem, Proc. R. Soc. A 473, 20160792 (2017).
  15. R. Beringer, Coulomb self-energy of axial figures, Phys. Rev. 131, 1402 (1963).
  16. V. Jadhao, Z. Yao, C. K. Thomas, and M. O. de la Cruz, Coulomb energy of uniformly charged spheroidal shell systems, Phys. Rev. E 91, 032305 (2015).
  17. O. Ciftja, Coulomb self-energy and electrostatic potential of a uniformly charged square in two dimensions, Phys. Lett. A 374, 981 (2010).
  18. J. Batle, O. Ciftja, M. Naseri, M. Ghoranneviss, A. Farouk, and M. Elhoseny, Equilibrium and uniform charge distribution of a classical two-dimensional system of point charges with hard-wall confinement, Phys. Scr. 92, 055801 (2017).
  19. V. M. Bedanov and F. M. Peeters, Ordering and phase transitions of charged particles in a classical finite two-dimensional system, Phys. Rev. B 49, 2667 (1994).
  20. O. Ciftja, Coulomb self-energy of a uniformly charged three-dimensional cube, Phys. Lett. A 375, 766 (2011).
  21. O. Ciftja, Quantitative analysis of shape-sensitive interaction of a charged nanoplate and a charged nanowire, Nano 10, 1550114 (2015).
  22. O. Ciftja, Stored Coulomb self-energy of a uniformly charged rectangular plate, Adv. Math. Phys. 2016, 7207536 (2016).
  23. O. Ciftja, Understanding electronic systems in semiconductor quantum dots, Phys. Scr. 88, 058302 (2013).
  24. R. Bubeck, P. Leiderer, and C. Bechinger, Fluctuation-induced order in two-dimensional colloidal clusters, Europhys. Lett. 60, 474 (2002).
  25. J. A. Morrison and J. A. Lewis, Charge singularity at the corner of a flat plate, SIAM J. Appl. Math. 31, 233 (1976).
  26. D. K. Reitan and T. J. Higgins, Accurate determination of the capacitance of a thin rectangular plate, Trans. Am. Inst. Electr. Eng. Part I 75, 761 (1957).
  27. F. H. Read, Improved extrapolation technique in the boundary element method to find the capacitances of the unit square and cube, J. Comput. Phys. 133, 1 (1997).
  28. F. H. Read, Capacitances and singularities of the unit triangle, square, tetrahedron and cube, COMPEL 23, 572 (2004).
  29. The mpmath development team, Mpmath: A Python library for arbitrary-precision floating-point arithmetic, version 1.3, 2023, https://mpmath.org.
  30. H. Takahasi and M. Mori, Double exponential formulas for numerical integration, Publ. Res. Inst. Math. Sci. 9, 721 (1974).
  31. H. R. P. Ferguson, D. H. Bailey, and S. Arno, Analysis of PSLQ, an integer relation finding algorithm, Math. Comp. 68, 351 (1999).
