Machine-learning-assisted characterization of labyrinthine pattern transitions

Kotaro Shimizu1,2,*, Vinicius Yu Okubo3, Rose Knight1, Ziyuan Wang1, Joseph Burton1, Hae Yong Kim3, Gia-Wei Chern1, and B. S. Shivaram1

  • *Contact author: shimizu@ap.t.u-tokyo.ac.jp
PDF

APS Open Sci. 1, 000105 – Published 24 August, 2026

DOI: https://doi.org/10.1103/7srq-cz52

Abstract

Labyrinthine structures are ubiquitous in pattern-forming systems arising from a wide variety of physical, chemical, and biological processes. Yet, their characterization remains challenging due to the lack of long-range order and the resultant complicated morphologies. Here, we present an approach for characterizing labyrinthine patterns based on the identification and the correlation analysis of their topological defects. We employ advanced machine-learning-based-pattern-recognition techniques to identify the types and locations of topological defects of the local stripe ordering. Applying this method to single-crystal Bi-substituted yttrium iron garnet films, we uncover a distinct morphological transition between two zero-field labyrinthine structures. Crucially, the pair distribution functions of the topological defects reveal subtle differences between labyrinthine structures, which are not discernible from conventional global analysis. By systematically analyzing the spatial correlations and geometric properties of these defects, we provide insights into the athermal dynamics that govern the observed morphological transitions. Our work demonstrates that machine-learning-based recognition techniques enable systematic studies of rich and complex labyrinthine-type structures universal to many pattern-formation systems.

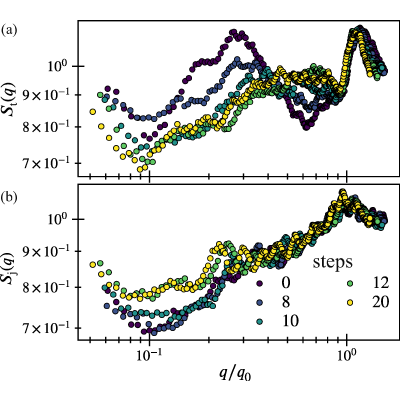

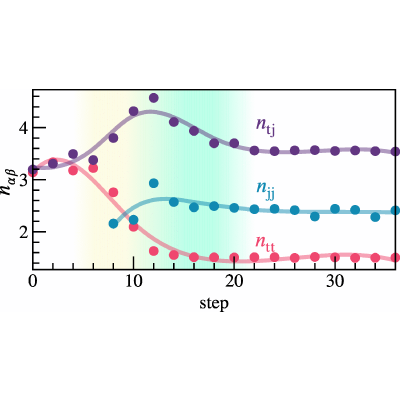

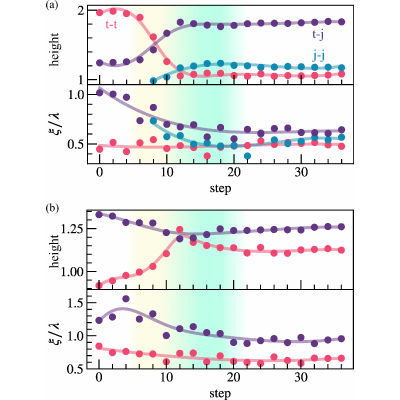

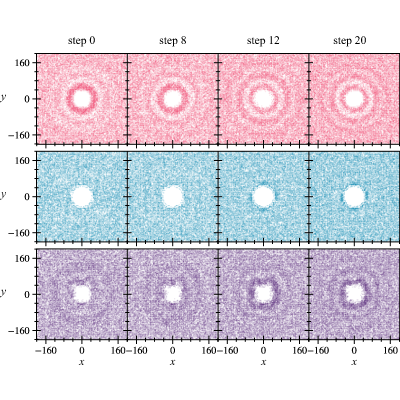

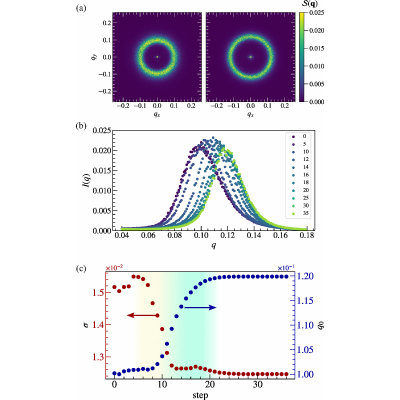

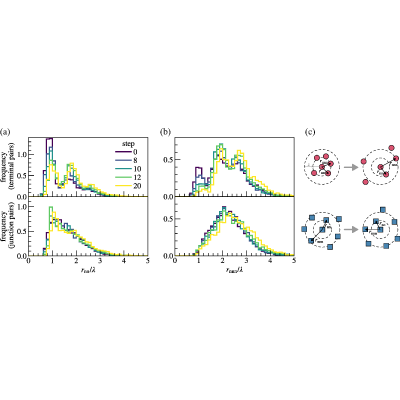

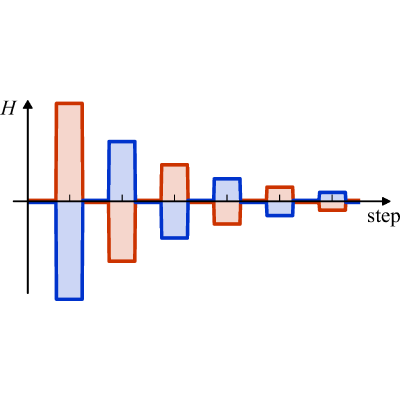

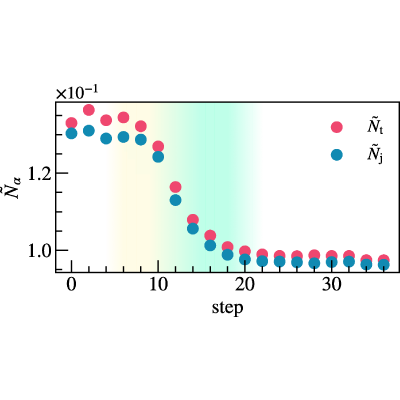

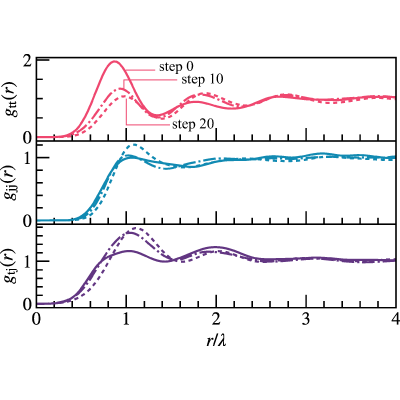

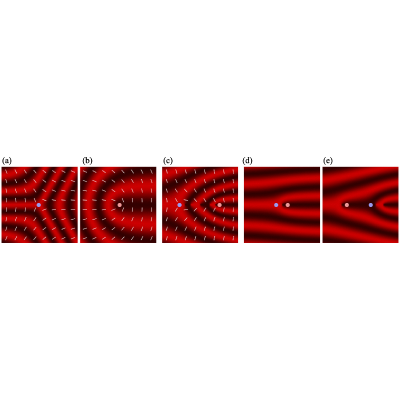

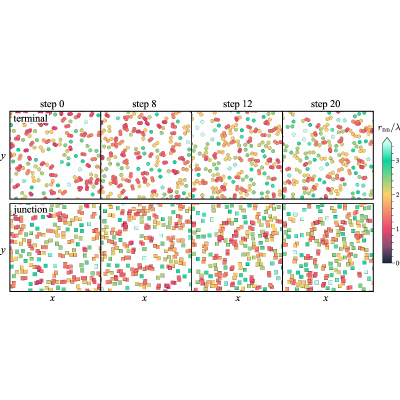

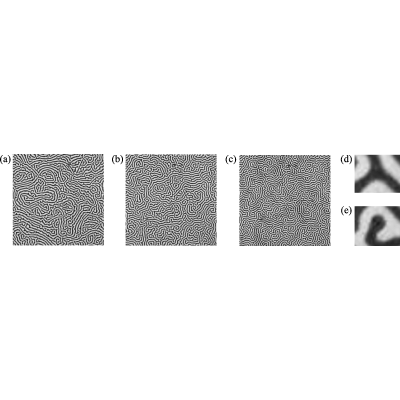

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. G. Nicolis and I. Prigogine, Self-Organization in Nonequilibrium Systems (Wiley, New York, 1977).
  2. M. C. Cross and P. C. Hohenberg, Pattern formation outside of equilibrium, Rev. Mod. Phys. 65, 851 (1993).
  3. A. J. Koch and H. Meinhardt, Biological pattern formation: From basic mechanisms to complex structures, Rev. Mod. Phys. 66, 1481 (1994).
  4. L. Pismen, Patterns and Interfaces in Dissipative Dynamics (Springer, Berlin, Heidelberg, 2006).
  5. M. Cross and H. Greenside, Pattern Formation and Dynamics in Non-Equilibrium Systems (Cambridge University Press, Cambridge, UK, 2009).
  6. M. Le Berre, E. Ressayre, A. Tallet, Y. Pomeau, and L. Di Menza, Example of a chaotic crystal: The labyrinth, Phys. Rev. E 66, 026203 (2002).
  7. S. Echeverría-Alar and M. G. Clerc, Labyrinthine patterns transitions, Phys. Rev. Res. 2, 042036(R) (2020).
  8. K. R. Elder, J. Viñals, and M. Grant, Dynamic scaling and quasiordered states in the two-dimensional Swift-Hohenberg equation, Phys. Rev. A 46, 7618 (1992).
  9. Q. Ouyang and H. L. Swinney, Transition from a uniform state to hexagonal and striped Turing patterns, Nature (London) 352, 610 (1991).
  10. M. C. Cross and D. I. Meiron, Domain coarsening in systems far from equilibrium, Phys. Rev. Lett. 75, 2152 (1995).
  11. J. J. Christensen and A. J. Bray, Pattern dynamics of Rayleigh-Bénard convective rolls and weakly segregated diblock copolymers, Phys. Rev. E 58, 5364 (1998).
  12. G. H. Gunaratne, R. E. Jones, Q. Ouyang, and H. L. Swinney, An invariant measure of disorder in patterns, Phys. Rev. Lett. 75, 3281 (1995).
  13. S. Hu, D. I. Goldman, D. J. Kouri, D. K. Hoffman, H. L. Swinney, and G. H. Gunaratne, Stages of relaxation of patterns and the role of stochasticity in the final stage, Nonlinearity 17, 1535 (2004).
  14. S. Hu, G. Nathan, D. J. Kouri, D. K. Hoffman, and G. H. Gunaratne, Statistical characterizations of spatiotemporal patterns generated in the Swift–Hohenberg model, Chaos 15, 043701 (2005).
  15. Q. Hou, S. Sasa, and N. Goldenfeld, Dynamical scaling behavior of the Swift-Hohenberg equation following a quench to the modulated state, Physica A 239, 219 (1997).
  16. M. Seul and R. Wolfe, Evolution of disorder in two-dimensional stripe patterns: “Smectic” instabilities and disclination unbinding, Phys. Rev. Lett. 68, 2460 (1992).
  17. M. Seul and R. Wolfe, Evolution of disorder in magnetic stripe domains. II. Hairpins and labyrinth patterns versus branches and comb patterns formed by growing minority component, Phys. Rev. A 46, 7534 (1992).
  18. M. Seul, L. R. Monar, and L. O’Gorman, Pattern analysis of magnetic stripe domains morphology and topological defects in the disordered state, Philos. Mag. B 66, 471 (1992).
  19. P. Hansen and J.-P. Krumme, Magnetic and magneto-optical properties of garnet films, Thin Solid Films 114, 69 (1984).
  20. V. Fratello, S. Licht, and C. Brandle, Innovative improvements in bismuth-doped rare-earth iron garnet Faraday rotators, IEEE Trans. Magn. 32, 4102 (1996).
  21. V. J. Fratello, S. E. G. Slusky, C. D. Brandle, and M. P. Norelli, Growth‐induced anisotropy in bismuth: Rare‐earth iron garnets, J. Appl. Phys. 60, 2488 (1986).
  22. T. Fakhrul, S. Tazlaru, L. Beran, Y. Zhang, M. Veis, and C. A. Ross, Magneto-optical Bi:YIG films with high figure of merit for nonreciprocal photonics, Adv. Opt. Mater. 7, 1900056 (2019).
  23. I. B. Puchalska, G. A. Jones, and H. Jouve, A new aspect on the observation of domain structure in garnet epilayers, J. Phys. D: Appl. Phys. 11, L175 (1978).
  24. V. Y. Okubo, K. Shimizu, B. S. Shivaram, and H. Yong Kim, Characterization of magnetic labyrinthine structures through junctions and terminals detection using template matching and CNN, IEEE Access 12, 92419 (2024).
  25. H. Y. Kim, R. H. Maruta, D. R. Huanca, and W. J. Salcedo, Correlation-based multi-shape granulometry with application in porous silicon nanomaterial characterization, J. Porous Mater. 20, 375 (2013).
  26. https://github.com/okami361/TM-CNN/releases/tag/Windows_v2.3.7.
  27. X. Tang and J. V. Selinger, Orientation of topological defects in 2D nematic liquid crystals, Soft Matter 13, 5481 (2017).
  28. C. Long, X. Tang, R. L. Selinger, and J. V. Selinger, Geometry and mechanics of disclination lines in 3D nematic liquid crystals, Soft Matter 17, 2265 (2021).
  29. J. M. Deutsch and T. Mai, Mechanism for nonequilibrium symmetry breaking and pattern formation in magnetic films, Phys. Rev. E 72, 016115 (2005).
  30. V. Y. Okubo, K. Shimizu, B. S. Shivaram, G.-W. Chern, and H. Y. Kim, Geometric analysis of magnetic labyrinthine stripe evolution via deep learning segmentation, arXiv:2509.11485.
  31. N. D. Mermin, The topological theory of defects in ordered media, Rev. Mod. Phys. 51, 591 (1979).
