Method for the numerical analysis of hybrid lumped-distributed superconducting quantum circuits

Simona Zaccaria* and Antonio Gnudi

  • Department of Electrical, Electronic and Information Engineering “Guglielmo Marconi”, University of Bologna, Viale del Risorgimento 2, 40136 Bologna, Italy and ARCES—Advanced Research Center on Electronic Systems, University of Bologna, Via Toffano 2/2, 40125 Bologna, Italy

  • *Contact author: simona.zaccaria4@unibo.it
PDF

APS Open Sci. 1, 000088 – Published 7 August, 2026

DOI: https://doi.org/10.1103/3k95-112h

Abstract

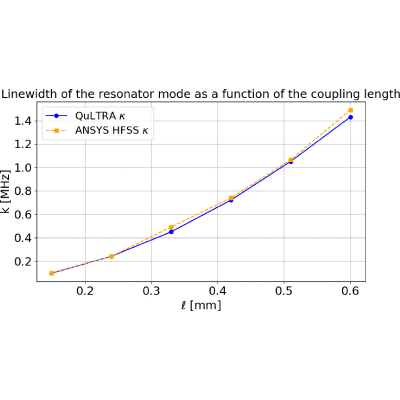

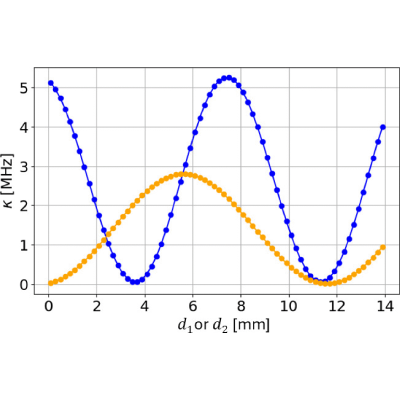

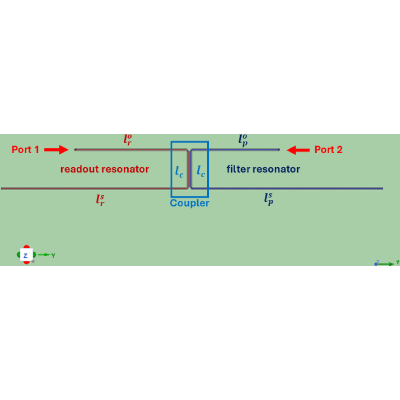

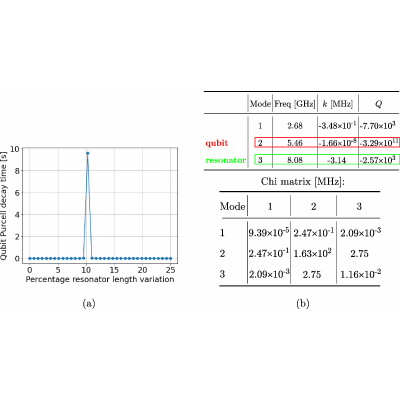

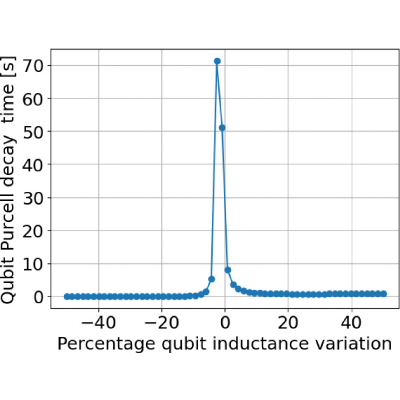

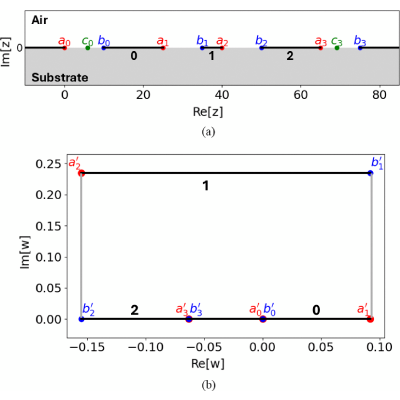

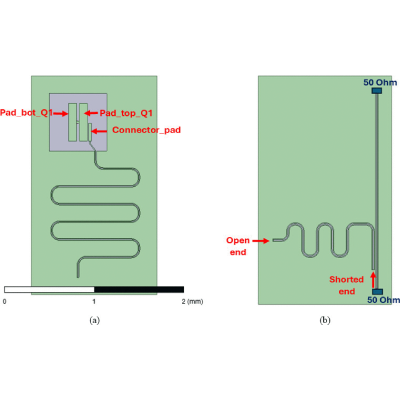

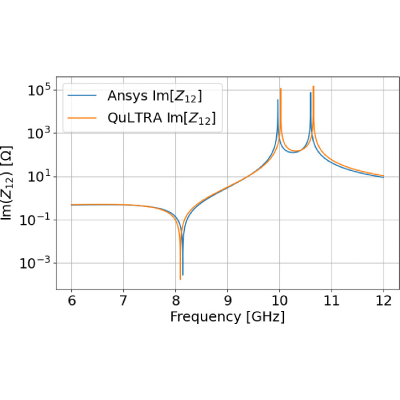

We present a method for the numerical analysis of superconducting quantum circuits combining lumped elements, either linear or nonlinear (i.e., Josephson junctions), and distributed coplanar waveguide (CPW) structures. CPW transmission lines and multiline couplers are directly modeled without discretizing them into lumped-element equivalents, and the circuit Hamiltonian parameters are extracted by using the energy-participation ratio (EPR) method. This approach enables fast and accurate extraction of mode frequencies, anharmonicities, cross-Kerr interactions, and Purcell decay rates without relying on full electromagnetic simulations, while naturally accounting for higher-order modes of distributed components. We have implemented the proposed method in a Python framework, QuLTRA (Quantum hybrid Lumped and TRansmission lines circuits Analyzer), which we have used to validate the approach against full electromagnetic simulations (Ansys HFSS, pyEPR), existing circuit-analysis tools (QuCAT), and designs reported in the literature. The comparisons show excellent agreement with orders-of-magnitude reductions in computational time relative to full-wave solvers. We demonstrate applications including Purcell-protected readout, multimode ultrastrong coupling, and multiplexed qubit readout, illustrating how the method can support fast and reliable early-stage circuit design.

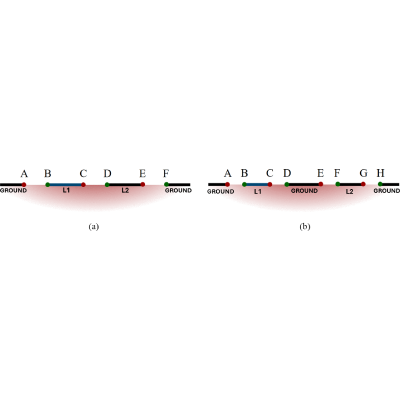

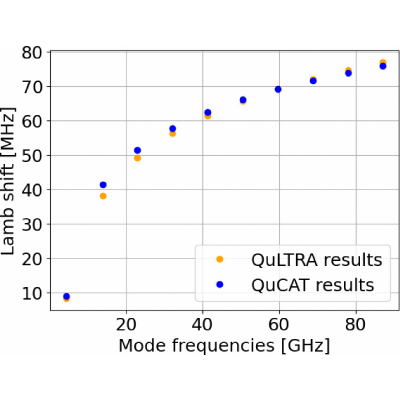

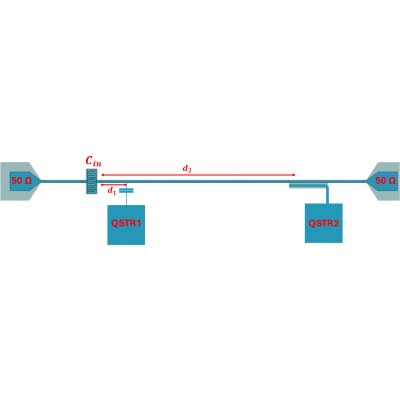

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. A. Blais, A. L. Grimsmo, S. M. Girvin, and A. Wallraff, Circuit quantum electrodynamics, Rev. Mod. Phys. 93, 025005 (2021).
  2. P. Krantz, M. Kjaergaard, F. Yan, T. P. Orlando, S. Gustavsson, and W. D. Oliver, A quantum engineer's guide to superconducting qubits, Appl. Phys. Rev. 6, 021318 (2019).
  3. S. E. Nigg, H. Paik, B. Vlastakis, G. Kirchmair, S. Shankar, L. Frunzio, M. H. Devoret, R. J. Schoelkopf, and S. M. Girvin, Black-box superconducting circuit quantization, Phys. Rev. Lett. 108, 240502 (2012).
  4. F. Solgun and D. P. DiVincenzo, Multiport impedance quantization, Ann. Phys. 361, 605 (2015).
  5. A. Osborne and A. Lucas, Flux-charge symmetric theory of superconducting circuits, Phys. Rev. B 109, 174524 (2024).
  6. G. Khan and T. E. Roth, Field-based formalism for calculating multiqubit exchange-coupling rates for transmon qubits, Phys. Rev. Appl. 22, 064084 (2024).
  7. E. Forati, B. W. Langley, A. Nersisyan, and R. Molavi, On the electromagnetic couplings in superconducting qubit circuits, IEEE Trans. Appl. Supercond. 36, 1 (2026).
  8. J. Koch, T. M. Yu, J. Gambetta, A. A. Houck, D. I. Schuster, J. Majer, A. Blais, M. H. Devoret, S. M. Girvin, and R. J. Schoelkopf, Charge-insensitive qubit design derived from the Cooper pair box, Phys. Rev. A 76, 042319 (2007).
  9. Qiskit Metal: Quantum Device Design and Analysis, https://qiskit-community.github.io/qiskit-metal/.
  10. Ansys Inc, Ansys HFSS—3D high frequency electromagnetic simulation software, 2025, https://www.ansys.com/it-it/products/electronics/ansys-hfss.
  11. Z. K. Minev, Z. Leghtas, S. O. Mundhada, L. Christakis, I. M. Pop, and M. H. Devoret, Energy-participation quantization of Josephson circuits, npj Quantum Inf. 7, 131 (2021).
  12. M. F. Gely and G. A. Steele, QuCAT: Quantum circuit analyzer tool in Python, New J. Phys. 22, 013025 (2020).
  13. T. Rajabzadeh, Z. Wang, N. Lee, T. Makihara, Y. Guo, and A. H. Safavi-Naeini, Analysis of arbitrary superconducting quantum circuits accompanied by a Python package: SQcircuit, Quantum 7, 1118 (2023).
  14. P. Aumann, T. Menke, W. D. Oliver, and W. Lechner, CircuitQ: An open-source toolbox for superconducting circuits, New J. Phys. 24, 093012 (2022).
  15. S. Zaccaria and A. Gnudi, QuLTRA Python package, GitHub, https://github.com/SimonaZaccaria/QuLTRA.git.
  16. S. Zaccaria and A. Gnudi, Simonazaccaria/QuLTRA: QuLTRA 0.1.1 release, Zenodo, 2025, https://doi.org/10.5281/zenodo.16897531
  17. S. Zaccaria and A. Gnudi, Josephson junction-based compact notch Purcell filters for superconducting qubit readout, IEEE Trans. Appl. Supercond. 35, 1 (2025).
  18. A. Ciani, D. P. DiVincenzo, and B. M. Terhal, Lecture Notes on Quantum Electrical Circuits (TU Delft OPEN Publishing, Delft, 2024).
  19. V. E. Manucharyan, Superinductance, Ph.D. thesis, Yale University, 2012.
  20. D. M. Pozar, Microwave Engineering (Wiley, Hoboken, NJ, 2005).
  21. R. P. Brent, Algorithms for Minimization Without Derivatives (Prentice-Hall, Englewood Cliffs, NJ, 1973).
  22. R. E. Collin, Foundations for Microwave Engineering (McGraw-Hill, New York, 1966).
  23. I. Besedin and A. P. Menushenkov, Quality factor of a transmission line coupled coplanar waveguide resonator, EPJ Quantum Technol. 5, 2 (2018).
  24. R. N. Simons, Coplanar Waveguide Circuits, Components, and Systems (John Wiley & Sons, New York, 2004).
  25. Z. Minev, Energy-Participation-Ratio Framework, pyEPR (2020), https://pyepr-docs.readthedocs.io/en/latest/.
  26. Qiskit Metal, Analyzing and tuning a transmon qubit with a resonator (2021), https://qiskit-community.github.io/qiskit-metal/tut/4-Analysis/4.13-Analyze-transmon-and-resonator.html.
  27. P. A. Spring, L. Milanovic, Y. Sunada, S. Wang, A. F. van Loo, S. Tamate, and Y. Nakamura, Fast multiplexed superconducting-qubit readout with intrinsic Purcell filtering using a multiconductor transmission line, PRX Quantum 6, 020345 (2025).
  28. S. J. Bosman, M. F. Gely, V. Singh, A. Bruno, D. Bothner, and G. A. Steele, Multi-mode ultra-strong coupling in circuit quantum electrodynamics, npj Quantum Inf. 3, 46 (2017).
  29. R. M. Foster, A reactance theorem, Bell Syst. Tech. J. 3, 259 (1924).
  30. J. Heinsoo, C. K. Andersen, A. Remm, S. Krinner, T. Walter, Y. Salathé, S. Gasparinetti, J.-C. Besse, A. Potočnik, A. Wallraff, and C. Eichler, Rapid high-fidelity multiplexed readout of superconducting qubits, Phys. Rev. Appl. 10, 034040 (2018).
  31. W. Wang, W. Ma, Q. Wang, and H. Ren, Conformal mapping for multiple terminals, Sci. Rep. 6, 36918 (2016).
