Circuit-QED Lattice System with Flexible Connectivity and Gapped Flat Bands for Photon-Mediated Spin Models

Kellen O'Brien*, Maya Amouzegar, Won Chan Lee, and Martin Ritter

Alicia J. Kollár

  • *Contact author: kobrie@umd.edu
PDF

PRX Quantum 7, 010321 – Published 30 January, 2026

DOI: https://doi.org/10.1103/z9n2-mmmf

Abstract

Quantum spin models are ubiquitous in solid-state physics, but classical simulation of them remains extremely challenging. Experimental testbed systems with a variety of spin-spin interactions and measurement channels are therefore needed. One promising potential route to such testbeds is provided by microwave-photon-mediated interactions between superconducting qubits, where native strong light-matter coupling enables significant interactions even for virtual-photon-mediated processes. In this approach, the spin-model connectivity is set by the photonic mode structure, rather than the spatial structure of the qubit. Lattices of coplanar-waveguide (CPW) resonators have been demonstrated to allow extremely flexible connectivities and can therefore host a huge variety of photon-mediated spin models. However, large-scale CPW lattices with nontrivial band structures have never before been successfully combined with superconducting qubits. Here we present the first such device featuring a quasi-1D CPW lattice with multiple transmon qubits. We demonstrate that superconducting-qubit readout and diagnostic techniques can be generalized to this highly multimode environment and observe the effective qubit-qubit interaction mediated by the bands of the resonator lattice. This device completes the toolkit needed to realize CPW lattices with qubits in one or two Euclidean dimensions, or negatively curved hyperbolic space, and paves the way to driven-dissipative spin models with a large variety of connectivities.

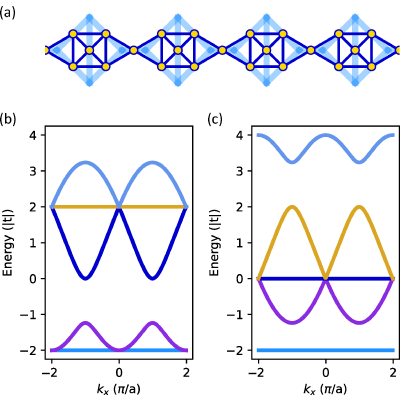

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Photons are particles of light which exist across the electromagnetic spectrum, from radio and microwaves to visible and ultraviolet light. By making circuits out of superconductors which carry current without generating heat and cooling the devices to very low temperatures, it is possible to make microwave circuits where the photons move like electrons moving in a material. Instead of being limited by chemistry, the spatial structure and connectivity with which the photons move is instead limited by the ability to design precision circuits. In this work, the researchers harness arrays of superconducting microwave resonators to produce microwave metamaterials in which photons carry excitations between superconducting qubits.

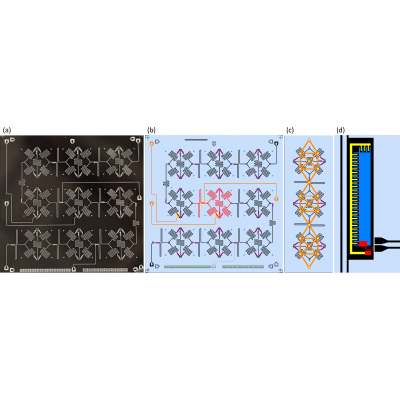

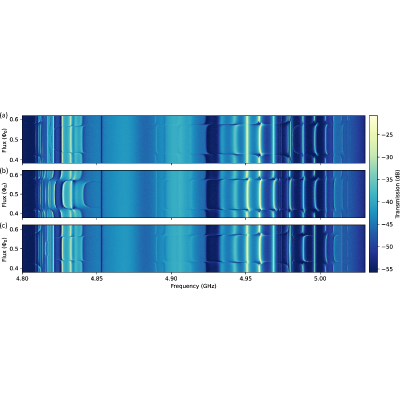

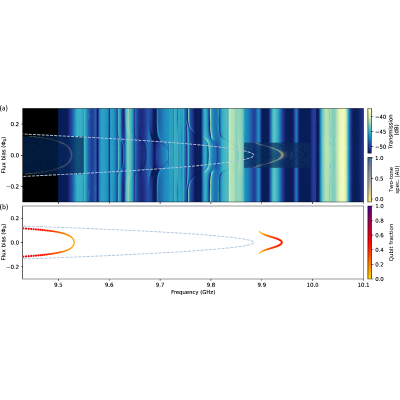

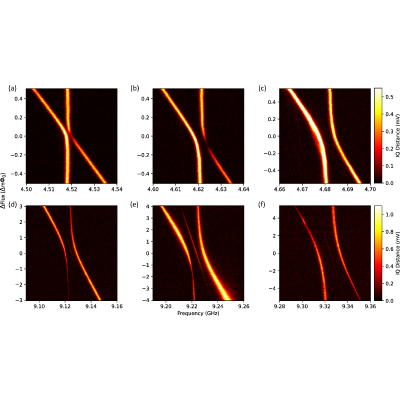

The researchers have implemented and characterized a full-scale device featuring transmon qubits coupled to microwave photons moving in an unconventional lattice geometry which will give rise to interesting forms of qubit-qubit interaction and have adapted spectroscopic techniques to accurately characterize the performance of the device. This device and the methods developed here pave the way toward larger-scale implementations in which these newly created interactions will give rise to unconventional magnetism. Future projects plan to capitalize on the capability of the resonator lattice platform to realize non-Euclidean connectivities between qubits.

Article Text

References (74)

  1. S. M. Girvin and K. Yang, Modern Condensed Matter Physics (Cambridge University Press, Cambridge, 2019).
  2. K. Binder and A. P. Young, Spin glasses: Experimental facts, theoretical concepts, and open questions, Rev. Mod. Phys. 58, 801 (1986).
  3. P. W. Anderson, The resonating valence bond state in La2CuO4 and superconductivity, Science 235, 1196 (1987).
  4. A. A. Houck, H. E. Türeci, and J. Koch, On-chip quantum simulation with superconducting circuits, Nat. Phys. 8, 292 (2012).
  5. P. Bienias, I. Boettcher, R. Belyansky, A. J. Kollár, and A. V. Gorshkov, Circuit quantum electrodynamics in hyperbolic space: From photon bound states to frustrated spin models, Phys. Rev. Lett. 128, 013601 (2022).
  6. A. J. Kollár, M. Fitzpatrick, and A. A. Houck, Hyperbolic lattices in circuit quantum electrodynamics, Nature 571, 45 (2019).
  7. A. J. Kollár, M. Fitzpatrick, P. Sarnak, and A. A. Houck, Line-graph lattices: Euclidean and non-Euclidean flat bands, and implementations in circuit quantum electrodynamics, Commun. Math. Phys. 376, 1909 (2019).
  8. J. S. Douglas, H. Habibian, C.-L. Hung, A. V. Gorshkov, H. J. Kimble, and D. E. Chang, Quantum many-body models with cold atoms coupled to photonic crystals, Nat. Photonics 9, 326 (2015).
  9. N. M. Sundaresan, R. Lundgren, G. Zhu, A. V. Gorshkov, and A. A. Houck, Interacting qubit-photon bound states with superconducting circuits, Phys. Rev. X 9, 011021 (2019).
  10. E. Di Benedetto, A. Gonzalez-Tudela, and F. Ciccarello, Dipole-dipole interactions mediated by a photonic flat band, Quantum 9, 1671 (2025).
  11. A. Blais, A. L. Grimsmo, S. M. Girvin, and A. Wallraff, Circuit quantum electrodynamics, Rev. Mod. Phys. 93, 025005 (2021).
  12. D. L. Underwood, W. E. Shanks, Andy C. Y. Li, L. Ateshian, J. Koch, and A. A. Houck, Imaging photon lattice states by scanning defect microscopy, Phys. Rev. X 6, 021044 (2016).
  13. D. L. Underwood, W. E. Shanks, J. Koch, and A. A. Houck, Low-disorder microwave cavity lattices for quantum simulation with photons, Phys. Rev. A 86, 023837 (2012).
  14. V. S. Ferreira, J. Banker, A. Sipahigil, M. H. Matheny, A. J. Keller, E. Kim, M. Mirhosseini, and O. Painter, Collapse and revival of an artificial atom coupled to a structured photonic reservoir, Phys. Rev. X 11, 041043 (2021).
  15. E. Kim, X. Zhang, V. S. Ferreira, J. Banker, J. K. Iverson, A. Sipahigil, M. Bello, A. González-Tudela, M. Mirhosseini, and O. Painter, Quantum electrodynamics in a topological waveguide, Phys. Rev. X 11, 011015 (2021).
  16. X. Zhang, E. Kim, D. K. Mark, S. Choi, and O. Painter, A superconducting quantum simulator based on a photonic-bandgap metamaterial, Science 379, 278 (2023).
  17. J. G. Martinez, C. S. Chiu, B. M. Smitham, and A. A. Houck, Flat-band localization and interaction-induced delocalization of photons, Sci. Adv. 9, eadj7195 (2023).
  18. M. Scigliuzzo, G. Calajò, F. Ciccarello, D. Perez Lozano, A. Bengtsson, P. Scarlino, A. Wallraff, D. Chang, P. Delsing, and S. Gasparinetti, Controlling atom-photon bound states in an array of Josephson-junction resonators, Phys. Rev. X 12, 031036 (2022).
  19. A. J. Kollár, A. T. Papageorge, V. D. Vaidya, Y. Guo, J. Keeling, and B. L. Lev, Supermode-density-wave-polariton condensation with a Bose–Einstein condensate in a multimode cavity, Nat. Commun. 8, 14386 (2017).
  20. A. T. Papageorge, A. J. Kollár, and B. L. Lev, Coupling to modes of a near-confocal optical resonator using a digital light modulator, Opt. Express 24, 11447 (2016).
  21. A. J. Kollár, A. T. Papageorge, K. Baumann, M. A. Armen, and B. L. Lev, An adjustable-length cavity and Bose–Einstein condensate apparatus for multimode cavity QED, New J. Phys. 17, 1 (2015).
  22. V. D. Vaidya, Y. Guo, R. M. Kroeze, K. E. Ballantine, A. J. Kollár, J. Keeling, and B. L. Lev, Tunable-range, photon-mediated atomic interactions in multimode cavity QED, Phys. Rev. X 8, 011002 (2018).
  23. S. Gopalakrishnan, B. L. Lev, and P. M. Goldbart, Emergent crystallinity and frustration with Bose–Einstein condensates in multimode cavities, Nat. Phys. 5, 845 (2009).
  24. S. Gopalakrishnan, B. L. Lev, and P. M. Goldbart, Atom-light crystallization of Bose-Einstein condensates in multimode cavities: Nonequilibrium classical and quantum phase transitions, emergent lattices, supersolidity, and frustration, Phys. Rev. A 82, 043612 (2010).
  25. S. Gopalakrishnan, B. L. Lev, and P. M. Goldbart, Frustration and glassiness in spin models with cavity-mediated interactions, Phys. Rev. Lett. 107, 277201 (2011).
  26. S. Gopalakrishnan, B. L. Lev, and P. M. Goldbart, Exploring models of associative memory via cavity quantum electrodynamics, Philos. Magn. 92, 353 (2012).
  27. Y. Guo, V. D. Vaidya, R. M. Kroeze, R. A. Lunney, B. L. Lev, and J. Keeling, Emergent and broken symmetries of atomic self-organization arising from Gouy phase shifts in multimode cavity QED, Phys. Rev. A 99, 053818 (2019).
  28. Y. Guo, R. M. Kroeze, V. D. Vaidya, J. Keeling, and B. L. Lev, Sign-changing photon-mediated atom interactions in multimode cavity quantum electrodynamics, Phys. Rev. Lett. 122, 193601 (2019).
  29. B. P. Marsh, R. M. Kroeze, S. Ganguli, S. Gopalakrishnan, J. Keeling, and B. L. Lev, Entanglement and replica symmetry breaking in a driven-dissipative quantum spin glass, Phys. Rev. X 14, 011026 (2024).
  30. V. Vuletić, H. W. Chan, and A. T. Black, Three-dimensional cavity Doppler cooling and cavity sideband cooling by coherent scattering, Phys. Rev. A 64, 033405 (2001).
  31. A. T. Black, H. W. Chan, and V. Vuletić, Observation of collective friction forces due to spatial self-organization of atoms: From Rayleigh to Bragg scattering, Phys. Rev. Lett. 91, 203001 (2003).
  32. N. Schine, A. Ryou, A. Gromov, A. Sommer, and J. Simon, Synthetic Landau levels for photons, Nature 534, 671 (2016).
  33. L. W. Clark, N. Jia, N. Schine, C. Baum, A. Georgakopoulos, and J. Simon, Interacting Floquet polaritons, Nature 571, 532 (2019).
  34. L. W. Clark, N. Schine, C. Baum, N. Jia, and J. Simon, Observation of Laughlin states made of light, Nature 582, 41 (2020).
  35. A. S. Sheremet, M. I. Petrov, I. V. Iorsh, A. V. Poshakinskiy, and A. N. Poddubny, Waveguide quantum electrodynamics: Collective radiance and photon-photon correlations, Rev. Mod. Phys. 95, 015002 (2023).
  36. N. Fayard, L. Henriet, A. Asenjo-Garcia, and D. E. Chang, Many-body localization in waveguide quantum electrodynamics, Phys. Rev. Res. 3, 033233 (2021).
  37. L. Krinner, M. Stewart, A. Pazmiño, J. Kwon, and D. Schneble, Spontaneous emission of matter waves from a tunable open quantum system, Nature 559, 589 (2018).
  38. M. Stewart, J. Kwon, A. Lanuza, and D. Schneble, Dynamics of matter-wave quantum emitters in a structured vacuum, Phys. Rev. Res. 2, 043307 (2020).
  39. A. Lanuza, J. Kwon, Y. Kim, and D. Schneble, Multiband and array effects in matter-wave-based waveguide QED, Phys. Rev. A 105, 023703 (2022).
  40. A. Periwal, E. S. Cooper, P. Kunkel, J. F. Wienand, E. J. Davis, and M. Schleier-Smith, Programmable interactions and emergent geometry in an array of atom clouds, Nature 600, 630 (2021).
  41. Y. Liu and A. A. Houck, Quantum electrodynamics near a photonic bandgap, Nat. Phys. 13, 48 (2017).
  42. A. Vrajitoarea, R. Belyansky, R. Lundgren, S. Whitsitt, A. V. Gorshkov, and A. A. Houck, Ultrastrong light-matter interaction in a multimode photonic crystal, ArXiv:2209.14972.
  43. C. Owens, A. LaChapelle, B. Saxberg, B. M. Anderson, R. Ma, J. Simon, and D. I. Schuster, Quarter-flux Hofstadter lattice in a qubit-compatible microwave cavity array, Phys. Rev. A 97, 013818 (2018).
  44. J. C. Owens, M. G. Panetta, B. Saxberg, G. Roberts, S. Chakram, R. Ma, A. Vrajitoarea, J. Simon, and D. I. Schuster, Chiral cavity quantum electrodynamics, Nat. Phys. 18, 1048 (2022).
  45. M. Göppl, A. Fragner, M. Baur, R. Bianchetti, S. Filipp, J. M. Fink, P. J. Leek, G. Puebla, L. Steffen, and A. Wallraff, Coplanar waveguide resonators for circuit quantum electrodynamics, J. Appl. Phys. 104, 113904 (2008).
  46. S. Schmidt and J. Koch, Circuit QED lattices: Towards quantum simulation with superconducting circuits, Ann. Phys. 525, 395 (2013).
  47. M. Fitzpatrick, N. M. Sundaresan, A. C. Li, J. Koch, and A. A. Houck, Observation of a dissipative phase transition in a one-dimensional circuit QED lattice, Phys. Rev. X 7, 011016 (2017).
  48. S. J. Bosman, M. F. Gely, V. Singh, A. Bruno, D. Bothner, and G. A. Steele, Multi-mode ultra-strong coupling in circuit quantum electrodynamics, npj Quantum Inf. 3, 46 (2017).
  49. A. Peugeot, H. Riechert, S. Annabi, L. Balembois, M. Villiers, E. Flurin, J. Griesmar, E. Arrighi, J.-D. Pillet, and L. Bretheau, Two-tone spectroscopy of high-frequency quantum circuits with a Josephson emitter, Phys. Rev. Appl. 22, 064027 (2024).
  50. J. Kimble, Strong interactions of single atoms and photons in cavity QED, Phys. Scr. 1998, 1 (2005).
  51. H. Carmichael, An Open Systems Approach to Quantum Optics (Springer-Verlag, Berlin, 1993).
  52. D. F. Walls and G. J. Milburn, Quantum Optics (Springer, Berlin, 2008).
  53. C. Cohen-Tannoudji, J. Dupont-Roc, and G. Grynberg, Atom-Photon Interactions: Basic Process and Applications (Wiley, Weinheim, 1998).
  54. S. John and J. Wang, Quantum electrodynamics near a photonic band gap: Photon bound states and dressed atoms, Phys. Rev. Lett. 64, 2418 (1990).
  55. E. Istrate and E. H. Sargent, Photonic crystal heterostructures and interfaces, Rev. Mod. Phys. 78, 455 (2006).
  56. P. Arrangoiz-Arriola, E. A. Wollack, M. Pechal, J. D. Witmer, J. T. Hill, and A. H. Safavi-Naeini, Coupling a superconducting quantum circuit to a phononic crystal defect cavity, Phys. Rev. X 8, 031007 (2018).
  57. G. Calajò, F. Ciccarello, D. Chang, and P. Rabl, Atom-field dressed states in slow-light waveguide QED, Phys. Rev. A 93, 033833 (2016).
  58. Y. Wang, M. J. Gullans, X. Na, S. Whitsitt, and A. V. Gorshkov, Universal scattering with general dispersion relations, Phys. Rev. Res. 4, 023014 (2022).
  59. J. Koch, T. M. Yu, J. Gambetta, A. A. Houck, D. I. Schuster, J. Majer, A. Blais, M. H. Devoret, S. M. Girvin, and R. J. Schoelkopf, Charge-insensitive qubit design derived from the Cooper pair box, Phys. Rev. A 76, 042319 (2007).
  60. M. Tinkham, Introduction to Superconductivity (McGraw-Hill, New York, 1996).
  61. J. Koch, A. A. Houck, K. L. Hur, and S. M. Girvin, Time-reversal-symmetry breaking in circuit-QED-based photon lattices, Phys. Rev. A 82, 043811 (2010).
  62. M. Elliott, J. Joo, and E. Ginossar, Designing Kerr interactions using multiple superconducting qubit types in a single circuit, New J. Phys. 20, 023037 (2018).
  63. D. Sank, et al., Measurement-induced state transitions in a superconducting qubit: Beyond the rotating wave approximation, Phys. Rev. Lett. 117, 190503 (2016).
  64. M. F. Dumas, B. Groleau-Paré, A. McDonald, M. H. Muñoz Arias, C. Lledó, B. D’Anjou, and A. Blais, Measurement-induced transmon ionization, Phys. Rev. X 14, 041023 (2024).
  65. J. B. Curtis, P. Narang, and V. Galitski, Absence of weak localization on negative curvature surfaces, Phys. Rev. Lett. 134, 076301 (2025).
  66. K. O’Brien, M. Amouzegar, W. C. Lee, M. Ritter, and A. J. Kollár, Zenodo, https://doi.org/10.5281/zenodo.17943503 (2025).
  67. A. Nunnenkamp, J. Koch, and S. M. Girvin, Synthetic gauge fields and homodyne transmission in Jaynes–Cummings lattices, New J. Phys. 13, 095008 (2011).
  68. D. M. Pozar, Microwave Engineering (Wiley, Hoboken, 2011).
  69. P. Krantz, M. Kjaergaard, F. Yan, T. P. Orlando, S. Gustavsson, and W. D. Oliver, A quantum engineer’s guide to superconducting qubits, Appl. Phys. Rev. 6, 021318 (2019).
  70. J. M. Gambetta, C. E. Murray, Y.-K.-K. Fung, D. T. McClure, O. Dial, W. Shanks, J. W. Sleight, and M. Steffen, Investigating surface loss effects in superconducting transmon qubits, IEEE Trans. Appl. Supercond. 27, 1 (2017).
  71. D. I. Schuster, A. A. Houck, J. A. Schreier, A. Wallraff, J. M. Gambetta, A. Blais, L. Frunzio, J. Majer, B. Johnson, M. H. Devoret, S. M. Girvin, and R. J. Schoelkopf, Resolving photon number states in a superconducting circuit, Nature 445, 515 (2007).
  72. K. O’Brien, W. C. Lee, A. Behne, M. Amouzegar, A. Fahimniya, Y. Wang, A. Gorshkov, and A. J. Kollár, In preparation.
  73. R. Ma, B. Saxberg, C. Owens, N. Leung, Y. Lu, J. Simon, and D. I. Schuster, A dissipatively stabilized Mott insulator of photons, Nature 566, 51 (2019).
  74. R. A. McLellan, et al., Chemical profiles of the oxides on tantalum in state of the art superconducting circuits, Adv. Sci. 10, 2300921 (2023).
