Buried Dirac Points in Quantum Spin Hall Insulators: Implications for Majorana Kramers Pair-Based Quantum Computing

J. J. Cuozzo1,2,*, W. Yu3, X. Shi4, A. J. Muhowski3, S. D. Hawkins3, J. F. Klem3, E. Rossi5, and W. Pan2,†

  • *Contact author: jjcuozz@sandia.gov
  • †Contact author: wpan@sandia.gov
PDF

PRX Quantum 7, 010313 – Published 20 January, 2026

DOI: https://doi.org/10.1103/tw65-82r9

Abstract

Quantum spin Hall insulators (QSHIs) host helical electronic edge states that are protected from backscattering due to time-reversal symmetry (TRS). Despite considerable work investigating QSHI edge states, there is still an open question about their unexpected resilience to large magnetic fields where TRS is undoubtedly broken. In this work, we investigate the transport properties of helical edge states in a QSHI-superconductor (QSHI-SC) junction formed by a InAs(15 nm)/GaSb(5 nm) double quantum well and a superconducting tantalum (Ta) constriction. We observe a robust conductance plateau up to 2 T, signaling resilient edge-state transport. Using a modified Landauer-Büttiker analysis, we find that the zero-field conductance is consistent with 98% Andreev-reflection probability owing to the high transparency of the (InAs/GaSb)-Ta interface. Such resilience is consistent with the Dirac point for the edge states being buried in the bulk valence band. We further theoretically show that a buried Dirac point does not affect the robustness of the quasi-one-dimensional topological superconducting phase. We find that a buried Dirac point favors the hybridization of Majorana Kramers pairs (MKPs)—predicted to exist in a QSHI-SC constriction—and fermionic modes in the QSHI vacuum edge resulting in extended MKP states, highlighting the subtle role of buried Dirac points in probing MKPs.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

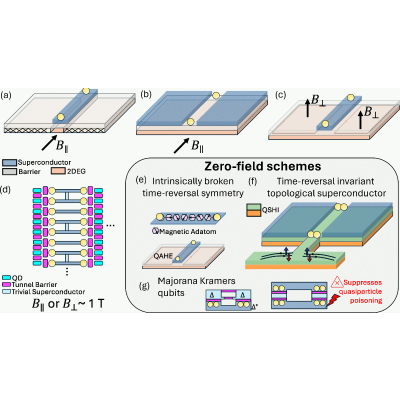

For many years, there has been intense interest and research on topological superconductivity for the prospect of identifying exotic topological modes (e.g. Majorana zero modes) and using them for fault-tolerant topological quantum computing (TQC). Most of the current approaches to TQC, however, require applying a magnetic field which presents challenges to scalability and operation of TQC. Therefore, realizing Majorana zero modes without a magnetic field is highly desired. In this paper, we report the study of a structure where we can realize two pairs of Majorana zero modes—so-called Majorana Kramer pairs (MKPs)—without applying magnetic fields or breaking time-reversal symmetry.

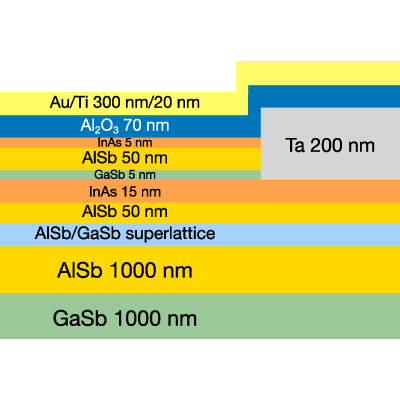

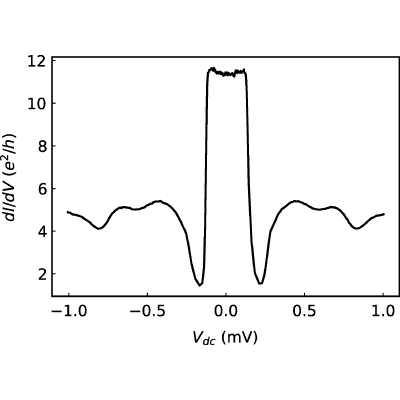

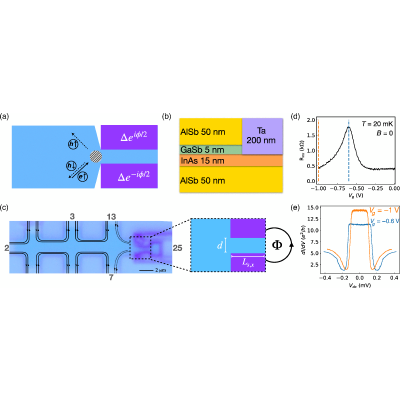

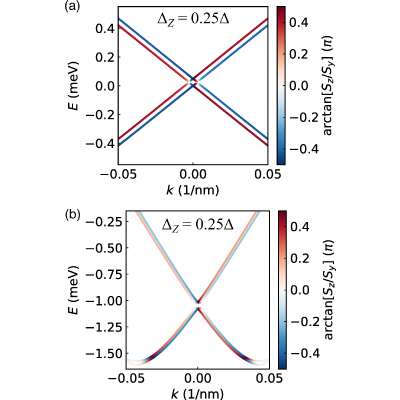

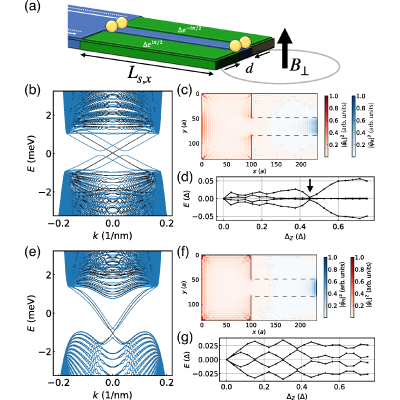

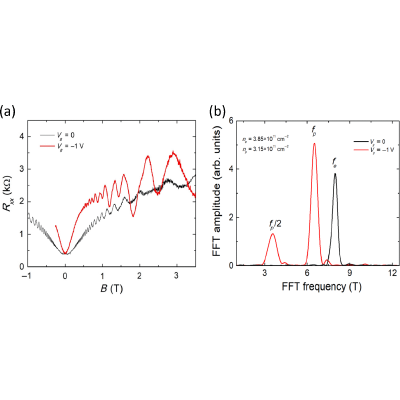

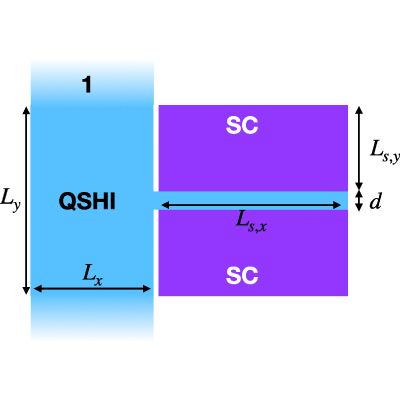

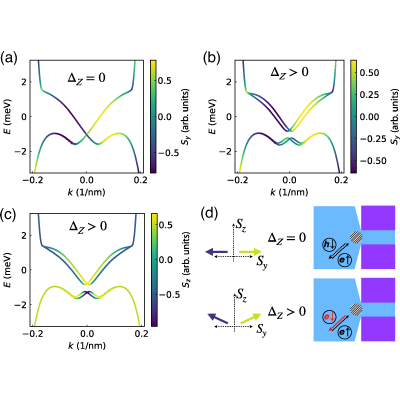

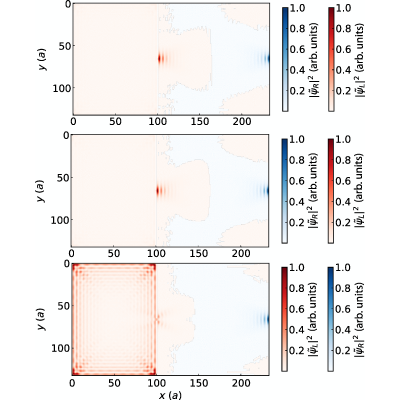

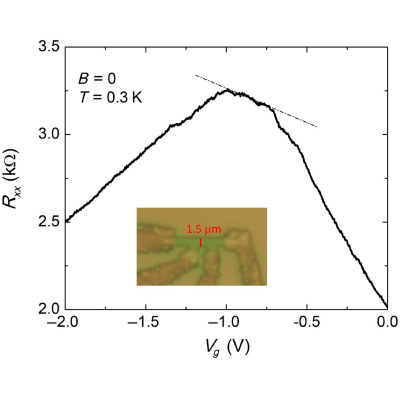

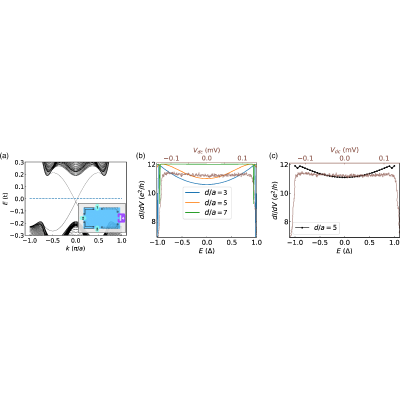

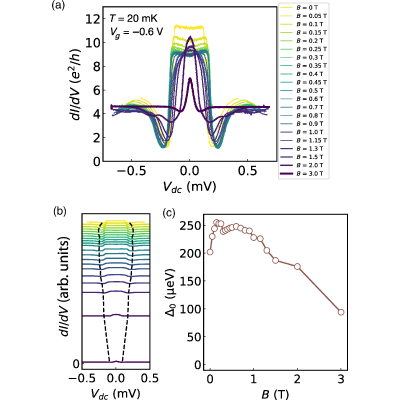

In our study, we examine in an InAs/GaSb double quantum well the nonlocal electrical conductance across a superconducting Ta constriction. We demonstrate helical edge transport in our device and measure a nearly quantized conductance that is anomalously robust to a large external magnetic field. Detailed theoretical simulations show that the quantized conductance is due to a nearly perfect Andreev-reflection probability at the superconducting Ta constriction, signaling a clean (InAs/GaSb)-Ta interface. Our detailed numerical simulations further show that the anomalously robust conductance is indicative of a buried Dirac point in the edge-state band structure that can, surprisingly, help stabilize MKPs in the presence of a weak external magnetic field.

Our work is a key step toward demonstrating the feasibility of MKPs in a quantum spin Hall–superconductor heterostructure and highlights the importance of detailed theoretical modeling to capture key observable features necessary for future studies of MKPs and TQC.

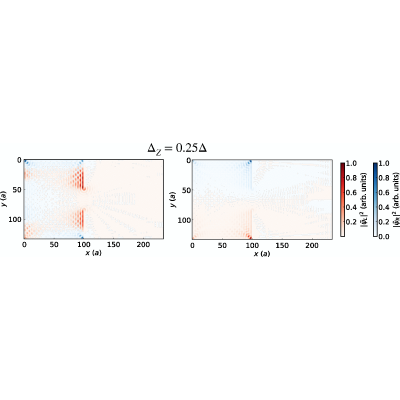

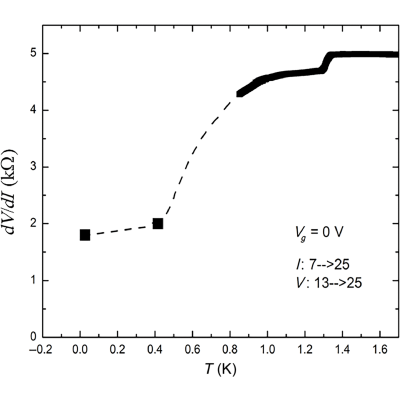

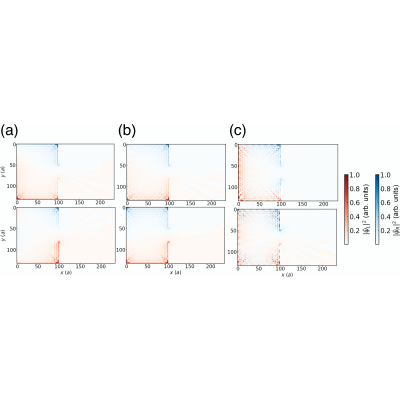

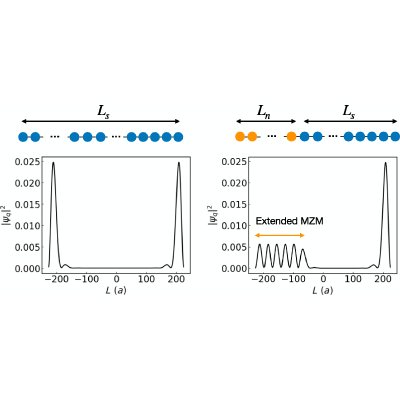

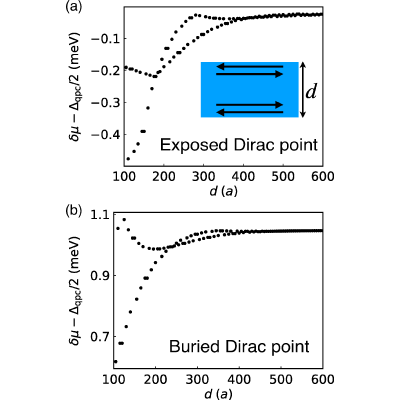

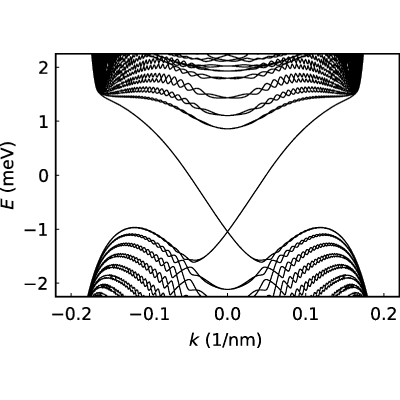

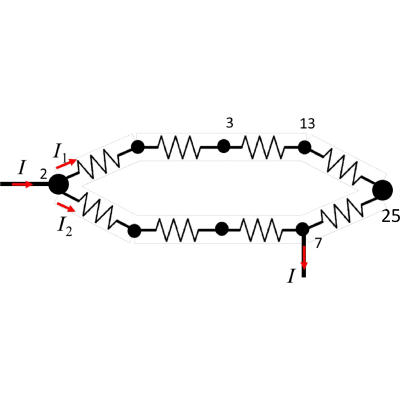

Article Text

References (75)

  1. R. Cava, N. de Leon, and W. Xie, Introduction: Quantum materials, Chem. Rev. 121, 2777 (2021).
  2. W. F. Schiela, P. Yu, and J. Shabani, Progress in superconductor-semiconductor topological Josephson junctions, PRX Quantum 5, 030102 (2024).
  3. The rise of quantum materials, Nat. Phys. 12, 105 (2016).
  4. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  5. A. Yu. Kitaev, Unpaired Majorana fermions in quantum wires, Phys.-Usp. 44, 131 (2001).
  6. A. Yu. Kitaev, Fault-tolerant quantum computation by anyons, Ann. Phys. 303, 2 (2003).
  7. C. Nayak, S. H. Simon, A. Stern, M. Freedman, and S. Das Sarma, Non-Abelian anyons and topological quantum computation, Rev. Mod. Phys. 80, 1083 (2008).
  8. J. Alicea, New directions in the pursuit of Majorana fermions in solid state systems, Rep. Prog. Phys. 75, 076501 (2012).
  9. E. J. H. Lee, X. Jiang, R. Aguado, G. Katsaros, C. M. Lieber, and S. De Franceschi, Zero-bias anomaly in a nanowire quantum dot coupled to superconductors, Phys. Rev. Lett. 109, 186802 (2012).
  10. G. Kells, D. Meidan, and P. W. Brouwer, Near-zero-energy end states in topologically trivial spin-orbit coupled superconducting nanowires with a smooth confinement, Phys. Rev. B 86, 100503(R) (2012).
  11. C. Reeg, O. Dmytruk, D. Chevallier, D. Loss, and J. Klinovaja, Zero-energy Andreev bound states from quantum dots in proximitized Rashba nanowires, Phys. Rev. B 98, 245407 (2018).
  12. A. Vuik, B. Nijholt, A. R. Akhmerov, and M. Wimmer, Reproducing topological properties with quasi-Majorana states, SciPost Phys. 7, 061 (2019).
  13. C.-X. Liu, J. D. Sau, T. D. Stanescu, and S. Das Sarma, Conductance smearing and anisotropic suppression of induced superconductivity in a Majorana nanowire, Phys. Rev. B 99, 024510 (2019).
  14. J. Chen, B. D. Woods, P. Yu, M. Hocevar, D. Car, S. R. Plissard, E. P. A. M. Bakkers, T. D. Stanescu, and S. M. Frolov, Ubiquitous non-Majorana zero-bias conductance peaks in nanowire devices, Phys. Rev. Lett. 123, 107703 (2019).
  15. O. A. Awoga, J. Cayao, and A. M. Black-Schaffer, Supercurrent detection of topologically trivial zero-energy states in nanowire junctions, Phys. Rev. Lett. 123, 117001 (2019).
  16. B. D. Woods, J. Chen, S. M. Frolov, and T. D. Stanescu, Zero-energy pinning of topologically trivial bound states in multiband semiconductor-superconductor nanowires, Phys. Rev. B 100, 125407 (2019).
  17. M. Valentini, F. Peñaranda, A. Hofmann, M. Brauns, R. Hauschild, P. Krogstrup, P. San-Jose, E. Prada, R. Aguado, and G. Katsaros, Nontopological zero-bias peaks in full-shell nanowires induced by flux-tunable Andreev states, Science 373, 82 (2021).
  18. R. Hess, H. F. Legg, D. Loss, and J. Klinovaja, Local and nonlocal quantum transport due to Andreev bound states in finite Rashba nanowires with superconducting and normal sections, Phys. Rev. B 104, 075405 (2021).
  19. M. Aghaee et al., InAs-Al hybrid devices passing the topological gap protocol, Phys. Rev. B 107, 245423 (2023).
  20. M. Aghaee et al., Interferometric single-shot parity measurement in InAs-Al hybrid devices, Nature 638, 651 (2025).
  21. R. M. Lutchyn, J. D. Sau, and S. Das Sarma, Majorana fermions and a topological phase transition in semiconductor-superconductor heterostructures, Phys. Rev. Lett. 105, 077001 (2010).
  22. Y. Oreg, G. Refael, and F. von Oppen, Helical liquids and Majorana bound states in quantum wires, Phys. Rev. Lett. 105, 177002 (2010).
  23. F. Pientka, A. Keselman, E. Berg, A. Yacoby, A. Stern, and B. I. Halperin, Topological superconductivity in a planar Josephson junction, Phys. Rev. X 7, 021032 (2017).
  24. M. Hell, M. Leijnse, and K. Flensberg, Two-dimensional platform for networks of Majorana bound states, Phys. Rev. Lett. 118, 107701 (2017).
  25. L. Fu and C. L. Kane, Superconducting proximity effect and Majorana fermions at the surface of a topological insulator, Phys. Rev. Lett. 100, 096407 (2008).
  26. L. Fu and C. L. Kane, Josephson current and noise at a superconductor/quantum-spin-Hall-insulator/superconductor junction, Phys. Rev. B 79, 161408(R) (2009).
  27. Y. Tanaka, T. Yokoyama, and N. Nagaosa, Manipulation of the Majorana fermion, Andreev reflection, and Josephson current on topological insulators, Phys. Rev. Lett. 103, 107002 (2009).
  28. R. S. K. Mong, D. J. Clarke, J. Alicea, N. H. Lindner, P. Fendley, C. Nayak, Y. Oreg, A. Stern, E. Berg, K. Shtengel, and M. P. A. Fisher, Universal topological quantum computation from a superconductor-Abelian quantum Hall heterostructure, Phys. Rev. X 4, 011036 (2014).
  29. P. San-Jose, J. L. Lado, R. Aguado, F. Guinea, and J. Fernández-Rossier, Majorana zero modes in graphene, Phys. Rev. X 5, 041042 (2015).
  30. G.-H. Lee, K.-F. Huang, D. K. Efetov, D. S. Wei, S. Hart, T. Taniguchi, K. Watanabe, A. Yacoby, and P. Kim, Inducing superconducting correlation in quantum Hall edge states, Nat. Phys. 13, 693 (2017).
  31. L. Zhao, E. G. Arnault, A. Bondarev, A. Seredinski, T. F. Q. Larson, A. W. Draelos, H. Li, K. Watanabe, T. Taniguchi, F. Amet, H. U. Baranger, and G. Finkelstein, Interference of chiral Andreev edge states, Nat. Phys. 16, 862 (2020).
  32. M. Hatefipour, J. J. Cuozzo, J. Kanter, W. M. Strickland, C. R. Allemang, T.-M. Lu, E. Rossi, and J. Shabani, Induced superconducting pairing in integer quantum Hall edge states, Nano Lett. 22, 6173 (2022).
  33. Ö. Gül, Y. Ronen, S. Y. Lee, H. Shapourian, J. Zauberman, Y. H. Lee, K. Watanabe, T. Taniguchi, A. Vishwanath, A. Yacoby, and P. Kim, Andreev reflection in the fractional quantum Hall state, Phys. Rev. X 12, 021057 (2022).
  34. J. J. Cuozzo and E. Rossi, SU(4) symmetry breaking and induced superconductivity in graphene quantum Hall edges, Phys. Rev. B 110, 024518 (2024).
  35. M. Hatefipour, J. J. Cuozzo, I. Levy, W. M. Strickland, D. Langone, E. Rossi, and J. Shabani, Andreev reflection of quantum Hall states through a quantum point contact, Phys. Rev. B 109, 035430 (2024).
  36. M. Aghaee et al., Roadmap to fault tolerant quantum computation using topological qubit arrays, arXiv:2502.12252.
  37. S. Nadj-Perge, I. K. Drozdov, B. A. Bernevig, and Ali Yazdani, Proposal for realizing Majorana fermions in chains of magnetic atoms on a superconductor, Phys. Rev. B 88, 020407(R) (2013).
  38. S. Nadj-Perge, I. K. Drozdov, J. Li, H. Chen, S. Jeon, J. Seo, A. H. MacDonald, B. A. Bernevig, and A. Yazdani, Observation of Majorana fermions in ferromagnetic atomic chains on a superconductor, Science 346, 602 (2014).
  39. D. J. Clarke, J. Alicea, and K. Shtengel, Exotic circuit elements from zero-modes in hybrid superconductor–quantum-Hall systems, Nat. Phys. 10, 877 (2014).
  40. A. Uday, G. Lippertz, K. Moors, H. F. Legg, R. Joris, A. Bliesener, L. M. C. Pereira, A. A. Taskin, and Y. Ando, Induced superconducting correlations in a quantum anomalous Hall insulator, Nat. Phys. 20, 1589 (2024).
  41. X.-L. Qi and S.-C. Zhang, Topological insulators and superconductors, Rev. Mod. Phys. 83, 1057 (2011).
  42. C. L. Kane and E. J. Mele, Z2 topological order and the quantum spin Hall effect, Phys. Rev. Lett. 95, 146802 (2005).
  43. B. Andrei Bernevig, T. L. Hughes, and S.-C. Zhang, Quantum spin Hall effect and topological phase transition in HgTe quantum wells, Science 314, 1757 (2006).
  44. J. C. Y. Teo and C. L. Kane, Topological defects and gapless modes in insulators and superconductors, Phys. Rev. B 82, 115120 (2010).
  45. J. Li, W. Pan, B. A. Bernevig, and R. M. Lutchyn, Detection of Majorana Kramers pairs using a quantum point contact, Phys. Rev. Lett. 117, 046804 (2016).
  46. D. I. Pikulin, Y. Komijani, and I. Affleck, Luttinger liquid in contact with a Kramers pair of Majorana bound states, Phys. Rev. B 93, 205430 (2016).
  47. C. Schrade and L. Fu, Quantum computing with Majorana Kramers pairs, Phys. Rev. Lett. 129, 227002 (2022).
  48. F. Nichele, H. J. Suominen, M. Kjaergaard, C. M. Marcus, E. Sajadi, J. A. Folk, F. Qu, A. J. A. Beukman, F. K. de Vries, J. van Veen, S. Nadj-Perge, L. P. Kouwenhoven, B.-M. Nguyen, A. A. Kiselev, W. Yi, M. Sokolich, M. J. Manfra, E. M. Spanton, and K. A. Moler, Edge transport in the trivial phase of InAs/GaSb, New J. Phys. 18, 083005 (2016).
  49. L. Du, I. Knez, G. Sullivan, and R.-R. Du, Robust helical edge transport in gated InAs/GaSb bilayers, Phys. Rev. Lett. 114, 096802 (2015).
  50. C.-A. Li, S.-B. Zhang, and S.-Q. Shen, Hidden edge Dirac point and robust quantum edge transport in InAs/GaSb quantum wells, Phys. Rev. B 97, 045420 (2018).
  51. R. Skolasinski, D. I. Pikulin, J. Alicea, and M. Wimmer, Robust helical edge transport in quantum spin Hall quantum wells, Phys. Rev. B 98, 201404(R) (2018).
  52. S. S. Krishtopenko and F. Teppe, Realistic picture of helical edge states in HgTe quantum wells, Phys. Rev. B 97, 165408 (2018).
  53. H. Zhang, C.-X. Liu, X.-L. Qi, X. Dai, Z. Fang, and S.-C. Zhang, Topological insulators in Bi2Se3, Bi2Te3 and Sb2Te3 with a single Dirac cone on the surface, Nat. Phys. 5, 438 (2009).
  54. F. Schulz, K. Plekhanov, D. Loss, and J. Klinovaja, Majorana bound states in topological insulators with hidden Dirac points, Phys. Rev. Res. 2, 033215 (2020).
  55. W. Yu, V. Clerico, C. Hernandez Fuentevilla, X. Shi, Y. Jiang, D. Saha, W. K. Lou, K. Chang, D. H. Huang, G. Gumbs, D. Smirnov, C. J. Stanton, Z. Jiang, V. Bellani, Y. Meziani, E. Diez, W. Pan, S. D. Hawkins, and J. F. Klem, Anomalously large resistance at the charge neutrality point in a zero-gap InAs/GaSb bilayer, New J. Phys. 20, 053062 (2018).
  56. M. J. Yang, F.-C. Wang, C. H. Yang, B. R. Bennett, and T. Q. Do, A composite quantum well field-effect transistor, Appl. Phys. Lett. 69, 85 (1996).
  57. W. Yu, Y. Jiang, C. Huan, X. Chen, Z. Jiang, S. D. Hawkins, J. F. Klem, and W. Pan, Superconducting proximity effect in inverted InAs/GaSb quantum well structures with Ta electrodes, Appl. Phys. Lett. 105, 192107 (2014).
  58. X. Shi, W. Yu, Z. Jiang, B. Andrei Bernevig, W. Pan, S. D. Hawkins, and J. F. Klem, Giant supercurrent states in a superconductor-InAs/GaSb-superconductor junction, J. Appl. Phys. 118, 133905 (2015).
  59. V. S. Pribiag, A. J. A. Beukman, F. Qu, M. C. Cassidy, C. Charpentier, W. Wegscheider, and L. P. Kouwenhoven, Edge-mode superconductivity in a two-dimensional topological insulator, Nat. Nanotechnol. 10, 593 (2015).
  60. W. Pan, J. F. Klem, J. K. Kim, M. Thalakulam, M. J. Cich, and S. K. Lyo, Chaotic quantum transport near the charge neutrality point in inverted type-II InAs/GaSb field-effect transistors, Appl. Phys. Lett. 102, 033504 (2013).
  61. F. Nichele, A. N. Pal, P. Pietsch, T. Ihn, K. Ensslin, C. Charpentier, and W. Wegscheider, Insulating state and giant nonlocal response in an InAs/GaSb quantum well in the quantum Hall regime, Phys. Rev. Lett. 112, 036802 (2014).
  62. S. Mueller, A. N. Pal, M. Karalic, T. Tschirky, C. Charpentier, W. Wegscheider, K. Ensslin, and T. Ihn, Nonlocal transport via edge states in InAs/GaSb coupled quantum wells, Phys. Rev. B 92, 081303(R) (2015).
  63. H. J. Gardner, A. Kumar, L. Yu, P. Xiong, M. P. Warusawithana, L. Wang, O. Vafek, and D. G. Schlom, Enhancement of superconductivity by a parallel magnetic field in two-dimensional superconductors, Nat. Phys. 7, 895 (2011).
  64. C. W. Groth, M. Wimmer, A. R. Akhmerov, and X. Waintal, kwant: A software package for quantum transport, New J. Phys. 16, 063065 (2014).
  65. C. Liu, T. L. Hughes, X.-L. Qi, K. Wang, and S.-C. Zhang, Quantum spin Hall effect in inverted type-II semiconductors, Phys. Rev. Lett. 100, 236601 (2008).
  66. D. I. Pikulin and T. Hyart, Interplay of exciton condensation and the quantum spin Hall effect in InAs/GaSb bilayers, Phys. Rev. Lett. 112, 176403 (2014).
  67. L. Du, X. Li, W. Lou, G. Sullivan, K. Chang, J. Kono, and R.-R. Du, Evidence for a topological excitonic insulator in InAs/GaSb bilayers, Nat. Commun. 8, 1971 (2017).
  68. Y. Liu and R. E. Allen, Electronic structure of the semimetals Bi and Sb, Phys. Rev. B 52, 1566 (1995).
  69. C. Fleckenstein, F. Domínguez, N. Traverso Ziani, and B. Trauzettel, Decaying spectral oscillations in a Majorana wire with finite coherence length, Phys. Rev. B 97, 155425 (2018).
  70. Z. Cao, H. Zhang, H.-F. Lü, W.-X. He, H.-Z. Lu, and X. C. Xie, Decays of Majorana or Andreev oscillations induced by steplike spin-orbit coupling, Phys. Rev. Lett. 122, 147701 (2019).
  71. F. Zhang, C. L. Kane, and E. J. Mele, Time-reversal-invariant topological superconductivity and Majorana Kramers pairs, Phys. Rev. Lett. 111, 056402 (2013).
  72. W. Pan, K. R. Sapkota, P. Lu, A. J. Muhowski, W. M. Martinez, C. L. H. Sovinec, R. Reyna, J. P. Mendez, D. Mamaluy, S. D. Hawkins, J. F. Klem, L. S. L. Smith, D. A. Temple, Z. Enderson, Z. Jiang, and E. Rossi, Epitaxial aluminum layer on antimonide heterostructures for exploring Josephson junction effects, Mater. Sci. Eng.: B 318, 118285 (2025).
  73. R. Magri and A. Zunger, Effects of interfacial atomic segregation and intermixing on the electronic properties of InAs/GaSb superlattices, Phys. Rev. B 65, 165302 (2002).
  74. L. Riney, S.-K. Bac, M. Zhukovskyi, T. Orlova, S. S. Fields, J. Wang, T. Kotte, D. Graf, S. P. Bennett, X. Liu, and B. A. Assaf, Interface dependent coexistence of two-dimensional electron and hole gases in Mn-doped InAs/ChemSymbolGaSb, Adv. Mater. Interfaces 12, 2400630 (2025).
  75. I. Knez, R.-R. Du, and G. Sullivan, Evidence for helical edge modes in inverted InAs/GaSb quantum wells, Phys. Rev. Lett. 107, 136603 (2011).
