Impact of Josephson-Junction Array Modes on Fluxonium Readout

Shraddha Singh1,2,3,*,†, Gil Refael4,3, Aashish Clerk5,3, and Emma Rosenfeld3,‡

  • *Contact author: shraddha.singh@yale.edu
  • †Present address: IBM Quantum, IBM T. J. Watson Research Center, Yorktown Heights, NY 10598, USA.
  • ‡Present address: Google Research.
PDF

PRX Quantum 6, 040304 – Published 6 October, 2025

DOI: https://doi.org/10.1103/brdj-ggfj

Abstract

Dispersive readout of superconducting qubits is often limited by readout-drive-induced transitions between qubit levels. While there is a growing understanding of such effects in transmon qubits, the case of highly nonlinear fluxonium qubits is more complex. We theoretically analyze measurement-induced state transitions (MISTs) during the dispersive readout of a fluxonium qubit. We focus on a new mechanism: a simultaneous transition/excitation involving the qubit and an internal mode of the Josephson-junction array in the fluxonium circuit. Using an adiabatic Floquet approach, we show that these new kinds of MIST processes can be relevant when using realistic circuit parameters and relatively low readout drive powers. They also contribute to excess qubit dephasing even after a measurement is complete. In addition to outlining basic mechanisms, we also investigate the dependence of such transitions on the circuit parameters. We find that with a judicious choice of frequency allocations or coupling strengths, these parasitic processes can most likely be avoided.

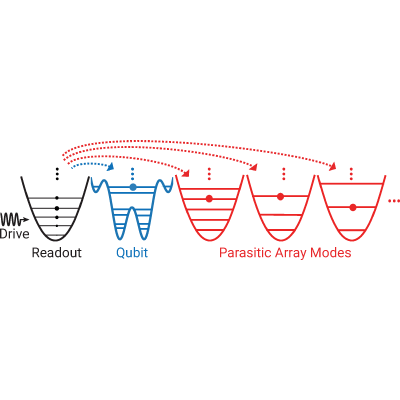

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

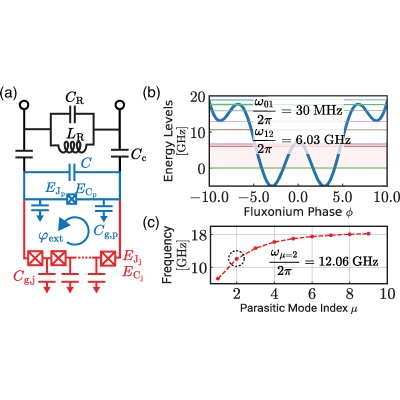

Fluxonium qubits, known for their high coherence and fast gates, are a promising candidate for superconducting architectures. High-fidelity measurement of these qubits is a crucial component in employing a fluxonium-based architecture for fault-tolerant quantum computing. We present an analysis of dispersive readout in fluxonium qubits, specifically considering the “parasitic,” collective modes of a Josephson-junction array (JJA), which constitutes the inductive shunt in the circuit.

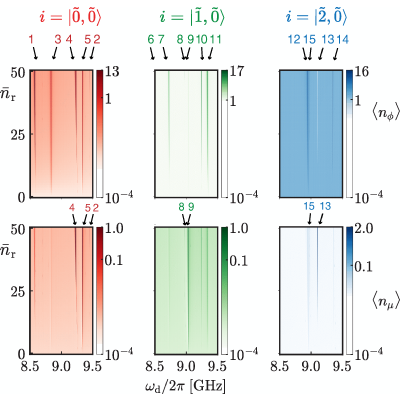

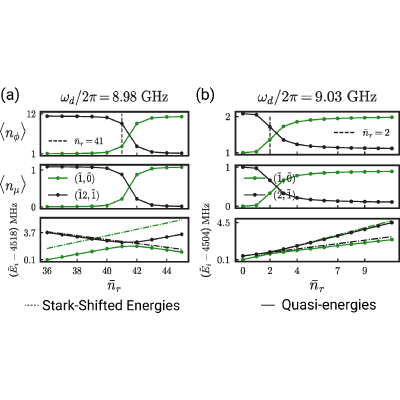

Measurement of superconducting circuits is currently limited by state transitions, so called measurement-induced state transitions (MISTs), in the qubit when increasing photons in the readout mode. Our analysis reveals that coupling to the parasitic modes of a JJA introduces additional state transitions during fluxonium readout. Consequently, such parasitic-mode-assisted MIST processes, which we refer to as PMISTs, can lower the onset of MIST processes to as low as ∼10 average photons in the readout mode, severely impacting the readout performance. Even when neglecting nonlinearities in the JJA, a significant number of these parasitic transitions, which are mediated by the coupling of the parasitic mode to the qubit mode, occur at considerable rates.

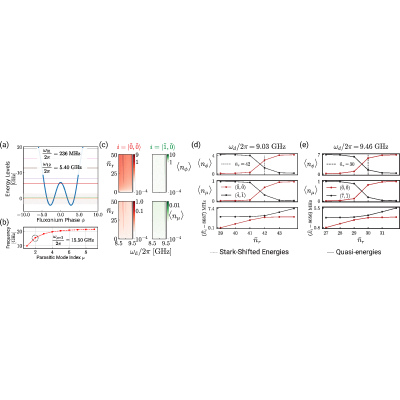

We also find that detrimental effects of PMISTs continue after a readout excitation is complete. Specifically, any remaining population in the parasitic modes from PMIST processes also causes subsequent dephasing of the fluxonium qubit. Without a judicious choice of readout frequency to avoid PMISTs, this can limit the performance of the qubit for further use in a quantum circuit. We also pay special attention to the role of symmetries in quantum circuits on PMISTs. To further identify mitigation strategies, we extend our findings across various fluxonium circuits, analyzing the dependency of parasitic frequencies and coupling between qubit and parasitic modes on different circuit parameters.

Our results underscore the substantial impact a JJA can have on the readout fidelity and the coherence of highly anharmonic superconducting circuits. While our analysis is performed using experimentally motivated parameters for fluxonium circuits, with further study, our approach and findings may be extended to the general case of a qubit in the presence of a spurious mode.

Article Text

References (52)

  1. L. B. Nguyen, Y.-H. Lin, A. Somoroff, R. Mencia, N. Grabon, and V. E. Manucharyan, High-coherence fluxonium qubit, Phys. Rev. X 9, 041041 (2019).
  2. A. Somoroff, Q. Ficheux, R. A. Mencia, H. Xiong, R. Kuzmin, and V. E. Manucharyan, Millisecond coherence in a superconducting qubit, Phys. Rev. Lett. 130, 267001 (2023).
  3. V. E. Manucharyan, J. Koch, L. I. Glazman, and M. H. Devoret, Fluxonium: Single Cooper-pair circuit free of charge offsets, Science 326, 113 (2009).
  4. N. Earnest, S. Chakram, Y. Lu, N. Irons, R. K. Naik, N. Leung, L. Ocola, D. A. Czaplewski, B. Baker, J. Lawrence, J. Koch, and D. I. Schuster, Realization of a Λ system with metastable states of a capacitively shunted fluxonium, Phys. Rev. Lett. 120, 150504 (2018).
  5. H. Zhang, S. Chakram, T. Roy, N. Earnest, Y. Lu, Z. Huang, D. K. Weiss, J. Koch, and D. I. Schuster, Universal fast-flux control of a coherent, low-frequency qubit, Phys. Rev. X 11, 011010 (2021).
  6. L. Ding, M. Hays, Y. Sung, B. Kannan, J. An, A. Di Paolo, A. H. Karamlou, T. M. Hazard, K. Azar, D. K. Kim, B. M. Niedzielski, A. Melville, M. E. Schwartz, J. L. Yoder, T. P. Orlando, S. Gustavsson, J. A. Grover, K. Serniak, and W. D. Oliver, High-fidelity, frequency-flexible two-qubit fluxonium gates with a transmon coupler, Phys. Rev. X 13, 031035 (2023).
  7. H. Zhang, C. Ding, D. Weiss, Z. Huang, Y. Ma, C. Guinn, S. Sussman, S. P. Chitta, D. Chen, A. A. Houck, J. Koch, and D. I. Schuster, Tunable inductive coupler for high-fidelity gates between fluxonium qubits, PRX Quantum 5, 020326 (2024), publisher: American Physical Society.
  8. K. N. Nesterov, C. Wang, V. E. Manucharyan, and M. G. Vavilov, cnot gates for fluxonium qubits via selective darkening of transitions, Phys. Rev. Appl. 18, 034063 (2022).
  9. K. N. Nesterov, Q. Ficheux, V. E. Manucharyan, and M. G. Vavilov, Proposal for entangling gates on fluxonium qubits via a two-photon transition, PRX Quantum 2, 020345 (2021).
  10. E. Dogan, D. Rosenstock, L. Le Guevel, H. Xiong, R. A. Mencia, A. Somoroff, K. N. Nesterov, M. G. Vavilov, V. E. Manucharyan, and C. Wang, Two-fluxonium cross-resonance gate, Phys. Rev. Appl. 20, 024011 (2023).
  11. E. L. Rosenfeld, C. T. Hann, D. I. Schuster, M. H. Matheny, and A. A. Clerk, High-fidelity two-qubit gates between fluxonium qubits with a resonator coupler, PRX Quantum 5, 040317 (2024).
  12. L. B. Nguyen, G. Koolstra, Y. Kim, A. Morvan, T. Chistolini, S. Singh, K. N. Nesterov, C. Jünger, L. Chen, Z. Pedramrazi, B. K. Mitchell, J. M. Kreikebaum, S. Puri, D. I. Santiago, and I. Siddiqi, Blueprint for a high-performance fluxonium quantum processor, PRX Quantum 3, 037001 (2022).
  13. N. A. Masluk, I. M. Pop, A. Kamal, Z. K. Minev, and M. H. Devoret, Microwave characterization of Josephson junction arrays: Implementing a low loss superinductance, Phys. Rev. Lett. 109, 137002 (2012), publisher: American Physical Society.
  14. F. Wang, K. Lu, H. Zhan, L. Ma, F. Wu, H. Sun, H. Deng, Y. Bai, F. Bao, X. Chang et al., High-coherence fluxonium qubits manufactured with a wafer-scale-uniformity process, Phys. Rev. Appl. 23, 044064 (2025).
  15. A. Blais, A. L. Grimsmo, S. M. Girvin, and A. Wallraff, Circuit quantum electrodynamics, Rev. Mod. Phys. 93, 025005 (2021).
  16. D. Gusenkova, M. Spiecker, R. Gebauer, M. Willsch, D. Willsch, F. Valenti, N. Karcher, L. Grünhaupt, I. Takmakov, P. Winkel, D. Rieger, A. V. Ustinov, N. Roch, W. Wernsdorfer, K. Michielsen, O. Sander, and I. M. Pop, Quantum nondemolition dispersive readout of a superconducting artificial atom using large photon numbers, Phys. Rev. Appl. 15, 064030 (2021).
  17. U. Vool, A. Kou, W. C. Smith, N. E. Frattini, K. Serniak, P. Reinhold, I. M. Pop, S. Shankar, L. Frunzio, S. M. Girvin, and M. H. Devoret, Driving forbidden transitions in the fluxonium artificial atom, Phys. Rev. Appl. 9, 054046 (2018).
  18. U. Vool, I. M. Pop, K. Sliwa, B. Abdo, C. Wang, T. Brecht, Y. Y. Gao, S. Shankar, M. Hatridge, G. Catelani, M. Mirrahimi, L. Frunzio, R. J. Schoelkopf, L. I. Glazman, and M. H. Devoret, Non-Poissonian quantum jumps of a fluxonium qubit due to quasiparticle excitations, Phys. Rev. Lett. 113, 247001 (2014).
  19. R. Shillito, A. Petrescu, J. Cohen, J. Beall, M. Hauru, M. Ganahl, A. G. Lewis, G. Vidal, and A. Blais, Dynamics of transmon ionization, Phys. Rev. Appl. 18, 034031 (2022).
  20. X. Xiao, J. Venkatraman, R. G. Cortiñas, S. Chowdhury, and M. H. Devoret, A diagrammatic method to compute the effective Hamiltonian of driven nonlinear oscillators, arXiv:2304.13656.
  21. M. Khezri, A. Opremcak, Z. Chen, K. C. Miao, M. McEwen, A. Bengtsson, T. White, O. Naaman, D. Sank, A. N. Korotkov et al., Measurement-induced state transitions in a superconducting qubit: Within the rotating-wave approximation, Phys. Rev. Appl. 20, 054008 (2023).
  22. J. Cohen, A. Petrescu, R. Shillito, and A. Blais, Reminiscence of classical chaos in driven transmons, PRX Quantum 4, 020312 (2023).
  23. M. F. Dumas, B. Groleau-Paré, A. McDonald, M. H. Muñoz Arias, C. Lledó, B. D’Anjou, and A. Blais, Measurement-induced transmon ionization, Phys. Rev. X 14, 041023 (2024).
  24. D. Sank et al., Measurement-induced state transitions in a superconducting qubit: Beyond the rotating wave approximation, Phys. Rev. Lett. 117, 190503 (2016).
  25. K. N. Nesterov and I. V. Pechenezhskiy, Measurement-induced state transitions in dispersive qubit-readout schemes, Phys. Rev. Appl. 22, 064038 (2024).
  26. D. G. Ferguson, A. A. Houck, and J. Koch, Symmetries and collective excitations in large superconducting circuits, Phys. Rev. X 3, 011003 (2013).
  27. G. Zhu, D. G. Ferguson, V. E. Manucharyan, and J. Koch, Circuit qed with fluxonium qubits: Theory of the dispersive regime, Phys. Rev. B 87, 024510 (2013).
  28. The study on symmetries and disorders of the JJA has been carried out in Ref. [26]. More explicitly, the authors study the effect of a Gaussian distribution of disorder along the array which essentially modifies the potential energy. The outcome of this disorder is a weak breaking of the symmetry resulting in coupling the qubit mode with all modes and not just even parasitic modes. Thus, a small disorder could lead to weak coupling between the qubit mode and the first parasitic mode which has the lowest frequency of ∼7 GHz, and thus, can be more harmful for PMISTs. However, we note that, for the parameters used in this work, calculations in Ref. [26] show that the correction to the qubit-parasitic mode coupling due to disorder effects will be negligible.

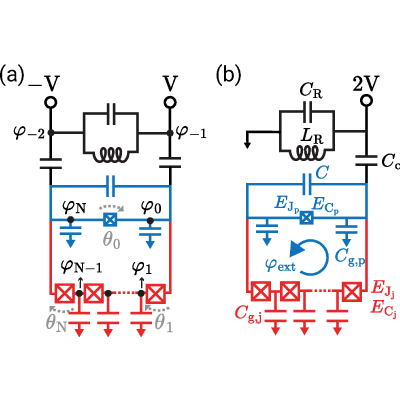

  29. Note that the ground capacitances Cgn are distinct from the self-capacitance 19.4EC,j(GHz)fF (see Table 4) across the junctions in the array, which set the junction array plasmon frequency [51].
  30. G. Viola and G. Catelani, Collective modes in the fluxonium qubit, Phys. Rev. B 92, 224511 (2015).

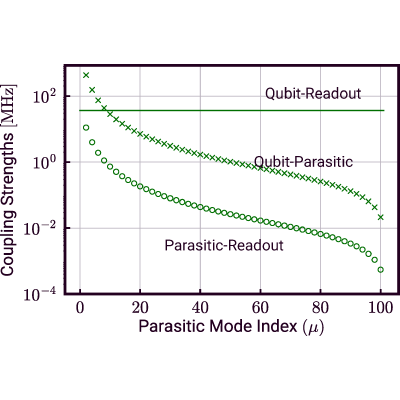

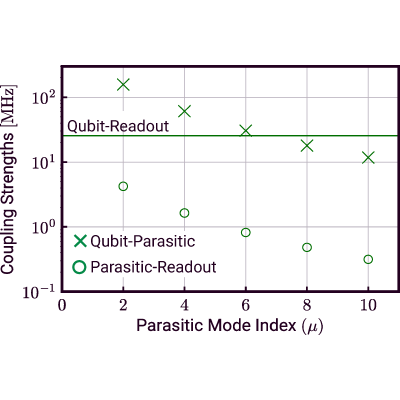

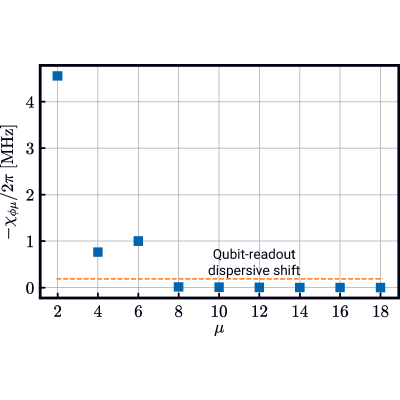

  31. In fact, the first four even parasitic modes have coupling strengths within a factor of 10 of gϕr. See Fig. 11 in Appendix 9.
  32. S. Goto and K. Koshino, Labeling eigenstates of qubit-cavity systems based on the continuity of qubit occupancy: Detecting resonances to higher excited qubit states, J. Phys. Soc. Jpn. 94, 014002 (2025).
  33. T. N. Ikeda, S. Tanaka, and Y. Kayanuma, Floquet-Landau-Zener interferometry: Usefulness of the Floquet theory in pulse-laser-driven systems, Phys. Rev. Res. 4, 033075 (2022).

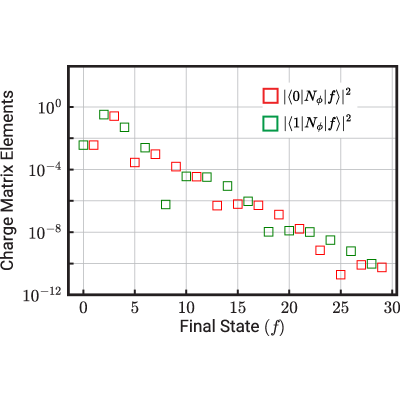

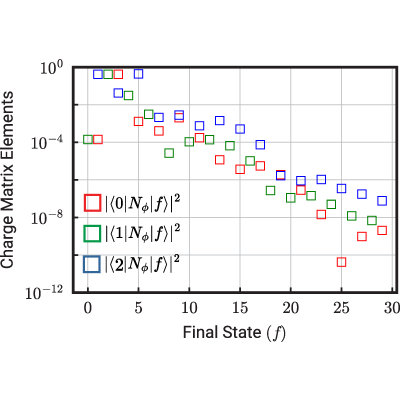

  34. We show that our results hold when simulated with 30 levels in the qubit mode and 10 levels in the parasitic mode. See Fig. 16 in Appendix pp3.
  35. We have verified that our method can also reproduce the transmon-based results of Ref. [23] (where a time-averaged overlap was used).

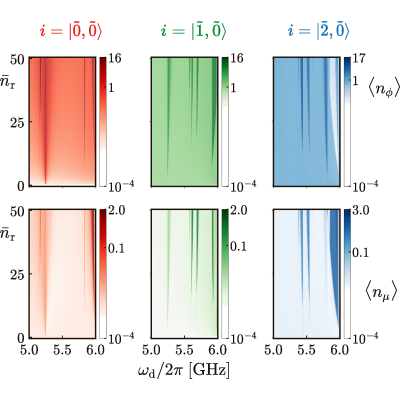

  36. A relatively high-frequency choice, to reduce thermal, photon shot-noise-induced dephasing in the qubit compared with lower-frequency bands.
  37. While less studied, branch bunching in the negative detuning can also occur in transmon systems but only at extremely high photon numbers (i.e., strong drives). This was learned through a private communication with one of the referees.
  38. Note that for the purpose of measurement, ring-up of the drive can be varied to avoid MIST effects, however, ring-down due to the decay of the readout resonator is the major concern causing MISTs. We do not expect any difference in MIST effects emulated from ring-up and ring-down occurring at the same rate.
  39. N. V. Vitanov, Transition times in the Landau-Zener model, Phys. Rev. A 59, 988 (1999).
  40. H. Breuer and M. Holthaus, Adiabatic processes in the ionization of highly excited hydrogen atoms, Z. Phys. D At., Molecules Clusters 11, 1 (1989).
  41. H. Breuer and M. Holthaus, Quantum phases and landau-zener transitions in oscillating fields, Phys. Lett. A 140, 507 (1989).
  42. N. A. Masluk, Reducing the losses of the fluxonium artificial atom, PhD Thesis (Yale University, 2013).

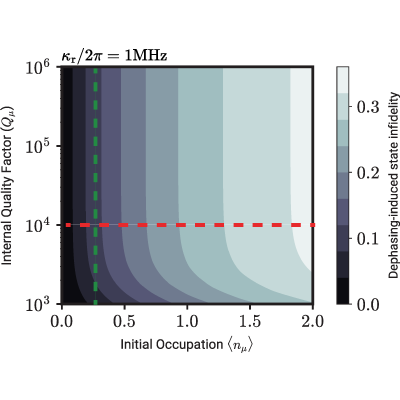

  43. We use a thermal state as the most general assumption on an imperfect parasitic mode (Qμ≠∞) after only the qubit mode has been reset. Correspondingly, the infidelities in the case of a coherent state will be increased by a factor of 2.

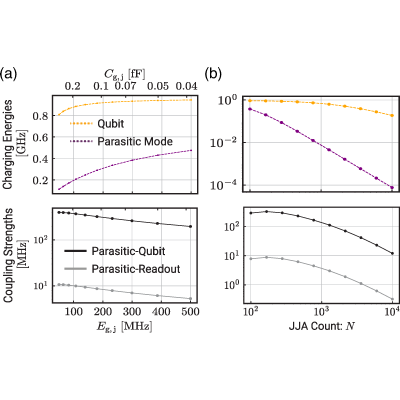

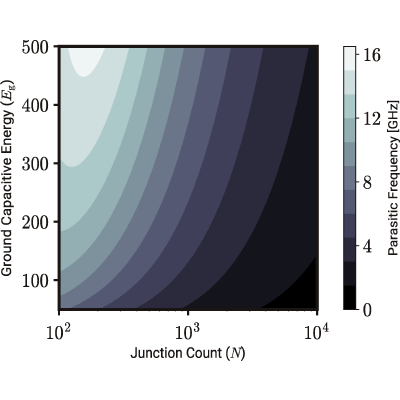

  44. Note that the assumptions used in Ref. [30] to derive the Hamiltonian were respected when analyzing the variation with N. The upper bound on N≪8π2ECg,jE~Cϕ⟹N≪16000. Due to high nonlinearity of parasitic modes in the low N, and this restriction, our analysis is only valid for the region 102<N<104.

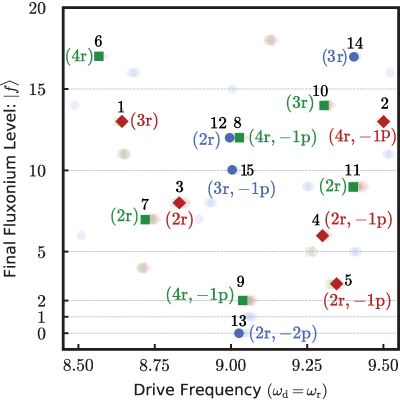

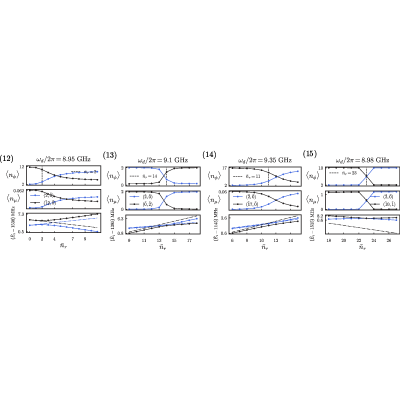

  45. We can estimate resonance conditions by identifying energy-conserving processes, where x drive photons are converted into a transition with an energy difference ℏω~if,y in the hybridized eigenspace of the fluxonium and parasitic mode μ=2. This equation can also be interpreted as a process where x readout photons convert into y parasitic-mode photons and a fluxonium excitation |i⟩ϕ↔|f⟩ϕ.
  46. Note that there are downward transitions from |2⟩ϕ (blue dots) to the states |1⟩ϕ (green line) and |0⟩ϕ (red line) in the fluxonium subspace in the presence of parasitic modes. One such example is captured by transition 13 of Table 3.
  47. P. D. Kurilovich, T. Connolly, C. G. Bøttcher, D. K. Weiss, S. Hazra, V. R. Joshi, A. Z. Ding, H. Nho, S. Diamond, V. D. Kurilovich et al., High-frequency readout free from transmon multi-excitation resonances, arXiv:2501.09161.
  48. S. Singh, Impact of Josephson junction array modes on fluxonium readout [GitHub], https://github.com/shraggy/Readout_simulations
  49. P. Groszkowski and J. Koch, Scqubits: a Python package for superconducting qubits, Quantum 5, 583 (2021).
  50. J. R. Johansson, P. D. Nation, and F. Nori, QuTiP: An open-source Python framework for the dynamics of open quantum systems, Comput. Phys. Commun. 183, 1760 (2012).
  51. G. Catelani, R. J. Schoelkopf, M. H. Devoret, and L. I. Glazman, Relaxation and frequency shifts induced by quasiparticles in superconducting qubits, Phys. Rev. B 84, 064517 (2011).
  52. J. Koch, V. Manucharyan, M. H. Devoret, and L. I. Glazman, Charging effects in the inductively shunted Josephson junction, Phys. Rev. Lett. 103, 217004 (2009).
