Quantum Phase Estimation Without Controlled Unitaries

Laura Clinton1,*, Toby S. Cubitt1,2, Raul Garcia-Patron1,3, Ashley Montanaro1,4, Stasja Stanisic1, and Maarten Stroeks1,5,†

  • *Contact author: laura@phasecraft.io
  • †Contact author: m.e.h.m.stroeks@tudelft.nl
PDF

PRX Quantum 7, 010345 – Published 5 March, 2026

DOI: https://doi.org/10.1103/7qcr-znl2

Abstract

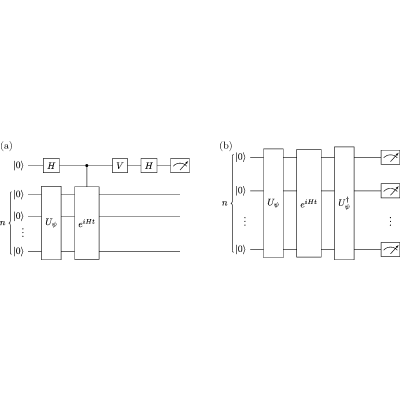

In this work we demonstrate the use of adapted classical phase retrieval algorithms to perform control-free quantum phase estimation. We eliminate the costly controlled time evolution and Hadamard test commonly required to access the complex time-series needed to reconstruct the spectrum. This significant reduction of the number of coherent controlled-operations lowers the circuit depth and considerably simplifies the implementation of statistical quantum phase estimation in near-term devices. This seemingly impossible task can be achieved by extending the problem that one wishes to solve to one with a larger set of input signals while exploiting natural constraints on the signal and/or the spectrum. We leverage well-established algorithms that are widely used in the context of classical signal processing, demonstrating two complementary methods to do this, vectorial phase retrieval and two-dimensional phase retrieval. We numerically investigate the feasibility of both approaches for estimating the spectrum of the Fermi-Hubbard model and discuss their resilience to inherent statistical noise.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Our paper “Quantum Phase Estimation without Controlled Unitaries” proposes a new way to perform quantum phase estimation (QPE) without the need for controlled time evolution and Hadamard tests. This reduces the gate-count of the requisite quantum circuits, particularly for quantum devices with constrained connectivity.

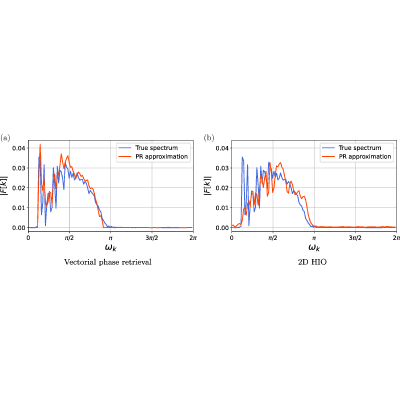

We adapt classical phase-retrieval algorithms from signal processing to the quantum setting. By constructing an enlarged set of input states and exploiting constraints on the time-series and underlying spectrum, we show that one can reconstruct the full complex signal required for QPE from measurements of absolute values alone. We adapt two complementary techniques to the quantum setting: vectorial phase retrieval and two-dimensional phase retrieval with Fienup’s hybrid input-output algorithm. These methods reconstruct the spectrum using only standard time evolution circuits on an enlarged set of inputs, thereby eliminating the need for ancillary qubits and controlled unitaries.

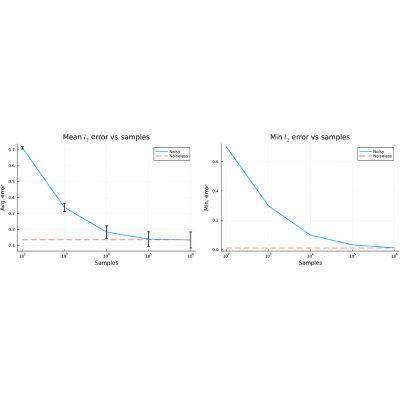

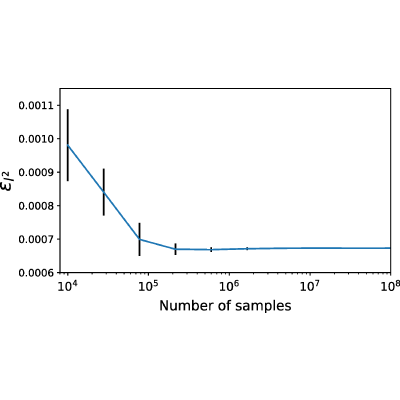

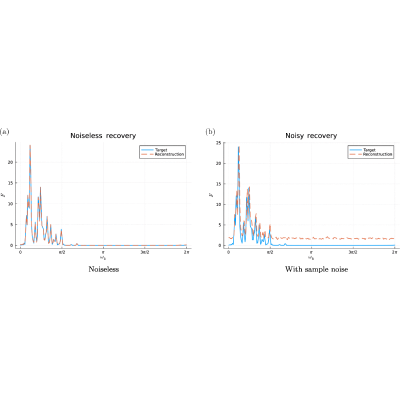

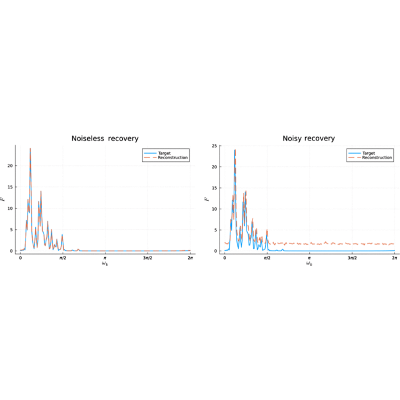

Our work includes numerical tests on the Fermi-Hubbard model to evaluate feasibility and resilience to shot noise, demonstrating that these phase-retrieval approaches can recover spectral features with potentially promising performance on near-term devices. Our work reframes QPE as a signal reconstruction problem, trading controlled quantum operations for increased classical postprocessing and sampling complexity, potentially enabling simpler implementations on noisy intermediate-scale quantum hardware.

Article Text

References (48)

  1. S. Duckett and B. Gilbert, Foundations of Spectroscopy, Oxford chemistry primers (Oxford University, Oxford, United Kingdom, 2000), ISBN 9780198503354, https://books.google.co.uk/books?id=boG7ngEACAAJ
  2. J. P. F. LeBlanc et al., Solutions of the two-dimensional hubbard model: Benchmarks and results from a wide range of numerical algorithms, Phys. Rev. X 5, 041041 (2015).
  3. Bela Bauer, Sergey Bravyi, Mario Motta, and Garnet Kin-Lic Chan, Quantum algorithms for quantum chemistry and quantum materials science, Chem. Rev. 120, 12685 (2020), ISSN 1520-6890.
  4. R. Somma, G. Ortiz, J. E. Gubernatis, E. Knill, and R. Laflamme, Simulating physical phenomena by quantum networks, Phys. Rev. A 65, 042323 (2002).
  5. Rolando D. Somma, Quantum eigenvalue estimation via time series analysis, New J. Phys. 21, 123025 (2019).
  6. Thomas E. O’Brien, Brian Tarasinski, and Barbara M. Terhal, Quantum phase estimation of multiple eigenvalues for small-scale (noisy) experiments, New J. Phys. 21, 023022 (2019).
  7. Lin Lin and Yu Tong, Heisenberg-limited ground-state energy estimation for early fault-tolerant quantum computers, PRX Quantum 3, 010318 (2022).
  8. K. Wan, M. Berta, and E. T. Campbell, Randomized quantum algorithm for statistical phase estimation, Phys. Rev. Lett., 129, 030503 (2022).
  9. Guoming Wang, Daniel Stilck França, Ruizhe Zhang, Shuchen Zhu, and Peter D. Johnson, Quantum algorithm for ground state energy estimation using circuit depth with exponentially improved dependence on precision, Quantum 7, 1167 (2023), ISSN 2521-327X.
  10. Nick S. Blunt, Laura Caune, Róbert Izsák, Earl T. Campbell, and Nicole Holzmann, Statistical phase estimation and error mitigation on a superconducting quantum processor, PRX Quantum 4, 040341 (2023).
  11. T. E. O’Brien, S. Polla, N. C. Rubin, W. J. Huggins, S. McArdle, S. Boixo, J. R. McClean, and R. Babbush, Error mitigation via verified phase estimation, PRX Quantum 2, 020317 (2021).
  12. A. Baroni, J. Carlson, R. Gupta, Andy C. Y. Li, G. N. Perdue, and A. Roggero, Nuclear two point correlation functions on a quantum computer, Phys. Rev. D 105, 074503 (2022).
  13. Nishad Maskara, Stefan Ostermann, James Shee, Marcin Kalinowski, Abigail McClain Gomez, Rodrigo Araiza Bravo, Derek S. Wang, Anna I. Krylov, Norman Y. Yao, Martin Head-Gordon, Mikhail D. Lukin, and Susanne F. Yelin, Programmable simulations of molecules and materials with reconfigurable quantum processors (2023).
  14. B. Bauer, D. Wecker, A. J. Millis, M. B. Hastings, and M. Troyer, Hybrid quantum-classical approach to correlated materials, Phys. Rev. X 6, 031045 (2016).
  15. Hans Hon Sang Chan, Richard Meister, Matthew L. Goh, and Bálint Koczor, Algorithmic shadow spectroscopy, (2024).
  16. Y. Yang, A. Christianen, M. C. Bañuls, D. S. Wild, and J. I. Cirac, Phase-sensitive quantum measurement without controlled operations, Phys. Rev. Lett. 132, 220601 (2024).
  17. A. E. Russo, K. M. Rudinger, B. C. A. Morrison, and A. D. Baczewski, Evaluating energy differences on a quantum computer with robust phase estimation, Phys. Rev. Lett. 126, 210501 (2021).
  18. Adriaan Walther, The question of phase retrieval in optics, Optica Acta: Int. J. Opt. 10, 41 (1963).
  19. Oren Raz, Nirit Dudovich, and Boaz Nadler, Vectorial phase retrieval of 1-D signals, IEEE Trans. Signal Process. 61, 1632 (2013).
  20. James Fienup, Phase retrieval algorithms: A comparison, Appl. Opt. 21, 2758 (1982).
  21. William J. Huggins, Joonho Lee, Unpil Baek, Bryan O’Gorman, and K. Birgitta Whaley, A non-orthogonal variational quantum eigensolver, New J. Phys. 22, 073009 (2020).
  22. S. Lu, M. C. Bañuls, and J. I. Cirac, Algorithms for quantum simulation at finite energies, PRX Quantum 2, 020321 (2021).
  23. A. Schuckert, A. Bohrdt, E. Crane, and M. Knap, Probing finite-temperature observables in quantum simulators of spin systems with short-time dynamics, Phys. Rev. B 107, L140410 (2023).
  24. K. Hémery, K. Ghanem, E. Crane, S. L. Campbell, J. M. Dreiling, C. Figgatt, C. Foltz, J. P. Gaebler, J. Johansen, M. Mills, S. A. Moses, J. M. Pino, A. Ransford, M. Rowe, P. Siegfried, R. P. Stutz, H. Dreyer, A. Schuckert, and R. Nigmatullin, Measuring the Loschmidt amplitude for finite-energy properties of the Fermi-Hubbard model on an ion-trap quantum computer, PRX Quantum 5, 030323 (2024).
  25. In our experiments, the superposition used was essentially a GHZ state, but we do not believe this is a fundamental requirement.
  26. We use square brackets to stress that the function takes discrete input.
  27. A. V. Oppenheim, A. S. Willsky, and S. H. Nawab, Signals & Systems, Prentice-Hall signal processing series, (Prentice-Hall International, London, United Kingdom, 1997), ISBN 9780136511755, https://books.google.co.uk/books?id=O9ZHSAAACAAJ.
  28. Rick P. Millane, Phase retrieval in crystallography and optics, J. Opt. Soc. Am. A-Optics Image Science and Vision 7, 394 (1990).
  29. J. Dainty and James Fienup, Phase retrieval and image reconstruction for astronomy, Image Recovery: Theory Appl. 13, 01 (1987).
  30. Joseph Vovrosh, Kiran E. Khosla, Sean Greenaway, Christopher Self, M. S. Kim, and Johannes Knolle, Simple mitigation of global depolarizing errors in quantum simulations, Phys. Rev. E 104, 035309 (2021), ISSN 2470-0053.
  31. Mingpu Qin, Thomas Schäfer, Sabine Andergassen, Philippe Corboz, and Emanuel Gull, The hubbard model: A computational perspective, Annu. Rev. Condens. Matter Phys. 13, 275 (2022), ISSN 1947-5462.
  32. Since we only work with relatively modest system sizes and total evolution times (since else we would have no interest in implementing control-free phase estimation), we note that the continuum limit behavior of these roots is not an immediate barrier for our method.
  33. For G[j] to be well-defined, the subsets of eigenstates of H with which |Φ⟩ and |ψ⟩ have significant overlap should not be disjoint, as this would cause |f2[j]| to vanish.
  34. Remark that the relaxation we use is slightly different to the one implemented in Ref. [19].
  35. Yu.M. Bruck and L. G. S Sodin, On the ambiguity of the image reconstruction problem, Opt. Commun. 30, 304 (1979), ISSN 0030-4018, https://www.sciencedirect.com/science/article/pii/0030401879903584.
  36. Dani Kogan, Yonina C. Eldar, and Dan Oron, On the 2D phase retrieval problem, IEEE Trans. Signal Process. 65, 1058 (2017), ISSN 1941-0476.
  37. Tamir Bendory, Robert Beinert, and Yonina C. Eldar, Fourier Phase Retrieval: Uniqueness and Algorithms (Springer International Publishing, Cham, 2017), p. 55, ISBN 978-3-319-69802-1.
  38. Eliyahu Osherovich, Numerical methods for phase retrieval, arXiv:1203.4756. URL https://api.semanticscholar.org/CorpusID:14566173.
  39. Note that T=T′ is not a fundamental requirement and other choices are possible and potentially beneficial.
  40. Julius O. Smith, Mathematics of the Discrete Fourier Transform (DFT) (W3K Publishing, Palo Alto, United States, 2007), ISBN 978-0-9745607-4-8, http://www.w3k.org/books/.
  41. We have plotted the zero frequency in the center.
  42. Daniel P. Arovas, Erez Berg, Steven A. Kivelson, and Srinivas Raghu, The hubbard model, Annu. Rev. Condens. Matter Phys. 13, 239 (2022), ISSN 1947-5462.
  43. Robert Beinert, One-dimensional phase retrieval with additional interference intensity measurements, Results Math. 72, 1 (2017).
  44. The absolute value here means the absolute value of every element f[j,l] of the N×M matrix f.
  45. Emmanuel J. Candes, Thomas Strohmer, and Vladislav Voroninski, Phaselift: Exact and stable signal recovery from magnitude measurements via convex programming, arXiv:1109.4499.
  46. Kishore Jaganathan, Yonina C. Eldar, and Babak Hassibi, Phase retrieval: An overview of recent developments, arXiv:1510.07713.
  47. C. Derby, J. Klassen, J. Bausch, and T. Cubitt, Compact fermion to qubit mappings, Phys. Rev. B 104, 035118 (2021).
  48. Michael A. Nielsen and Isaac L. Chuang, Quantum Computation and Quantum Information: 10th Anniversary Edition (Cambridge University, Cambridge, United Kingdom, 2010).
