Efficient Qubit Calibration by Binary-Search Hamiltonian Tracking

Fabrizio Berritta1,2, Jacob Benestad3, Lukas Pahl1,4, Melvin Mathews1,5, Jan A. Krzywda6, Réouven Assouly1, Youngkyu Sung1,4, David K. Kim7, Bethany M. Niedzielski7 et al.

Kyle Serniak1,7, Mollie E. Schwartz7, Jonilyn L. Yoder7, Anasua Chatterjee2,8, Jeffrey A. Grover1, Jeroen Danon3, William D. Oliver1,4,9, and Ferdinand Kuemmeth2,10,11,*

  • *Contact author: ferdinand.kuemmeth@ur.de
PDF

PRX Quantum 6, 030335 – Published 26 August, 2025

DOI: https://doi.org/10.1103/77qg-p68k

Abstract

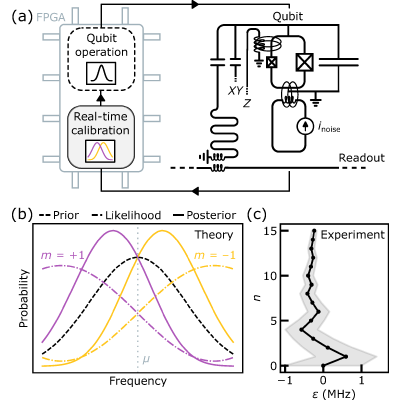

We present and experimentally implement a real-time protocol for calibrating the frequency of a resonantly driven qubit, achieving exponential scaling in calibration precision with the number of measurements, up to the limit imposed by decoherence. The real-time processing capabilities of a classical controller dynamically generate adaptive probing sequences for qubit-frequency estimation. Each probing evolution time and drive frequency are calculated to divide the prior probability distribution into two branches, following a locally optimal strategy that mimics a conventional binary search. The scheme does not require repeated measurements at the same setting, as it accounts for state preparation and measurement errors. Its use of a parametrized probability distribution favors numerical accuracy and computational speed. We show the efficacy of the algorithm by stabilizing a flux-tunable transmon qubit, leading to improved coherence and gate fidelity. As benchmarked by gate-set tomography, the field-programmable gate array (FPGA) powered control electronics partially mitigates non-Markovian noise, which is detrimental to quantum error correction. The mitigation is achieved by dynamically updating and feeding forward the qubit frequency. Our protocol highlights the importance of feedback in improving the calibration and stability of qubits subject to drift and can be readily applied to other qubit platforms.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Quantum computing and quantum sensing rely on the development of quantum devices. As quantum devices are sensitive to changes in their environment, they can easily lose their intended quantum properties, a phenomenon known as quantum decoherence. To calibrate quantum devices, one can apply feedback by estimating uncontrolled environmental noise in real time. This is an important task for many platforms such as superconducting qubits, spin qubits, trapped atoms, and others.

In this study, a protocol is presented for an efficient real-time Hamiltonian estimation of a superconducting qubit. Real-time Bayesian Hamiltonian estimation is performed using a field-programmable gate array (FPGA) based on single-shot readout classification. Even though the qubit frequency fluctuates over time because of flux noise (which normally would cause decoherence), it is estimated on the fly by updating its probability distribution according to a binary-search algorithm. The FPGA then adapts the free-evolution time and drive frequency of the microwave pulses accordingly, resulting in improved qubit performance with fewer than ten measurements.

This study introduces a new protocol that employs a binary-search Hamiltonian-estimation protocol aimed at mitigating the effects of decoherence and drift of solid-state qubits affected by low-frequency noise.

Article Text

Supplemental Material

References (57)

  1. T. Ichikawa, et al., Current numbers of qubits and their uses, Nat. Rev. Phys. 6, 345 (2024).
  2. E. Campbell, A series of fast-paced advances in quantum error correction, Nat. Rev. Phys. 6, 160 (2024).
  3. Google Quantum AI and Collaborators, Quantum error correction below the surface code threshold, Nature 638, 920 (2025).
  4. H. Ball, W. D. Oliver, and M. J. Biercuk, The role of master clock stability in quantum information processing, npj Quantum Inf. 2, 1 (2016).
  5. M. Mohseni, et al., How to build a quantum supercomputer: Scaling challenges and opportunities, ArXiv:2411.10406.
  6. V. Gebhart, R. Santagati, A. A. Gentile, E. M. Gauger, D. Craig, N. Ares, L. Banchi, F. Marquardt, L. Pezzè, and C. Bonato, Learning quantum systems, Nat. Rev. Phys. 5, 141 (2023).
  7. K. Reuer, J. Landgraf, T. Fösel, J. O’Sullivan, L. Beltrán, A. Akin, G. J. Norris, A. Remm, M. Kerschbaum, J.-C. Besse, et al., Realizing a deep reinforcement learning agent for real-time quantum feedback, Nat. Commun. 14, 7138 (2023).
  8. M. J. Arshad, C. Bekker, B. Haylock, K. Skrzypczak, D. White, B. Griffiths, J. Gore, G. W. Morley, P. Salter, J. Smith, I. Zohar, A. Finkler, Y. Altmann, E. M. Gauger, and C. Bonato, Real-time adaptive estimation of decoherence timescales for a single qubit, Phys. Rev. Appl. 21, 024026 (2024).
  9. F. Berritta, T. Rasmussen, J. A. Krzywda, J. van der Heijden, F. Fedele, S. Fallahi, G. C. Gardner, M. J. Manfra, E. van Nieuwenburg, J. Danon, A. Chatterjee, and F. Kuemmeth, Real-time two-axis control of a spin qubit, Nat. Commun. 15, 1676 (2024).
  10. N. Dumoulin Stuyck, A. E. Seedhouse, S. Serrano, T. Tanttu, W. Gilbert, J. Y. Huang, F. Hudson, K. M. Itoh, A. Laucht, W. H. Lim, C. H. Yang, A. Saraiva, and A. S. Dzurak, Silicon spin qubit noise characterization using real-time feedback protocols and wavelet analysis, Appl. Phys. Lett. 124, 114003 (2024).
  11. N. R. Vora, Y. Xu, A. Hashim, N. Fruitwala, H. N. Nguyen, H. Liao, J. Balewski, A. Rajagopala, K. Nowrouzi, Q. Ji, et al., 2024 IEEE International Conference on Quantum Computing and Engineering (QCE), (IEEE, Montreal, QC, Canada, 2024), pp. 414–415.
  12. F. Berritta, J. A. Krzywda, J. Benestad, J. van der Heijden, F. Fedele, S. Fallahi, G. C. Gardner, M. J. Manfra, E. van Nieuwenburg, J. Danon, A. Chatterjee, and F. Kuemmeth, Physics-informed tracking of qubit fluctuations, Phys. Rev. Appl. 22, 014033 (2024).
  13. J. Park, H. Jang, H. Sohn, J. Yun, Y. Song, B. Kang, L. E. Stehouwer, D. D. Esposti, G. Scappucci, and D. Kim, Passive and active suppression of transduced noise in silicon spin qubits, Nat. Commun. 16, 78 (2025).
  14. S. Kimmel, G. H. Low, and T. J. Yoder, Robust calibration of a universal single-qubit gate set via robust phase estimation, Phys. Rev. A 92, 062315 (2015).
  15. R. D. McMichael and S. M. Blakley, Simplified algorithms for adaptive experiment design in parameter estimation, Phys. Rev. Appl. 18, 054001 (2022).
  16. T. Hurant, K. Sun, Z. Jia, J. Kim, and K. R. Brown, Few-shot, robust calibration of single qubit gates using Bayesian robust phase estimation, ArXiv:2407.18339.
  17. B. de Neeve, A. V. Lebedev, V. Negnevitsky, and J. P. Home, Time-adaptive phase estimation, Phys. Rev. Res. 7, 023070 (2025).
  18. P. Krantz, M. Kjaergaard, F. Yan, T. P. Orlando, S. Gustavsson, and W. D. Oliver, A quantum engineer’s guide to superconducting qubits, Appl. Phys. Rev. 6, 021318 (2019).
  19. A. Blais, A. L. Grimsmo, S. M. Girvin, and A. Wallraff, Circuit quantum electrodynamics, Rev. Mod. Phys. 93, 025005 (2021).
  20. J. B. Hertzberg, E. J. Zhang, S. Rosenblatt, E. Magesan, J. A. Smolin, J.-B. Yau, V. P. Adiga, M. Sandberg, M. Brink, J. M. Chow, et al., Laser-annealing Josephson junctions for yielding scaled-up superconducting quantum processors, npj Quantum Inf. 7, 129 (2021).
  21. C. Berke, E. Varvelis, S. Trebst, A. Altland, and D. P. DiVincenzo, Transmon platform for quantum computing challenged by chaotic fluctuations, Nat. Commun. 13, 2495 (2022).
  22. A. Vepsäläinen, R. Winik, A. H. Karamlou, J. Braumüller, A. D. Paolo, Y. Sung, B. Kannan, M. Kjaergaard, D. K. Kim, A. J. Melville, B. M. Niedzielski, J. L. Yoder, S. Gustavsson, and W. D. Oliver, Improving qubit coherence using closed-loop feedback, Nat. Commun. 13, 1932 (2022).
  23. C. Ferrie, C. E. Granade, and D. G. Cory, How to best sample a periodic probability distribution, or on the accuracy of Hamiltonian finding strategies, Quantum Inf. Process. 12, 611 (2013).
  24. The commonly used term non-Markovian noise refers to the nonunitary evolution of a quantum system that cannot be modeled by the Markovian master equation. Such non-Markovian decoherence arises from the finite memory of the environment, which introduces correlations between consecutive measurement outcomes.
  25. H. Hakoshima, Y. Matsuzaki, and S. Endo, Relationship between costs for quantum error mitigation and non-Markovian measures, Phys. Rev. A 103, 012611 (2021).
  26. J. F. Kam, S. Gicev, K. Modi, A. Southwell, and M. Usman, Detrimental non-Markovian errors for surface code memory, Quantum Sci. Technol. 10, 035060 (2025).
  27. L. Viola, E. Knill, and S. Lloyd, Dynamical decoupling of open quantum systems, Phys. Rev. Lett. 82, 2417 (1999).
  28. P. Szańkowski, G. Ramon, J. Krzywda, D. Kwiatkowski, and Ł. Cywiński, Environmental noise spectroscopy with qubits subjected to dynamical decoupling, J. Phys.: Condens. Matter 29, 333001 (2017).
  29. D. Pataki, Á. Márton, J. K. Asbóth, and A. Pályi, Coherent errors in stabilizer codes caused by quasistatic phase damping, Phys. Rev. A 110, 012417 (2024).
  30. E. Nielsen, J. K. Gamble, K. Rudinger, T. Scholten, K. Young, and R. Blume-Kohout, Gate set tomography, Quantum 5, 557 (2021).
  31. E. Knill, D. Leibfried, R. Reichle, J. Britton, R. B. Blakestad, J. D. Jost, C. Langer, R. Ozeri, S. Seidelin, and D. J. Wineland, Randomized benchmarking of quantum gates, Phys. Rev. A 77, 012307 (2008).
  32. Y. Sung, L. Ding, J. Braumüller, A. Vepsäläinen, B. Kannan, M. Kjaergaard, A. Greene, G. O. Samach, C. McNally, D. Kim, A. Melville, B. M. Niedzielski, M. E. Schwartz, J. L. Yoder, T. P. Orlando, S. Gustavsson, and W. D. Oliver, Realization of high-fidelity CZ and ZZ-free iSWAP gates with a tunable coupler, Phys. Rev. X 11, 021058 (2021).
  33. See the Supplemental Material at http://link.aps.org/supplemental/10.1103/77qg-p68k for the experimental setup, noise power spectral density and numerical simulations of the frequency binary-search estimation scheme. The Supplemental Material includes Refs. [54, 55, 56, 57].
  34. C. Bonato, M. S. Blok, H. T. Dinani, D. W. Berry, M. L. Markham, D. J. Twitchen, and R. Hanson, Optimized quantum sensing with a single electron spin using real-time adaptive measurements, Nat. Nanotechnol. 11, 247 (2015).
  35. T. Joas, S. Schmitt, R. Santagati, A. A. Gentile, C. Bonato, A. Laing, L. P. McGuinness, and F. Jelezko, Online adaptive quantum characterization of a nuclear spin, npj Quantum Inf. 7, 56 (2021).
  36. A. M. Childs, J. Preskill, and J. Renes, Quantum information and precision measurement, J. Mod. Opt. 47, 155 (2000).
  37. R. S. Said, D. W. Berry, and J. Twamley, Nanoscale magnetometry using a single-spin system in diamond, Phys. Rev. B 83, 125410 (2011).
  38. P. Cappellaro, Spin-bath narrowing with adaptive parameter estimation, Phys. Rev. A 85, 030301 (2012).
  39. N. M. Nusran, M. U. Momeen, and M. V. G. Dutt, High-dynamic-range magnetometry with a single electronic spin in diamond, Nat. Nanotechnol. 7, 109 (2012).
  40. G. Waldherr, J. Beck, P. Neumann, R. S. Said, M. Nitsche, M. L. Markham, D. J. Twitchen, J. Twamley, F. Jelezko, and J. Wrachtrup, High-dynamic-range magnetometry with a single nuclear spin in diamond, Nat. Nanotechnol. 7, 105 (2012).
  41. We clarify that this is not a true binary search in the sense of gaining exactly one bit of information per measurement. The search does, however, follow a binary-search tree where the two options at each node provide the most information within the approximations that we use. A true quantum binary search could be implemented for a decoherence-free qubit with ideal initialization and readout [36]. The focus here is on estimating noise in a physical qubit.
  42. In the limit μ/σ→0, for m=+1, the likelihood function with zero phase (a squared cosine) has a single maximum at μ=0 within the 95% credible interval of the prior distribution and the corresponding posterior distribution can be approximated by a Gaussian. In contrast, for m=−1 in the same limit, the zero-phase likelihood function (a squared sine) exhibits two global maxima within the 95% credible interval and a minimum at the maximum prior value, resulting in a bimodal posterior distribution that cannot be adequately approximated by a single Gaussian.
  43. J. Benestad, J. A. Krzywda, E. van Nieuwenburg, and J. Danon, Efficient adaptive Bayesian estimation of a slowly fluctuating Overhauser field gradient, SciPost Phys. 17, 014 (2024).
  44. Note that we do not claim exponential scaling with sensing time, which is fundamentally bounded by the Heisenberg limit σ2(ε)∼1/τ2. Instead, our protocol achieves exponential scaling with the number of single-shot measurements N.
  45. D. C. McKay, C. J. Wood, S. Sheldon, J. M. Chow, and J. M. Gambetta, Efficient Z gates for quantum computing, Phys. Rev. A 96, 022330 (2017).
  46. In the RB experiment, μ0 is reset to zero before each estimation sequence, which explains the increased σ0 and N compared to the Ramsey experiment of the previous section, where we do not reset μ0 before each estimation sequence. We believe that further improvements in the single-qubit gate fidelity could be achieved by using the same settings as in the Ramsey experiment. Still, this work focuses on demonstrating the enhancement provided by FBS, rather than achieving the highest possible fidelity for this particular setup.
  47. P. J. J. O’Malley, et al., Qubit metrology of ultralow phase noise using randomized benchmarking, Phys. Rev. Appl. 3, 044009 (2015).
  48. E. Nielsen, K. Rudinger, T. Proctor, A. Russo, K. Young, and R. Blume-Kohout, Probing quantum processor performance with pyGSTi, Quantum Sci. Technol. 5, 044002 (2020).
  49. A. Hashim, L. B. Nguyen, N. Goss, B. Marinelli, R. K. Naik, T. Chistolini, J. Hines, J. Marceaux, Y. Kim, P. Gokhale, et al., A practical introduction to benchmarking and characterization of quantum computers, ArXiv:2408.12064.
  50. Y. R. Sanders, J. J. Wallman, and B. C. Sanders, Bounding quantum gate error rate based on reported average fidelity, New J. Phys. 18, 012002 (2015).
  51. T. Nakajima, A. Noiri, K. Kawasaki, J. Yoneda, P. Stano, S. Amaha, T. Otsuka, K. Takeda, M. R. Delbecq, G. Allison, et al., Coherence of a driven electron spin qubit actively decoupled from quasistatic noise, Phys. Rev. X 10, 011060 (2020).
  52. B.-J. Liu, Y.-Y. Wang, T. Sheffer, and C. Wang, Observation of discrete charge states of a coherent two-level system in a superconducting qubit, Phys. Rev. Lett. 133, 160602 (2024).
  53. F. Ye, A. Ellaboudy, and J. M. Nichol, Stabilizing an individual charge fluctuator in a Si/SiGe quantum dot, Phys. Rev. Appl. 23, 044063 (2025).
  54. J. S. Rojas-Arias, Y. Kojima, K. Takeda, P. Stano, T. Nakajima, J. Yoneda, A. Noiri, T. Kobayashi, D. Loss, and S. Tarucha, The origins of noise in the Zeeman splitting of spin qubits in natural-silicon devices, ArXiv:2408.13707.
  55. B. Paquelet Wuetz, D. Degli Esposti, A.-M. J. Zwerver, S. V. Amitonov, M. Botifoll, J. Arbiol, A. Sammak, L. M. Vandersypen, M. Russ, and G. Scappucci, Reducing charge noise in quantum dots by using thin silicon quantum wells, Nat. Commun. 14, 1385 (2023).
  56. E. Magesan, J. M. Gambetta, B. R. Johnson, C. A. Ryan, J. M. Chow, S. T. Merkel, M. P. da Silva, G. A. Keefe, M. B. Rothwell, T. A. Ohki, M. B. Ketchen, and M. Steffen, Efficient measurement of quantum gate error by interleaved randomized benchmarking, Phys. Rev. Lett. 109, 080505 (2012).
  57. P. J. Huber, Robust Statistics, Wiley Series in Probability and Mathematical Statistics (J. Wiley & Sons, New York, 1981).
